Zoom 12W LED Dimmable Recessed Downlight 4000K IP65 - White

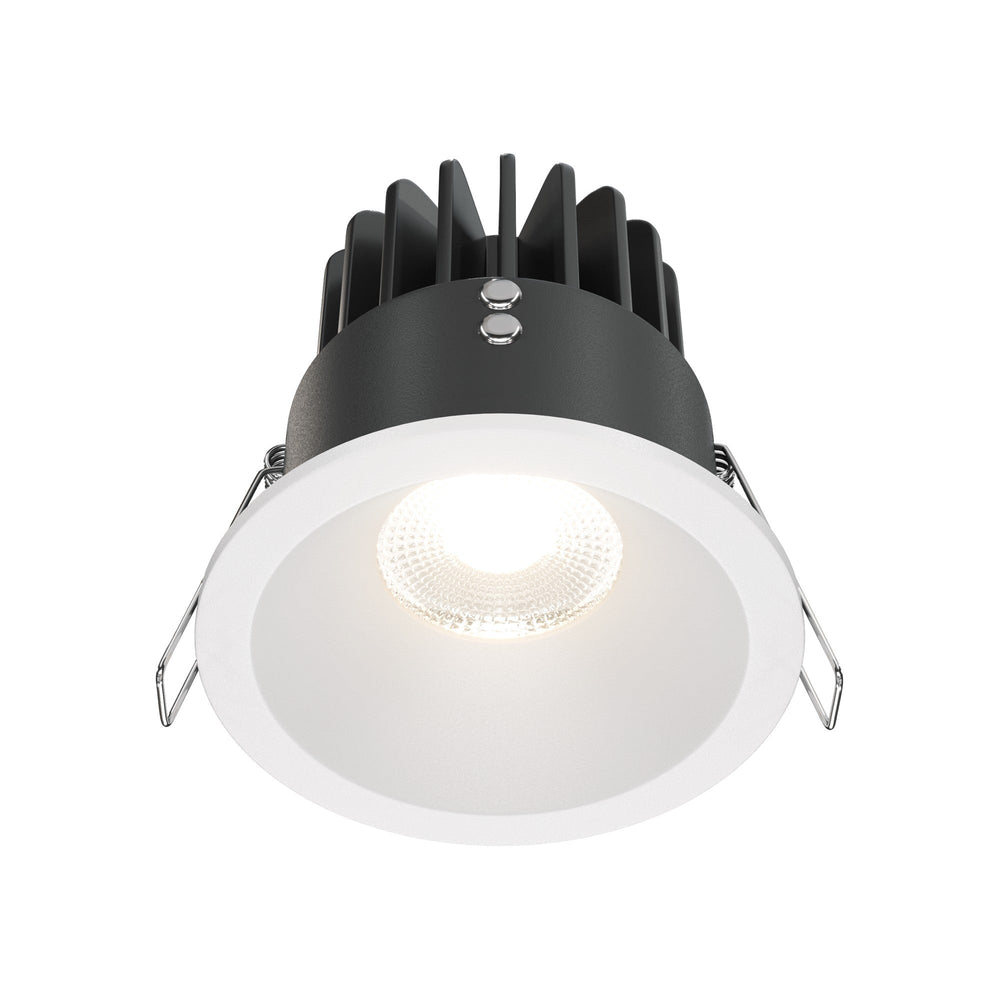

The Zoom is an 85mm recessed LED downlight with an integrated 12W LED module producing 4000K cool white light at CRI90. The white aluminium bezel and trim ring fit a recessed ceiling cut-out, with the LED driver and heatsink assembly mounted above the ceiling line. The IP65 rating protects against water jets and dust ingress, making the fitting suitable for bathrooms, shower rooms, outdoor soffits and covered entrances where moisture is present.

Designed for task lighting and general illumination in residential, commercial and hospitality installations, the 4000K colour temperature provides neutral white light that enhances colour accuracy in kitchens, bathrooms, retail displays and workspaces. The 12W output delivers approximately 960-1000 lumens depending on driver efficiency, which is comparable to a 75-80W halogen downlight. The dimmable capability works with compatible trailing-edge and leading-edge dimmers, allowing output to be reduced for mood lighting or energy saving.

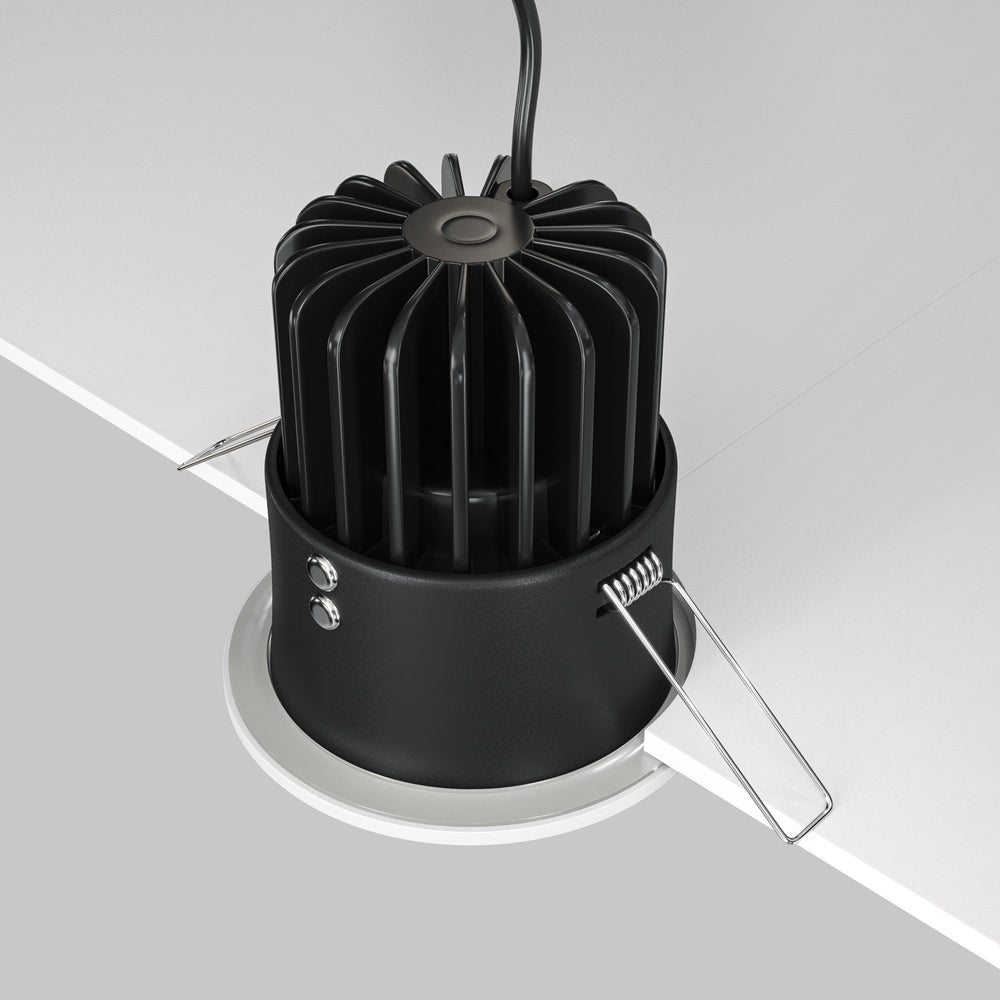

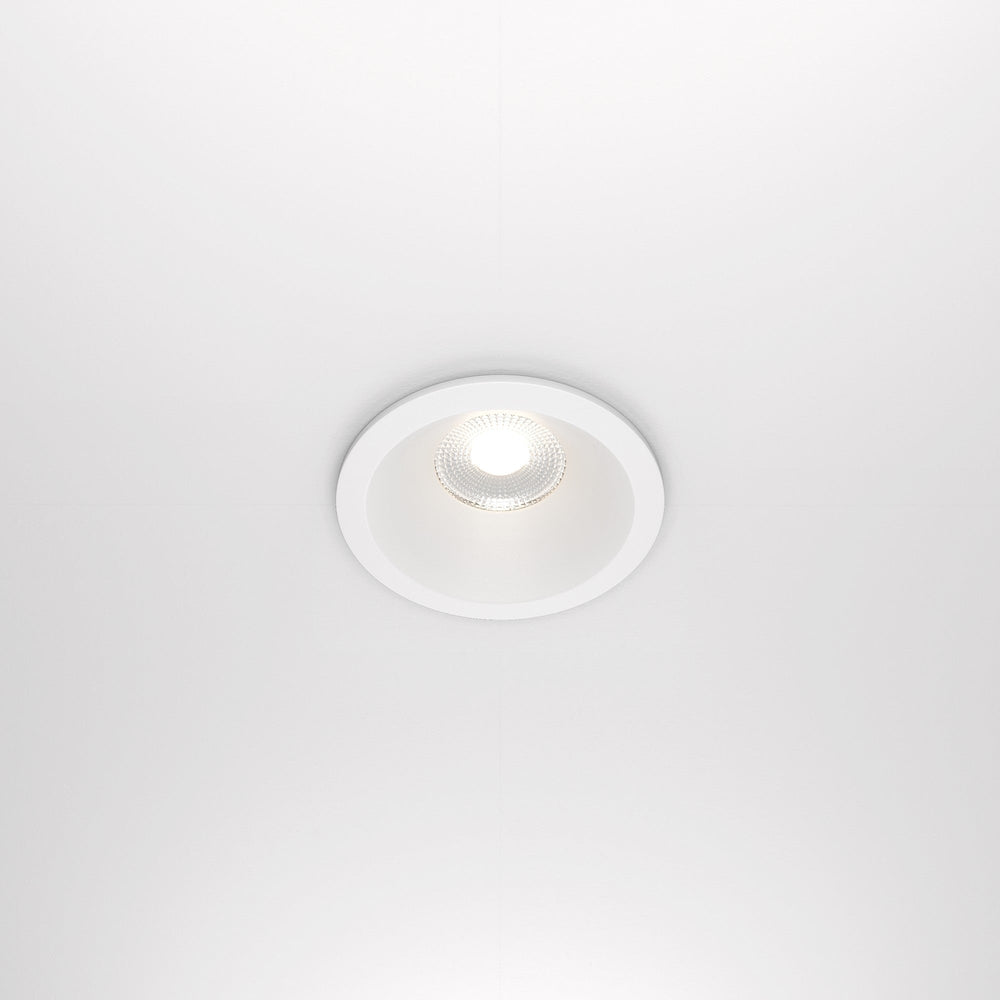

The aluminium construction includes external heatsink fins visible above the ceiling line, which dissipate heat away from the LED module and extend operational life. The white powder-coated bezel sits flush with the ceiling surface once installed, giving a clean finish that blends with white and light-toned ceilings. The CRI90 rating means the light renders colours accurately, which is useful in bathrooms for grooming tasks, in kitchens for food preparation, and in retail or display contexts where colour fidelity matters.

The IP65 rating means the downlight can be installed in bathroom zones 1 and 2 (within the bath or shower enclosure and directly above the bath or shower to a height of 2.25m), as well as outdoor covered locations such as porch soffits, car ports and canopies where the fitting is protected from direct rainfall but exposed to damp air. The fitting requires a ceiling void depth of approximately 100mm to accommodate the driver and heatsink assembly.

Product Manual

Can this be installed in a bathroom?

Yes. The IP65 rating makes the Zoom suitable for bathroom zones 1 and 2, which includes installation within or directly above a bath or shower enclosure up to 2.25m height. It can also be used in zone 0 (inside the bath or shower tray) if specified by a qualified electrician, though most domestic installations use zone 1 or 2 placement.

What ceiling void depth is needed?

Approximately 100mm of ceiling void depth is required to accommodate the LED driver, heatsink assembly and wiring connections above the ceiling line. The 85mm bezel diameter requires an 80mm ceiling cut-out.

Is it compatible with dimmer switches?

The Zoom is dimmable and works with most trailing-edge and leading-edge dimmers designed for LED loads. Performance varies depending on the dimmer model — consult the dimmer manufacturer's compatibility list or test before finalising installation across multiple fittings.

What is the difference between 3000K and 4000K?

4000K produces a neutral cool white light similar to daylight, which enhances task visibility and colour accuracy. 3000K produces a warmer, more yellow-toned light closer to traditional halogen. For bathrooms, kitchens and workspaces, 4000K is typically preferred. For living rooms and bedrooms, 3000K is more common.
