Unity Single Phase Surface-Mounted Track X-Connector - White

£1099
The RRP is the manufacturer's recommended retail price of the item.
880 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

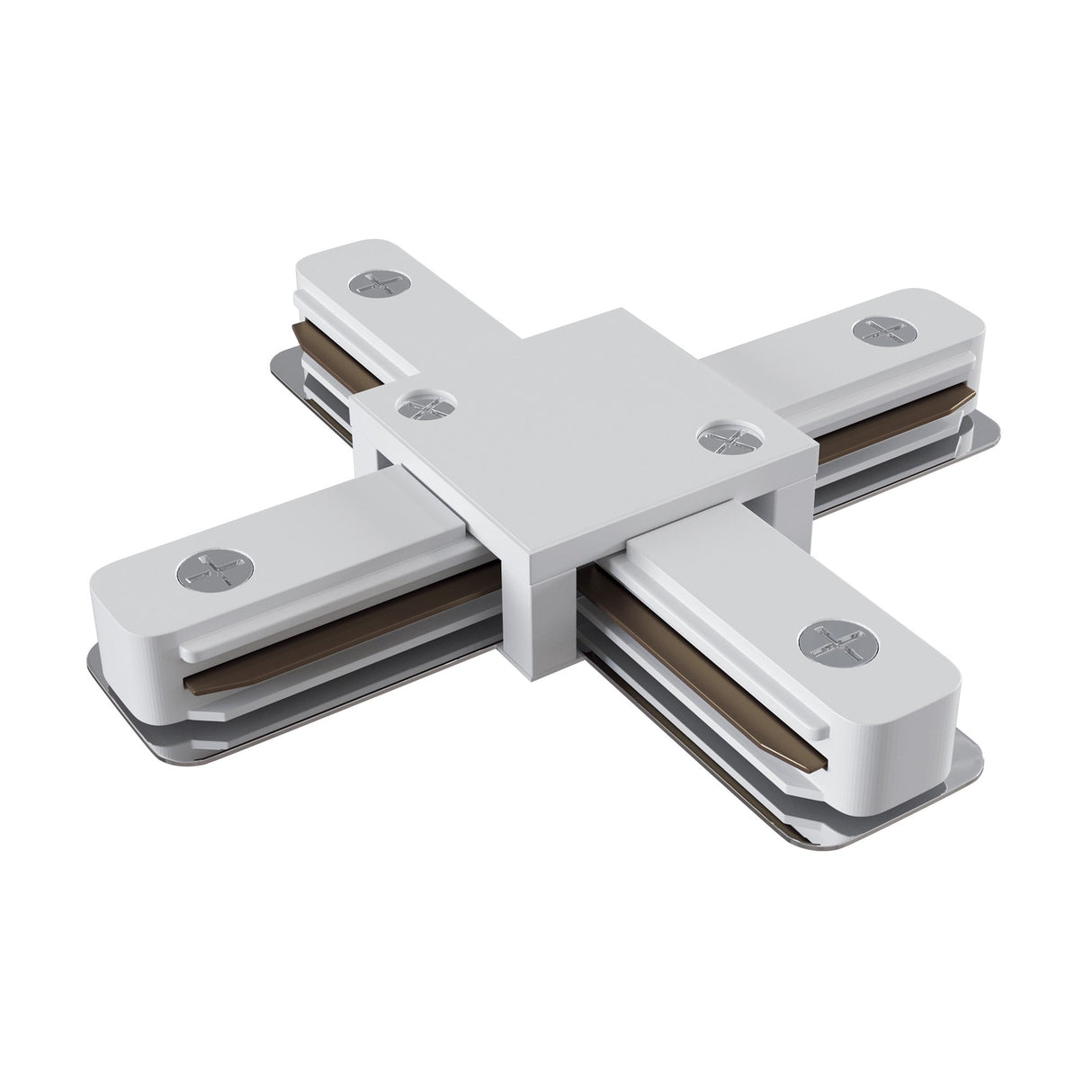

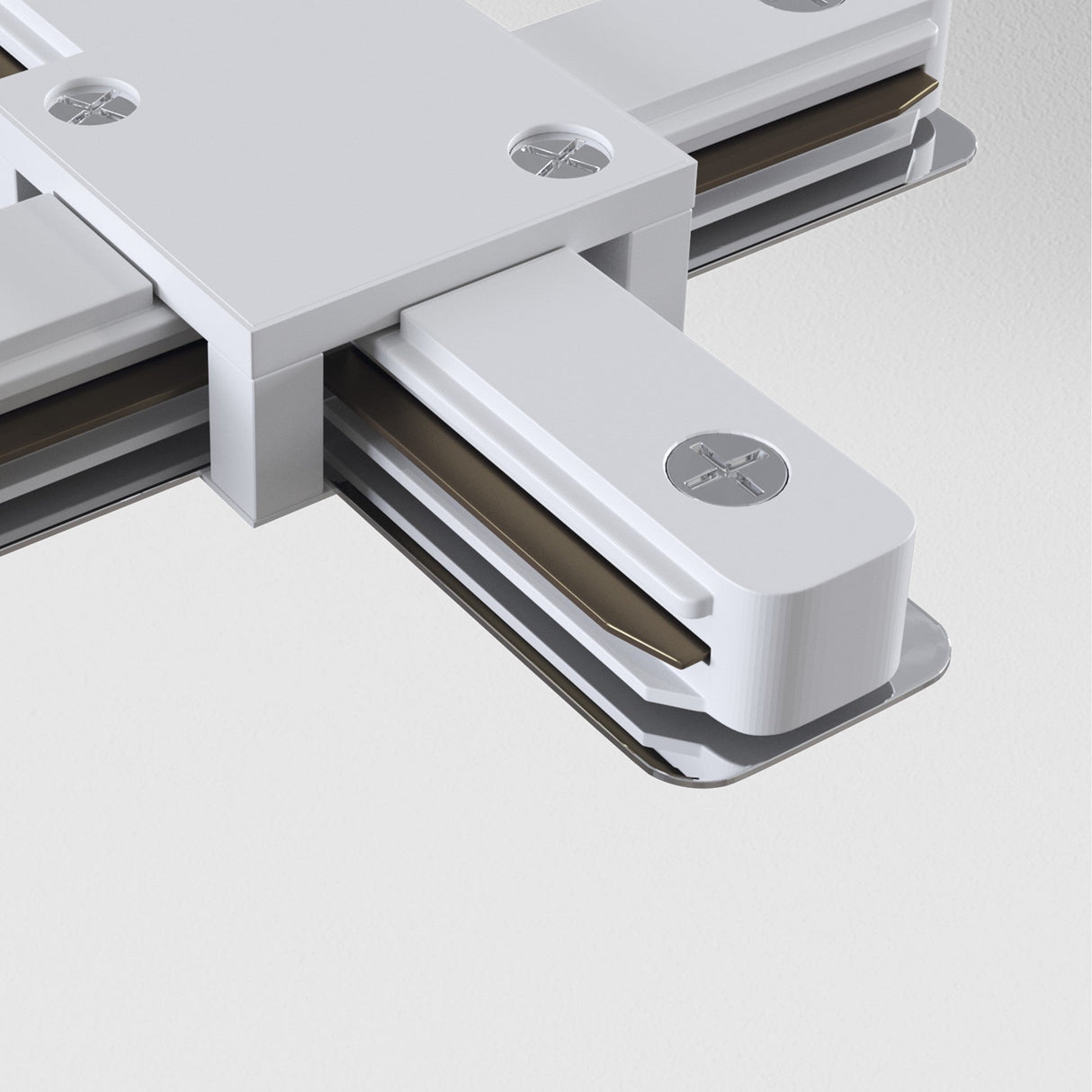

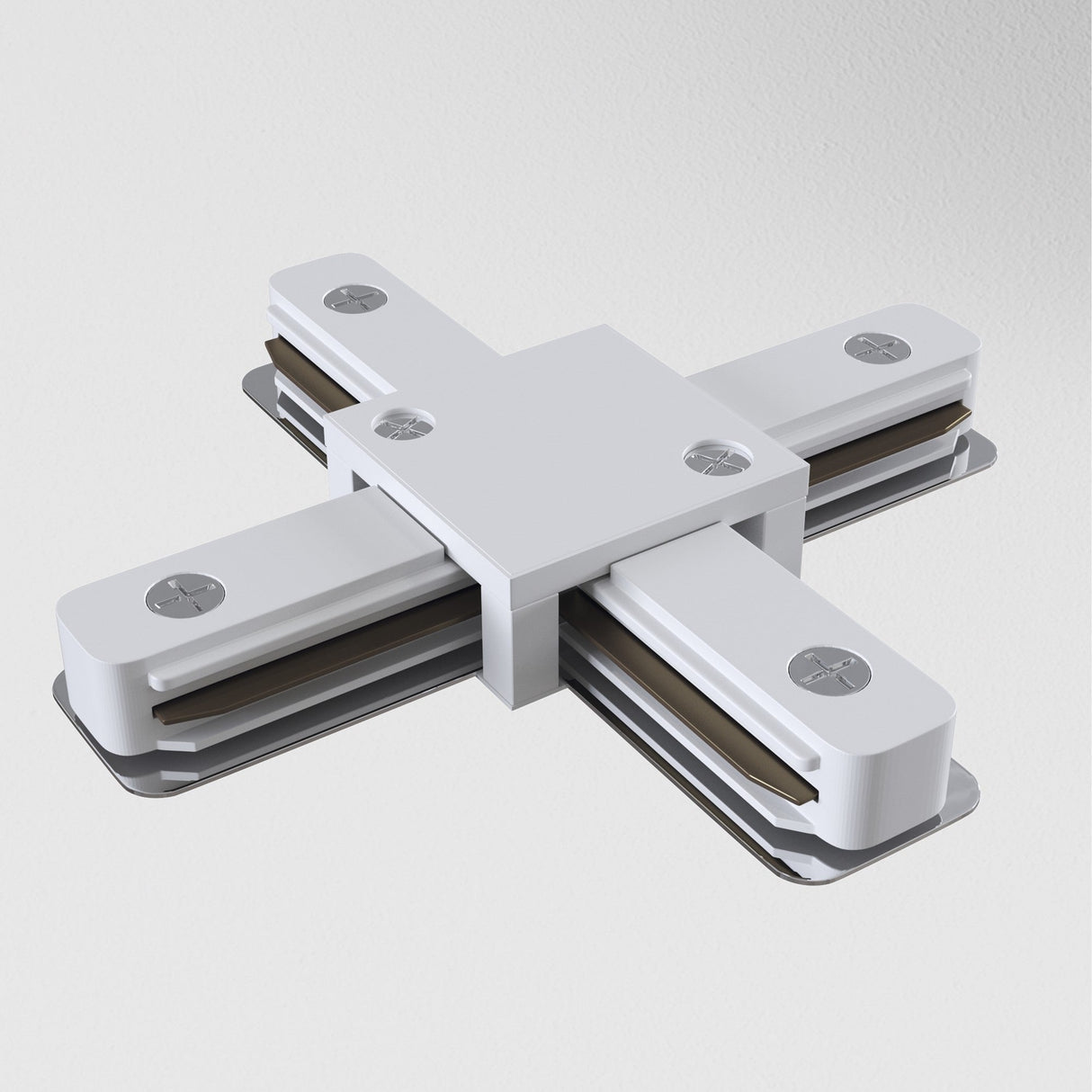

The Unity X-connector is a white plastic junction piece that joins four single-phase track segments in a cross configuration, allowing track lighting to run in four directions from a single central point. The connector measures 110 x 110mm across its arms with a 23mm height when surface-mounted, and supports AC 220-240V single-phase electrical supply across all four outlets.

Designed for retail, gallery, office and residential spaces where track lighting needs to cover multiple zones from a central ceiling position, the X-connector allows a single power feed to distribute across perpendicular track runs without additional ceiling wiring. The white finish matches Maytoni's Unity white track system, maintaining a uniform appearance when the connector sits exposed on a white or light-coloured ceiling. Installation involves fixing the connector to the ceiling first, then slotting the track ends into each of the four arms and securing with the internal locking mechanism.

The plastic body keeps the connector lightweight and resistant to corrosion, though the connector itself carries no IP rating and is designed for dry indoor use only. The 110mm arm-to-arm span means the connector works best where track segments meet at 90-degree angles with no offset — for T-junctions or L-bends, separate T and L connectors in the Unity range provide a better fit. The connector maintains electrical continuity across all four outlets, so spotlights can be positioned on any of the connected track segments and draw power from the single feed point.

Specification
Height 2.3cm
Length 11cm
Width 11cm
Finish White
Construction Plastic
Voltage AC 220-240
Warranty 2 Year Guarantee
Downloads

Product Manual

Frequently Asked

What track system is this compatible with?

This connector is designed for Maytoni's Unity single-phase surface-mounted track system in white. It will not fit recessed tracks, two-circuit tracks, or track systems from other manufacturers due to differences in the locking mechanism and conductor spacing.

How is the connector wired?

The connector receives power from one of the four connected track segments, which itself connects back to a ceiling power feed via a separate feed connector. The X-connector then distributes that power to the other three track arms. It does not require separate wiring — it simply joins the tracks mechanically and electrically.

Can spotlights be positioned directly over the connector?

No. The X-connector is a junction piece only and does not accept spotlight fittings. Spotlights mount onto the track segments that slot into the connector's four arms.

What's the maximum load across all four arms?

The maximum load depends on the rating of the main feed connector and the circuit protection at the consumer unit, not the X-connector itself. Consult the Unity system documentation or a qualified electrician to confirm the total wattage your track installation can support.
