Unbranded AC6V 100V 3-6W Ceiling Speaker

£1199
RRP £1299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

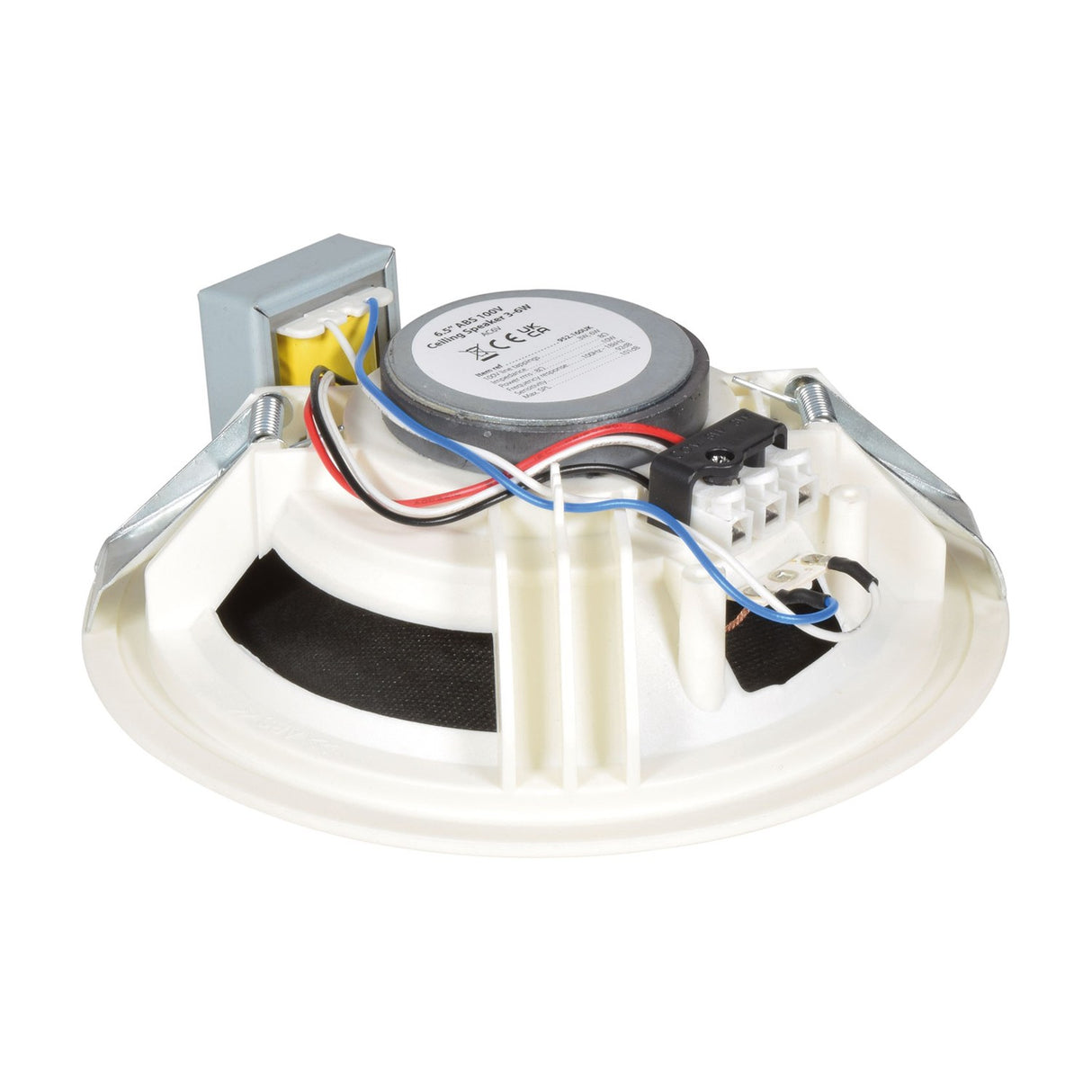

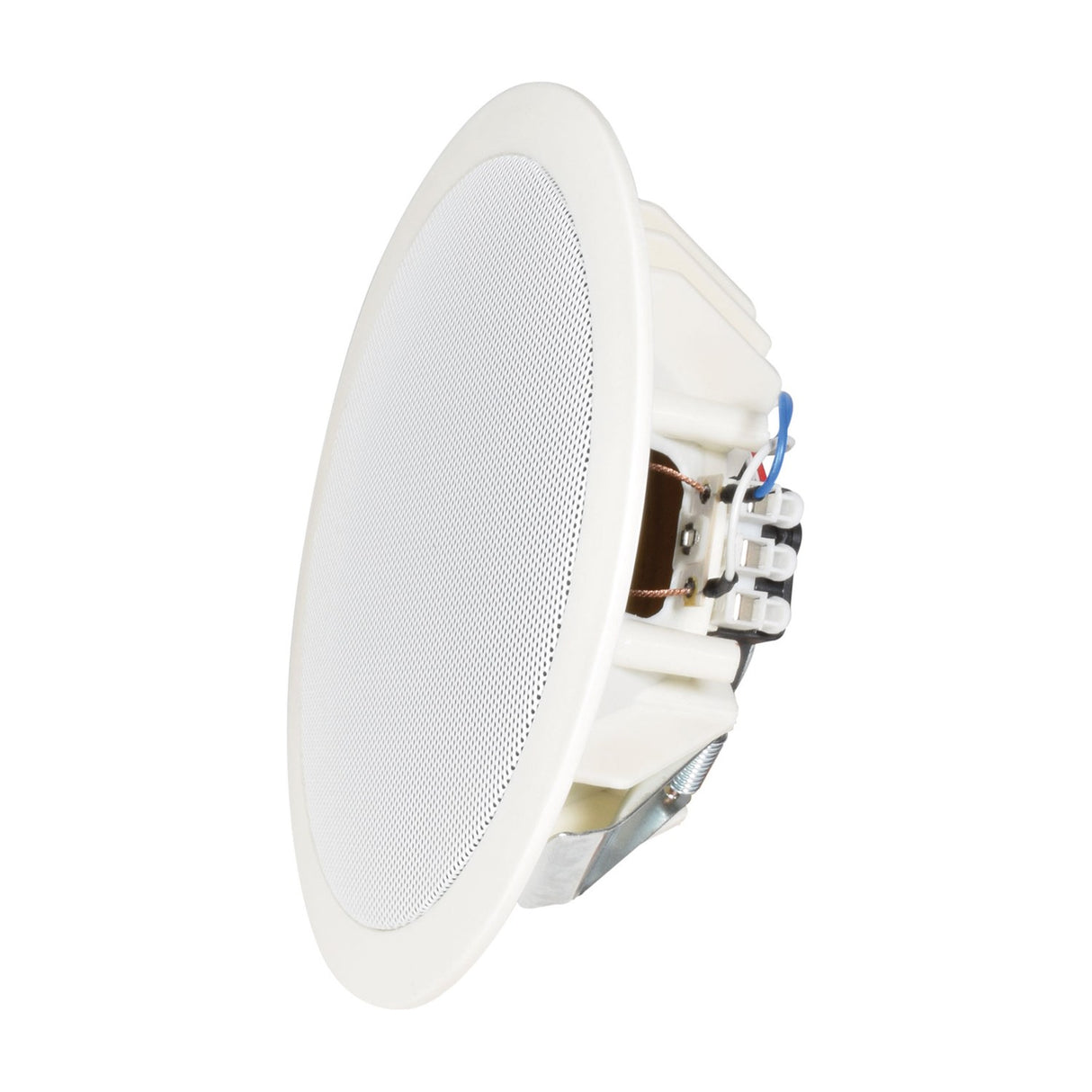

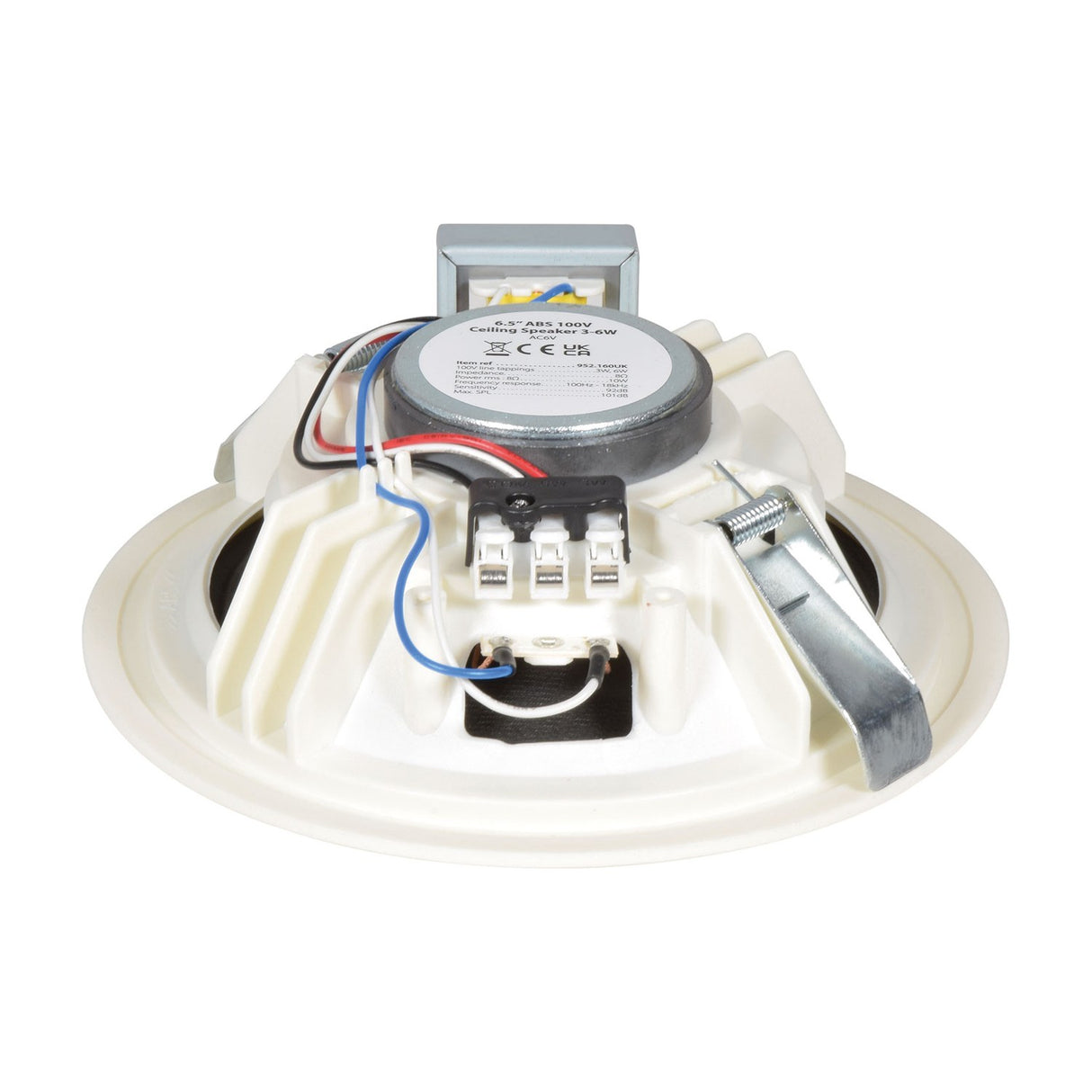

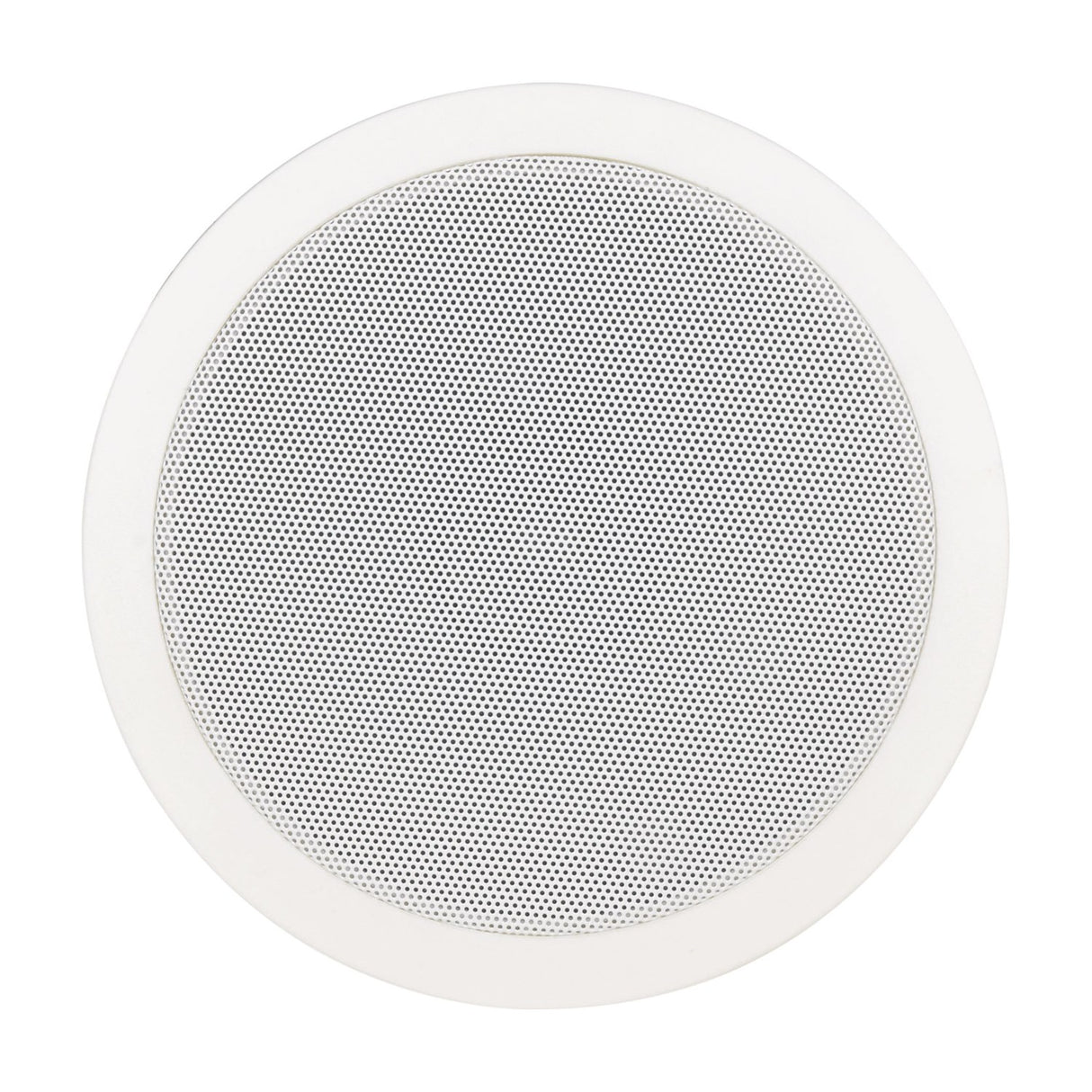

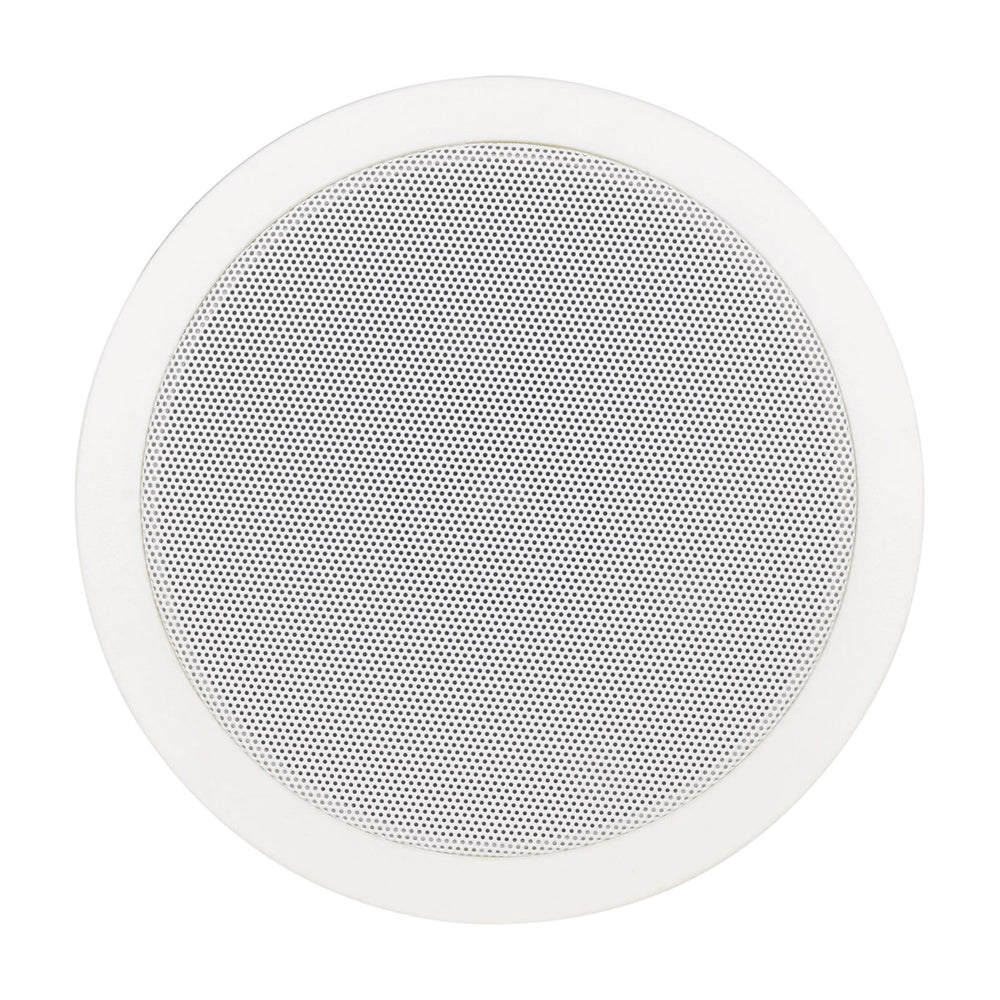

The AC6V is a flush-mount ceiling speaker built for background music and speech in commercial buildings. It fits neatly into suspended ceilings and holds in place with an inbuilt pair of easy-fit spring clamps, so a single installer can mount it without extra brackets. The frame and basket are moulded from ABS, and the grille is powder coated steel, giving a tidy finish that sits flush against the ceiling line.

Inside is a 6.5" reinforced paper dual cone driver. The dual cone design widens the frequency range, helping the speaker carry both the lower body of music and the clarity of the spoken word across 100Hz to 18kHz. Sensitivity is rated at 92dB with a maximum SPL of 101dB, which suits the sort of even, steady coverage you want across a room or corridor rather than high-volume playback.

The AC6V runs on a 100V line system (also called a 100 volt line or constant voltage system), with selectable 3W and 6W power tappings so you can balance output across a chain of speakers. It also carries an 8 ohm impedance rating at 10W RMS if you prefer a low-impedance setup on shorter runs. The cutout is 170mm in diameter and the unit measures 65 x 187mm, weighing 590g. It works well anywhere you need clear, distributed audio, from retail and offices to reception areas and hospitality spaces.

Specification
Construction ABS frame & basket with steel grille
Tappings 3W, 6W
Impedance 8 Ohm
Power rms : 8 Ohms 10W
Frequency response 100Hz - 18kHz
Sensitivity 92dB
Max. SPL 101dB
Cutout 170mmØ
Dimensions 65mm x 187mmØ
Weight 0.59KG
Frequently Asked

What size cutout does the AC6V need?

The AC6V requires a 170mm diameter cutout. The speaker body measures 65 x 187mm, so allow depth clearance above the ceiling for the basket and driver.

What are the power tappings?

It offers 3W and 6W tappings on a 100V line. You can select the tapping to balance loudness across a chain of speakers on the same line.

Can I use it as a standard 8 ohm speaker?

Yes. Alongside the 100V line tappings it carries an 8 ohm impedance rating at 10W RMS, so it can be wired into a low-impedance system on shorter cable runs.

How does it mount into the ceiling?

It uses an inbuilt pair of spring clamps. Once the cutout is made, the clamps grip the ceiling material and pull the speaker flush, so no separate mounting frame is needed.

Is it suitable for music as well as speech?

Yes. The 6.5" dual cone driver covers 100Hz to 18kHz, which handles background music and speech distribution. It is aimed at even coverage rather than high-volume output.

What is the frame made from?

The frame and basket are ABS, with a powder coated steel grille. This keeps the weight low at 590g while giving a durable, tidy finish.
