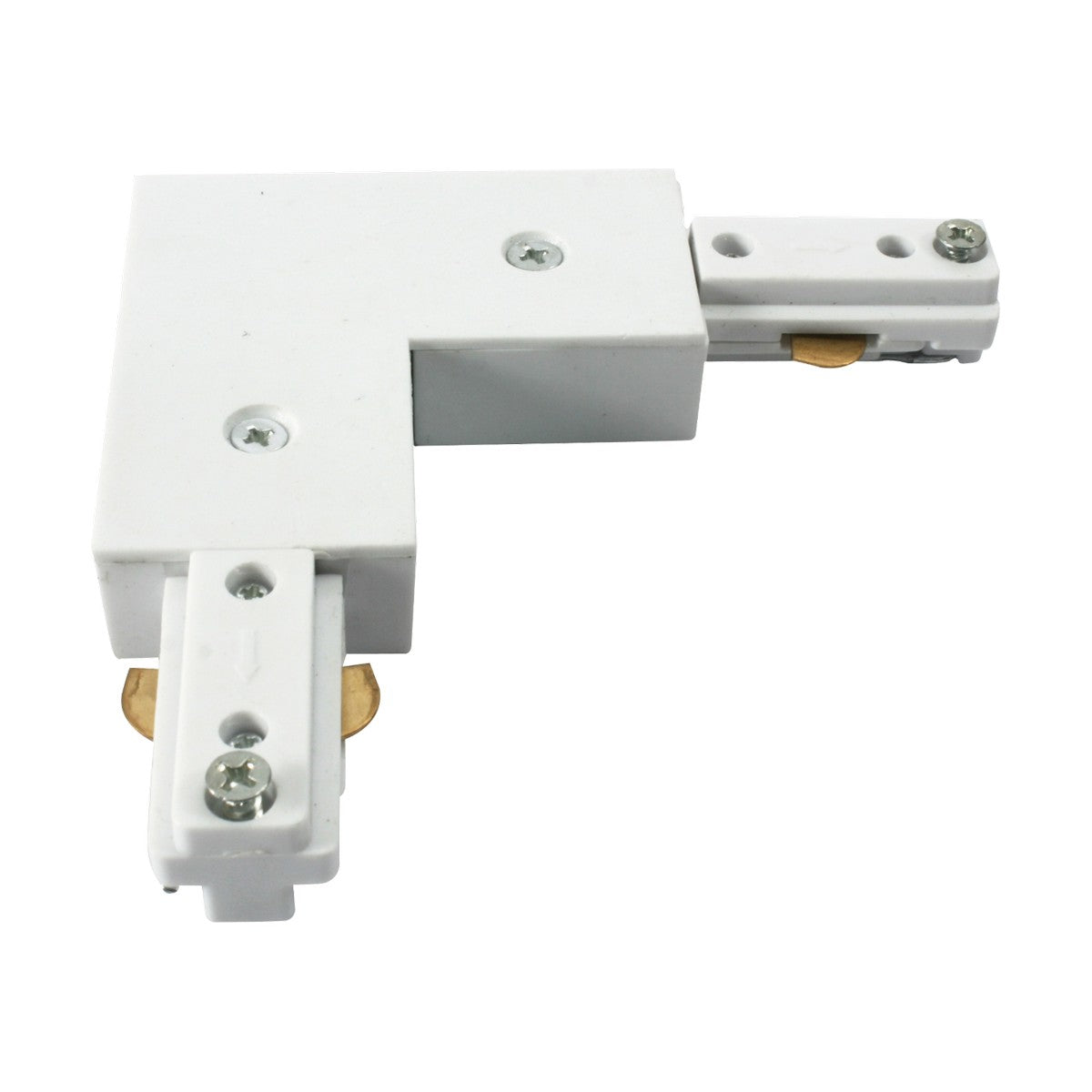

Track L Right Angle Connector - White

The Knightsbridge TRKRA1W is a white L-shaped connector for joining two sections of single-circuit track lighting rail at a 90° right angle. The connector maintains electrical continuity through the corner, allowing a track lighting run to turn from one wall onto an adjacent wall or to follow an L-shaped ceiling perimeter without breaking the circuit.

Designed for use with Knightsbridge's TRKSPxx series track systems, the connector fits residential, retail and commercial installations where track lighting needs to navigate corners. The connector can also function as a central power feed point, with mains supply entering through the L-piece and distributing power along both arms of the track run. This reduces the need for separate power feeds at each end of the installation.

The white polycarbonate housing measures 108mm along its longest outer edge with a 35mm width and 18mm projection from the ceiling, matching the profile of the track rail itself. Internal copper contacts carry the 230V supply through the corner joint. The IP20 rating restricts use to dry indoor locations only — the connector is not suitable for bathrooms, outdoor canopies or any environment where water contact is possible.

Product Specification Sheet

Which track systems is this compatible with?

This L-connector is designed for the Knightsbridge TRKSPxx series single-circuit track lighting systems. It will not fit three-circuit or other manufacturers' track profiles.

Can this be used as a power feed point?

Yes. The connector can function as a central power feed, with the mains supply entering through the L-piece and distributing power along both arms of the track. This allows a corner installation to be powered from a single ceiling point rather than requiring separate feeds at each end.

Is it suitable for bathroom use?

No. The IP20 rating means the connector is for dry indoor use only and must not be installed in bathrooms, wet rooms, outdoor canopies or any location where water contact or high humidity is present.

Does it include fixings?

The connector joins two track sections together electrically and mechanically. Ceiling fixings for the track rail itself are supplied with the track, not with the connector. Check the product specification sheet in the Downloads tab for full installation details.
