Single 6ft 48W Modular LED High Power Batten 4000K

£3199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

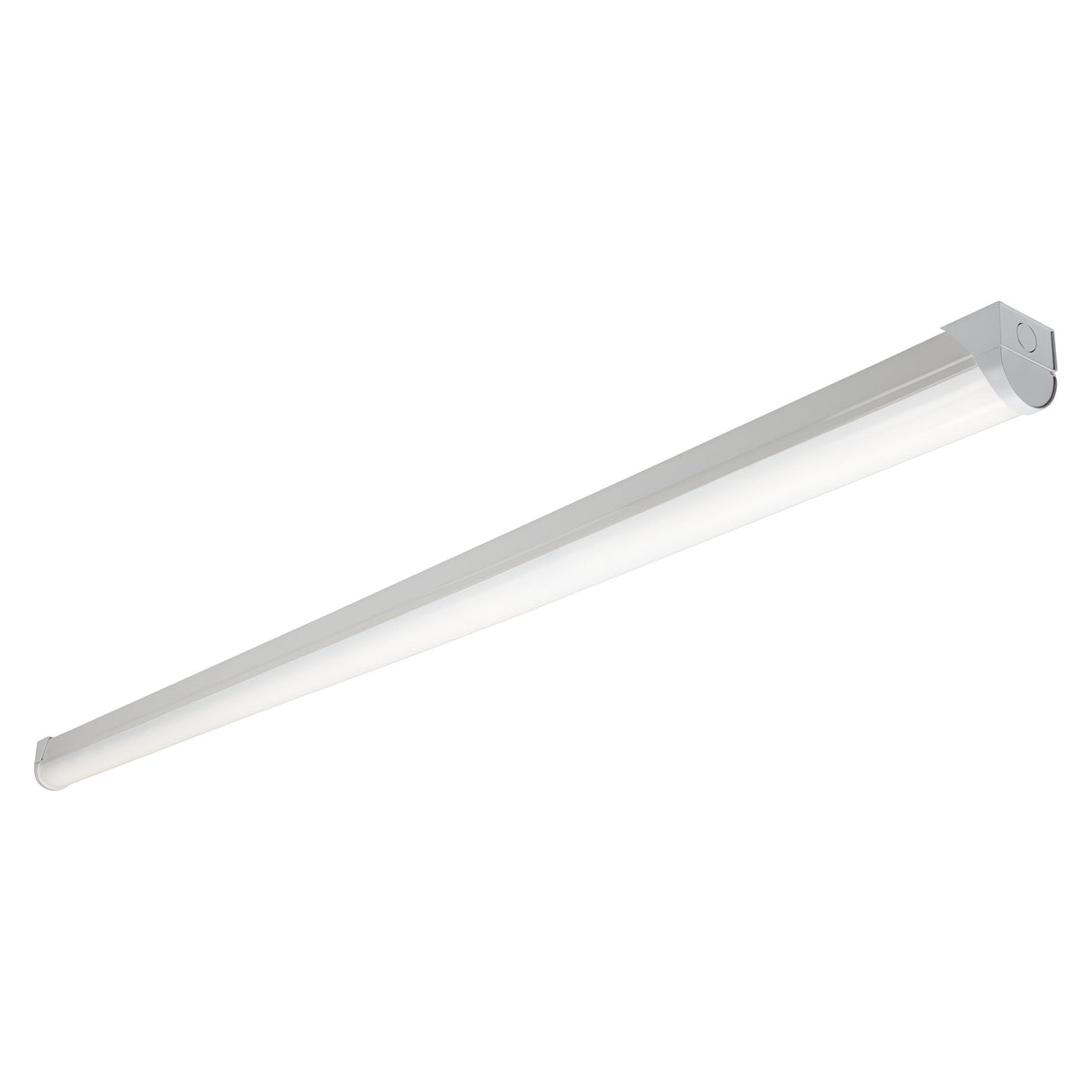

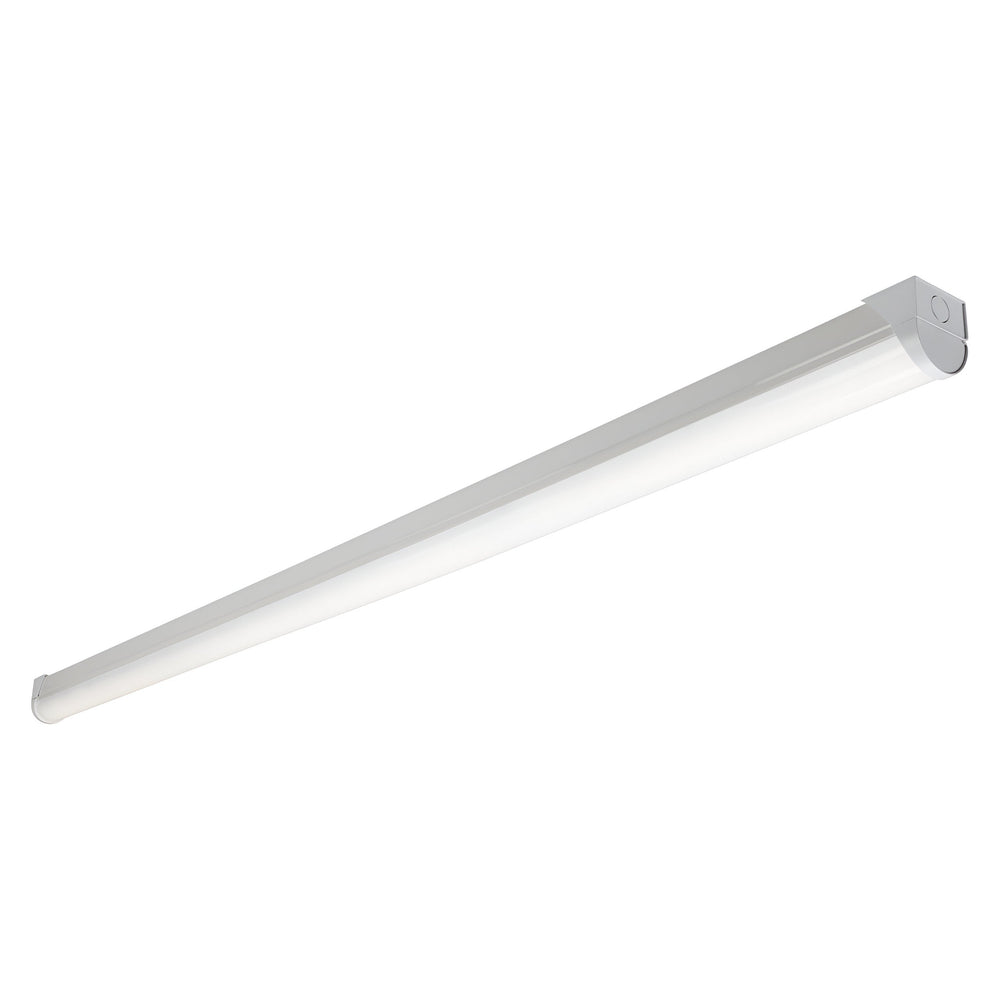

The Knightsbridge BATM6H is a 1790mm (6ft) 48W LED batten delivering 6700lm at 4000K cool white through an opal polycarbonate diffuser. The pressed steel housing includes a hinged gear tray that swings open for wiring access, rear and end conduit entry points, and standard 600mm fixing centres compatible with BESA boxes for retrofitting existing batten positions.

Designed for commercial, industrial and utility installations requiring continuous linear light, the batten suits workshops, warehouses, retail back-of-house areas, stairwells, and underground car parks. The modular design accepts optional plug-in modules including a microwave sensor (MODMWS) for presence detection or an emergency conversion kit (MODEMKIT) for maintained or non-maintained emergency lighting, allowing the same base fitting to serve multiple applications without changing the fixture.

The integrated LED light source delivers 153lm/W efficacy with an L70B50 rated lifespan of 100,000 hours, translating to approximately 11 years of continuous operation before the output degrades to 70% of initial lumens. The 120-degree beam angle provides wide lateral spread suitable for mounting heights between 2.5m and 4m. The IP20 rating restricts use to dry indoor locations, and the fitting is Class I requiring an earth connection. Push-fit loop-in loop-out terminal blocks allow daisy-chaining multiple battens on a single circuit without additional junction boxes.

Specification
Length 1790mm
Width 61mm
Projection 70mm
Construction Pressed steel & polycarbonate
Finish White
IP Rating IP20
Class I
Primary Voltage 230V 50Hz
Diffuser Opal
Lamp Technology LED
Lamp Included Yes
Dimmable No
L70B50 100000
Energy Rating (Class) post 2021 SLR D
Beam Angle 120
CCT 4000K
Light Colour Cool White
Lumens 6700lm
Lumens (Light source only) 7400lm
Wattage 48W
Efficacy (Light source) 153lm/W
CRI >80
Warranty 5 Year Guarantee
Downloads

Product Specification Sheet

Frequently Asked

What modular accessories are available?

The batten accepts optional plug-in modules including the MODMWS microwave sensor for automatic presence detection and the MODEMKIT emergency conversion kit for maintained or non-maintained emergency lighting. These modules retrofit into the gear tray without replacing the entire fitting.

What mounting height is recommended?

The 120-degree beam angle and 6700lm output suit mounting heights between 2.5m and 4m. Lower mounting provides higher lux levels at the working plane, while higher mounting increases lateral spread but reduces intensity.

Can multiple battens be daisy-chained?

Yes. Push-fit loop-in loop-out terminal blocks inside the hinged gear tray allow daisy-chaining multiple battens on a single circuit without requiring separate junction boxes between each fitting.

Is it suitable for outdoor use?

No. The IP20 rating restricts use to dry indoor locations only. For outdoor or damp environments, see Knightsbridge's IP65-rated batten range.
