QTX QX12A Active Moulded PA Speaker Cabinet

£20499
RRP £23900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

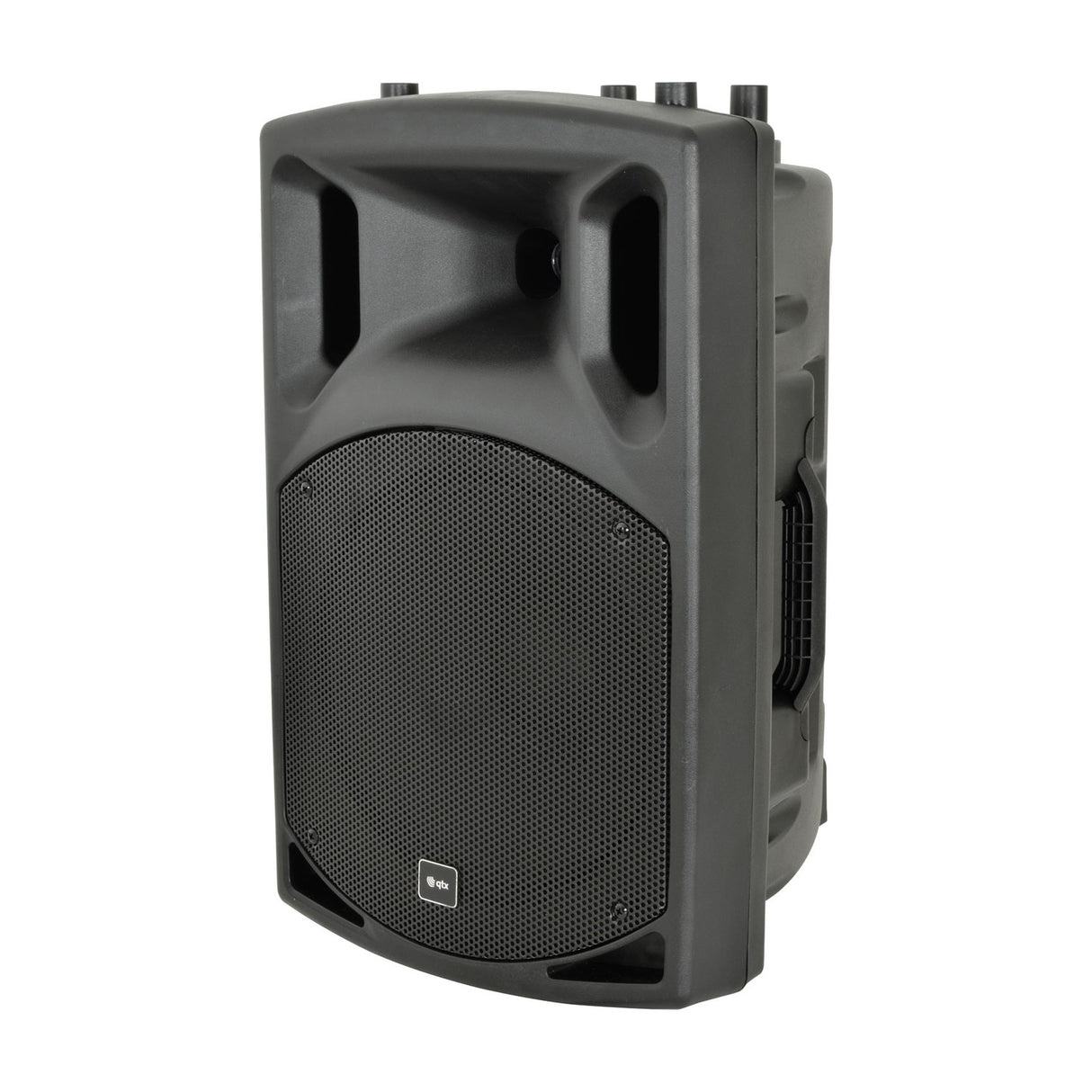

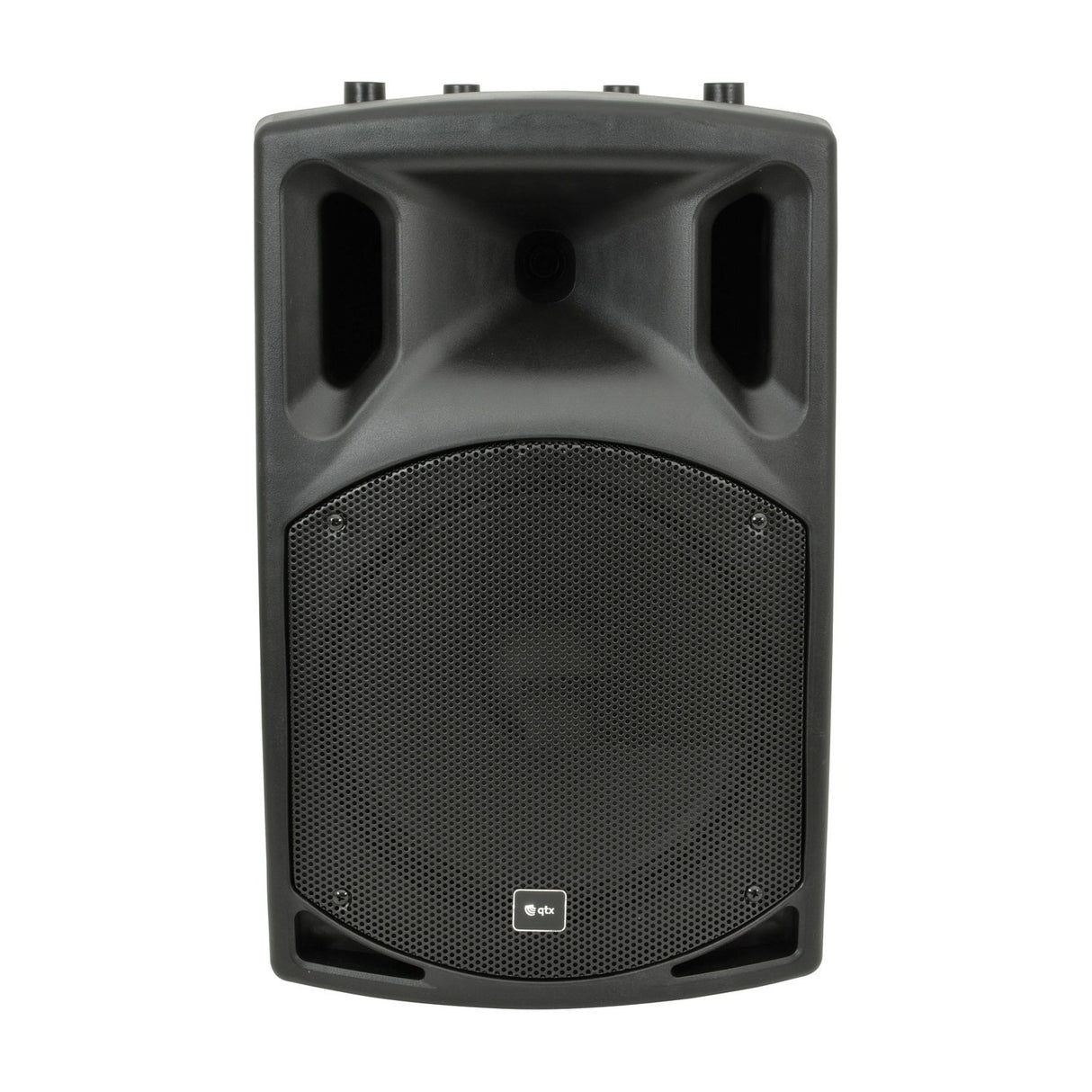

The QTX QX12A is an active PA speaker built into a moulded ABS cabinet. It has a built-in amplifier with a mixer section, so you can plug your sources straight in and drive the speaker without a separate amp or mixing desk. The cabinet is lightweight and ported, with an integral carry handle to make it easier to move between jobs.

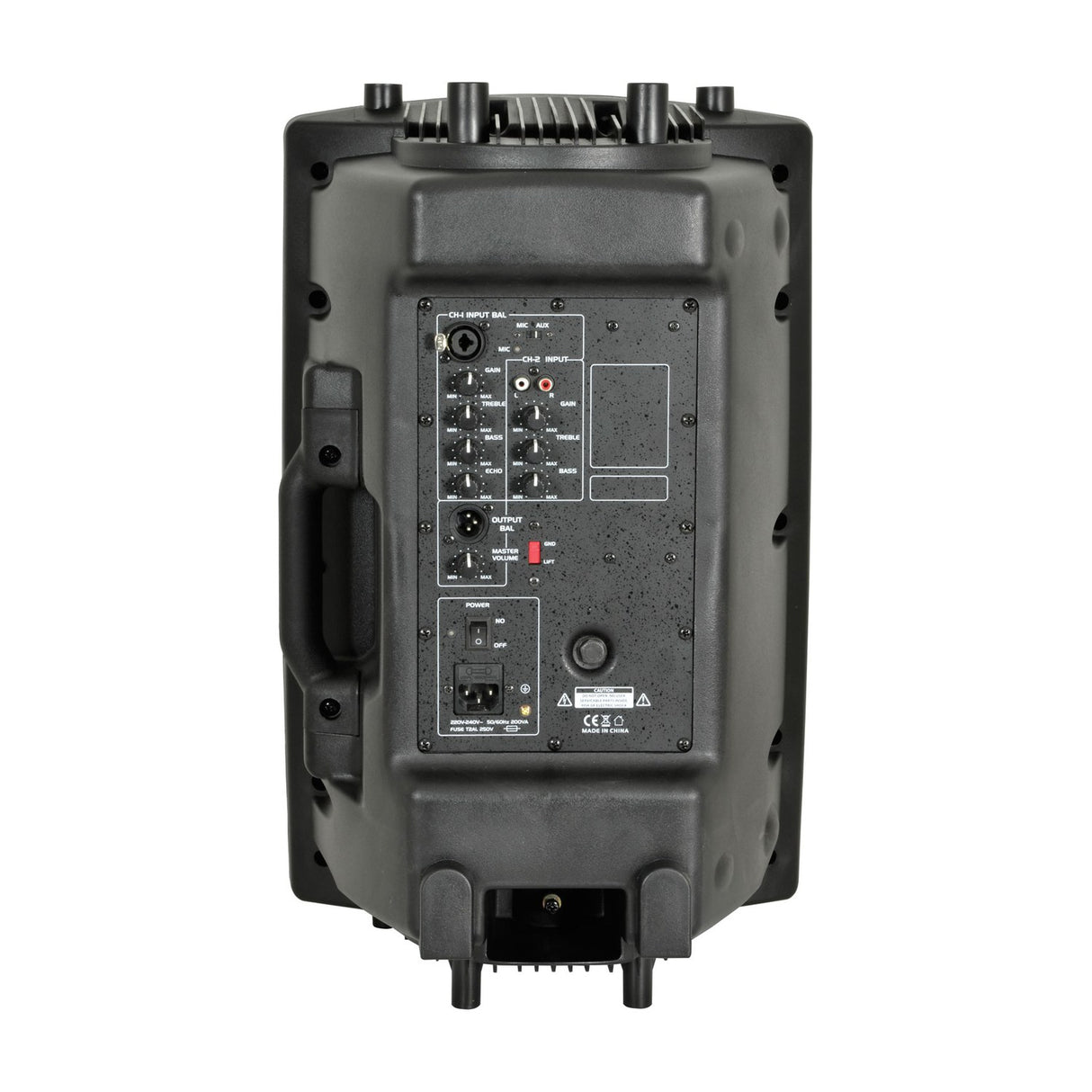

Inside you get a titanium compression driver working through a constant directivity horn, giving a dispersion of 90 degrees horizontal by 60 degrees vertical. The mixer section takes mic and line inputs, each with its own volume control, plus tone controls so you can shape the sound to the room. The amplifier is designed to deliver high output and develop high sound pressure levels (SPLs).

The QX12A runs from a 230Vac 50Hz IEC mains supply, with a nominal impedance of 4 Ohms. Measured figures include a THD of 0.1% and a signal-to-noise ratio (SNR) of 87dB. A 35mm internal top hat lets you mount the cabinet on a standard speaker pole (stand). It suits mobile setups, small venues, presentations and background music where you want a self-contained active speaker that is quick to set up and pack away.

Specification
Weight 13.20KG
Dimensions 345mm x 565mm x 320mm
Crossover frequency 3.5kHz
Max. SPL 127dB
Frequency response 45Hz - 20kHz
HF driver : coil size 25mmØ
HF driver 38mm Ti compression driver
LF driver : coil size 52mmØ
LF driver 300mm (12")
SPL @ 1W/1m 101dB
Power max. 400W
Power rms 200W
Inputs Mic (combo), Line (RCA)
Power supply 230Vac, 50Hz (IEC)
SNR 87dB
THD 0.1%
Dispersion 90° x 60° (H x V)
Impedance 4 Ohm
Downloads

Product Manual

Frequently Asked

Does the QX12A need a separate amplifier?

No. The QX12A is an active speaker with a built-in amplifier and mixer section, so you can connect your sources directly.

Can I mount it on a speaker stand?

Yes. It has a 35mm internal top hat that fits a standard speaker pole or stand.

What inputs does the mixer section have?

It takes mic and line inputs, each with its own volume control, plus tone controls for shaping the sound.

What driver does it use?

It uses a titanium compression driver working through a constant directivity horn.

What power supply does it require?

It runs from a 230Vac, 50Hz mains supply via an IEC connection.

What is the dispersion of the horn?

The horn gives a dispersion of 90 degrees horizontal by 60 degrees vertical.
