QTX QS Series 12" Replacement Driver Chassis Speaker

£5399
RRP £5900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

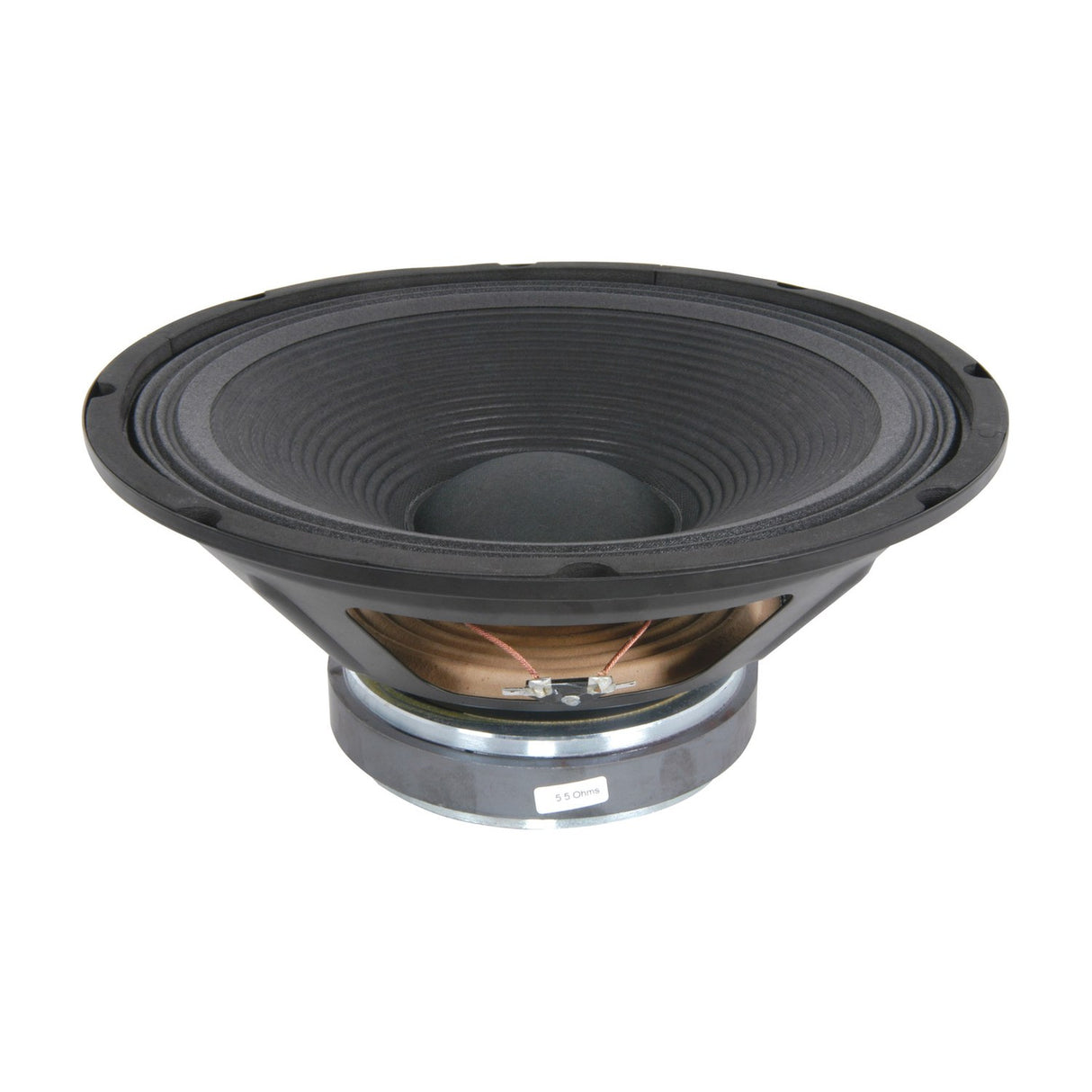

This is a replacement driver from the QTX QS series, built to fit the QS12 (178.562UK) and QS12A (178.565UK) speakers. If the main driver in one of these cabinets has been damaged or worn through heavy use, this 12" chassis speaker (also called a driver in US terms) lets you get the speaker working again rather than replacing the whole unit.

The driver runs at 8 ohms, matching the original specification for the QS series. It slots into the existing enclosure and connects to the crossover and terminals already fitted, so you keep the same cabinet, grille and hardware. Fitting is straightforward for anyone comfortable removing the front grille and unscrewing the old chassis, and it means you can extend the working life of kit you already own.

We stock these as part of a wider range of chassis speakers for QTX Sound models, so you can source the correct part for your setup. Always check the model number on the rear of your speaker against the QS12 and QS12A codes above before ordering to make sure this is the right driver for your cabinet. If you are unsure, get in touch and we can help confirm the fit.

Specification
Weight 4.02KG
Dimensions 129mm x 307mmØ
Voice coil 52mm (2")
SPL @ 1W/1m 98dB
Magnet weight 1.40KG
Frequency response 45Hz - 6kHz
Diameter 30cm (12")
Magnet size 156mm x 20mm
Power rms 250W
Power max. 500W
Impedance 8 Ohm
Frequently Asked

Which speakers does this driver fit?

It is designed to replace the main driver in the QTX QS12 (178.562UK) and QS12A (178.565UK) speakers.

What is the impedance of this driver?

The driver is rated at 8 ohms, matching the original QS series specification.

What size is the driver?

It is a 12" chassis speaker, sometimes called a 12-inch driver.

Can I fit this myself?

Yes, if you are comfortable removing the front grille and unscrewing the old chassis, then connecting the new one to the existing terminals.

How do I confirm this is the right part?

Check the model number on the rear of your speaker against the QS12 or QS12A codes before ordering. Contact us if you need help.
