Description

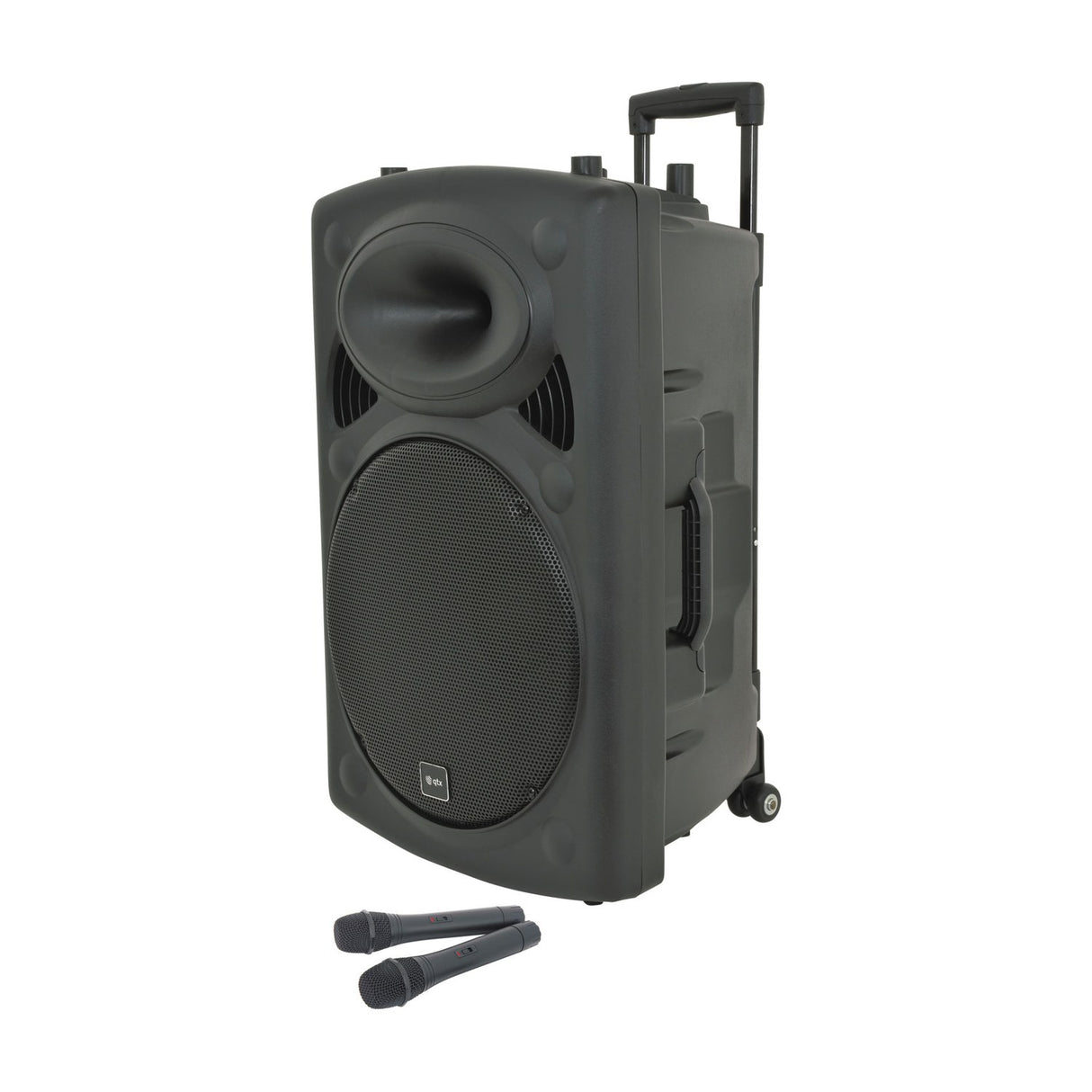

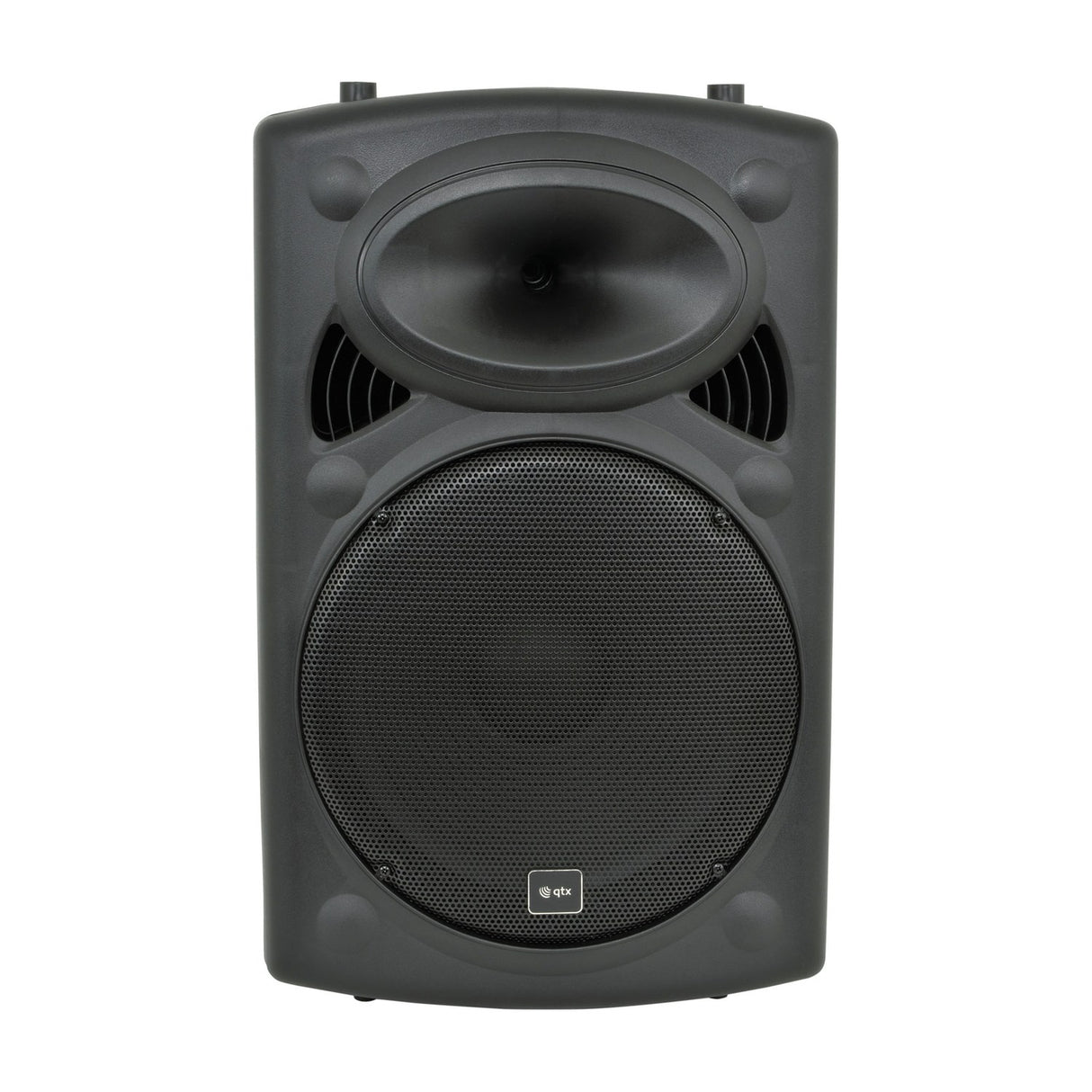

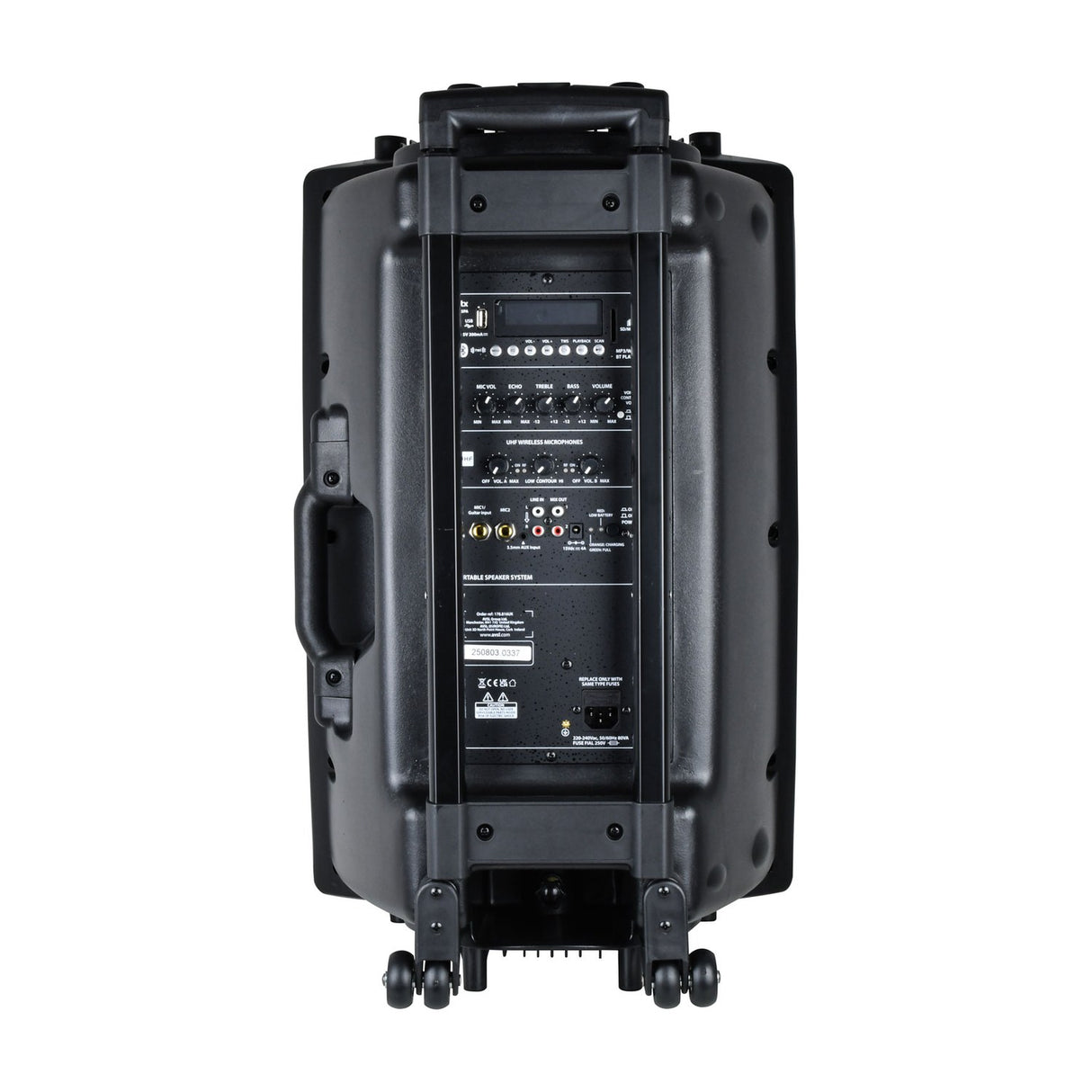

The QTX QR15PA is a compact portable PA system built around the QR speaker cabinet. It pairs a main driver with a compression horn unit and runs from mains power or its internal rechargeable battery, giving you up to 8 hours of playback away from a socket. The built-in amplifier and mixer sit at the rear, so everything you need is in one unit ready to carry to your next event.

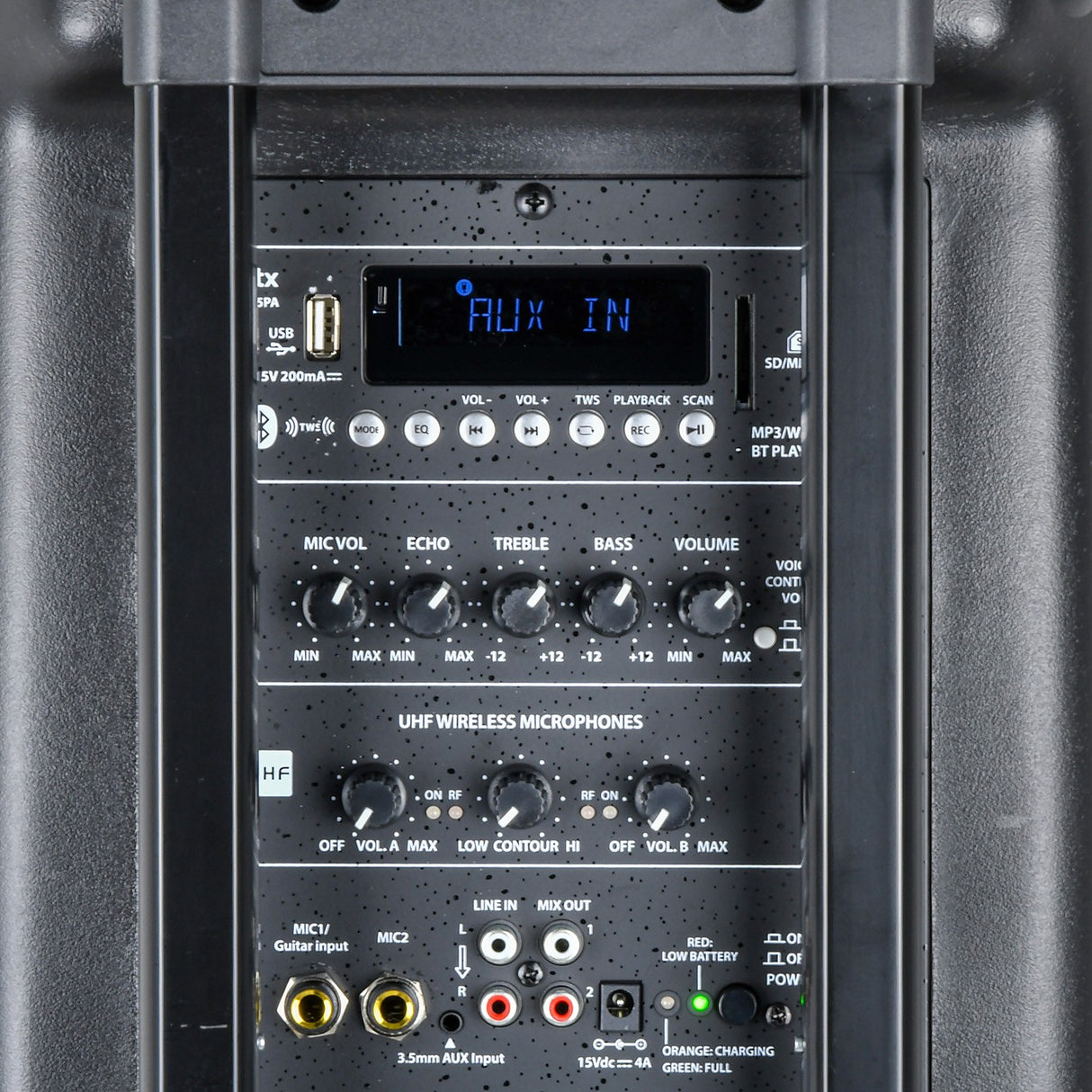

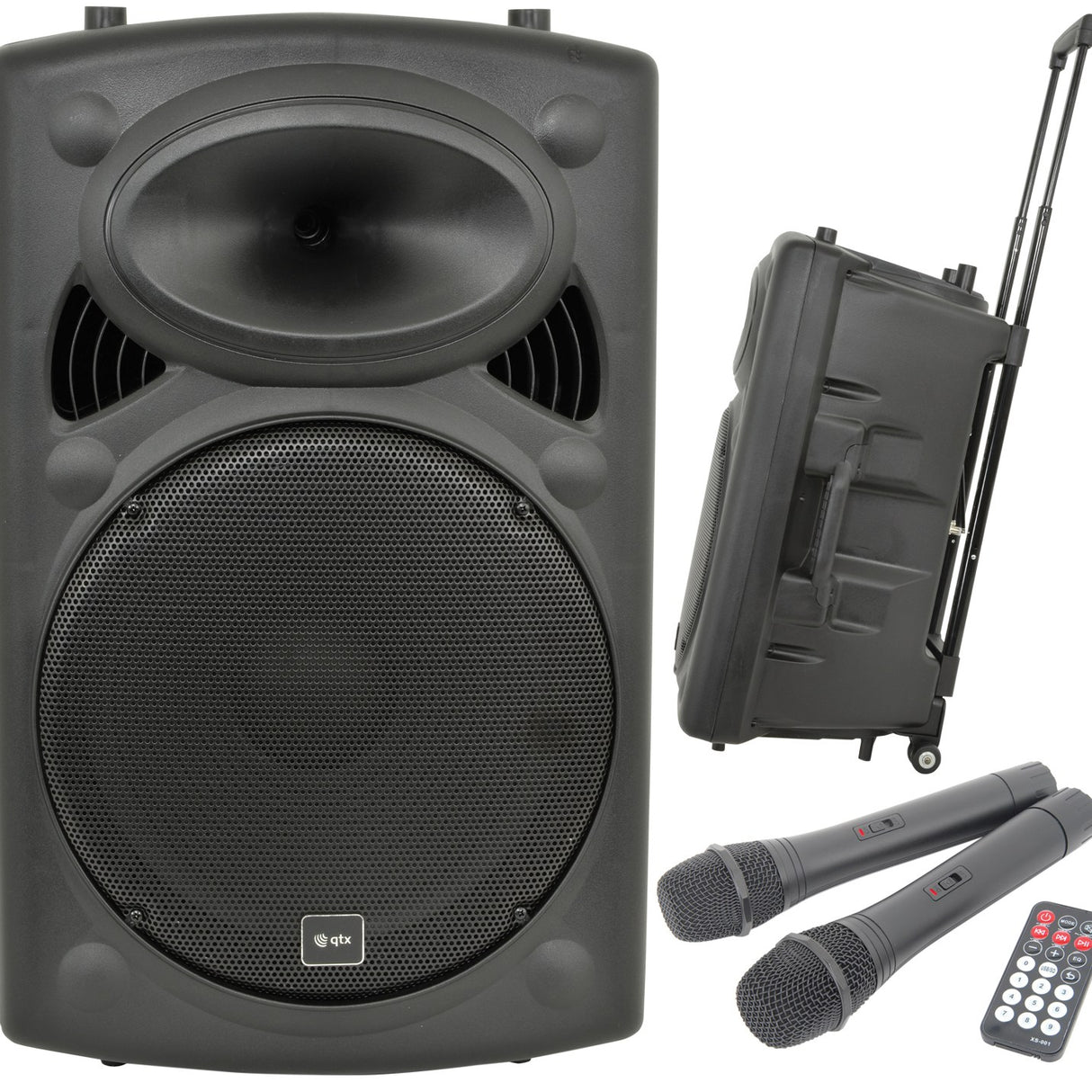

Two handheld UHF wireless microphones are included, with the receiver built into the mixer/amp section. Alongside the wireless mics you get two wired mic inputs (6.3mm jack, one switchable to guitar), a stereo line input (L+R RCA) and a 3.5mm aux input. There is an echo effect for the mics and a switchable VCV function that lets the microphone override any playing audio when you speak. Controls cover MIC.1/guitar, MIC.2, echo, bass, treble, master volume and UHF mic volume.

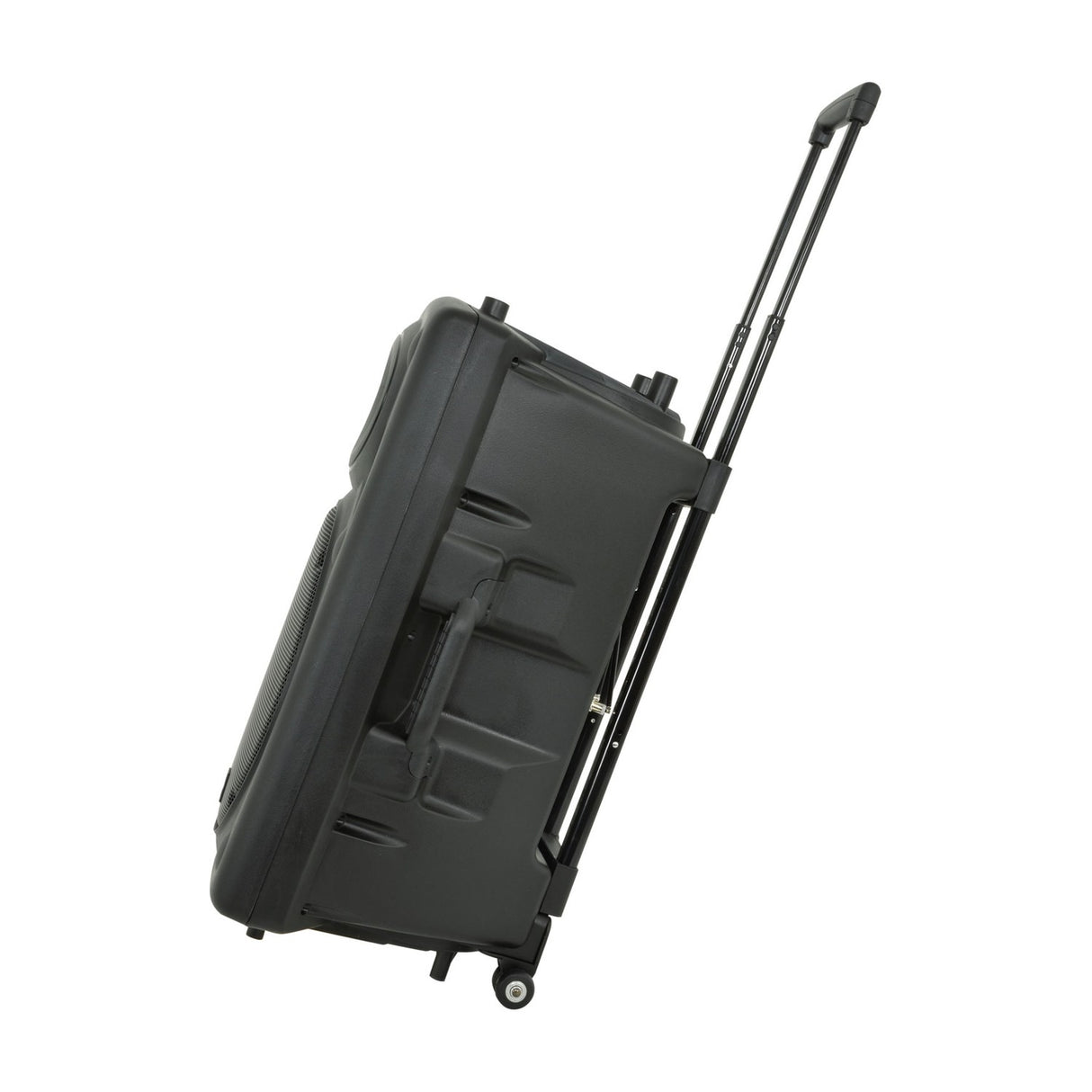

An integral USB/SD/FM media player handles audio playback and includes a record function with remote, so you can capture what you play. A Bluetooth receiver is also built in for wireless streaming from a phone or tablet, and TWS pairing links two QR15PA units as a Bluetooth stereo pair. For setup and transport there is a 35mm pole mount, a retractable trolley handle and rear wheels. Optional UHF neckband mics (178.895UK and 178.896UK) are available if you want hands-free use.
Specification
| Battery life |
Up to 8 hours |
| Controls |
MIC.1/guitar, MIC.2, Echo, Bass, Treble, Master Volume & UHF mic volume, VCV |
| Inputs |
MIC.1/guitar, MIC.2 (6.3mm jack), Line In (L+R RCA), AUX (3.5mm stereo jack) |
Downloads
Product Manual
Frequently Asked
How long does the battery last?
The internal rechargeable battery gives up to 8 hours of use. You can also run the unit from mains power at any time.
How many microphones are included?
Two handheld UHF wireless microphones are supplied, with the receiver built into the rear mixer/amp section. Two wired mic inputs are also provided.
Can I link two units together?
Yes. TWS pairing lets you connect two QR15PA units as a Bluetooth stereo pair for wider coverage.
What inputs are available?
You get MIC.1/guitar and MIC.2 on 6.3mm jacks, a stereo line input on L+R RCA, and a 3.5mm stereo aux input, plus USB/SD/FM and Bluetooth.
Does it record audio?
Yes. The internal USB/SD/FM media player includes a record function and comes with a remote.
Are neckband microphones available?
Optional UHF neckband microphones (references 178.895UK and 178.896UK) can be added for hands-free use.
