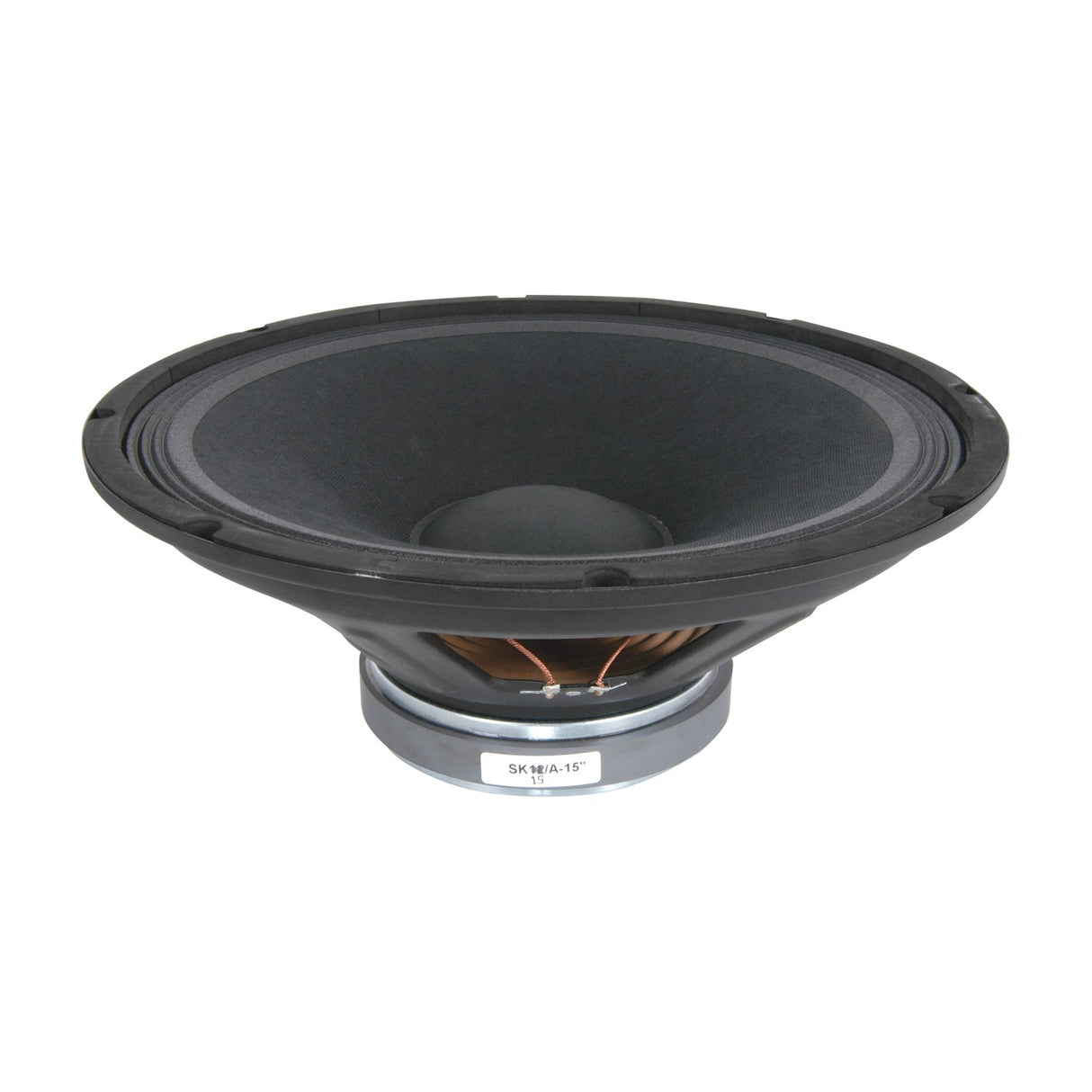

QTX QR15 Replacement Driver, 15" Vented Chassis Speaker

£6699
RRP £6900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This is the 15" replacement driver for the QTX QR15 passive cabinet. If the main driver in your QR15 has failed or worn out, this chassis speaker (also called a woofer or cone driver) drops in as a like-for-like part, so you can keep your existing cabinet in service rather than replacing the whole unit.

The driver runs at 8 ohms and uses vented magnets to help keep the voice coil cool during longer sessions. Connection is via spade terminals, which push straight onto the internal wiring for a quick fit. It forms part of our wider range of QR passive replacement drivers, each matched to a specific cabinet in the series, so it pays to check your model number before ordering.

Fitting is a straightforward job for anyone comfortable working inside a speaker cabinet. Remove the old driver, transfer the wiring to the new spade terminals and secure the chassis in place. As this is designed as a direct replacement for the QR15, the mounting and size match the original, so no modification to the enclosure is needed. Always disconnect the amplifier before you start and take care not to touch the exposed cone.

Specification
Weight 5.27KG
Dimensions 151mm x 385mmØ
Voice coil 62mm (2.5")
SPL @ 1W/1m 101dB
Magnet weight 1.40KG
Frequency response 42Hz - 5kHz
Diameter 38cm (15")
Magnet size 156mm x 20mm
Power rms 250W
Power max. 500W
Impedance 8 Ohm
Frequently Asked

Which cabinet does this driver fit?

It is the 15" replacement main driver for the QTX QR15 passive cabinet.

What impedance is the driver?

It is rated at 8 ohms.

How does it connect?

It uses spade terminals, which push onto the existing internal wiring.

What are vented magnets for?

Venting helps air move around the magnet assembly to keep the voice coil cooler during use.

Is it a direct replacement?

Yes. It matches the size and mounting of the original QR15 driver, so no cabinet changes are needed.

Do I need any tools to fit it?

You will need a screwdriver to remove and refit the chassis. Disconnect the amplifier first.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
