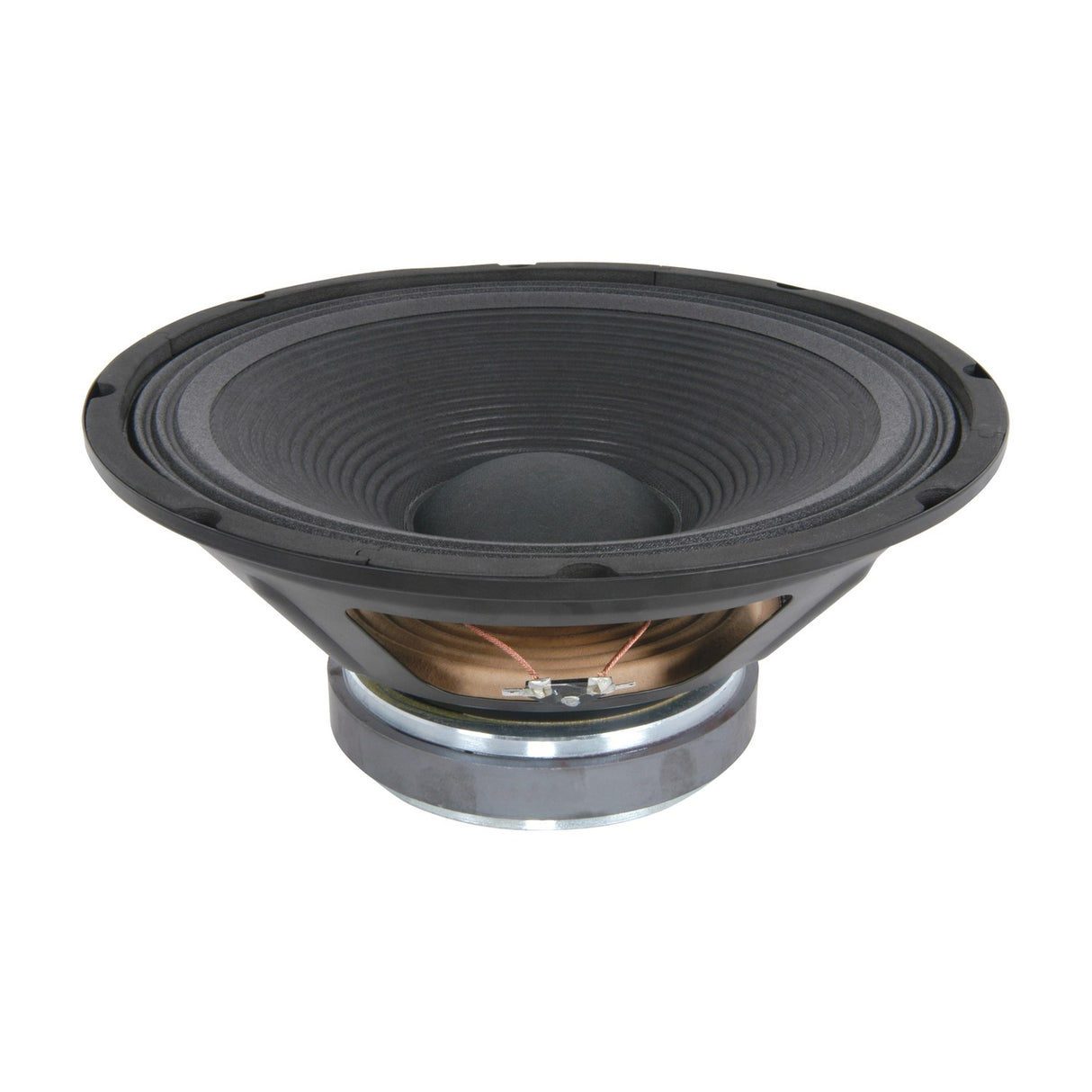

QTX QR12 Replacement Driver, 12" Vented Chassis Speaker

£5099
RRP £5900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This is a replacement driver for the QTX QR12 passive cabinet. It fits as the main driver in the QR series, so if the original has failed or you want a spare on hand, this is the part you need. It carries the same 12" chassis size as the driver it replaces, giving you a straightforward swap without altering the cabinet.

The driver uses vented magnets, which help keep heat away from the voice coil during longer sessions. Connections are made through spade terminals, so wiring in the new driver is quick and needs no soldering. The impedance is 8 Ohms, matching the QR12 cabinet so the load stays correct for your amplifier. In the US this component is often called a woofer or speaker driver, while here we tend to say chassis speaker or driver.

This part sits within a wider range of chassis speakers we stock for the QTX QR passive cabinets, so you can find the matching size for other models in the series too. Fitting the correct driver keeps your speaker performing as it should and saves the cost of replacing the whole cabinet. If you run QR12 units in a fixed install or a mobile rig, keeping a spare driver means less downtime when something needs attention. Check your cabinet model before ordering to make sure you choose the right size, and note the 8 Ohm impedance so the load suits your setup.

Specification
Weight 4.02KG
Dimensions 129mm x 307mmØ
Voice coil 52mm (2")
SPL @ 1W/1m 98dB
Magnet weight 1.10KG
Frequency response 45Hz - 6kHz
Diameter 30cm (12")
Magnet size 140mm x 20mm
Power rms 200W
Power max. 400W
Impedance 8 Ohm
Frequently Asked

Which cabinet does this driver fit?

It is designed as the main driver for the QTX QR12 passive cabinet in the QR series.

What is the impedance?

The driver is 8 Ohms, matching the QR12 cabinet so the load stays correct for your amplifier.

How does it connect?

It uses spade terminals, so you can wire it in quickly with no soldering required.

What size is the driver?

It is a 12" chassis speaker, the same size as the original driver it replaces.

What are vented magnets for?

Vented magnets help move heat away from the voice coil during longer periods of use.

Can I fit this myself?

Yes. The spade terminals make it a straightforward swap for anyone comfortable opening the cabinet and reconnecting the wiring.
