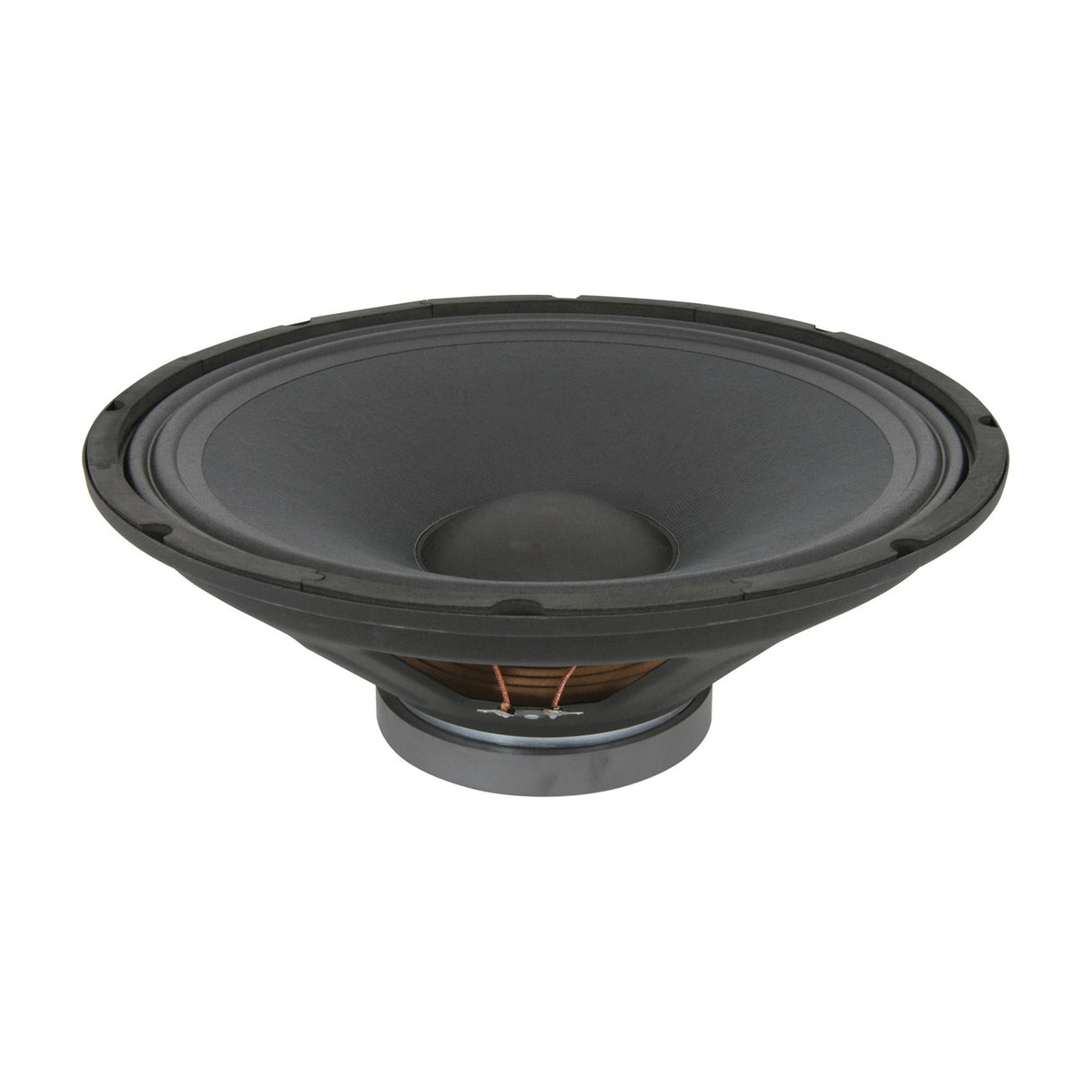

QTX QR 15" 4 Ohm Replacement Driver for QR15A

£7599
RRP £7900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This is the replacement main driver for the QTX QR15A active cabinet, part of our range of chassis speakers made to keep your QR series speakers running. It's a 15" driver rated at 4 ohms, built to slot straight into the spot the original occupied so you can bring a tired or failed cabinet back to working order.

The driver uses vented magnets, which help keep the voice coil cooler during longer sessions and steadier levels. Connection is made through spade terminals, a common fitting on chassis speakers (also called drive units) that lets you attach the internal wiring without soldering. That makes the swap quicker if you're comfortable opening the cabinet and working with the existing loom.

We supply this driver as a direct match for the QR series active cabinets, so the fit and rating line up with what QTX specified. If you've had a blown cone or a dead unit and the rest of the cabinet is sound, replacing just the driver is a sensible way to save the speaker rather than buying a whole new box. Check the model of your cabinet before ordering to make sure you're picking the right size and impedance for your setup.

Specification
Weight 5.27KG
Dimensions 151mm x 385mmØ
SPL @ 1W/1m 101dB
Frequency response 42Hz - 5kHz
Voice coil 62mm (2.5")
Diameter 38cm (15")
Magnet size 20mm x 156mmØ
Magnet weight 1.42KG
Power rms 250W
Power max. 500W
Impedance 4 Ohm
Frequently Asked

Which cabinet is this driver for?

It's the replacement main driver for the QTX QR15A active cabinet in the QR series.

What size and impedance is it?

It's a 15" driver rated at 4 ohms.

How does it connect?

It uses spade terminals, so you can attach the internal wiring without soldering.

What are vented magnets for?

Vented magnets help keep the voice coil cooler during longer use, which supports steadier performance.

Can I fit this myself?

Yes, if you're comfortable opening the cabinet and working with the existing wiring. The spade terminals make the swap straightforward.

How do I know I'm ordering the right driver?

Check your cabinet model before ordering to confirm the 15" size and 4 ohm impedance match your unit.
