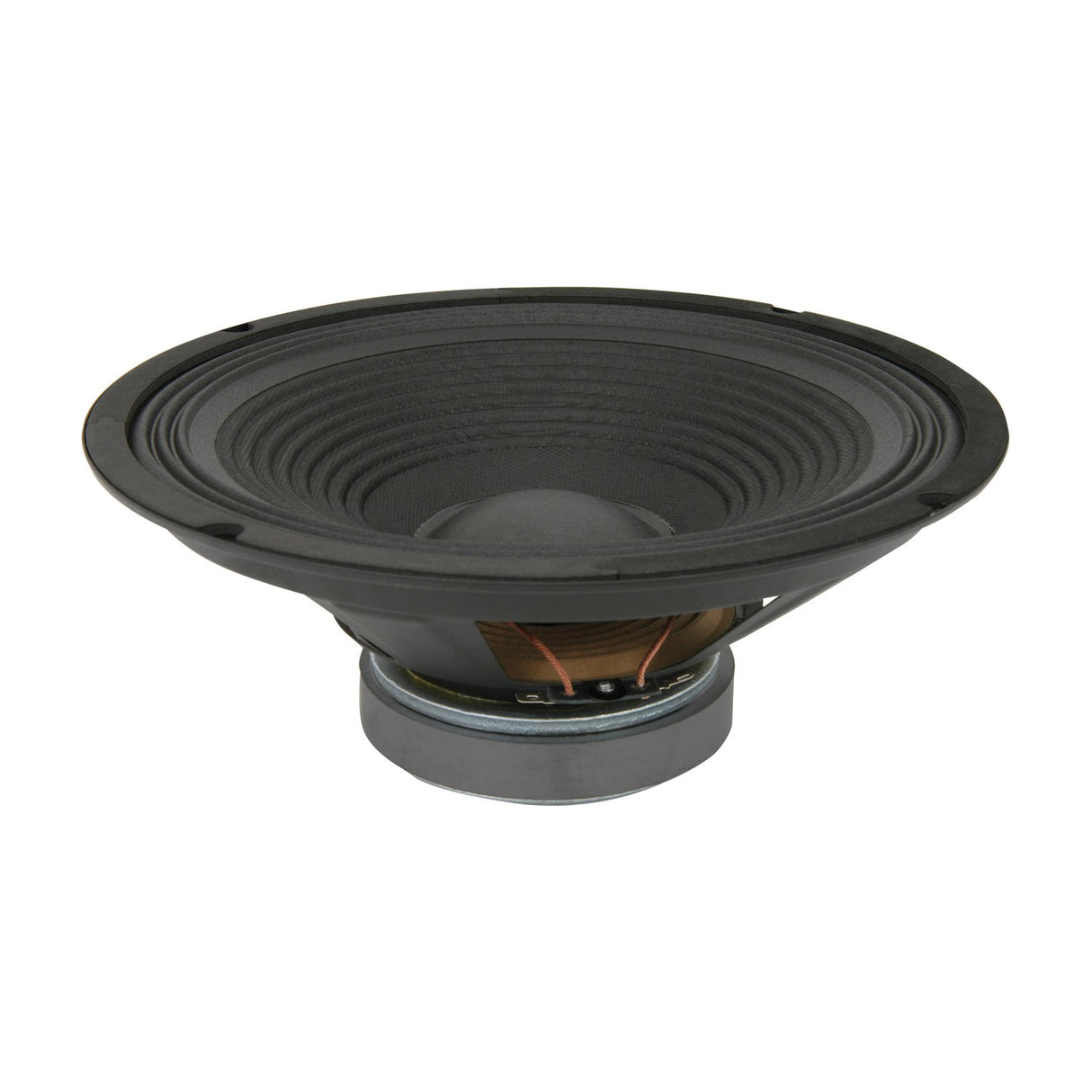

QTX QR 10" 4 Ohm Replacement Driver for QR10A

£2399
RRP £3699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This is a replacement chassis speaker for the QTX Sound QR series of active cabinets. It's a 10" driver rated at 4 ohms, built to serve as the main driver in the QR10A cabinet. If the original driver in your QR10A has failed or worn out, this component lets you get the cabinet back in service without replacing the whole unit.

The driver uses vented magnets, which help keep the voice coil cool during extended use, and connects via spade terminals for a straightforward fit. Because it's a like-for-like replacement, it matches the specification of the driver originally fitted to the QR10A, so you can be confident it will work with the cabinet's built-in amplifier and crossover.

This part forms one of a range of chassis speakers (also called drive units) covering the QR active series, so if you run more than one QR cabinet you can source matching replacements across the set. Fitting is a job for anyone comfortable working inside a powered cabinet, and we'd suggest checking the impedance and driver size against your existing unit before ordering. If you're unsure which driver suits your model, get in touch and we'll help you match it.

Specification
Weight 2.85KG
Dimensions 108mm x 255mmØ
SPL @ 1W/1m 95dB
Frequency response 50Hz - 6kHz
Voice coil 52mm (2")
Diameter 25cm (10")
Magnet size 18mm x 110mmØ
Magnet weight 0.85KG
Power rms 100W
Power max. 200W
Impedance 4 Ohm
Frequently Asked

Which cabinet is this driver for?

It's the replacement main driver for the QTX Sound QR10A active cabinet.

What is the impedance of this driver?

It's rated at 4 ohms, matching the original driver fitted to the QR10A.

What size is the driver?

It's a 10" chassis speaker, sized to fit the QR10A cabinet.

How does it connect?

It uses spade terminals, so wiring back into the cabinet is straightforward.

What are vented magnets for?

Venting helps the voice coil stay cooler during long periods of use, which supports reliability.

Can I fit this myself?

Yes, if you're comfortable working inside a powered cabinet. Check the size and impedance match your existing driver before ordering.
