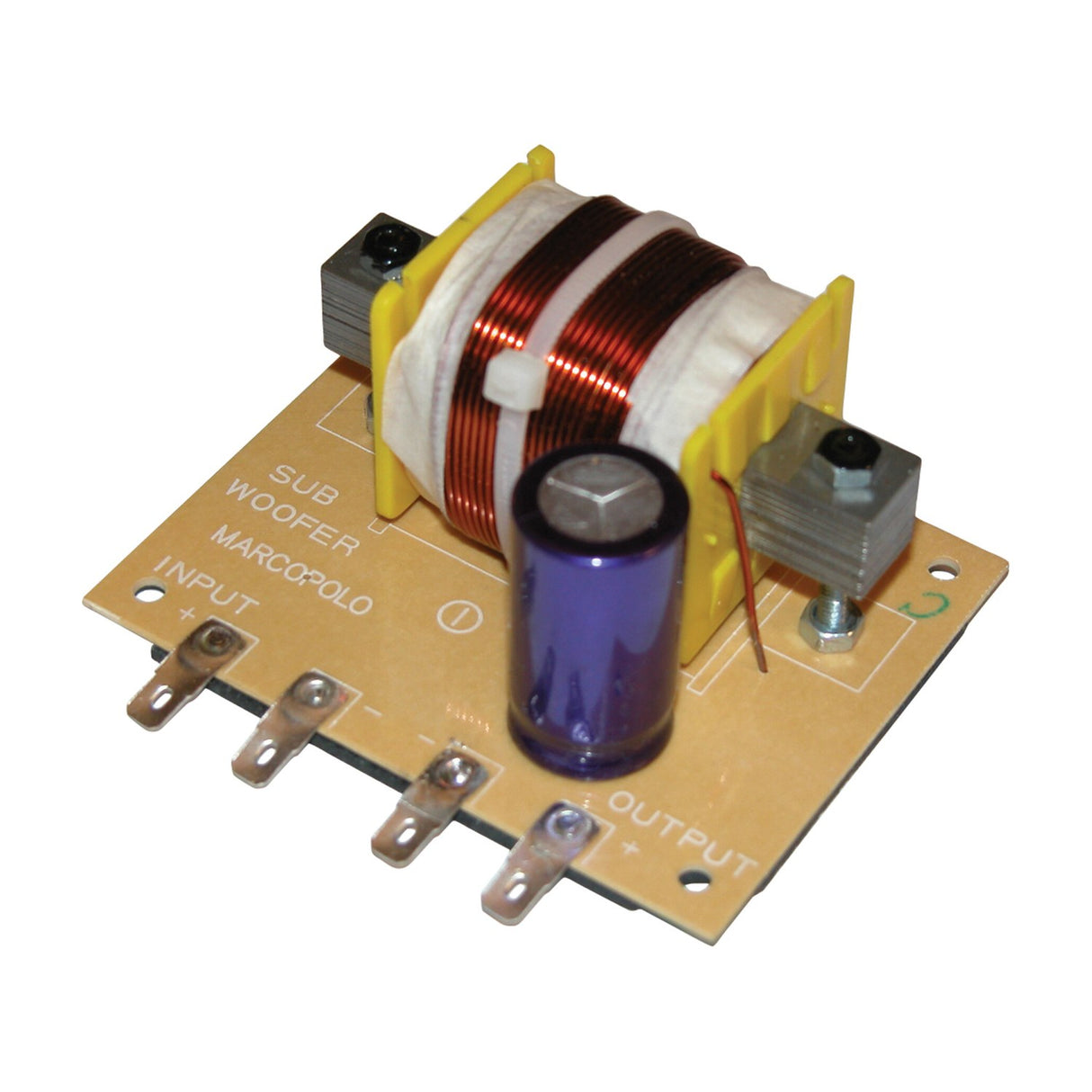

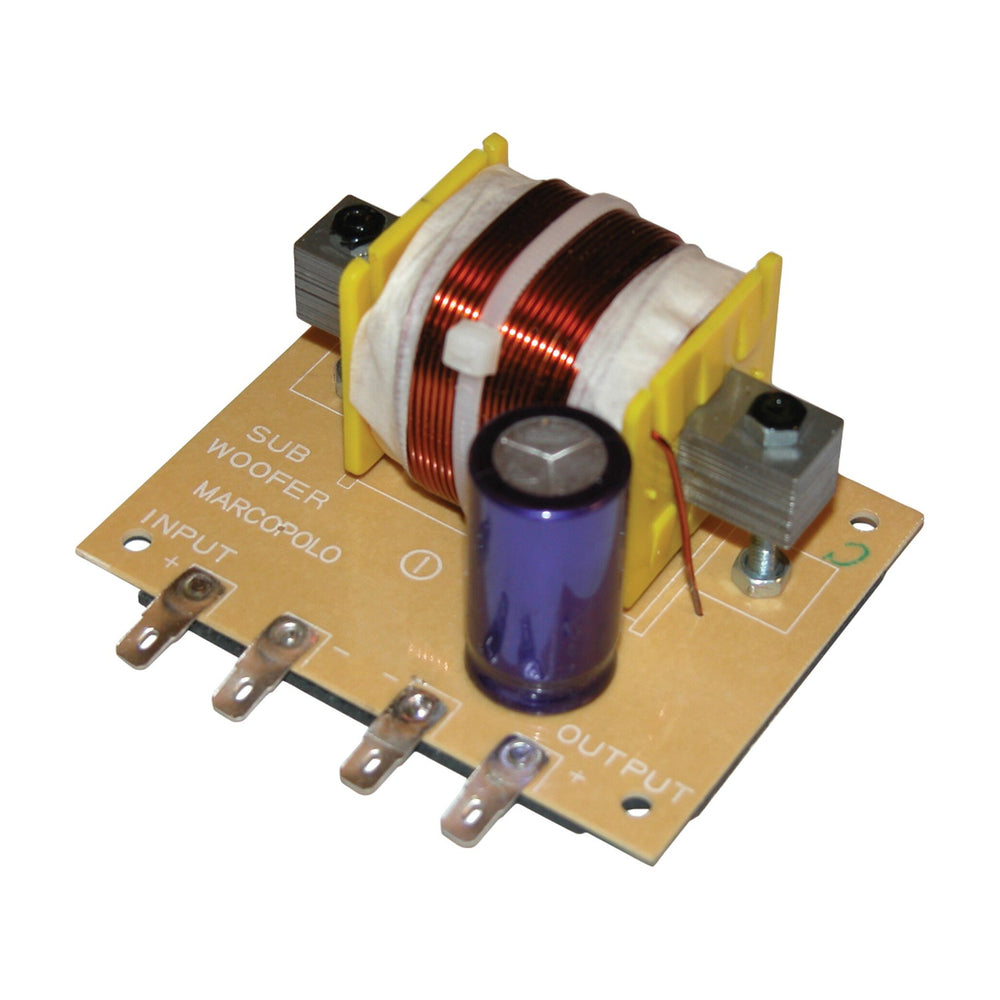

QTX Passive Subwoofer Filter, 120Hz, 4 Ohms

£1399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This passive subwoofer filter from QTX is built for Hi-Fi and PA loudspeaker systems where you need to send low frequencies to the right driver. It works as a low-pass crossover, letting bass through while rolling off higher frequencies so your subwoofer only handles the content it is meant to reproduce. Being passive, it sits inline in the speaker circuit and needs no external power.

The crossover frequency is fixed at 120Hz, with a damping factor of 12dB per octave. That slope gives a steady roll-off above the crossover point, which keeps mid and high frequencies out of the sub and helps the whole system sound cleaner. It is rated at 4 Ohms and handles up to 600W, so it suits a good range of loudspeaker builds and cabinet projects.

Connections are made by solder terminals, which give you a solid, permanent join once the filter is wired into your build. This is a component part rather than a finished unit, so it is aimed at anyone assembling or repairing a speaker system. If you are matching it to a driver, check that the impedance and power figures line up with your subwoofer before you fit it.

Specification
Power rms 320W
Power peak 600W
Damping 12dB/Oct.
Frequency 120Hz
Impedance 4 Ohm
Frequently Asked

Is this a passive or active filter?

It is a passive filter, so it wires directly into the speaker circuit and needs no external power or amplifier of its own.

What is the crossover frequency?

The crossover frequency is fixed at 120Hz, with a 12dB per octave slope above that point.

What impedance and power can it handle?

It is rated at 4 Ohms and handles up to 600W, so check your driver matches these figures before fitting.

How do I connect it?

Connections are made by solder terminals, giving a permanent join once wired into your speaker build.

What is it used for?

It routes low frequencies to a subwoofer in Hi-Fi and PA loudspeaker systems, keeping mid and high content out of the sub.
