QTX KAD-2 Class D Digital Stereo Amplifier

£6999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

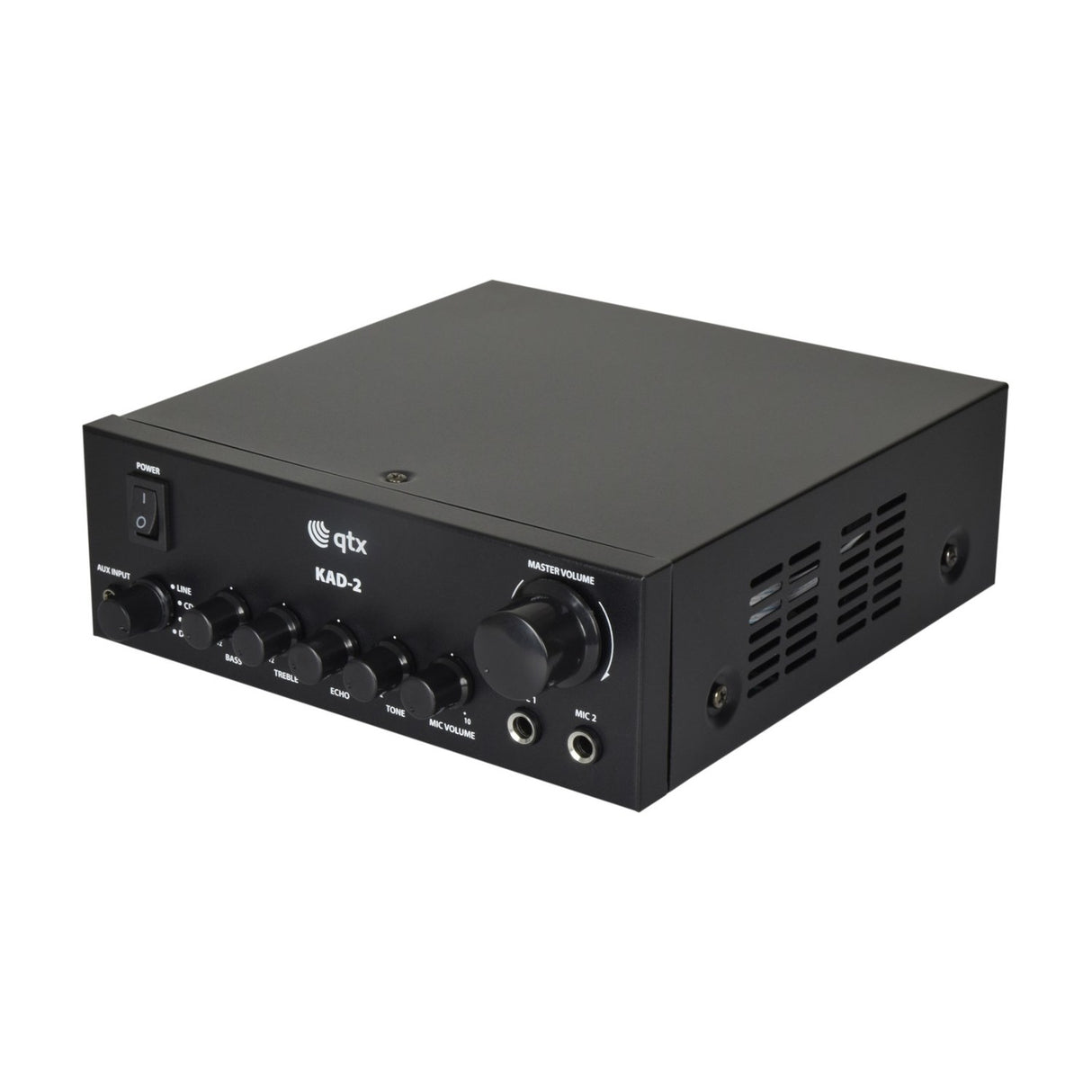

The QTX KAD-2 is a compact Class D digital stereo amplifier built for both home and small commercial setups. It delivers up to 55W max. per side into 4 Ohms, or 25W RMS per side into 8 Ohms, which is plenty for background music and general PA duties in a modest space. The Class D design keeps things efficient and running cool, and the whole unit measures just 200 x 200 x 65mm and weighs 1.6kg, so it slots easily onto a shelf or into a rack space.

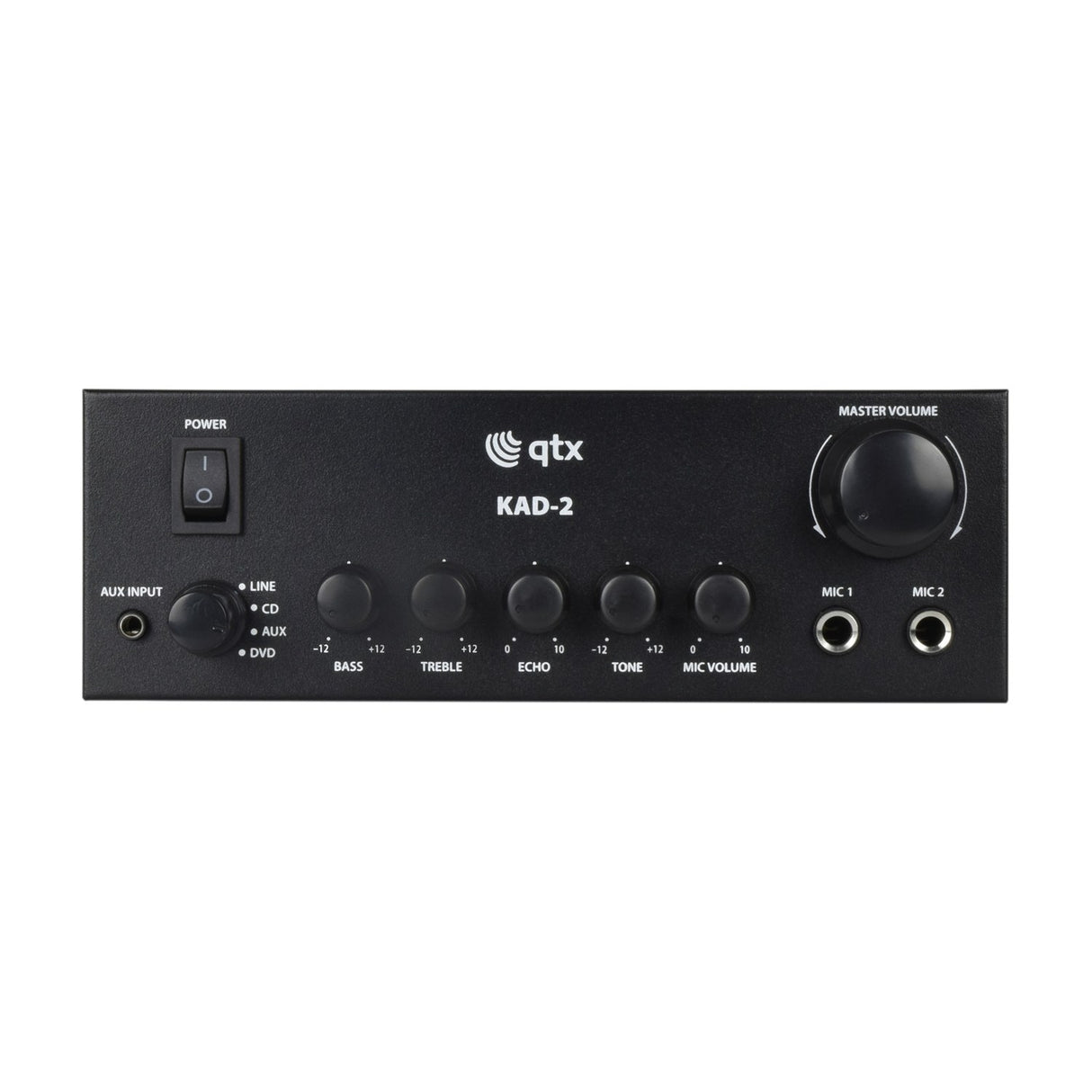

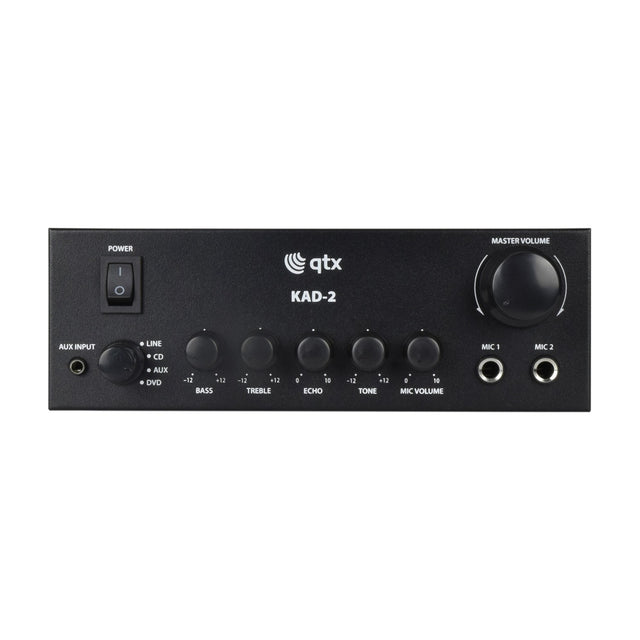

Connections cover most day to day needs. There are four selectable line inputs, three on RCA (phono) round the back and one 3.5mm stereo input on the front panel for quick access. Two 6.3mm (quarter inch) microphone inputs let you plug in mics for announcements or speech, with their own mic volume, tone and echo controls handled by rotary knobs. Speaker connections use spring clip terminals rated for 4 to 8 Ohm loads, and the amplifier ships with an IEC lead fitted with a UK plug.

Overall tone and output are set with Master Volume, Treble and Bass rotaries, so you can balance the sound to the room without hunting through menus. Line input sensitivity is 380mV and mic sensitivity is 15mV (unbalanced). Power comes from a 230Vac, 50Hz IEC supply. The black finish keeps it low key, and the mix of line and mic inputs makes it a sensible pick for a shop, cafe, bar or a home listening system where you also want to make the odd announcement.

Specification
Power supply 230Vac, 50Hz (IEC)
Output impedance 4 - 8 Ohms
Input sensitivity : line 380mV
Input sensitivity : mic (unbalanced) 15mV
Output power : 8 Ohms 2 x 25W rms / 2 x 40W max. (EIAJ Standard @ 1kHz 10% THD)
Output power : 4 Ohms 2 x 35W rms / 2 x 55W max. (EIAJ Standard @ 1kHz 10% THD)
Finish Black
Dimensions 200mm x 200mm x 65mm
Weight 1.60KG
Downloads

Product Manual

Frequently Asked

How much power does the KAD-2 produce?

It gives up to 55W max. per side into 4 Ohms (35W RMS), or 40W max. per side into 8 Ohms (25W RMS), measured to EIAJ Standard at 1kHz, 10% THD.

What speaker impedance does it support?

The output stage is rated for 4 to 8 Ohm speaker loads, connected via the spring clip terminals on the back.

Can I connect a microphone?

Yes. There are two 6.3mm (quarter inch) microphone inputs with their own volume, tone and echo controls, so it suits speech and announcements as well as music.

What inputs are available for music sources?

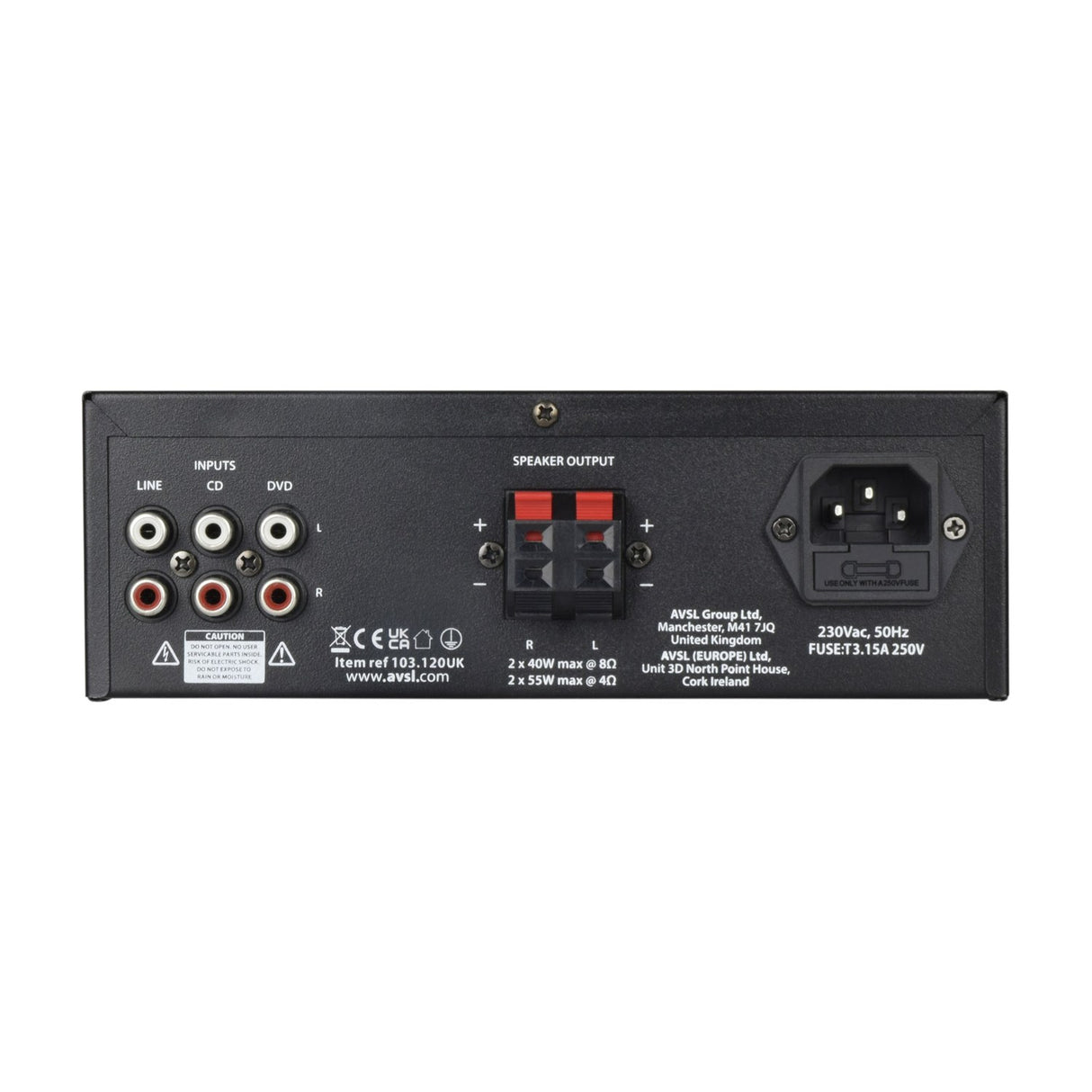

You get three RCA (phono) stereo line inputs on the rear and one 3.5mm stereo input on the front panel, all selectable.

Is it suitable for commercial use?

Yes. With four line inputs, dual mic inputs and a compact build, it works for shops, cafes and bars as well as home setups.

Does it come with a mains lead?

Yes, it is supplied with an IEC lead fitted with a UK plug, and runs from a 230Vac, 50Hz supply.
