Description

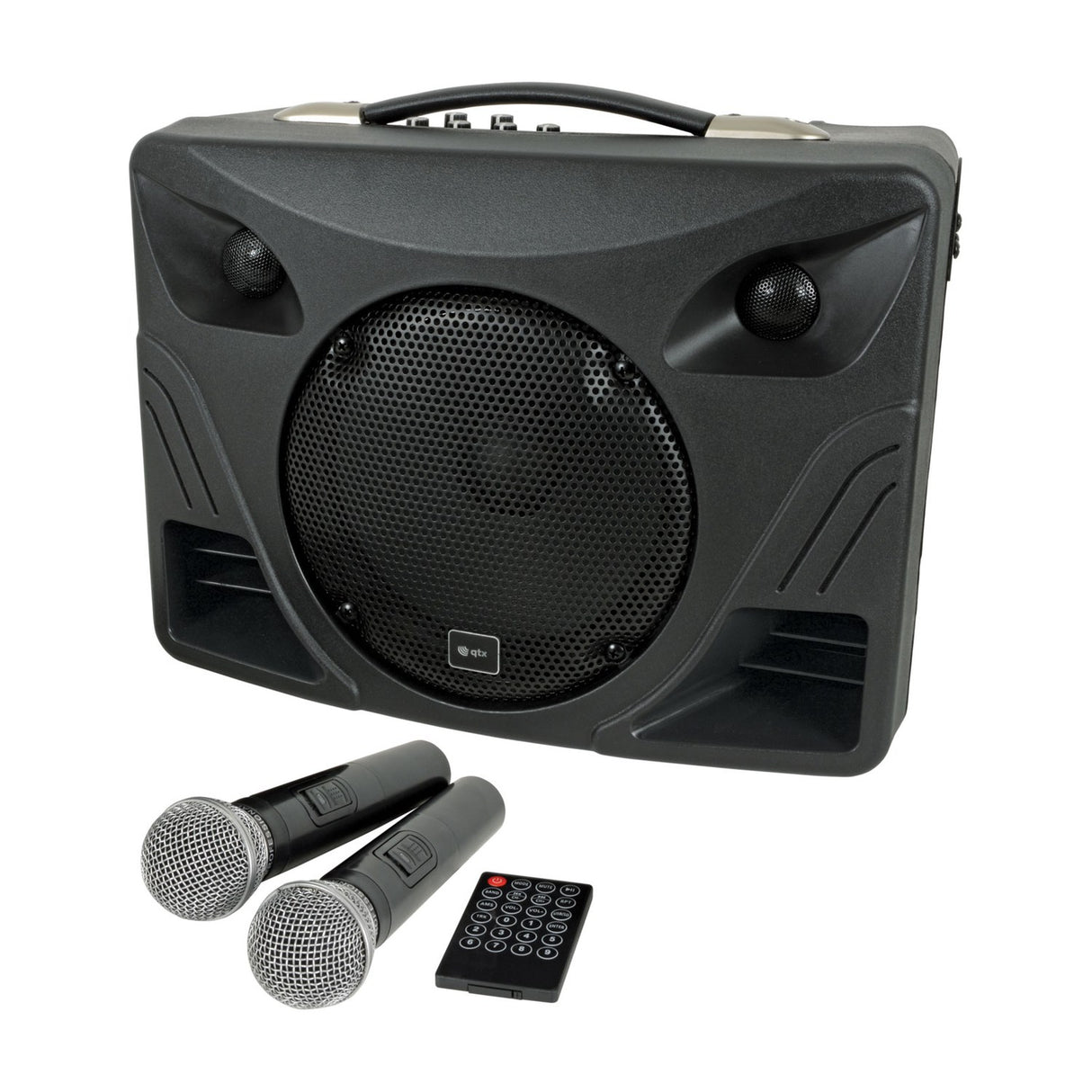

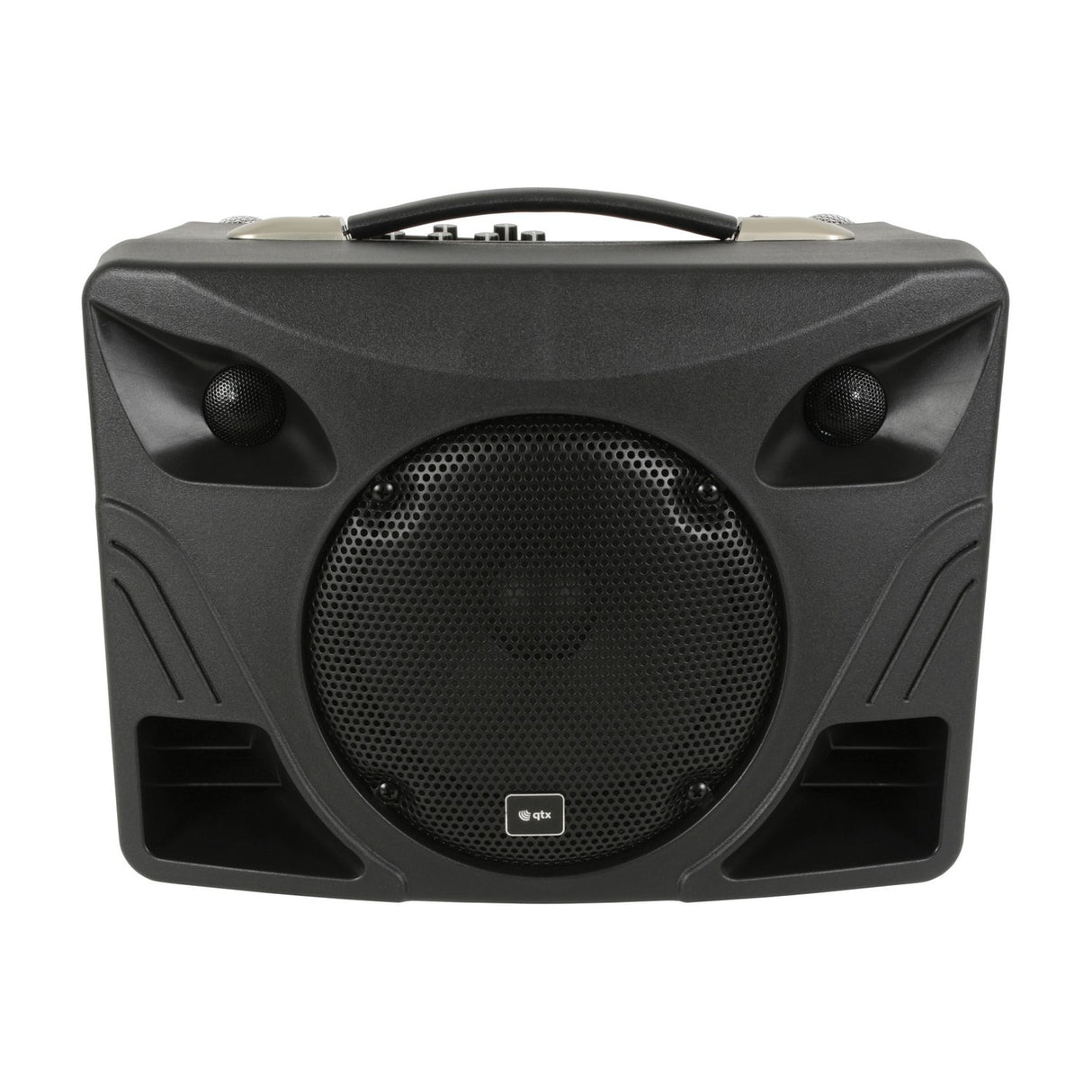

The QTX DELTA-50 is a self-contained PA system in a compact desktop format, built around an injection-moulded polypropylene cabinet. It gives you 50W RMS of output through a 200mm (8") reinforced paper cone woofer and two 25mm balanced dome tweeters, so it stays clear for speech and music alike. The size and weight of 7.2kg make it easy to carry between rooms and set up wherever you need it.

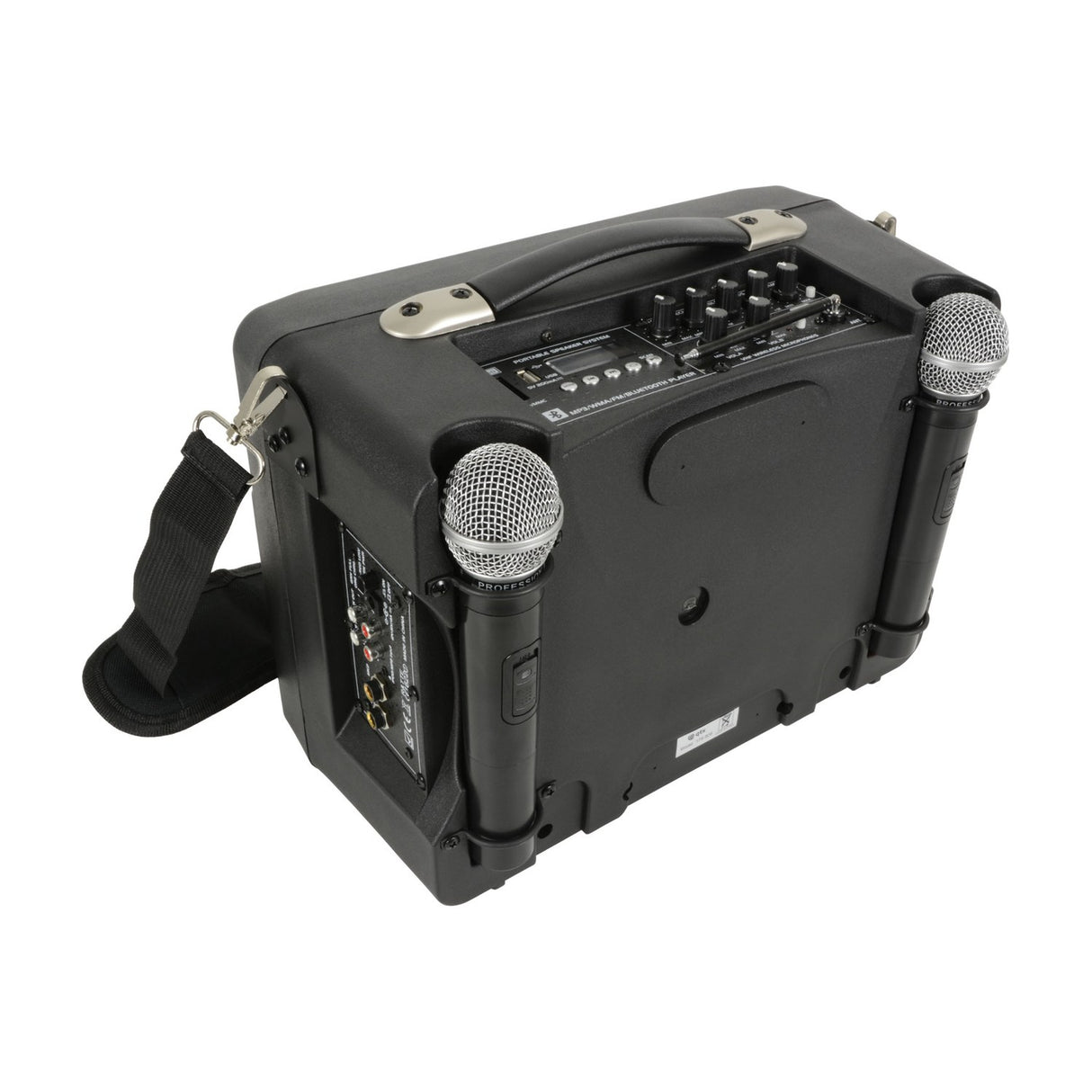

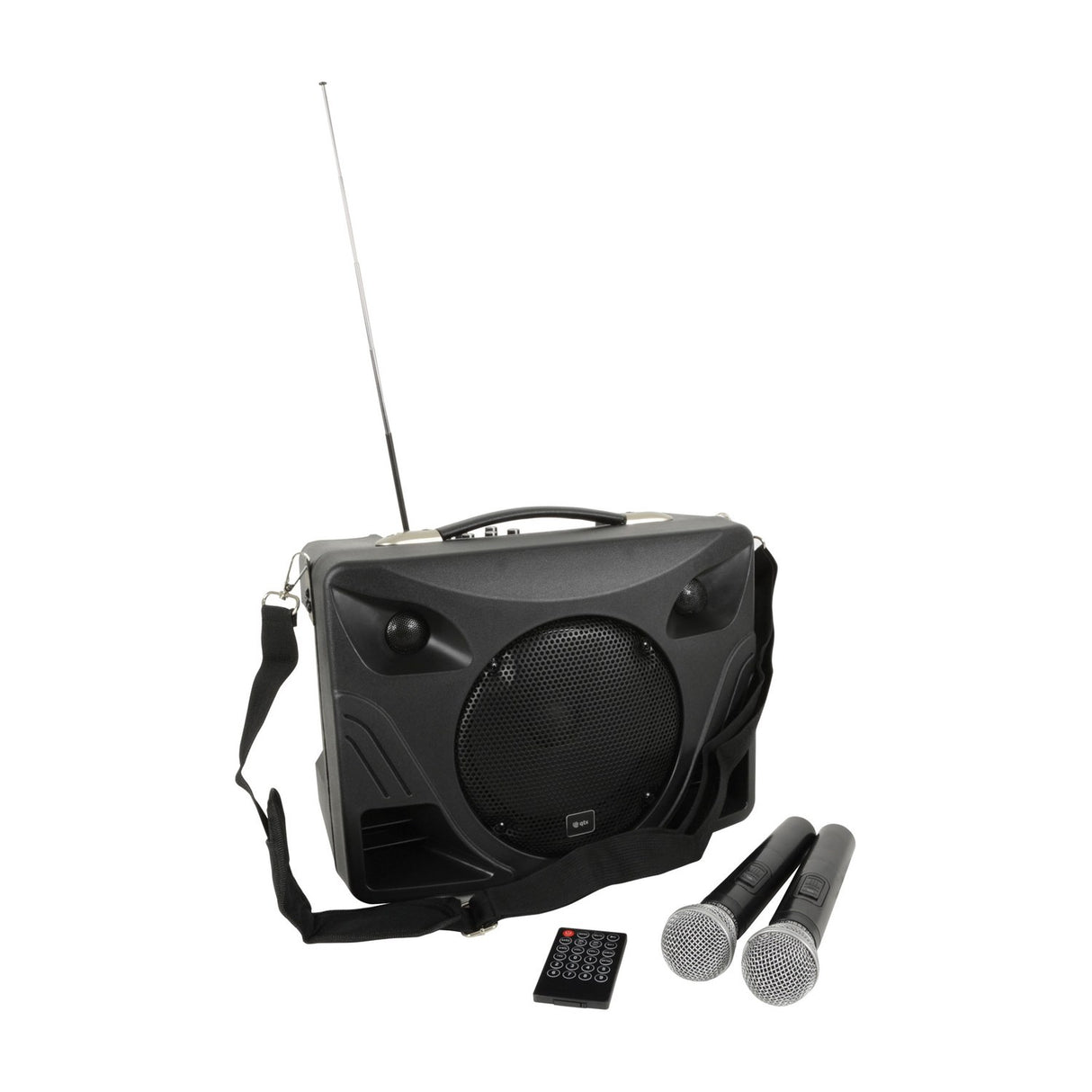

Two VHF handheld microphones are included, running on 174.1MHz and 175.0MHz, each powered by a pair of AA batteries. Integral holsters on the cabinet hold the handheld transmitters when they are not in use, so nothing gets misplaced. An echo effect is built in for the microphones, which suits singing rehearsal as well as speaking. The onboard USB/SD/FM media player handles FAT 32 cards and drives up to 32GB, and the built-in Bluetooth 4.2 receiver lets you stream audio from a phone or tablet.
You can run the DELTA-50 from the mains at 110/240Vac using the figure 8 lead, from a 12Vdc supply, or from the internal 12Vdc 2.3A/h sealed lead acid battery, which gives up to 8 hours of use away from a socket. This mix of features makes it a practical choice for classroom activities, meetings, presentations and rehearsals. Microphone frequency response runs from 40Hz to 15kHz, with a signal to noise ratio of 85dB.
Specification
| Power supply |
110/240Vac, 50/60Hz (fig 8), 12Vdc or internal battery |
| Battery life |
Up to 8 hours |
| Battery |
12Vdc 2.3A/h Sealed Lead Acid |
| HF driver |
2 x 25mmØ balanced dome |
| LF driver |
200mm (8") reinforced paper cone |
| Power : output |
50Wrms |
| SNR |
85dB |
| Construction |
Injection-moulded polypropylene |
| Power supply : handheld transmitters |
3Vdc (2 x AA battery) each |
| Wireless microphone frequencies |
174.1MHz + 175.0MHz |
| Frequency response : mic |
40Hz - 15kHz |
| SD/USB format |
FAT 32 (32GB max) |
| Dimensions |
380mm x 295mm x 220mm |
| Weight |
7.20KG |
| Bluetooth version |
4.2 |
Downloads
Product Manual
Frequently Asked
How many microphones are supplied with the DELTA-50?
Two VHF handheld microphones are included, tuned to 174.1MHz and 175.0MHz. Each transmitter runs on two AA batteries, and there are integral holsters on the cabinet to store them.
Can it run without mains power?
Yes. It has an internal 12Vdc 2.3A/h sealed lead acid battery giving up to 8 hours of use. You can also run it from the mains at 110/240Vac or from a 12Vdc supply.
How do I play my own audio through it?
There is a built-in USB/SD/FM media player that reads FAT 32 formatted cards and drives up to 32GB. A Bluetooth 4.2 receiver is also fitted for streaming from a phone or tablet.
What power output does the DELTA-50 have?
It gives 50W RMS through a 200mm (8") reinforced paper cone woofer and two 25mm balanced dome tweeters.
Is there an effect for the microphones?
Yes, an echo effect is built in for the microphone channels, which is useful for singing rehearsal and general speech.
What are the dimensions and weight?
The cabinet measures 380 x 295 x 220mm and weighs 7.2kg, so it is easy to move between rooms.
