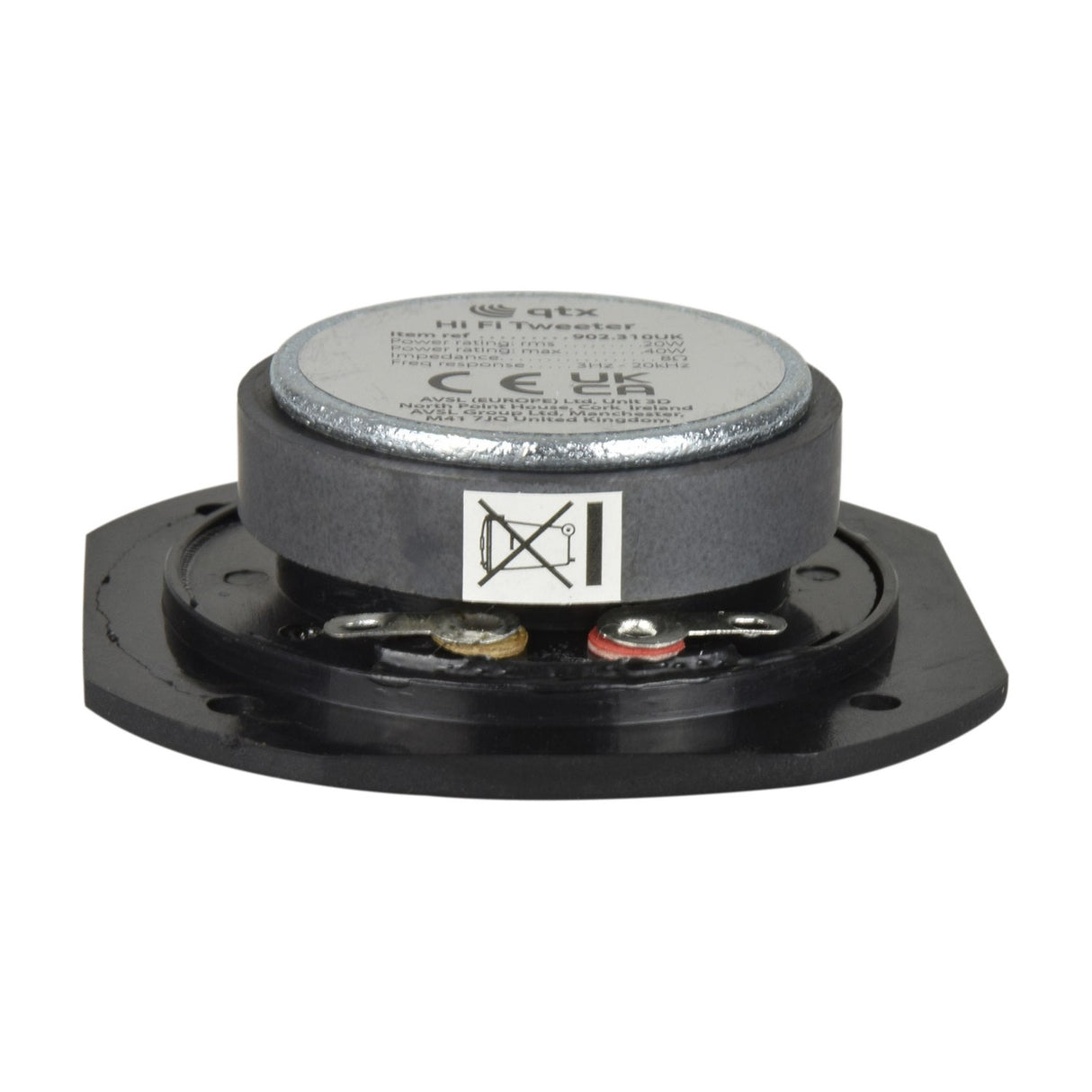

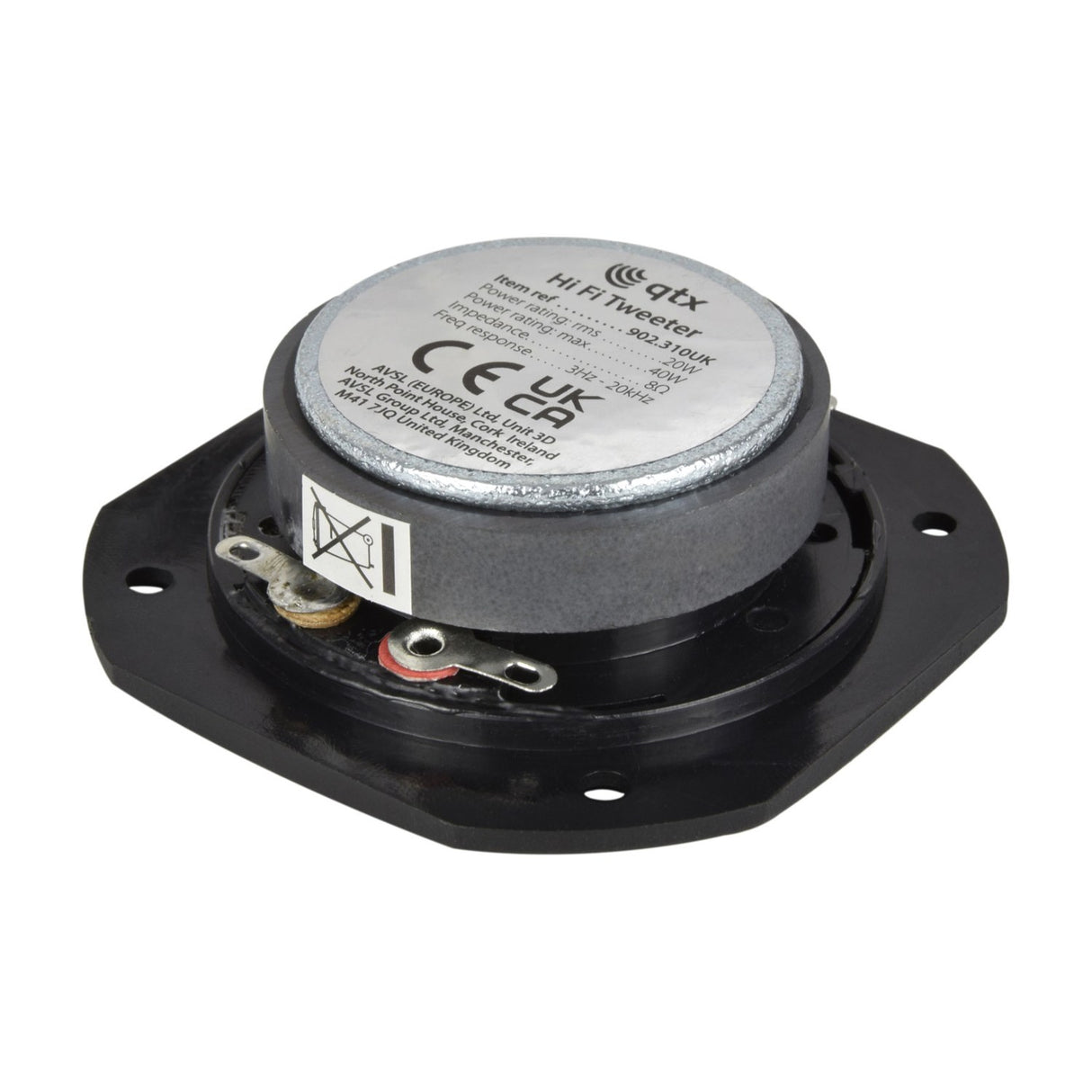

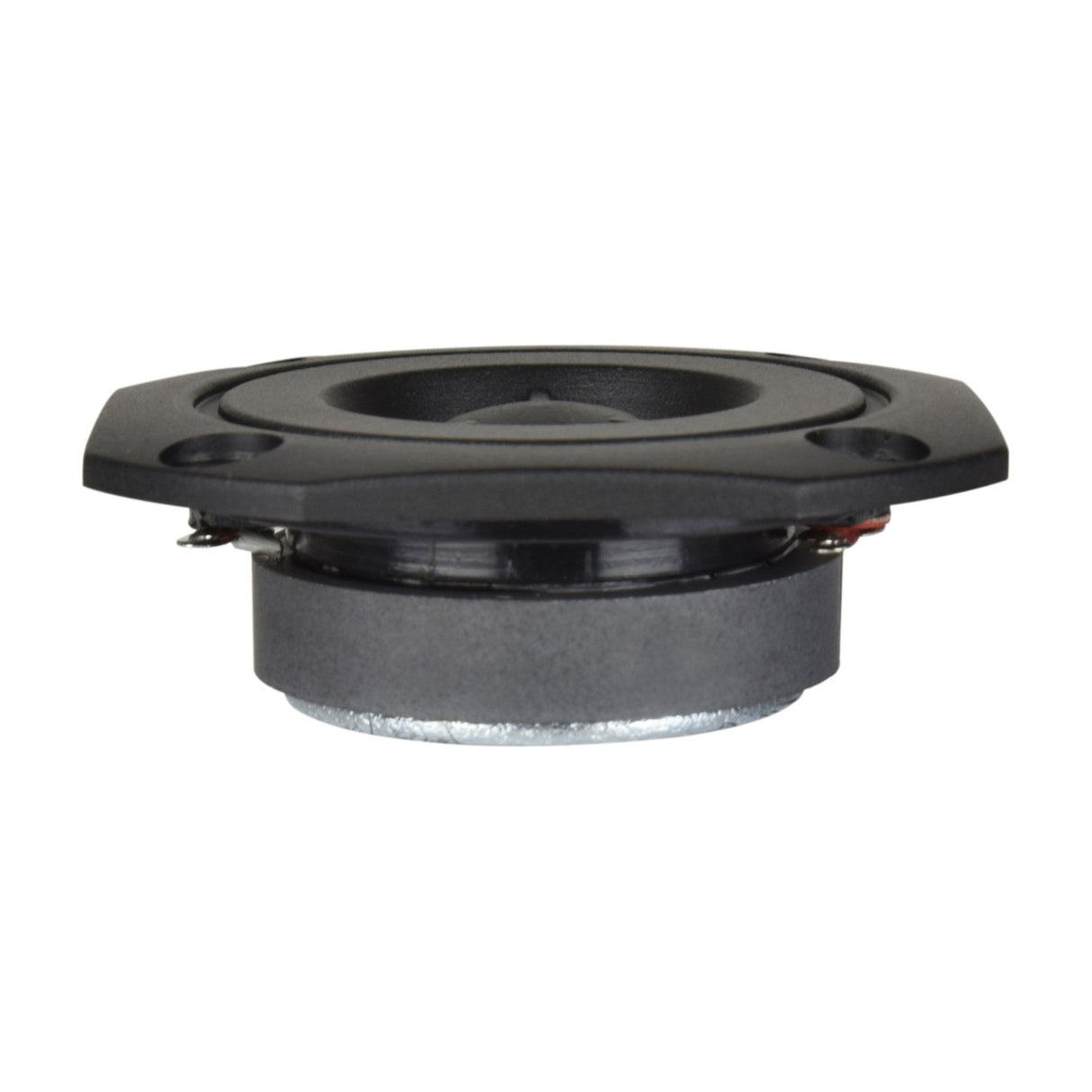

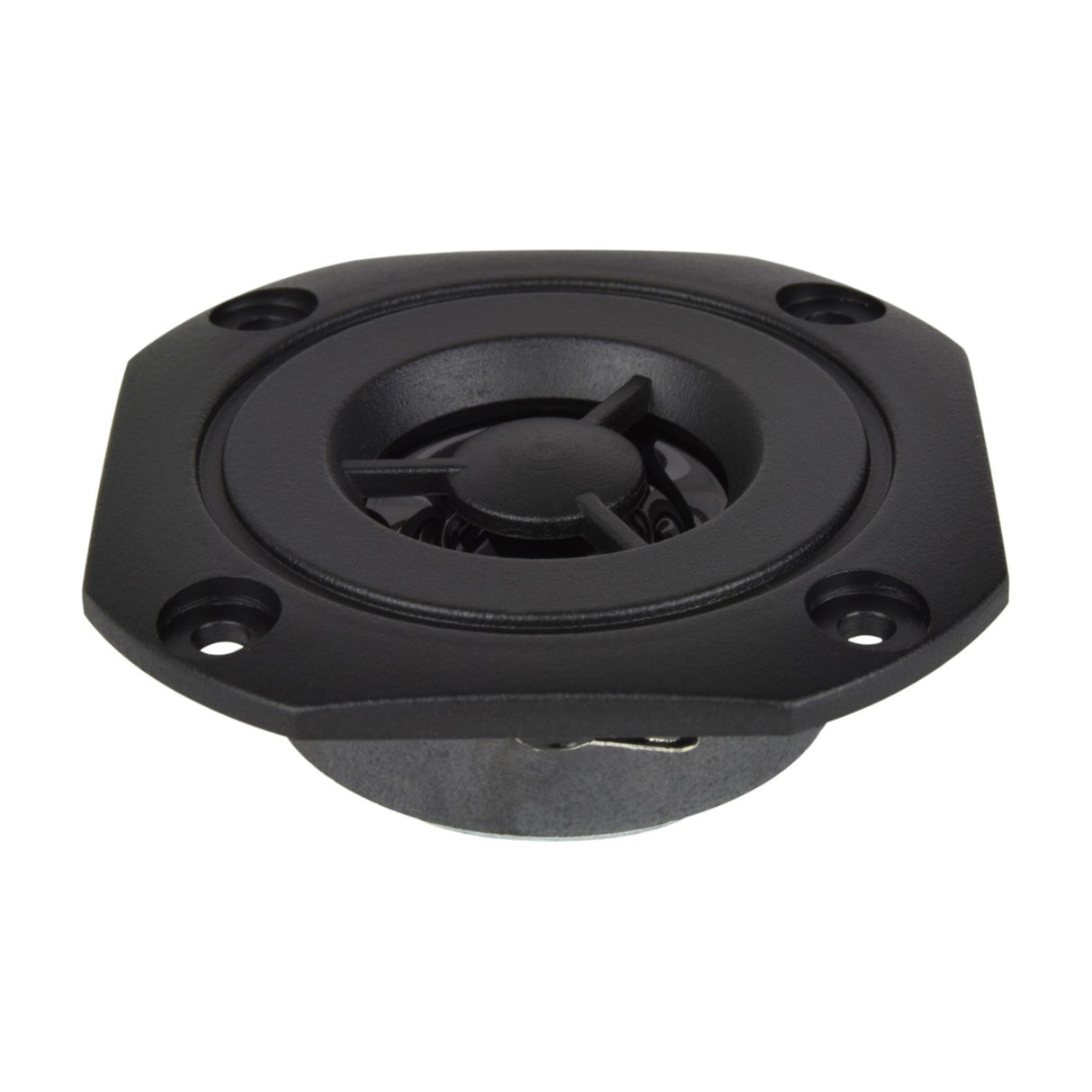

QTX 2.25" Square Dome Tweeter, 20W RMS, 8 Ohm

£299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This QTX square dome tweeter measures 2.25 inches and is fitted with a mylar dome. It handles 20W RMS and 40W maximum power, with an impedance of 8 Ohms. The frequency response runs from 3kHz up to 20kHz, so it covers the high end of the audio range where a dedicated tweeter earns its place.

We supply it for new speaker builds or as a straight replacement for a tired or failed unit. The square 59 x 59mm format sits neatly into a matching cut-out, and the mylar dome gives a light, responsive surface for reproducing treble detail. Sensitivity is rated at 91dB at 1W/1m, with a 12.5mm (0.5") voice coil and a 28g magnet behind it.

If you are matching components in a two or three-way setup, check the crossover point suits the 3kHz lower limit and pair it with a woofer or mid that covers the range below. The compact size makes it a sensible choice for cabinets and enclosures where space is tight but you still want clean high frequencies. Note that some listeners in the US refer to a tweeter as a high-frequency driver; the part and its job are the same either way.

Specification
Power max. 40W
Power rms 20W
Frequency response 3kHz - 20kHz
Impedance 8 Ohm
Magnet weight 0.03KG
SPL @ 1W/1m 91dB
Voice coil 12.5mm (0.5")
Dimensions 59mm x 59mm (2.25" x 2.25")
Frequently Asked

What size is this tweeter?

It measures 59 x 59mm (2.25" x 2.25"), so you will need a matching square cut-out to fit it.

How much power can it handle?

It is rated at 20W RMS with a maximum of 40W. Match your amplifier and crossover accordingly.

What is the impedance?

8 Ohms, which suits most standard speaker builds and replacement work.

What frequency range does it cover?

It runs from 3kHz to 20kHz, covering the treble range. Pair it with a woofer or mid-range driver for the lower frequencies.

Can I use it as a replacement?

Yes. It is suitable for new builds or as a replacement for a failed unit, provided the size and specs match your enclosure.

What is the dome made from?

The dome is mylar, a light material that gives a responsive surface for reproducing high frequencies.
