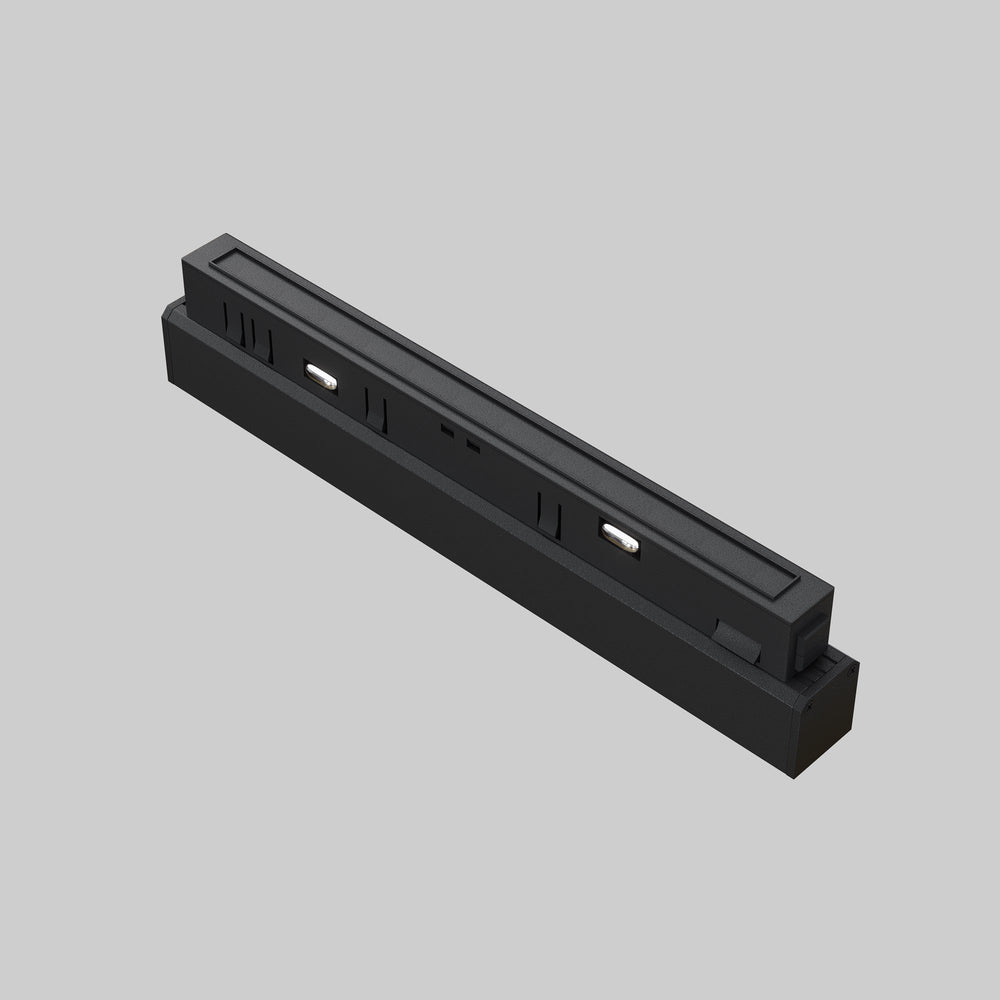

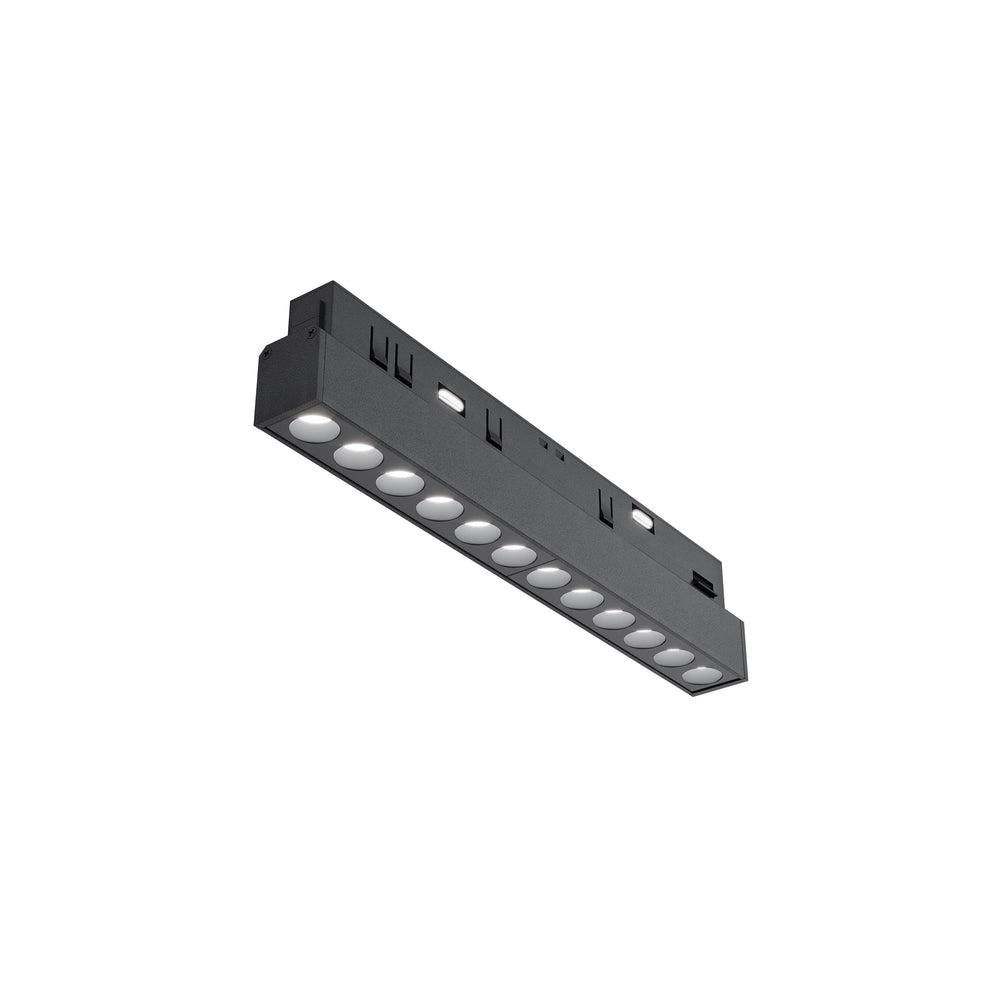

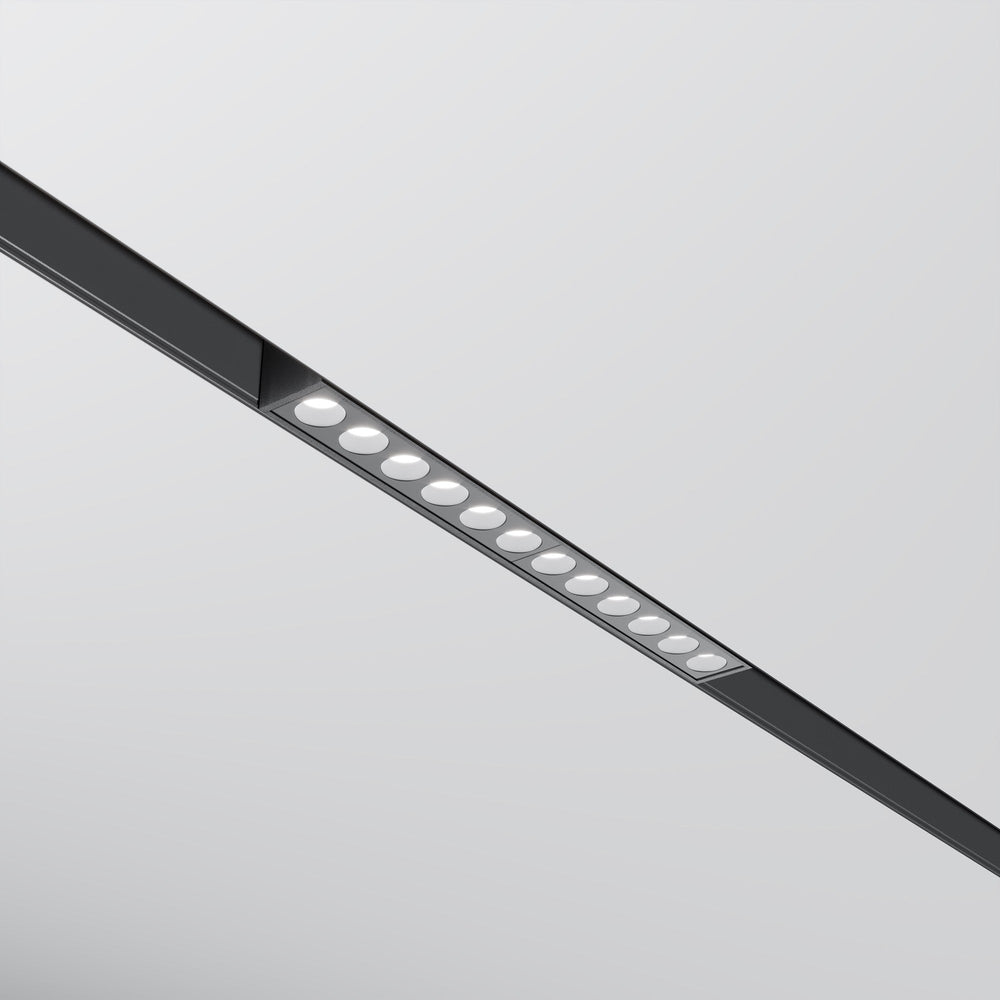

Points DALI CCT LED Dimmable Linear Track Light for Magnetic Track 12W 2700-6000K - Black

The Points is a 220mm linear track light with an integrated 12W LED, DALI dimming control, and adjustable colour temperature from warm 2700K to cool 6000K. The black aluminium housing contains a recessed LED array that casts a 36° focused beam, designed to highlight specific zones, artworks, or architectural details without spilling light across adjacent surfaces. The fixture mounts onto magnetic track systems via a concealed connector at the top of the housing.

Designed for commercial retail, galleries, offices, and residential spaces where lighting needs shift throughout the day, the DALI protocol allows both brightness and colour temperature to be controlled independently from a DALI-compatible control system. This means you can dim the light to 10% output at warm 2700K for evening ambience, then switch to full brightness at 6000K for daytime task lighting, all from a single fixture. The 36° beam angle suits accent lighting and directional task lighting rather than broad area coverage.

The recessed LED positioning keeps glare low when the fixture is mounted at typical ceiling heights of 2.4-3m, and the black aluminium finish absorbs rather than reflects ambient light, keeping the fixture visually subtle when not in use. The magnetic track mount allows the fixture to be repositioned along the track without tools, making it straightforward to adjust layouts as room use changes. The 48V DC supply voltage is typical for magnetic track systems and isolates the low-voltage track from mains wiring at the driver end.

The IP20 rating limits use to dry indoor environments. The 5-year warranty covers the integrated LED and control electronics. The aluminium construction dissipates heat effectively, extending LED lifespan compared to plastic-housed equivalents. At 220mm length and 23mm width, the fixture maintains a low profile on the track without protruding significantly below the ceiling plane.

Product Manual

What is DALI dimming and why does it matter?

DALI (Digital Addressable Lighting Interface) is a lighting control protocol that allows each fixture to be controlled individually over a digital bus. Unlike standard dimming, DALI lets you adjust both brightness and colour temperature independently, program scenes, and integrate with building automation systems. You need a DALI-compatible control system to use this feature.

What magnetic track system does this fit?

The Points is designed for Maytoni's Exility magnetic track system. The fixture uses a concealed magnetic connector at the top of the housing that clips onto the track. Compatibility with other brands' magnetic track systems is not guaranteed and should be verified before ordering.

Can the colour temperature be changed without a DALI controller?

No. The adjustable colour temperature function requires a DALI control system. Without DALI control, the fixture will operate at a fixed colour temperature determined by the last setting or factory default.

What's the actual light output at 12W?

Maytoni has not published lumen output for this model in the provided specification. Typical 12W track lights with similar beam angles produce 800-1100 lumens, but contact us for confirmed photometric data if this is critical to your application.
