NU-X Time Core Deluxe mkII Digital Delay Pedal

£11599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

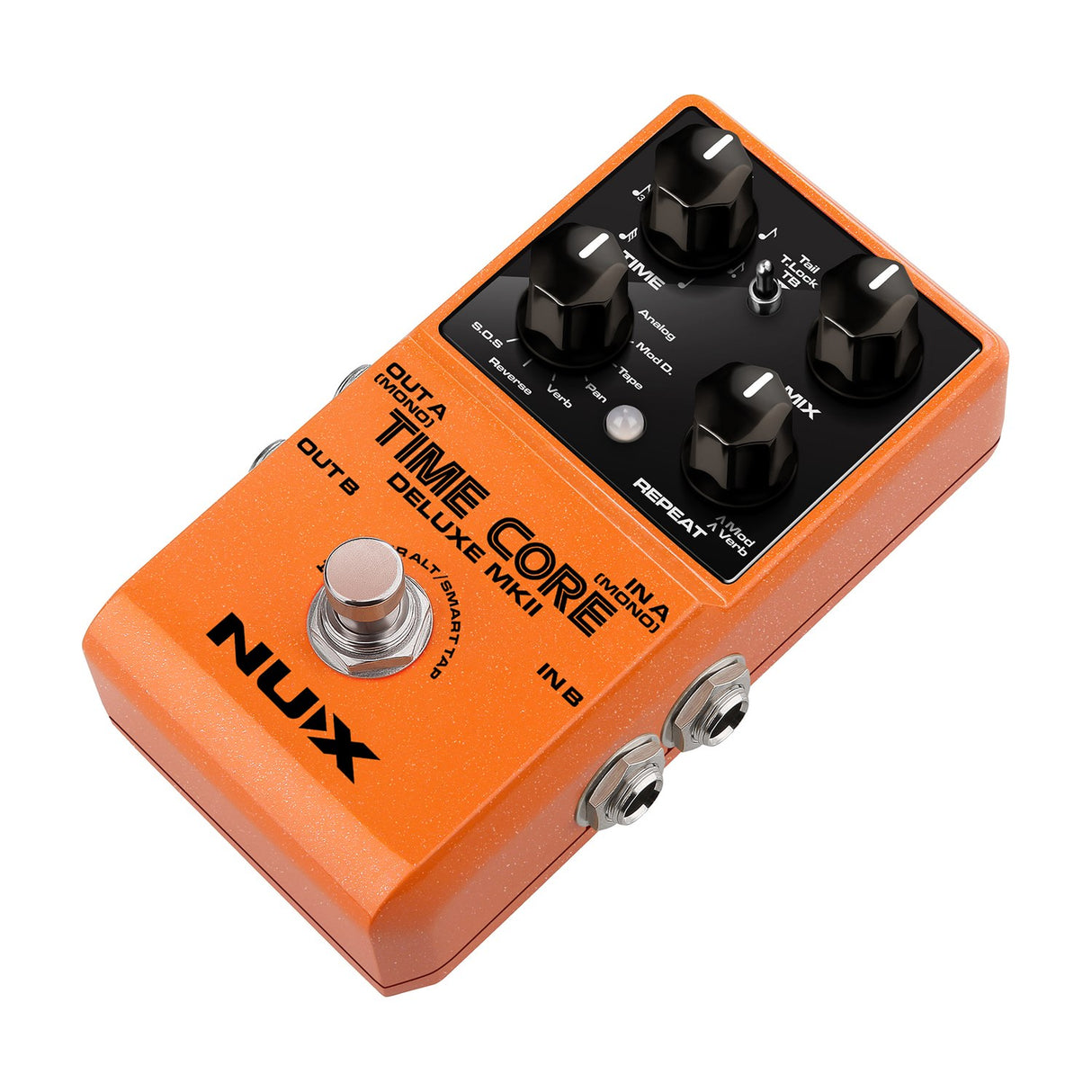

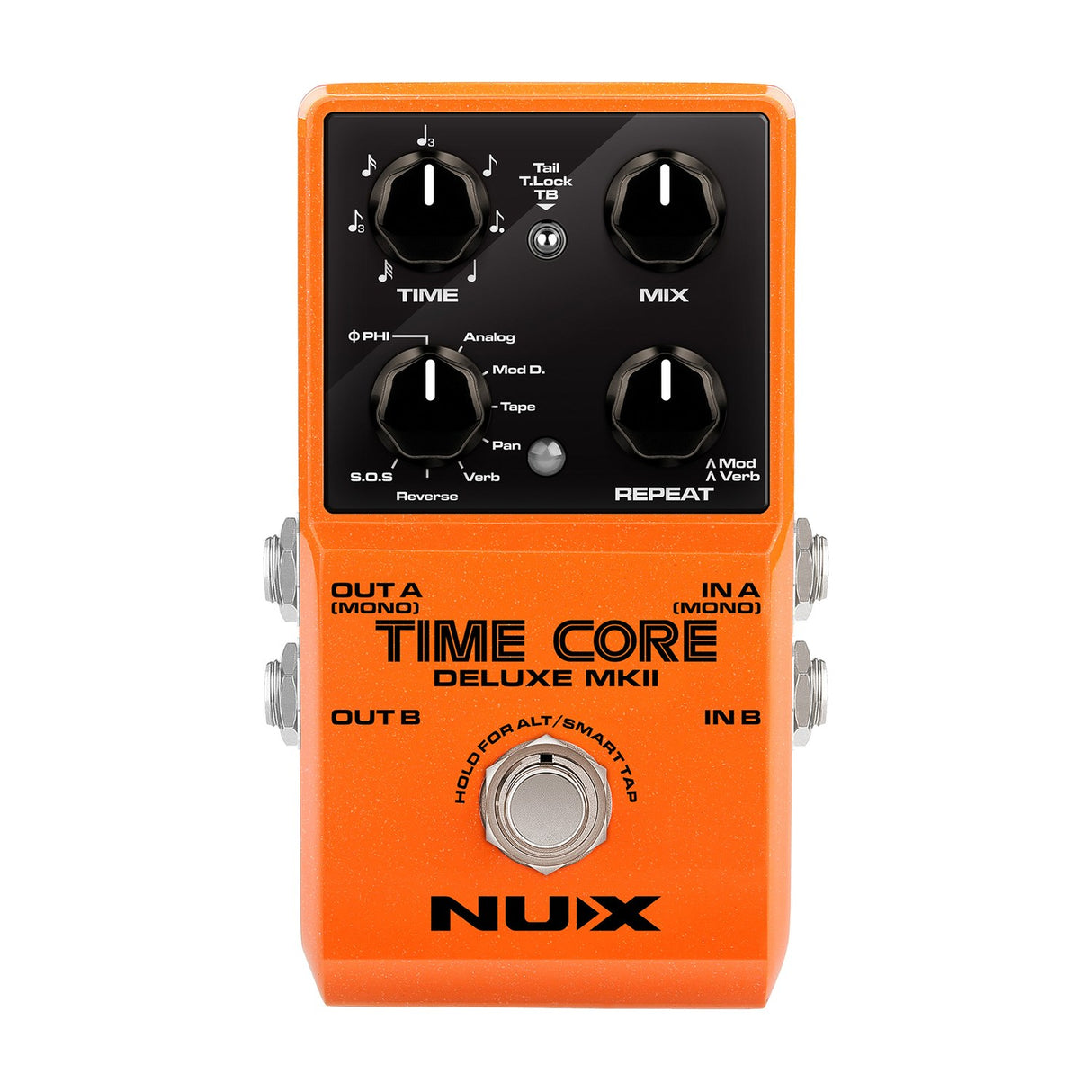

The NU-X Time Core Deluxe mkII is the next generation digital delay pedal, giving you 7 selectable delay types in one compact enclosure. It simulates well-regarded analog, tape and digital effects, and pairs them with up-to-date features like tap-tempo, kill dry and buffered tail bypass. New additions to this version include the proprietary Phi delay, an SOS looper and a layered reverb, so you have plenty of ground to cover on your pedal board.

The delay modes on offer are Phi Digital, Analog, Modulation, Tape, Pan, Verb and Reverse. From short slap-back echo through to long multi-tap repeats, this pedal handles practically any delay duty you might need. Four controls (Time, Mix, Repeat and Delay type) keep things straightforward, while the 40 second sound-on-sound looper lets you build layered parts as you play. You can run a full stereo or mono signal path, and choose between true or buffered bypass depending on how the pedal sits in your chain.

Audio is processed at 48kHz, 24-bit with a dynamic range of 104dB, input impedance of 1M ohm and output impedance of 1k ohm. Left and right 6.3mm mono jacks handle both inputs and outputs. The pedal needs a 9Vdc adaptor (pin-negative, DC5521 jack), sold separately, and draws under 120mA. A USB-C port lets you apply firmware updates as they come out. Measuring 122 x 72 x 47mm and weighing 270g, it fits neatly alongside your other pedals.

Specification
Power supply 9Vdc power adaptor required
DC input connection DC5521 jack (for optional adaptor - pin-negative)
Current consumption <120mA

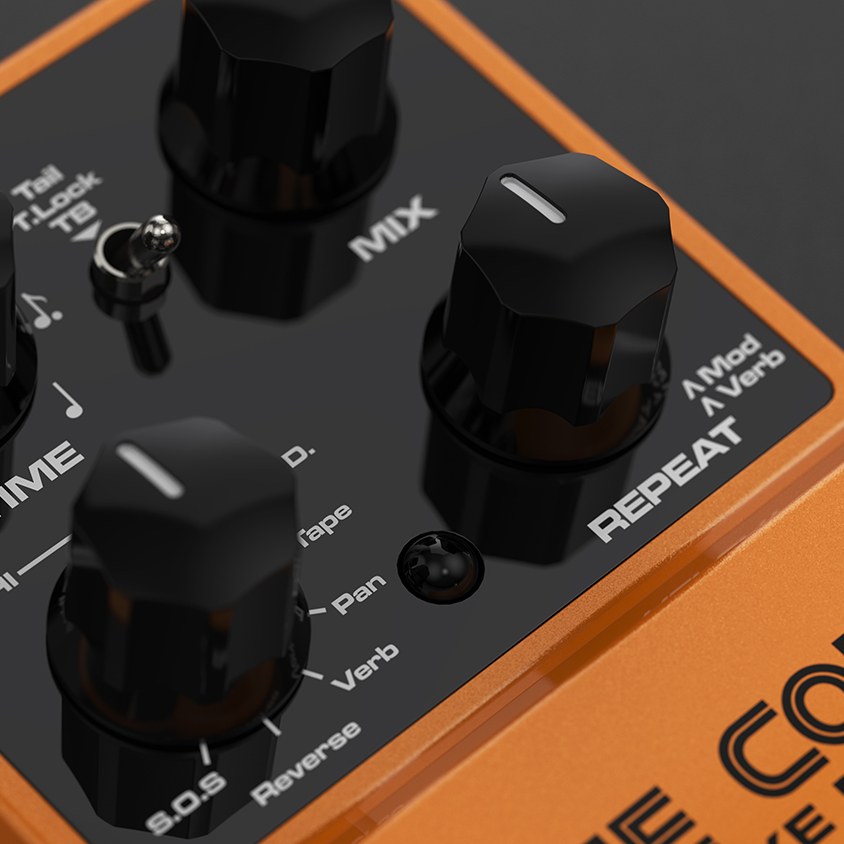

Controls Time, Mix, Repeat, Delay type
Recording mode 40 second sound-on-sound looper
Modes Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay

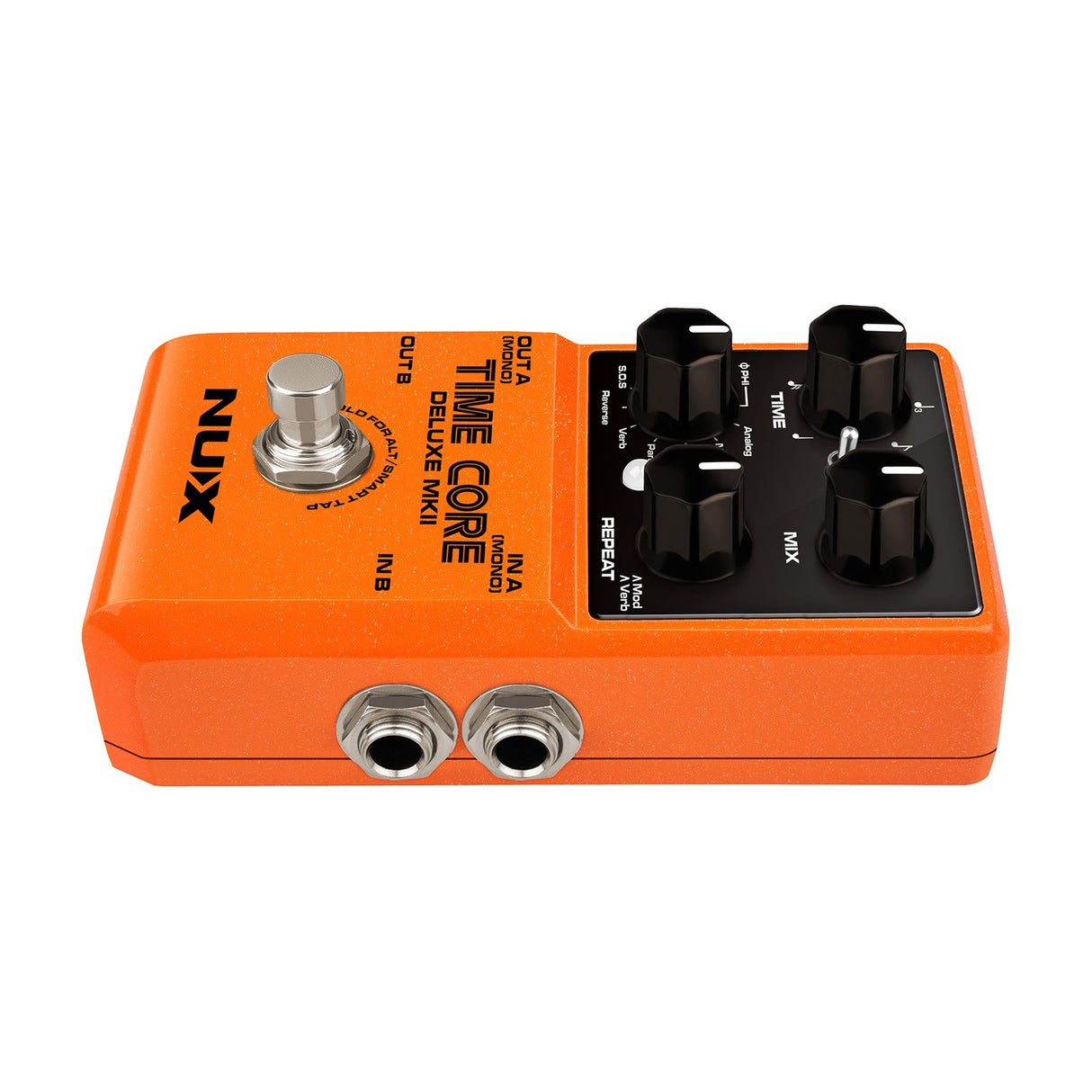

Inputs L+R 6.3mm mono jack
Outputs L+R 6.3mm mono jack
Sampling format 48kHz, 24-bit
Input impedance 1M Ohm
Output impedance 1k Ohm
Dynamic range 104dB
Dimensions 122mm x 72mm x 47mm
Weight 0.27KG
Downloads

Product Manual

Frequently Asked

How many delay types does it have?

Seven: Phi Digital, Analog, Modulation, Tape, Pan, Verb and Reverse delay, selected with the Delay type control.

Does it include a looper?

Yes. There is a 40 second sound-on-sound (SOS) looper for building layered parts as you play.

What power supply does it need?

A 9Vdc adaptor with a pin-negative DC5521 jack, sold separately. Current consumption is under 120mA.

Can I run it in stereo?

Yes. It offers a full stereo or mono signal path using the left and right 6.3mm mono jacks for both inputs and outputs.

What is true or buffered bypass?

True bypass routes your dry signal straight through when off, while buffered bypass keeps the signal driven and can preserve delay tails. You can choose either mode.

How do I update the firmware?

Connect the pedal via its USB-C port to apply firmware updates as NU-X releases them.
