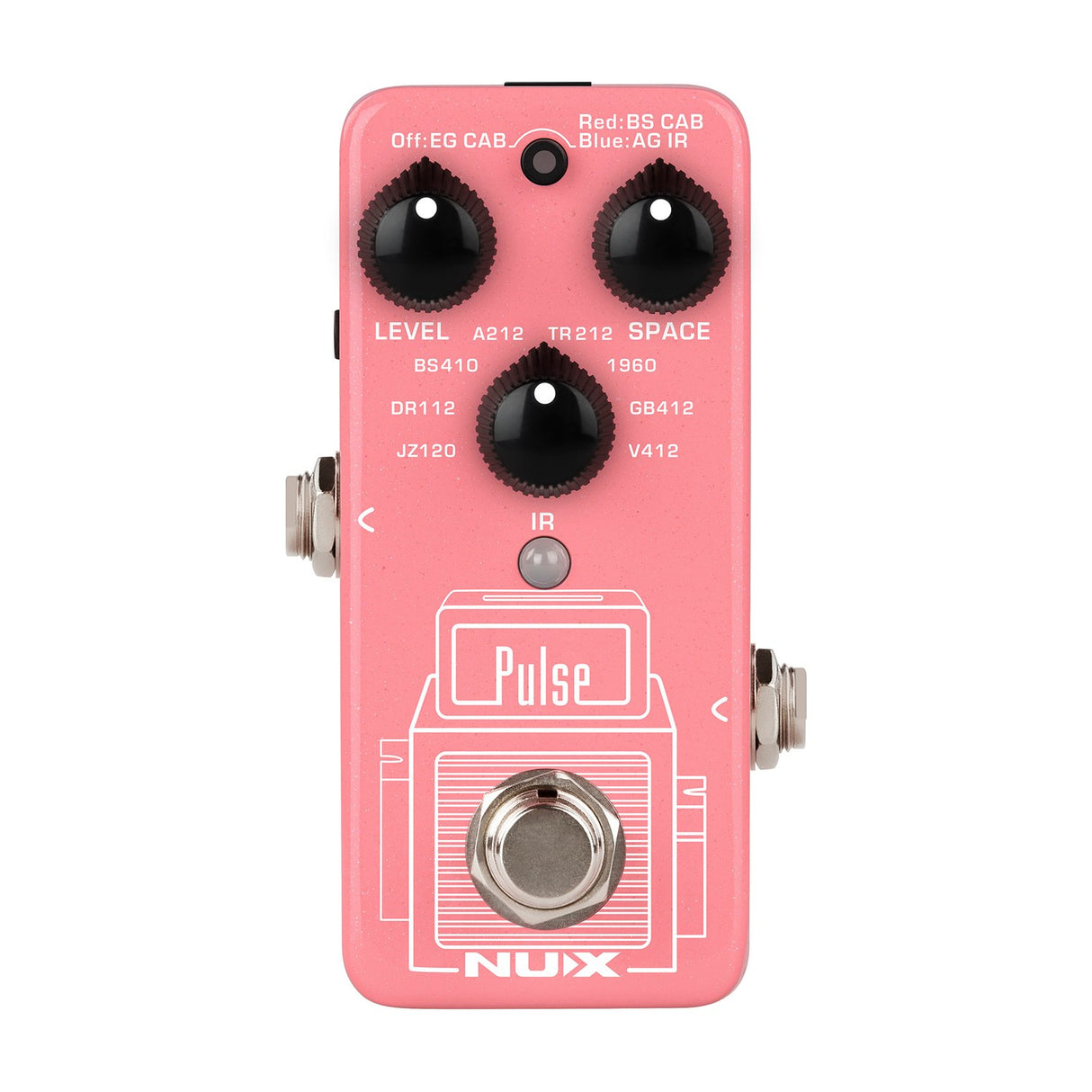

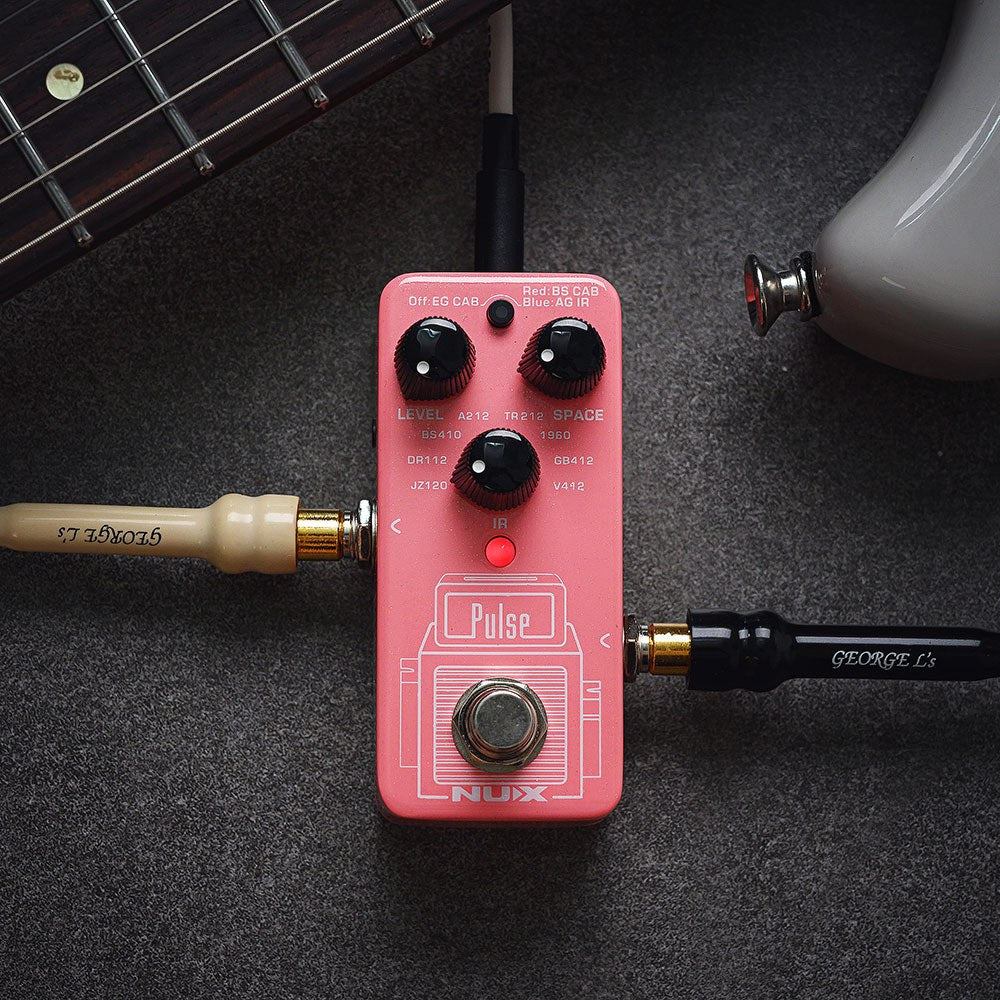

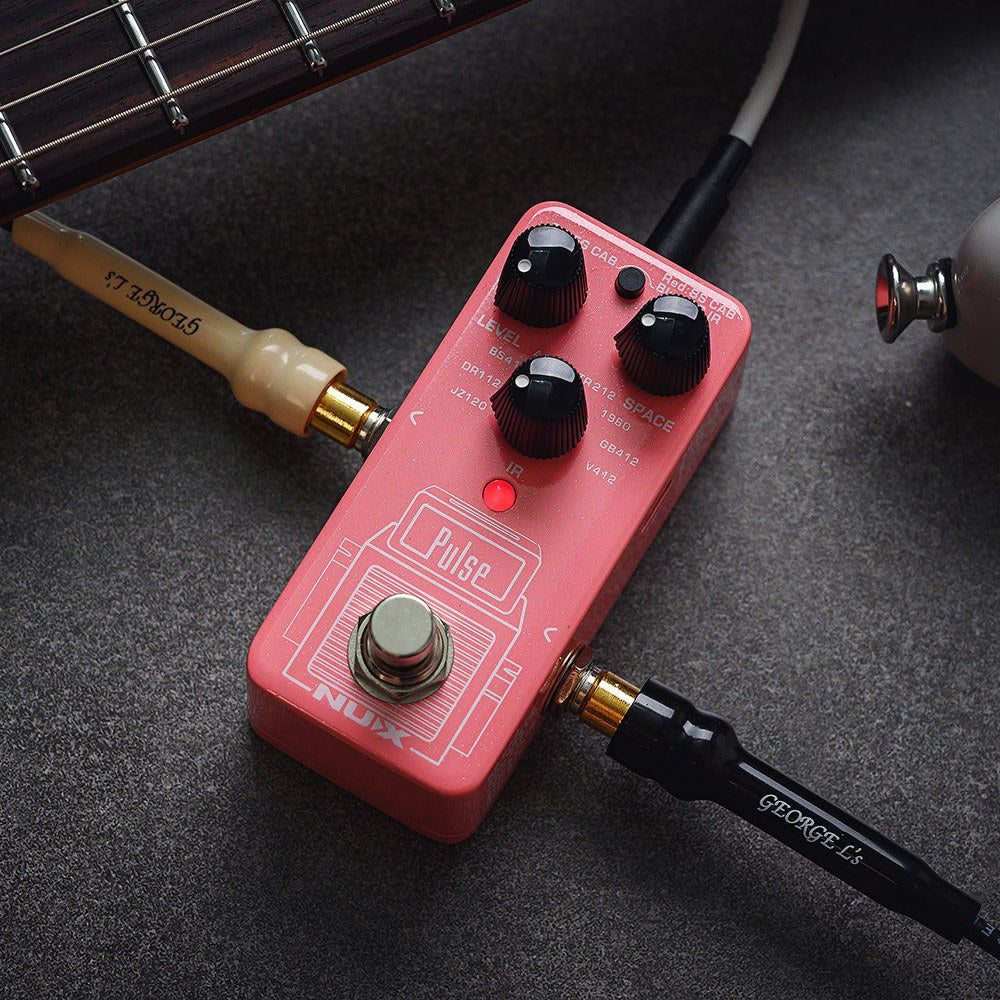

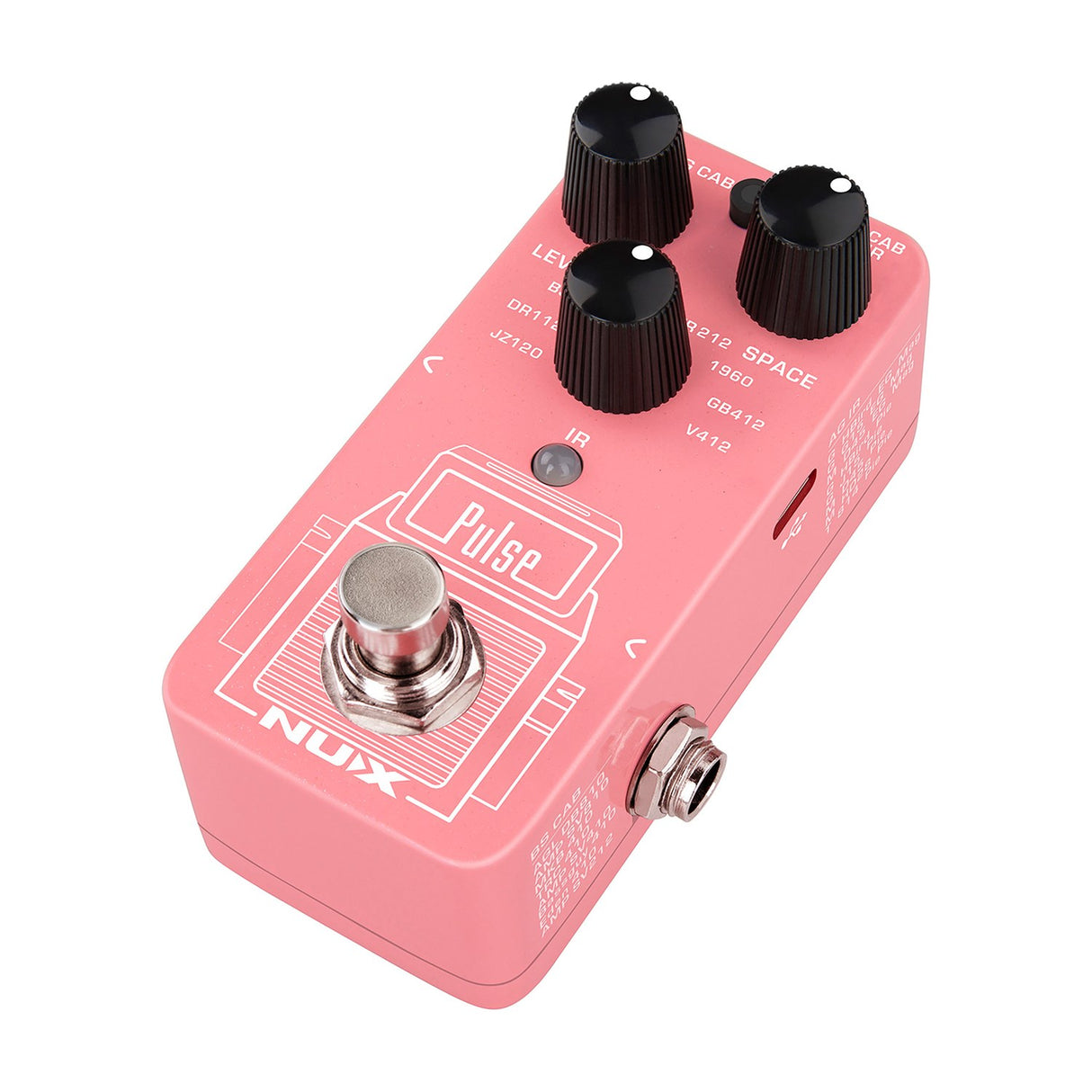

NU-X NSS-4 Pulse Impulse Response IR Loader Pedal

£10799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The NU-X NSS-4 Pulse is a miniature IR (impulse response) loader pedal that applies a chosen tonal profile to your input signal. Speaker cabinets, or cabs, shape the tone of a guitar or bass in a musical way, and that sound is usually picked up with a microphone before heading to a mixing console for recording or sound reinforcement. Running a signal straight into a mixer without a cab tends to sound sterile and harsh, and this is where Pulse steps in.

Pulse can mimic both the speaker cabinet and the microphone, so you can take the guitar signal from the preamp section and send it directly into a mixer channel. It can also model the response of an acoustic guitar, helping an electric sound more like an acoustic or making an electro-acoustic sound more natural. There are three IR modes covering guitar cab, bass cab and acoustic guitar, each with 8 selectable types, adjusted using the Level and Space controls. Buffered or true bypass is selectable, and it runs in mono or stereo.

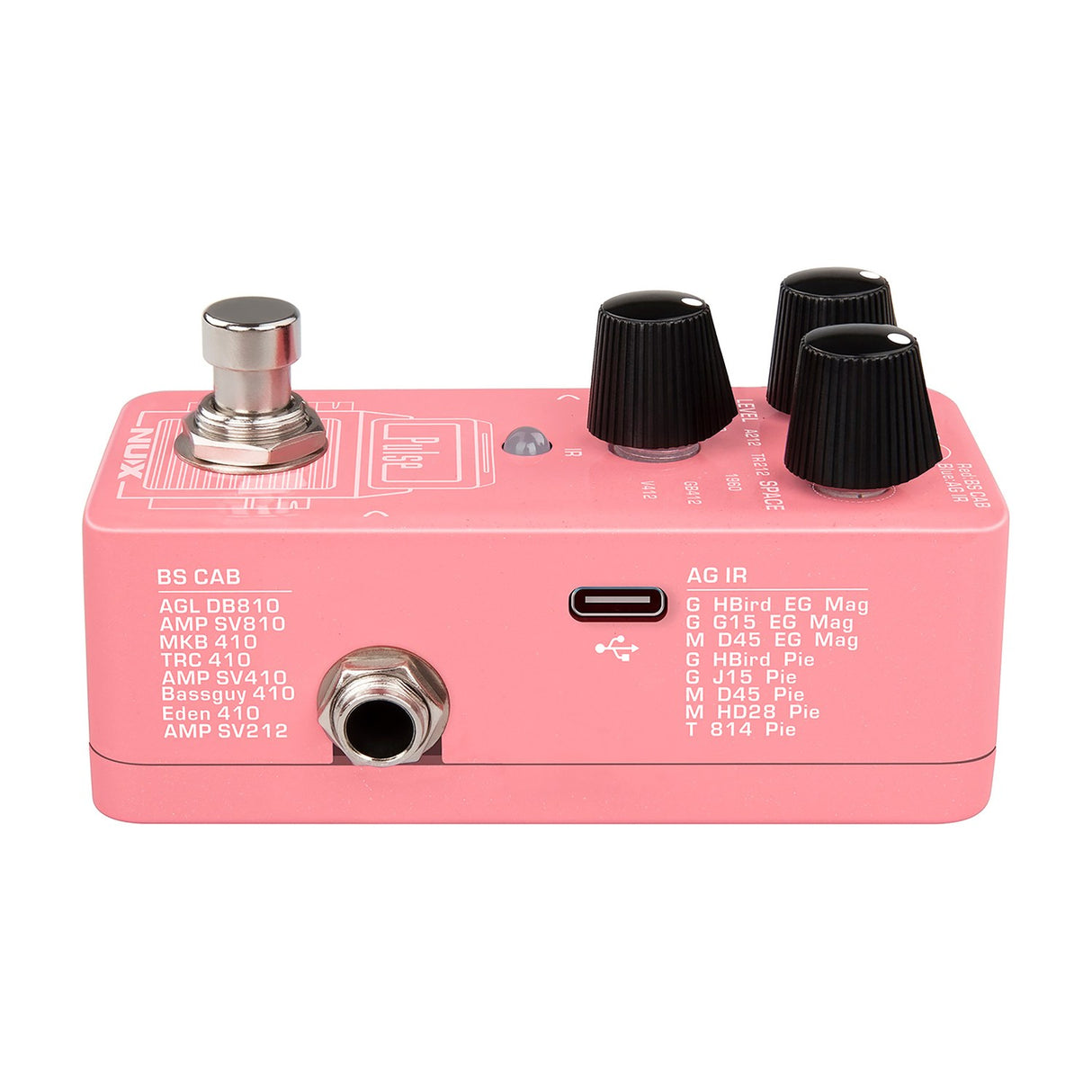

A 3.5mm headphone output means you can use Pulse for silent practice, while the built-in audio to USB interface lets it act as the front end for a PC or Mac recording setup. The USB-C port handles the editor software, audio in and out, and firmware updates, with the editor available from the NU-X website. The chassis is a strong, lightweight aluminium die-cast unit. Power comes from a 9V centre negative DC supply drawing 100mA, which is not supplied. Pulse is a handy multi-tool for guitarists and bass players covering practice, live and recording work.

Specification

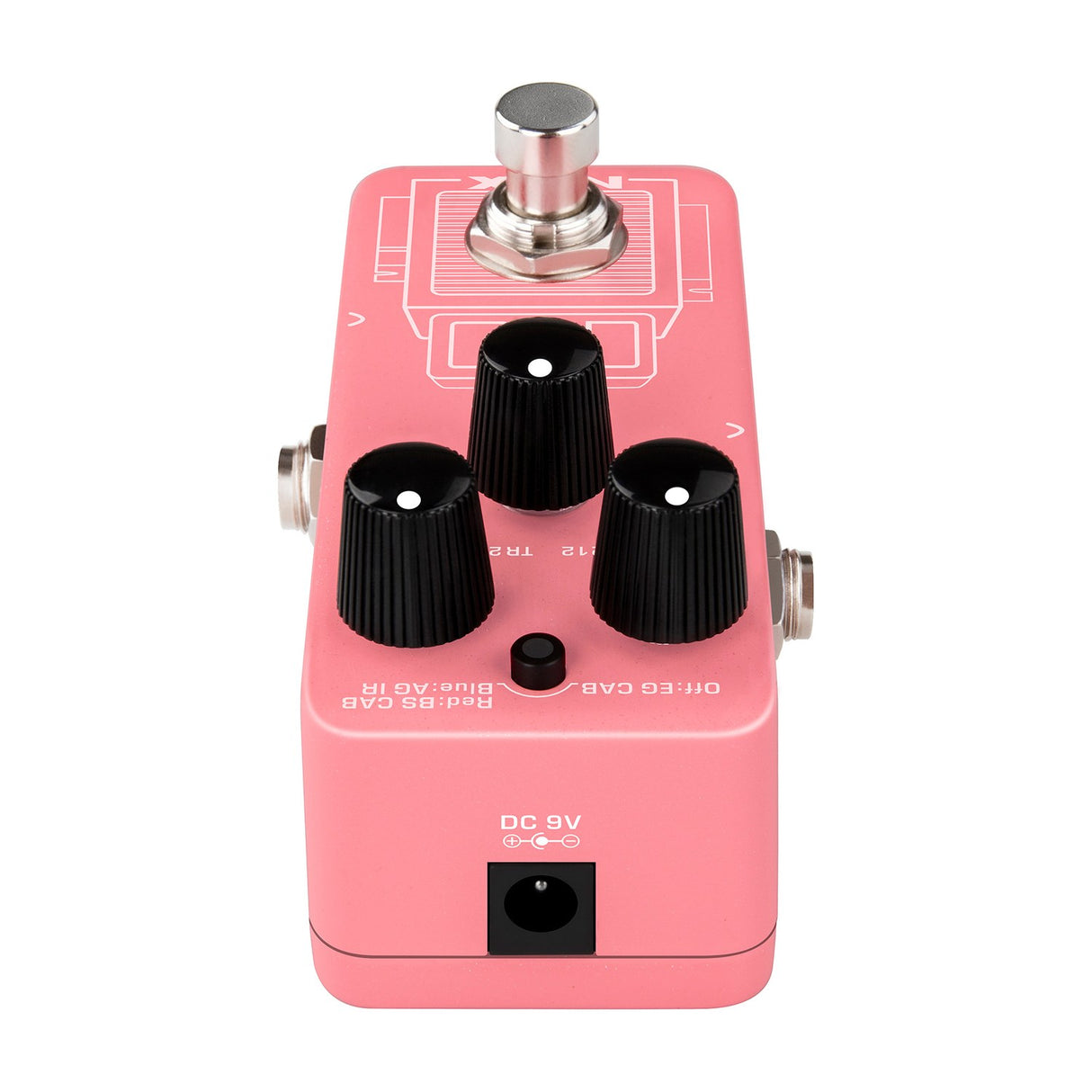

Power supply 9Vdc (DC5521 connector, negative centre, adaptor not supplied)
Controls Level, Space, 8-model selector and 3 IR modes switch
Dimensions 94mm x 53mm x 51mm
Weight 0.17KG
Downloads

Product Manual

Frequently Asked

Does the Pulse come with a power supply?

No. It needs a 9V centre negative DC supply with a 100mA current draw, which is not included. A compatible supply is available under code 173.290UK.

Can I use the Pulse for silent practice?

Yes. It has a 3.5mm headphone output, so you can plug in headphones and practise quietly without an amp or cab.

What IR modes are available?

There are three modes: guitar cab (EG CAB), bass cab (BS CAB) and acoustic guitar (AG IR). Each mode offers 8 selectable types, adjusted with the Level and Space controls.

Can it work as a USB audio interface?

Yes. The built-in audio to USB interface lets you use the pedal as the front end for a PC or Mac recording setup via the USB-C port.

Does it support stereo?

Yes. You can select mono or stereo modes, and choose between buffered or true bypass.

Where do I get the editor software?

The editor is downloadable from the NU-X website at www.nuxefx.com/pulse.html. It connects over the USB-C port, which also handles firmware updates.
