NU-X NDL-3 Hook Drum Machine & Looper Pedal

£8199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

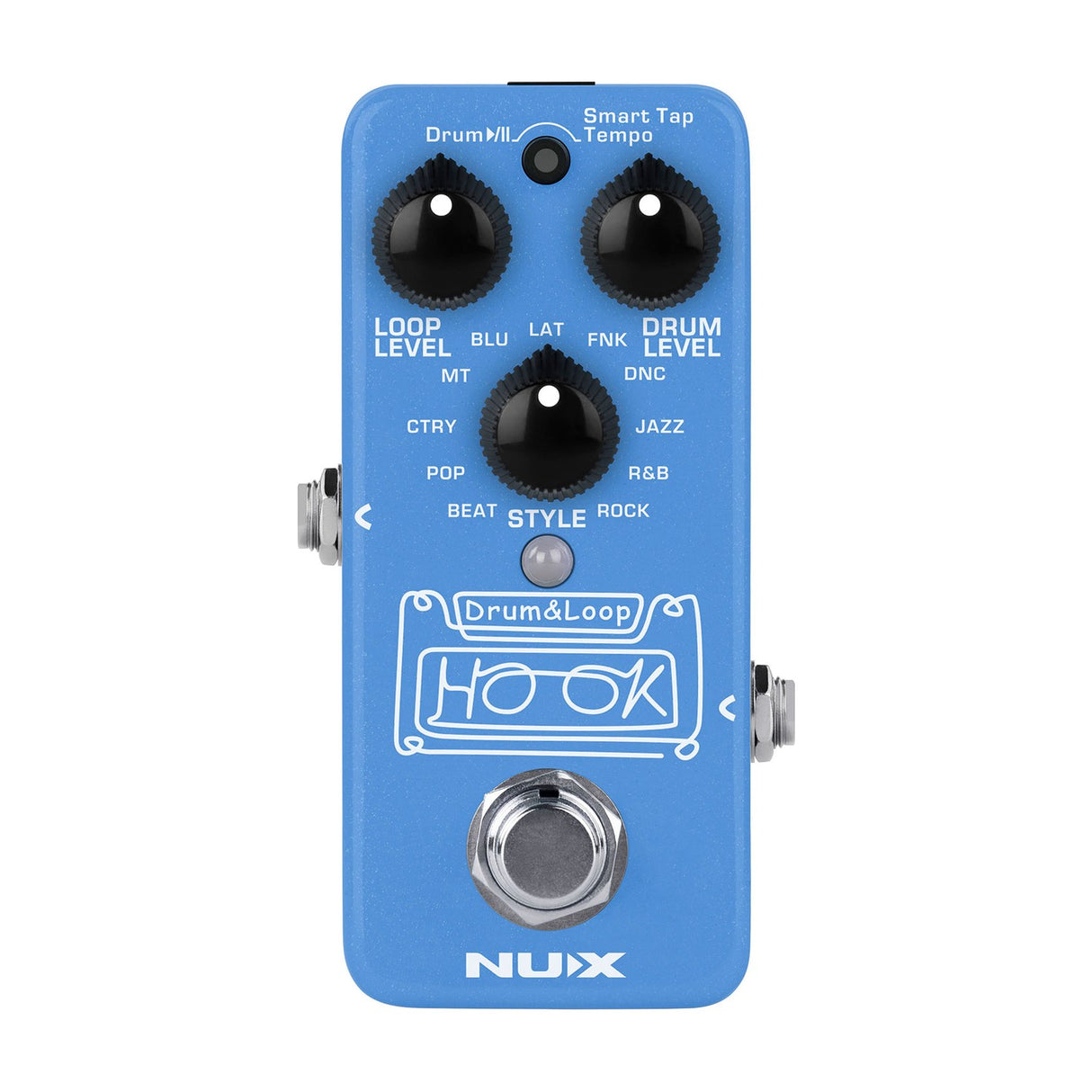

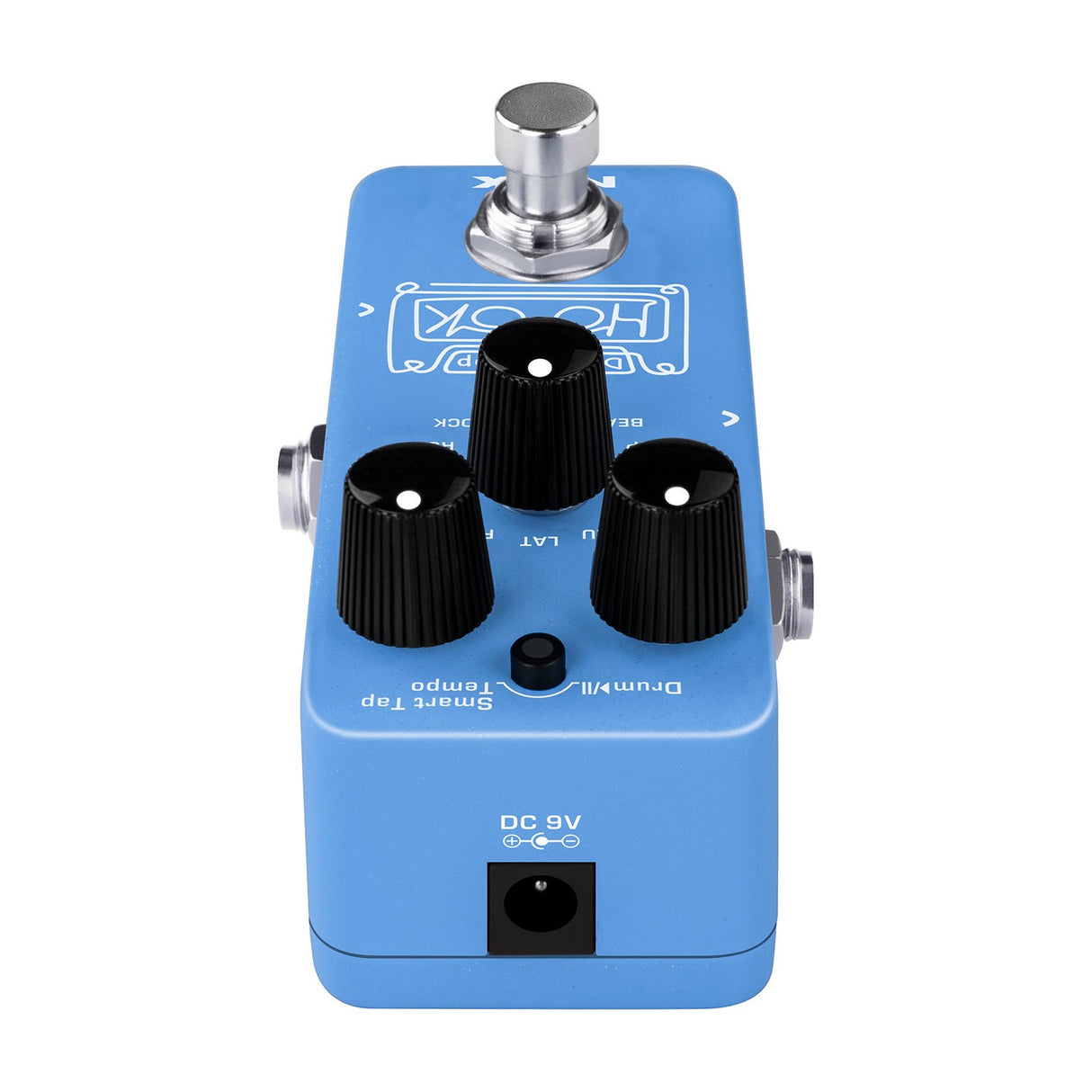

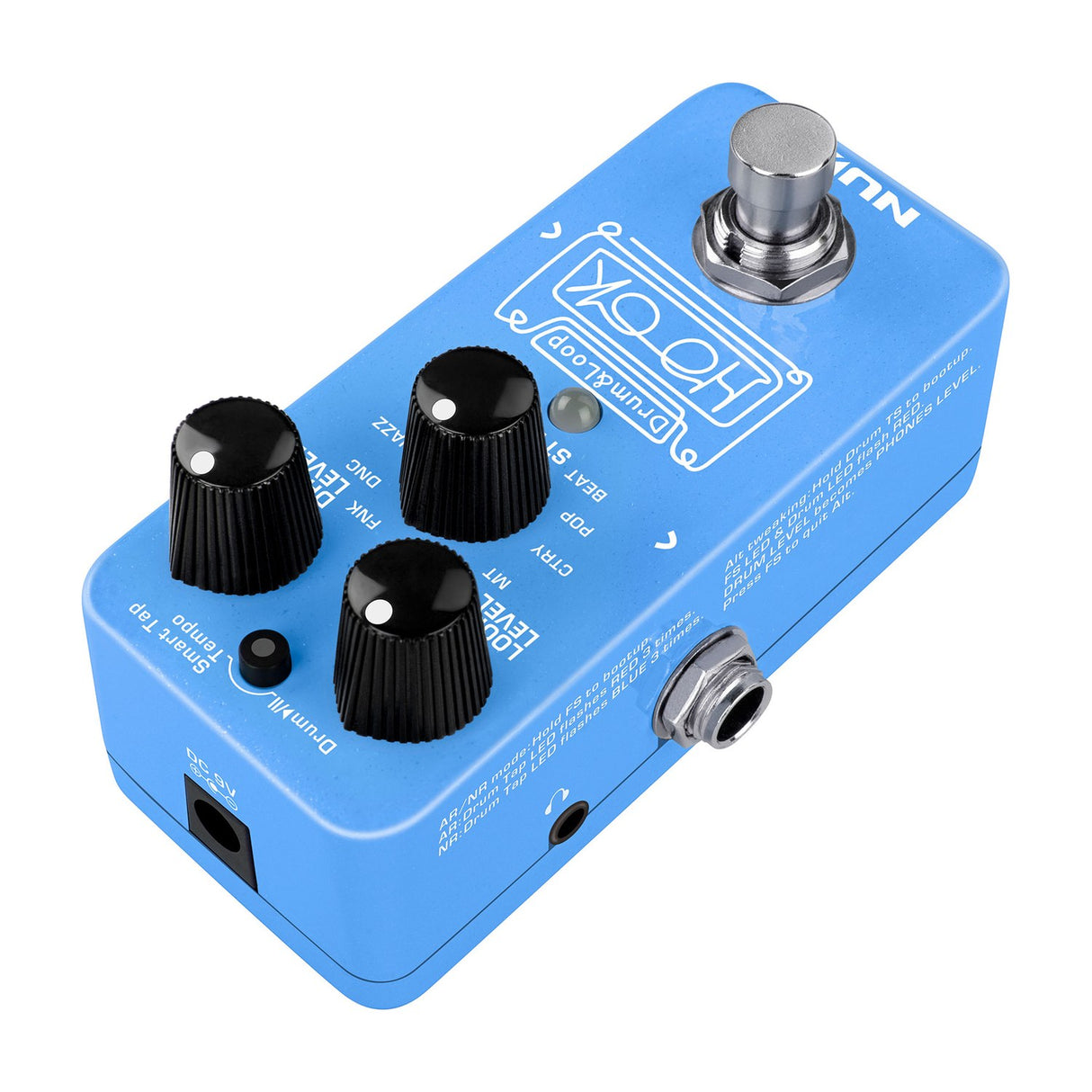

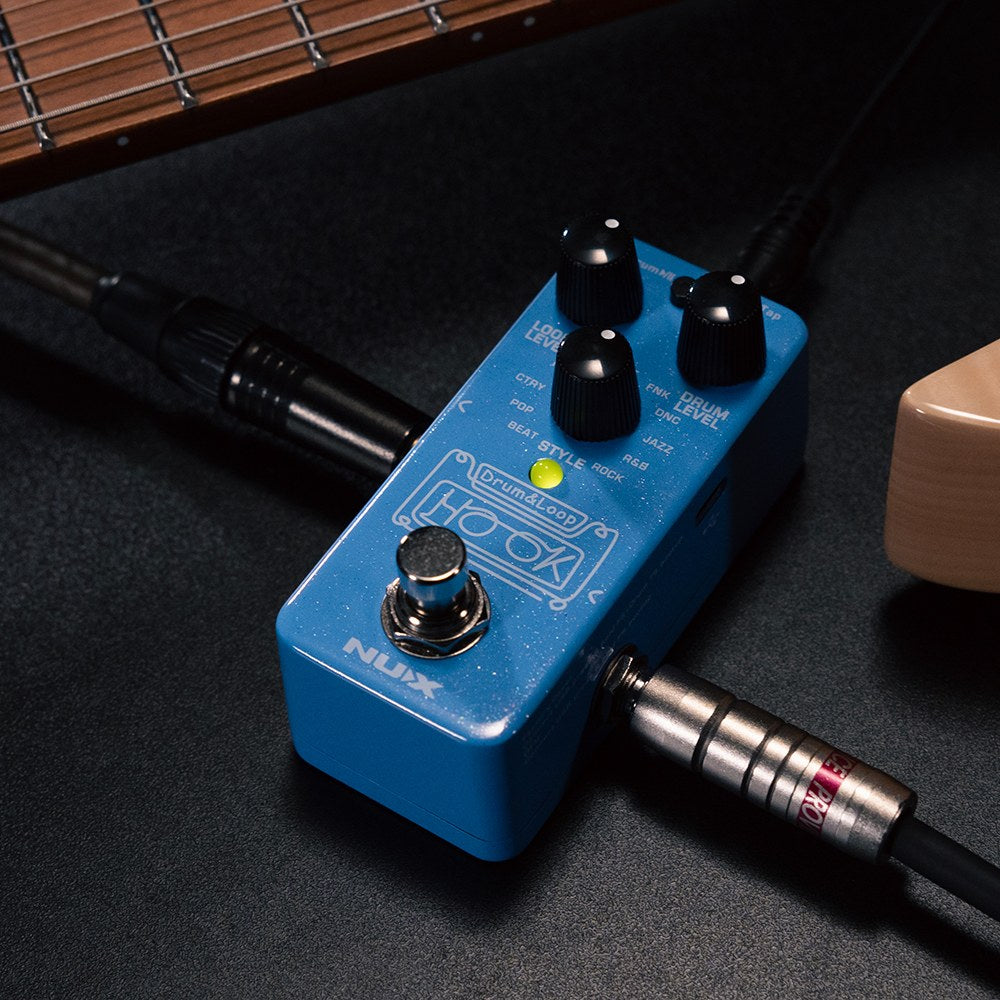

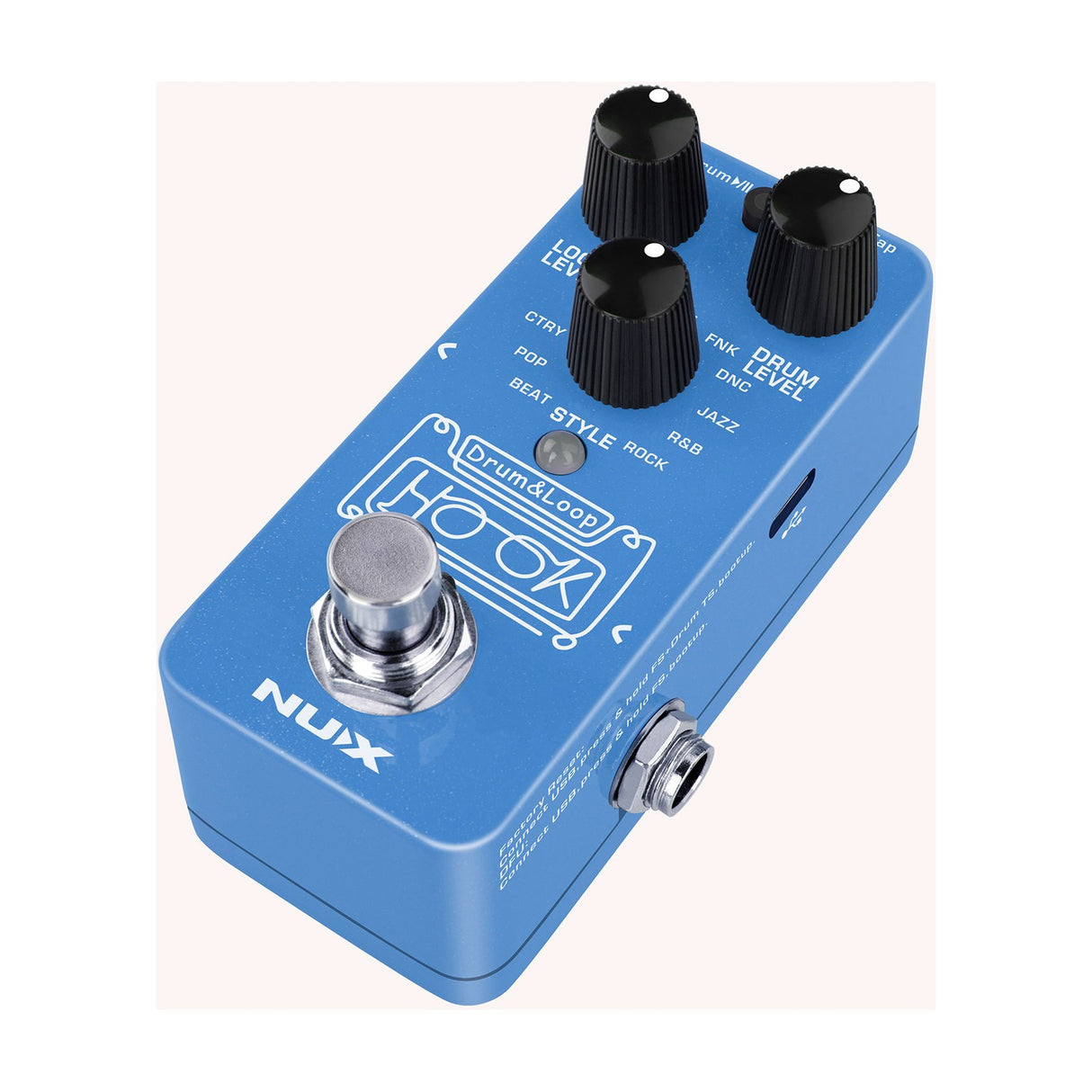

The NU-X NDL-3 Hook combines a drum machine and a phrase looper in one small pedal. The drum section runs from the play/pause button, which also acts as a Smart Tap Tempo trigger. You can choose from 11 rhythm styles covering a wide range of music genres, and the independent Drum Level control lets you set how loud the drums sit. An LED inside the Smart Tap Tempo trigger shows the current tempo at a glance.

The built-in 24-bit looper gives you up to 6 minutes of recording time with unlimited overdubs. Tapping the footswitch starts recording, tapping again begins playback, and a further tap starts overdubbing. Holding the footswitch undoes overdubs one at a time, or erases the loop when playback has stopped. Two recording modes are on offer: NR mode for normal recording, and AR mode, which only starts recording once you play a guitar note. The Hook can also read the rhythm of your phrase and set the drum tempo to match it, and the guitar loop has its own level control to balance against the drum track.

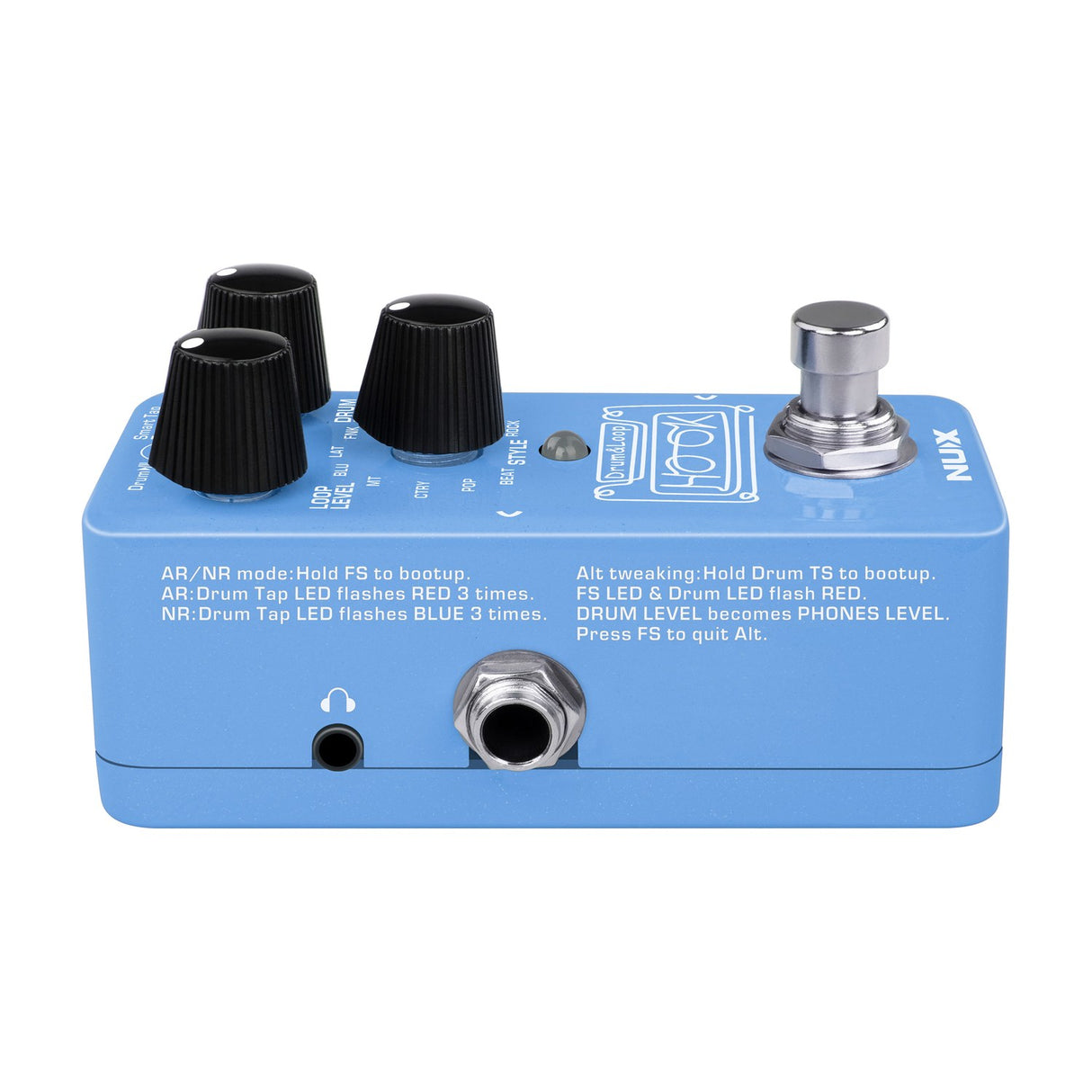

Connections include a guitar input, a mixed output jack, and a headphones minijack (US: 1/8-inch jack) for silent practice. A Type-C USB port handles firmware updates and lets you save or load onboard loop recordings as WAV files to a PC or Mac. It samples at 48kHz/24-bit with a 103dB dynamic range, runs on a 9Vdc centre-negative supply, and draws under 100mA. Measuring 94 x 53 x 51mm and weighing 175g, the Hook is a full practice and accompaniment tool for a solo guitarist who wants useful features that stay simple to work.

Specification
Power supply 9Vdc (centre-negative power adaptor required)
Input impedance 1M Ohm
Output impedance 10k Ohm (headphones output: 10 Ohm)
Sampling format 48kHz, 24-bit
Current consumption <100mA
Dynamic range 103dB
Dimensions 94mm x 53mm x 51mm
Weight 0.17KG
Downloads

Product Manual

Frequently Asked

How much loop recording time does the Hook offer?

Up to 6 minutes, using a 24-bit phrase looper with unlimited overdubs.

What is the difference between NR and AR recording modes?

NR mode records straight away when you press the footswitch. AR mode only begins recording once you play a guitar note, so there is no silence at the start of your loop.

How many drum styles are included?

There are 11 individual rhythm styles, covering a wide range of music genres, with an independent Drum Level control.

Can I set the drum tempo automatically?

Yes. Alongside Smart Tap Tempo, the Hook can detect the rhythm of your guitar phrase and set the drum tempo to match it.

What power supply does the NDL-3 need?

It runs on a 9Vdc centre-negative power adaptor (sold separately) and draws under 100mA.

Can I move loops between the pedal and a computer?

Yes. The Type-C USB port handles firmware updates and lets you save or load onboard loop recordings as WAV files to a PC or Mac.
