NU-X NDD-7 Tape Echo & Spring Reverb Pedal

£19799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The NU-X NDD-7 is an echo and delay pedal built to recreate the sound of vintage tape echo units. It gives you 7 different simulation types, so you can move between classic tape echo tones and other period-correct delay characters. Alongside the delay it has a separate spring reverb effect, and there's a sound-on-sound (SOS) mode that turns the pedal into a 40 second looper. Delay times reach up to 1600ms, which is plenty for long trailing repeats.

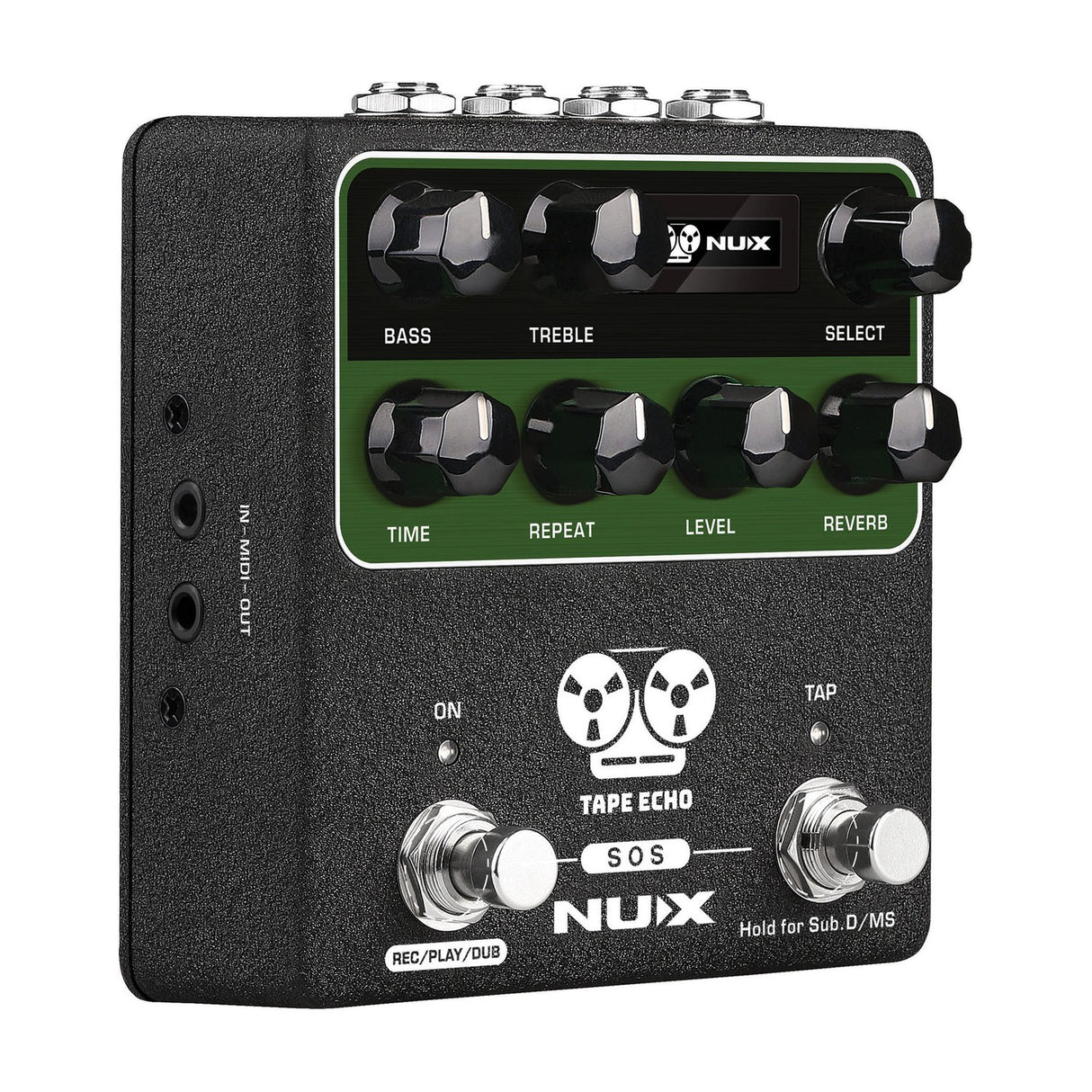

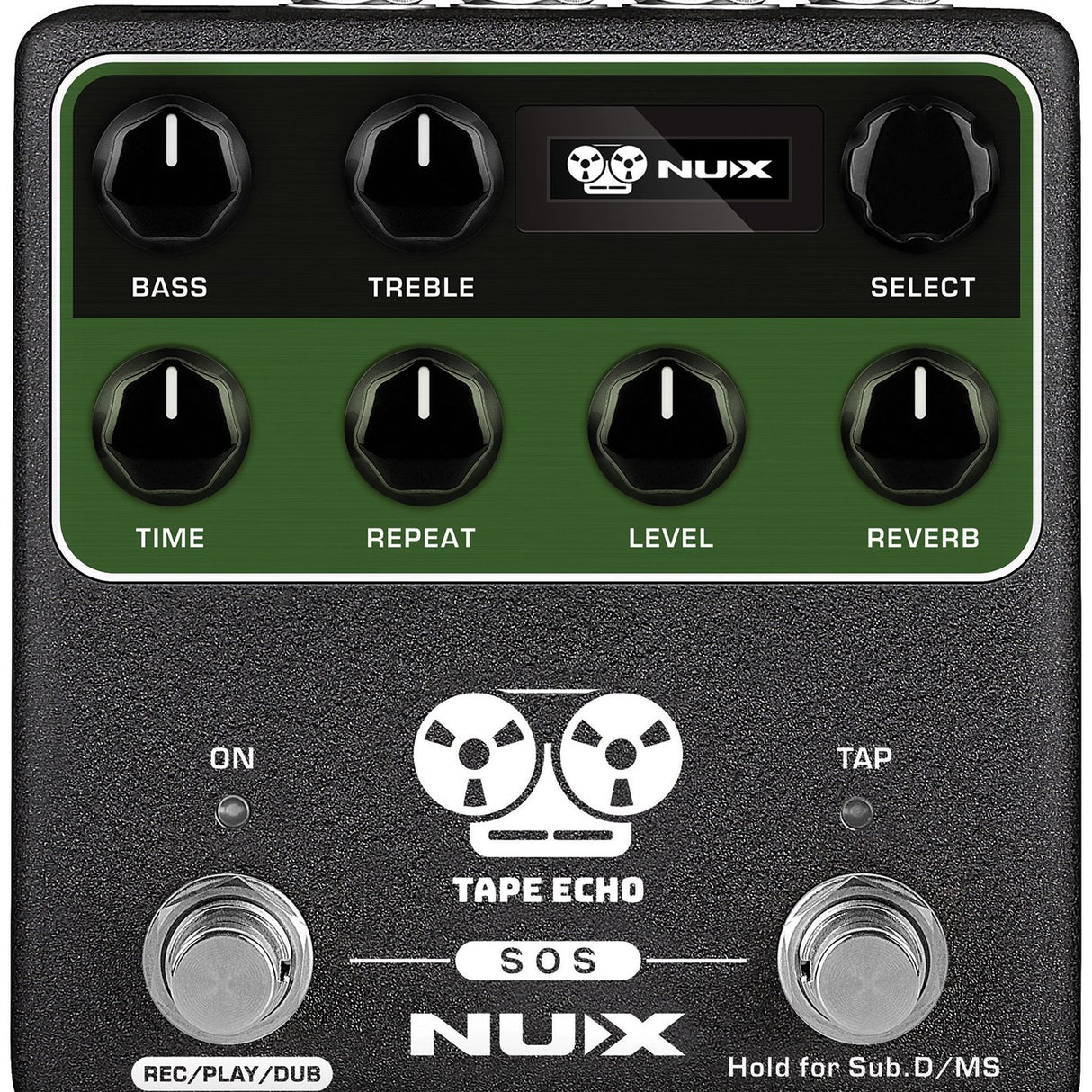

For a genuine retro feel, the NDD-7 includes Wow & Flutter settings that add the pitch movement of an ageing tape, plus a Saturation control that brings natural compression and degradation. Push it far enough and the pedal will drive into self-oscillation, much like a real tape echo. Two foot switches handle effect on/off and tap tempo, and they also work as looper and display controls. Above them sit Time, Repeat, Level and Reverb knobs, with a 2-band EQ (Bass and Treble) to shape the tone of your repeats.

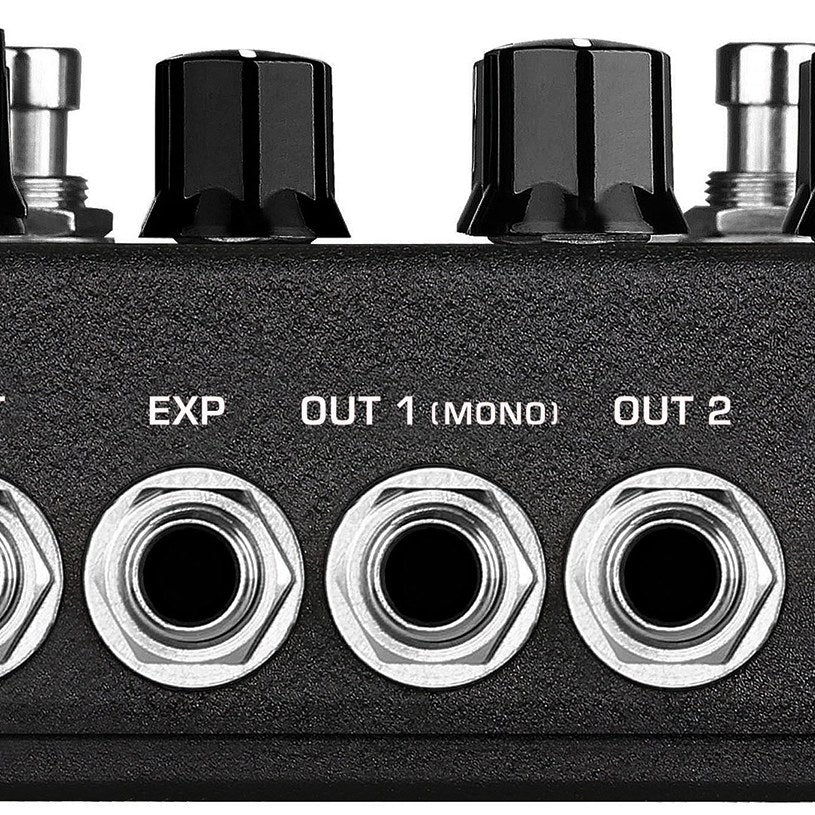

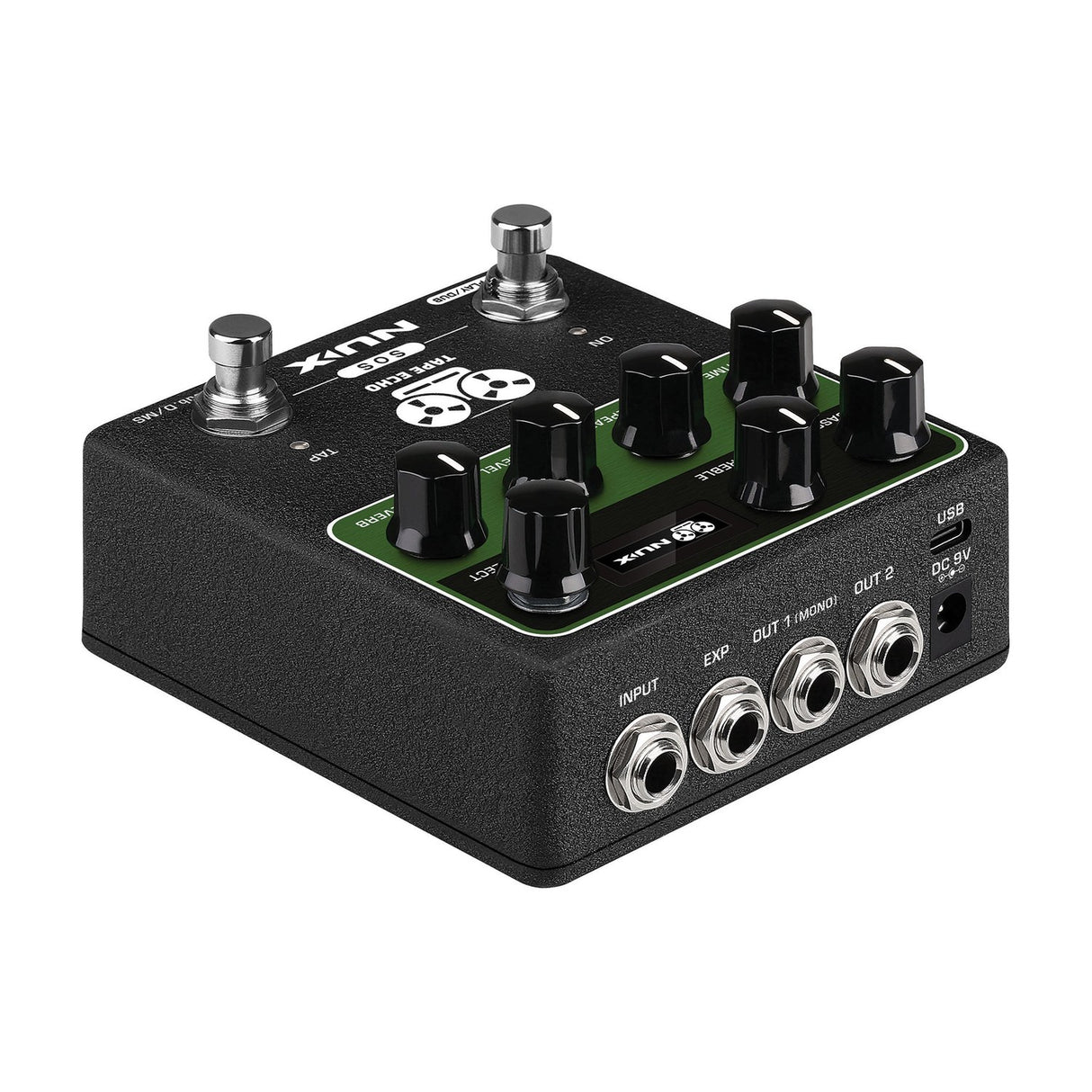

Connections cover stereo or mono output, an external expression pedal input, and MIDI in and out for integration with the rest of your rig. A USB port lets you edit settings on a PC and install firmware upgrades, which makes it easy to work alongside a DAW or project studio setup. It runs on a 9Vdc pin-negative supply (not included) and measures 115 x 105 x 58mm, so it fits neatly on a crowded pedalboard. If you want a range of vintage echo sounds in one compact unit, the NDD-7 covers a lot of ground.

Specification
Power supply 9Vdc, 300mA (min) pin-negative (not included)
Controls Time, Repeat, Level, Reverb, Bass, Treble, Select
Current consumption <150mA
Sampling Frequency 48kHz
Sampling format 32-bit
Frequency response 20Hz - 20kHz (-1dB)
Input impedance 5M Ohm
Input level 1.5V max
Output impedance 100 Ohm
Output level 1.5V max
Latency 1ms
Dynamic range 103dBu / 105dBu (A-weighted)
THD +N 0.0038% (1Vrms, 1kHz) / 0.01% (1Vrms, 1kHz)
Dimensions 115mm x 105mm x 58mm
Weight 0.44KG
Downloads

Product Manual

Frequently Asked

How long is the maximum delay time?

The NDD-7 offers up to 1600ms of delay, giving you room for long, spaced repeats as well as tighter slapback settings.

Can I use it as a looper?

Yes. The sound-on-sound (SOS) mode works as a 40 second looper, and the two foot switches double as looper and display controls.

Does it have reverb as well as delay?

It does. There's an independent spring reverb effect that runs separately from the echo, with its own Reverb control on the top panel.

What power supply does it need?

It runs on a 9Vdc, 300mA (min) pin-negative supply drawing under 150mA. The power supply is not included.

Can I control it via MIDI?

Yes. It has MIDI in and out for deep control and integration with a DAW or project studio, plus a USB port for the PC editor and firmware upgrades.

Can I connect an expression pedal?

Yes, there's an external expression pedal input, along with stereo or mono output options.
