Description

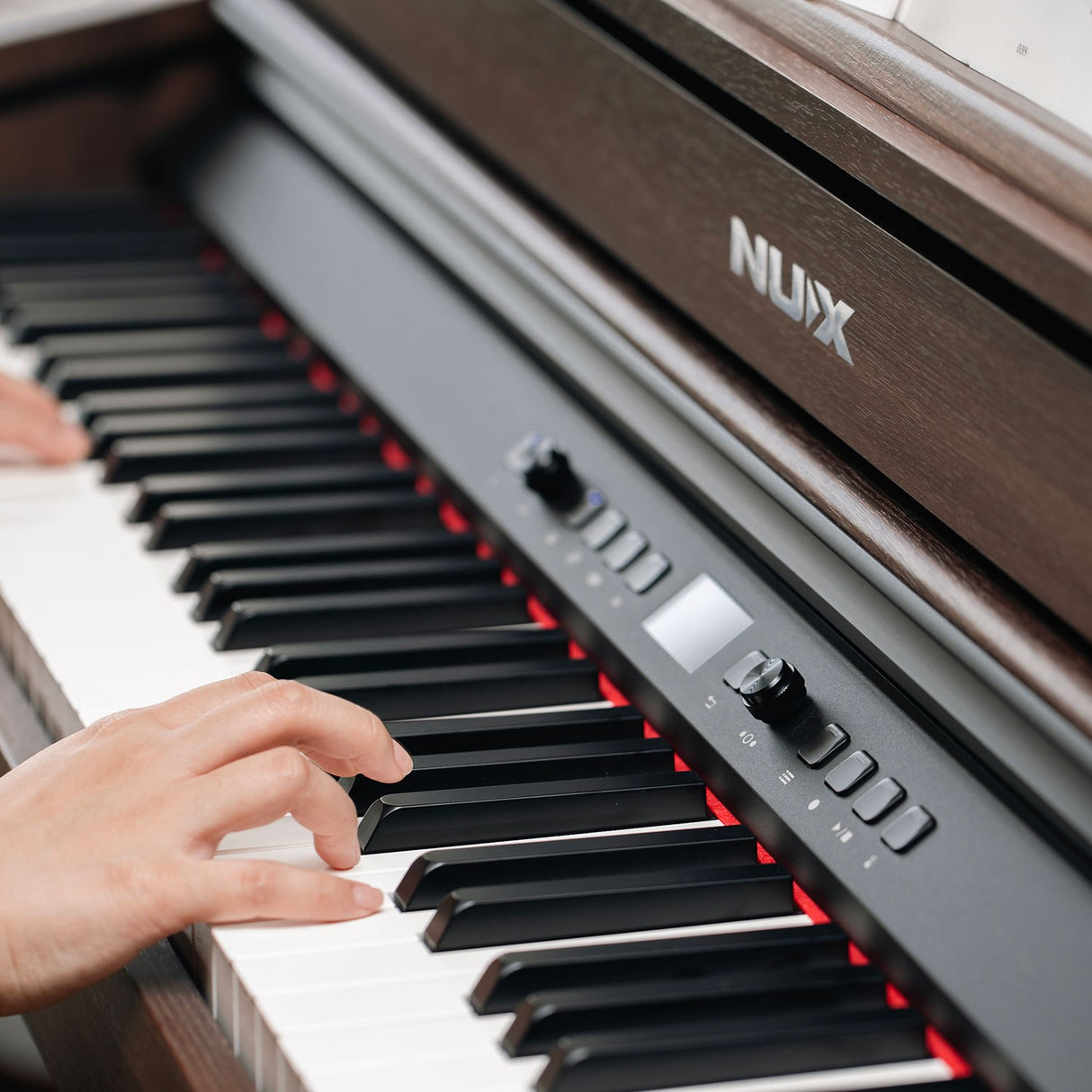

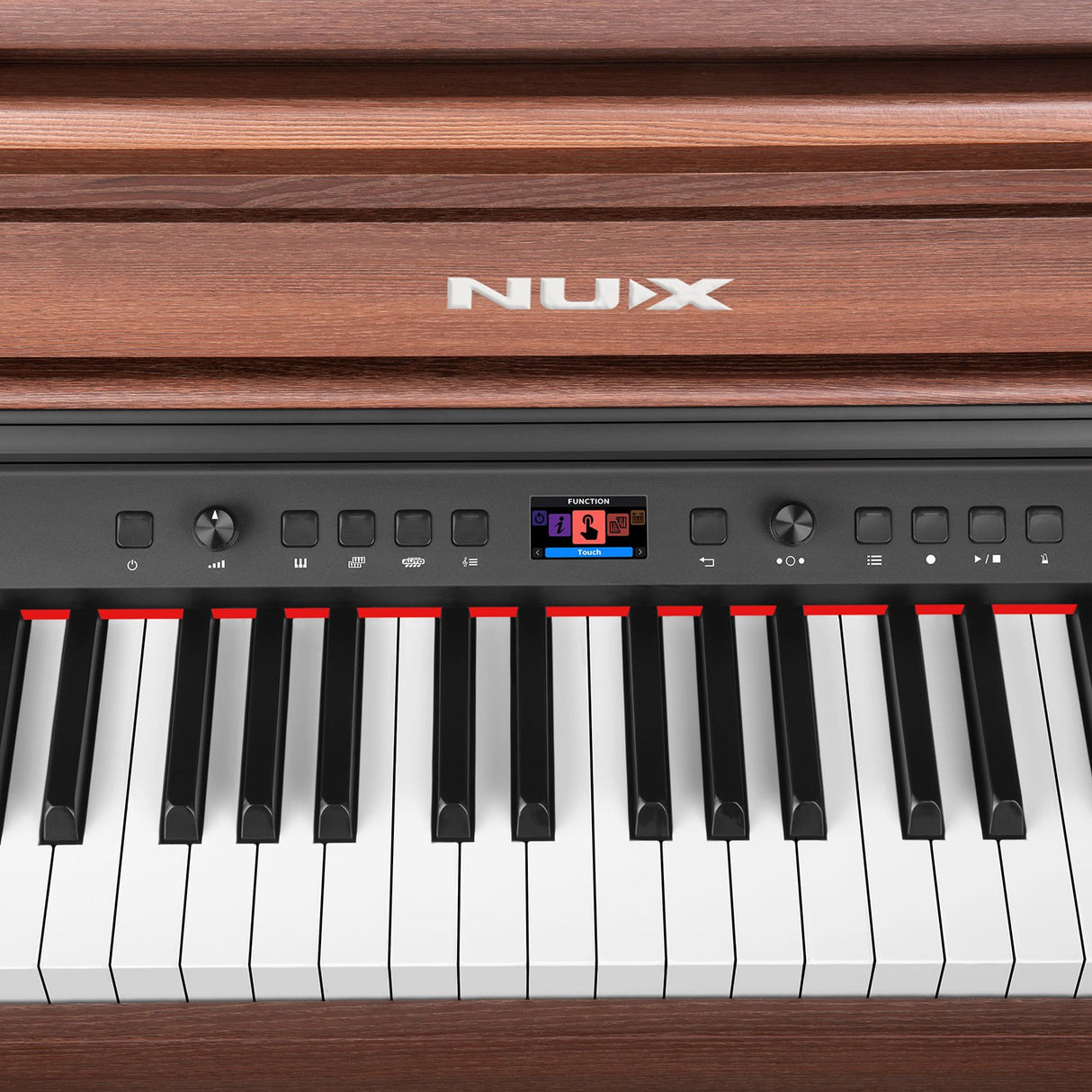

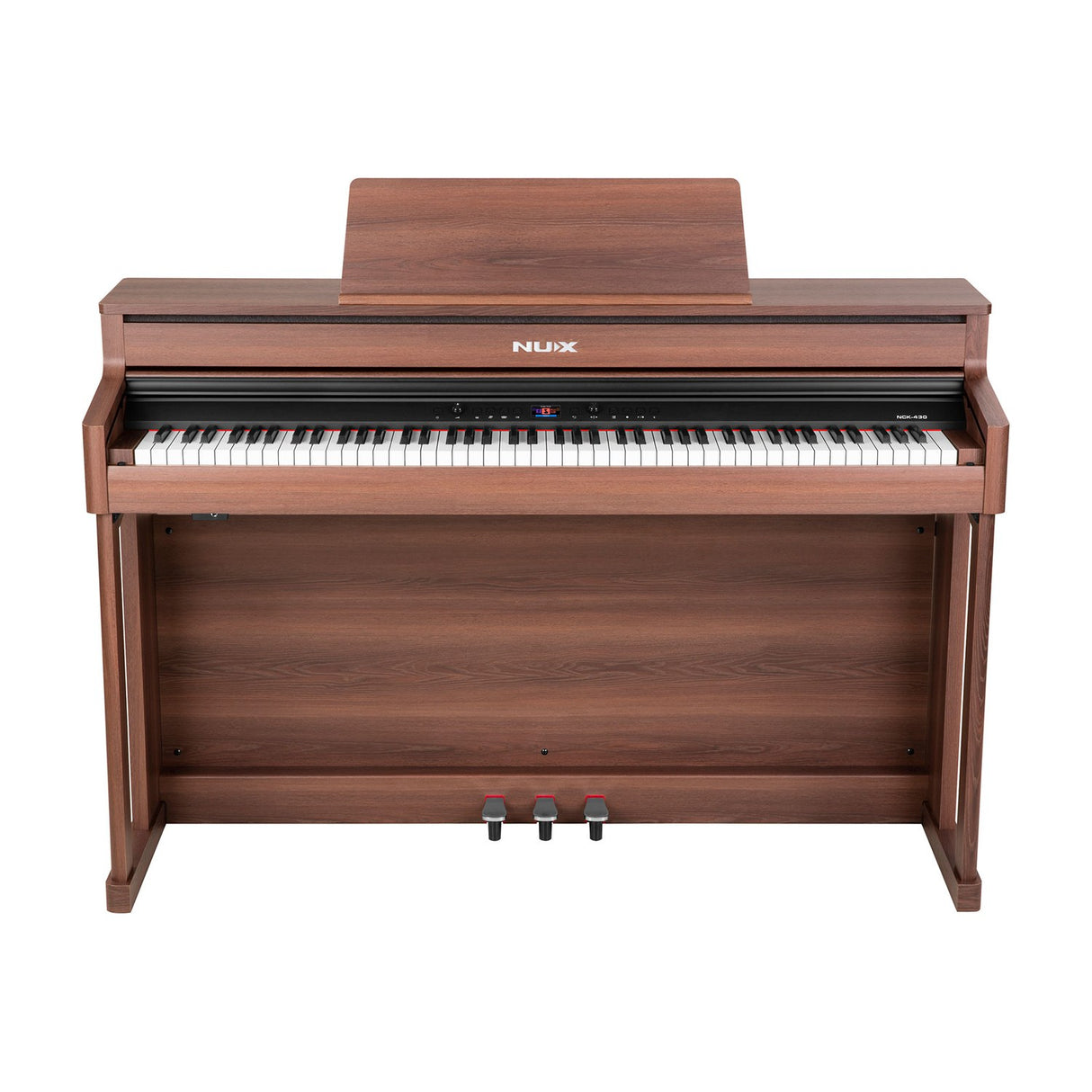

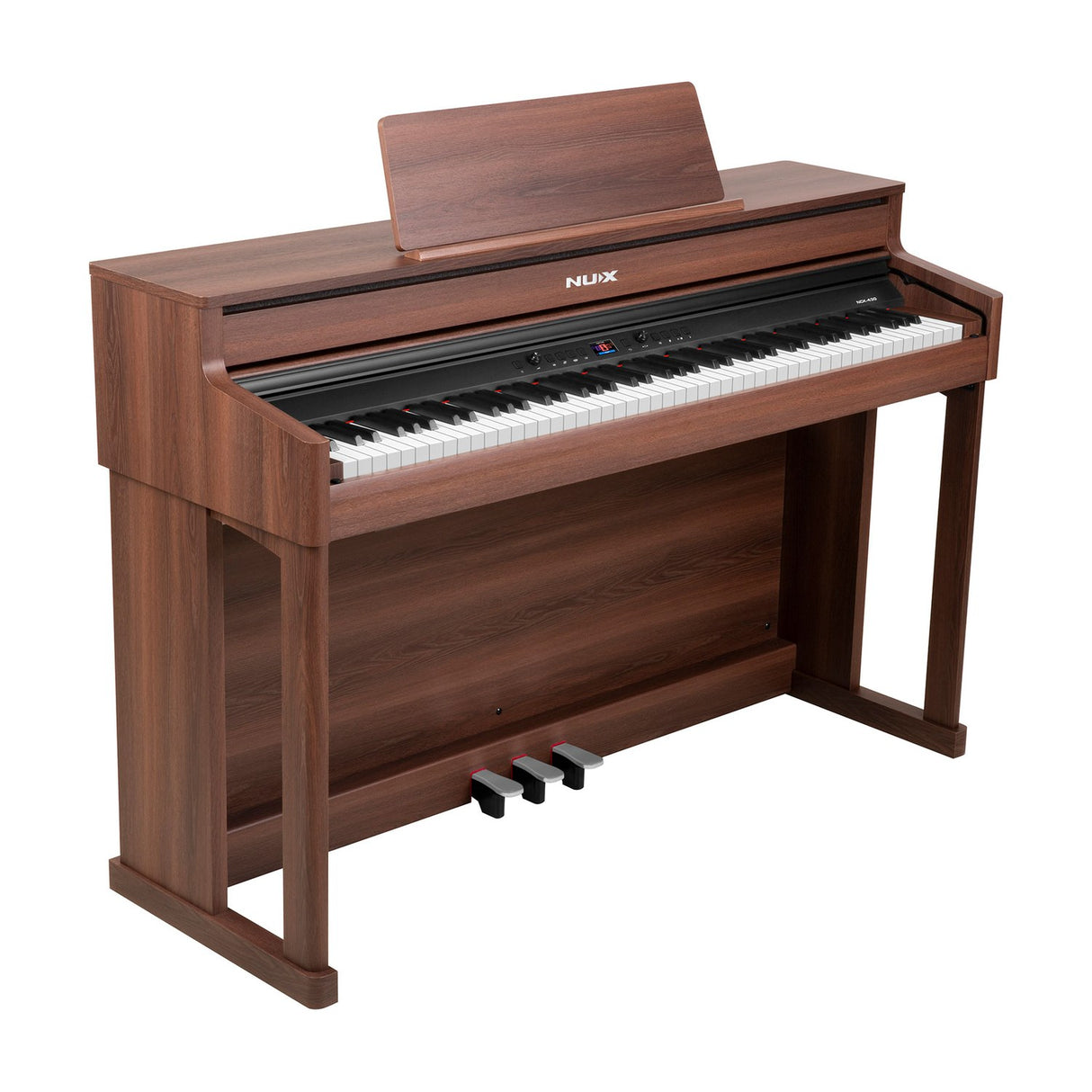

The NU-X NCK-430 is a digital piano built for players who want a natural feel in a modern instrument. It uses a triple-sensor scaled hammer-action weighted keyboard, so the keys respond much like an acoustic piano, with heavier weighting in the lower notes and a lighter touch higher up. Seven touch response levels let you set how the keys react to your playing, and the 18-layer sampled piano tone carries expression from the softest pianissimo through to a strong fortissimo. With 256-note maximum polyphony, held notes and sustained passages ring out without dropping.
Sound comes from a bi-amp, four-speaker system, with two 5-inch drivers and two 2.5-inch drivers powered by 10W and 7W amplifiers. This setup reproduces string resonance and pedal response clearly, giving the feel of a real piano at home or in the studio. There are 15 piano sounds to choose from, plus classic effect pre-sets made with collaborating artists. The split keyboard function lets you set an adjustable split point, with individual octave shift, volume and tone for each side. A triple pedal unit with half-pedal support is included for finer control over sustain.
Connectivity covers Bluetooth Audio and Bluetooth MIDI, along with USB audio and MIDI recording and OTG mobile recording for app and software work. The TRRS headphone/microphone jack (US: earphone jack) handles both monitoring and vocal recording, which suits lessons and livestreams, while the USB Type-C port supplies 10W to keep a mobile device charged as you play. A 3.5mm stereo aux input, 6.35mm line out and 6.35mm phones jack round out the ports. The cabinet is finished in walnut and runs from a supplied UK mains adaptor.
Specification
| Power supply |
DC 15V 3A (UK mains adaptor supplied) |
| Key |
Triple-Sensor Scaled Hammer-Action Weighted |
| Bluetooth |
Bluetooth Audio, Bluetooth MlDl |
| Display |
Resolution 320 x170 dpi |
| Inputs |
3.5mm Stereo Aux In Jack, USB Type-C port with 10W power output, Pedal Jack |
| Outputs |
6.35mm Line Out, 6.35mm Phones Jack |
| Speaker |
5″ x 2, 2.5″ x 2 |
| Amplifier : output |
10W x 2, 7W x 2 |
| Dimensions |
1395mm x 486mm x 950mm |
| Weight |
56.60KG |
Downloads
Product Manual
Frequently Asked
Is the keyboard fully weighted?
Yes. The NCK-430 uses a triple-sensor scaled hammer-action weighted keyboard, so the keys feel heavier in the bass and lighter in the treble, much like an acoustic piano.
Does it come with pedals?
Yes. A triple pedal unit is included, with half-pedal support for more gradual control over sustain.
Can I connect it to a phone or computer?
Yes. It offers Bluetooth Audio and MIDI, USB audio and MIDI, and OTG mobile recording for use with apps and software. The USB Type-C port also supplies 10W to power a mobile device.
Can I record vocals as well as play?
Yes. The TRRS headphone/microphone jack supports both monitoring and vocal recording, which makes it handy for lessons and livestreams.
How many sounds and notes can it handle?
There are 15 piano sounds plus classic effect pre-sets, and 256-note maximum polyphony so sustained and layered passages hold without notes cutting off.
What power supply does it use?
It runs from DC 15V 3A, and a UK mains adaptor is supplied.
