Description

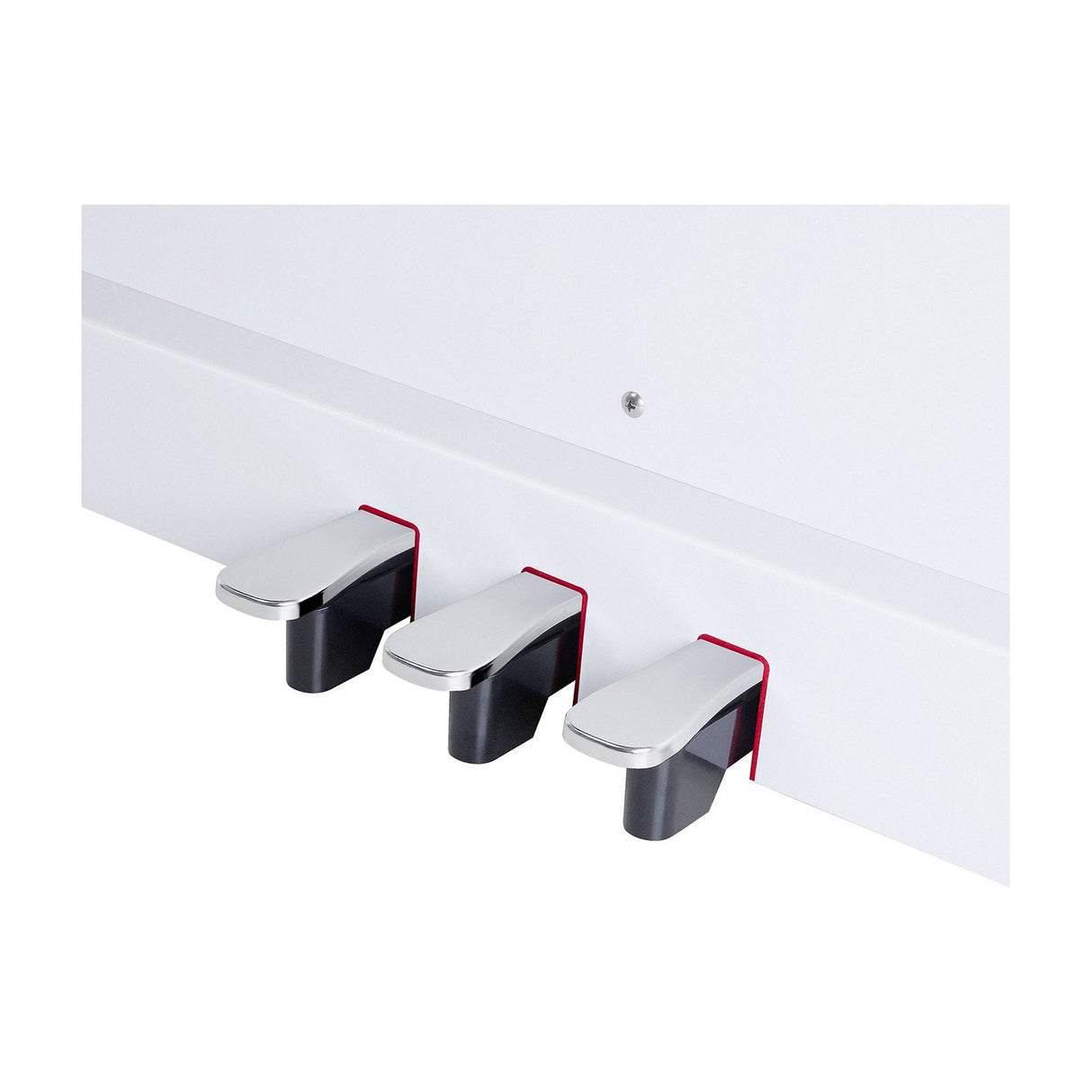

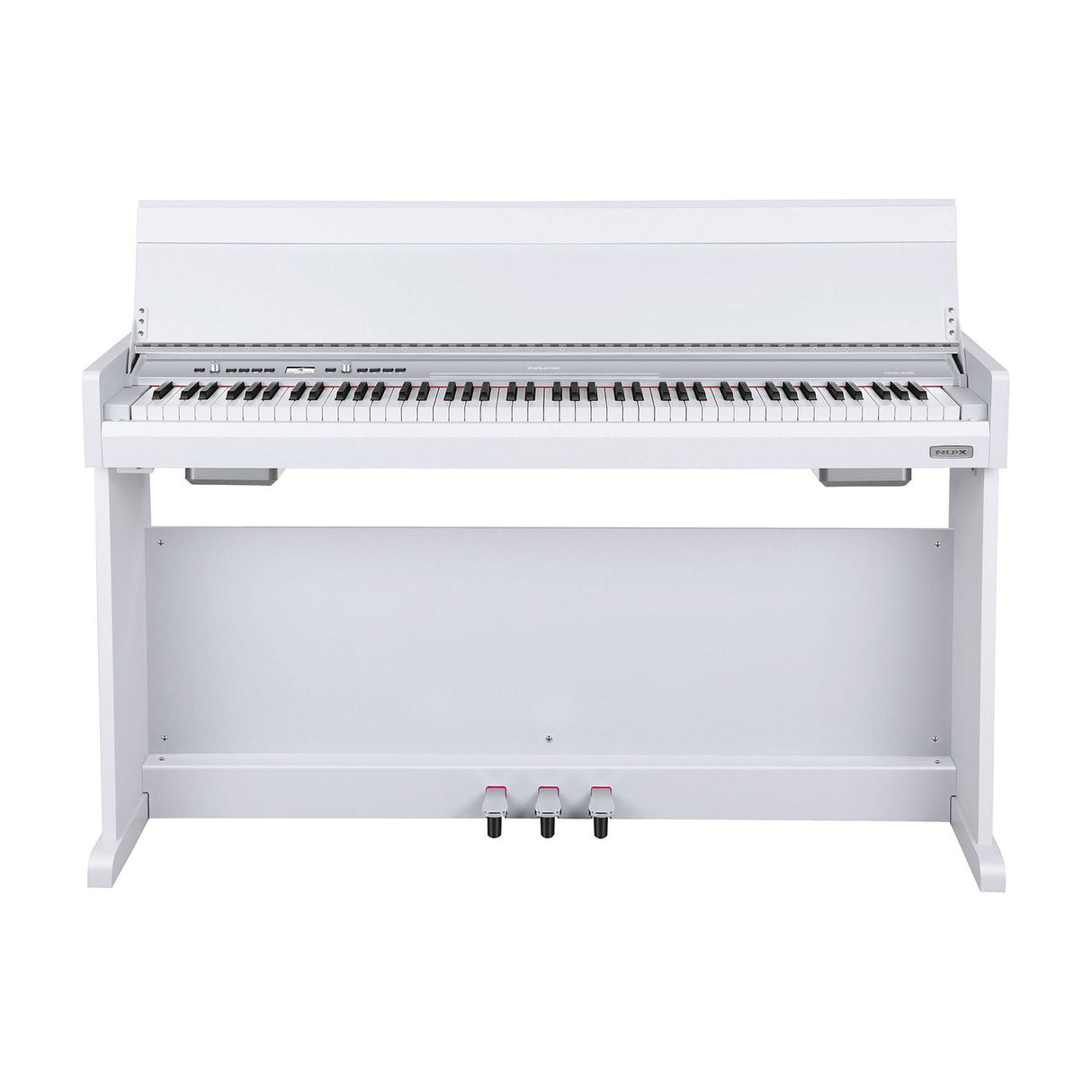

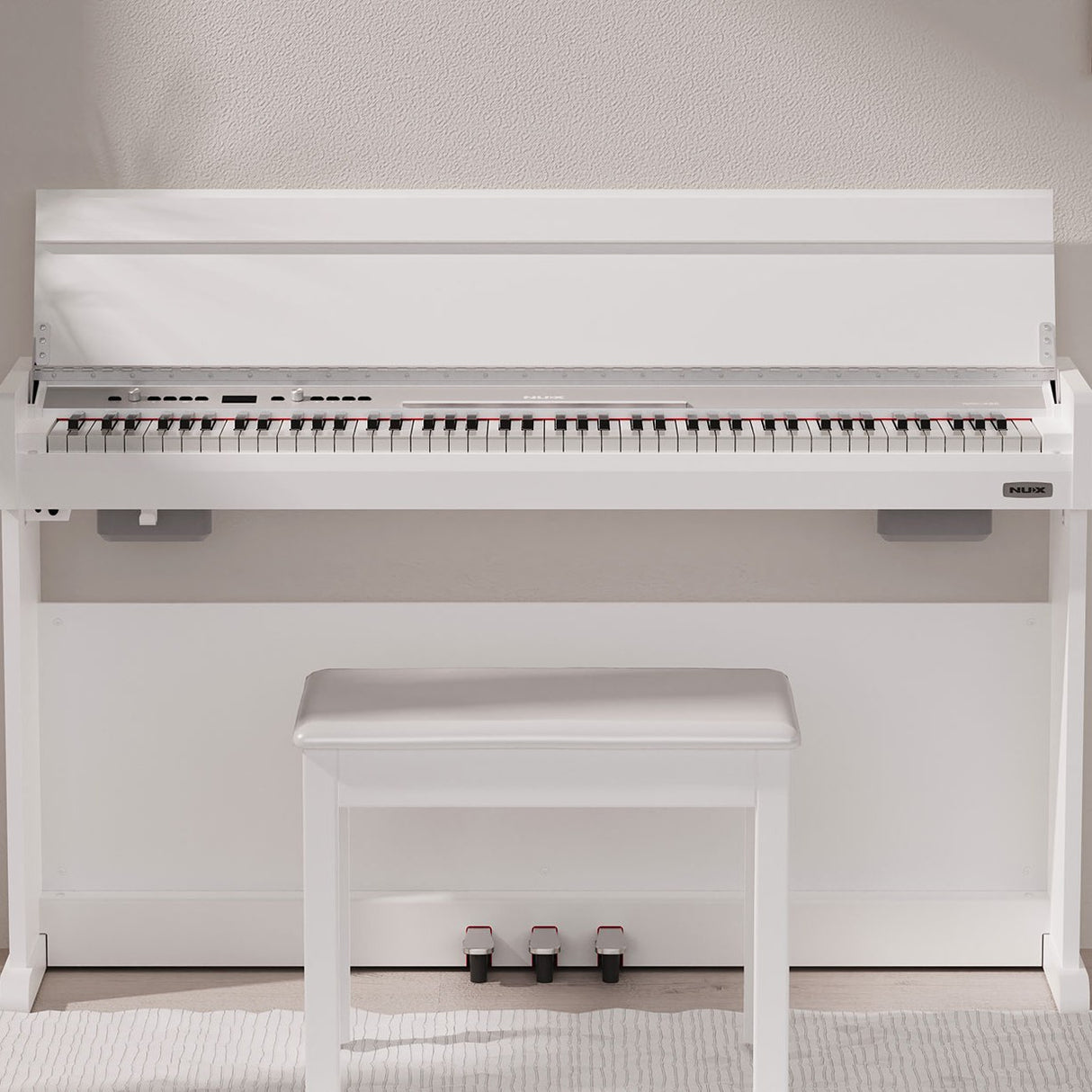

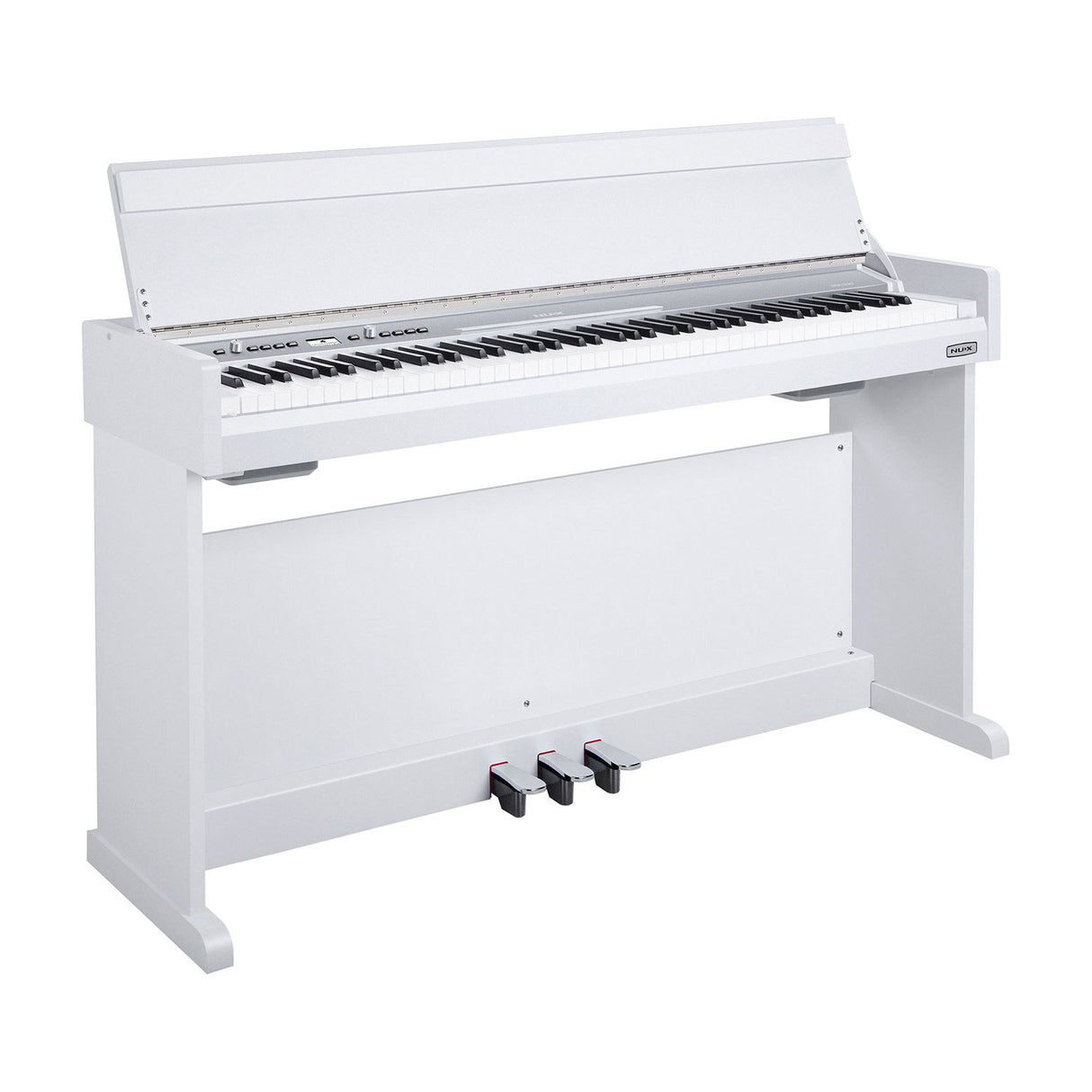

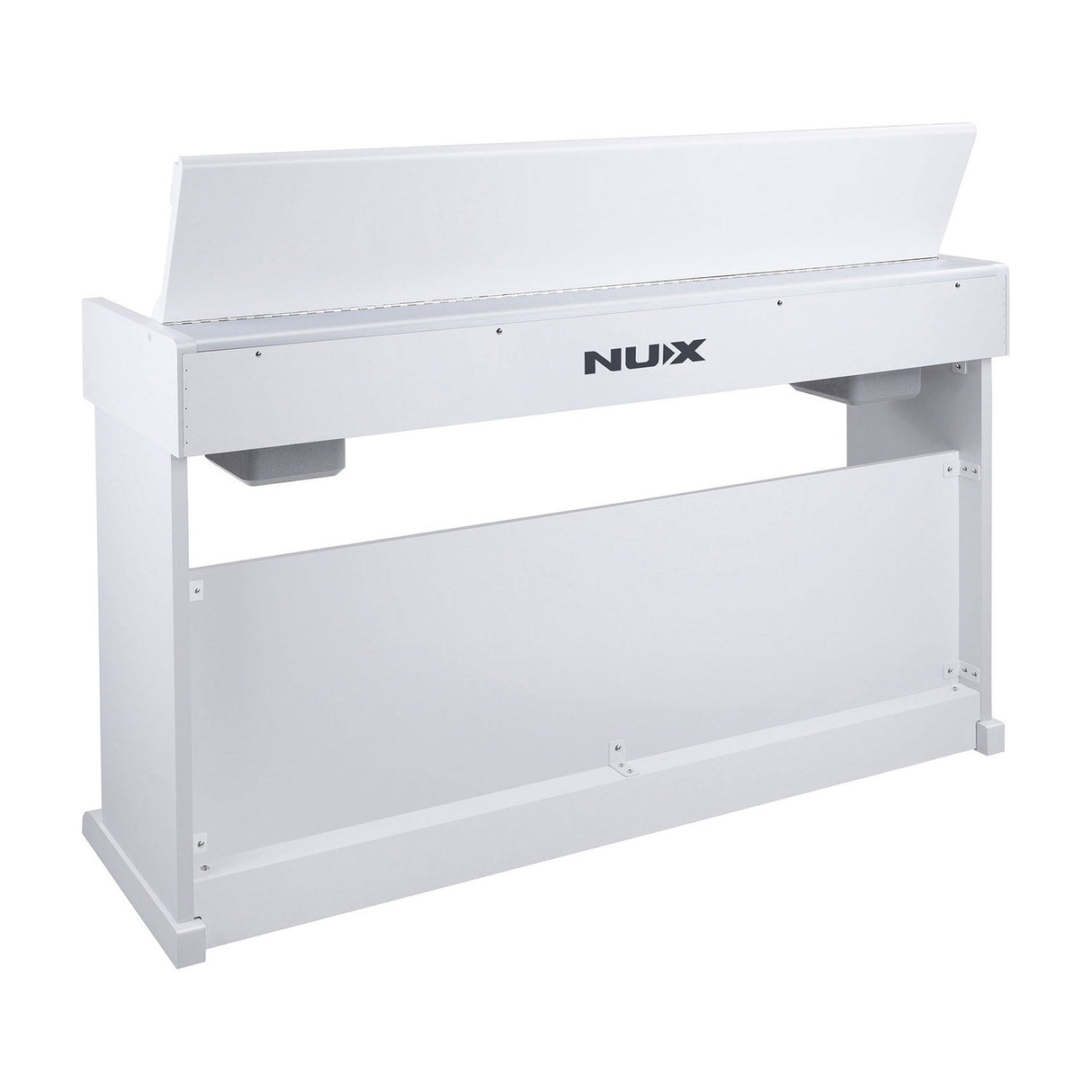

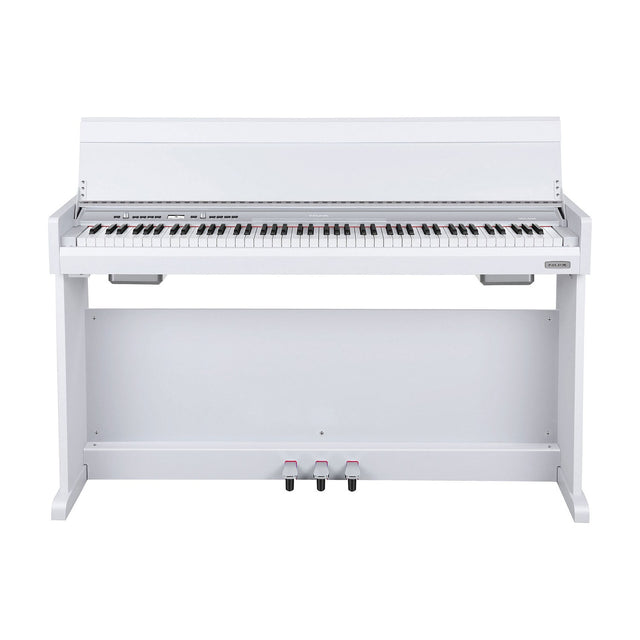

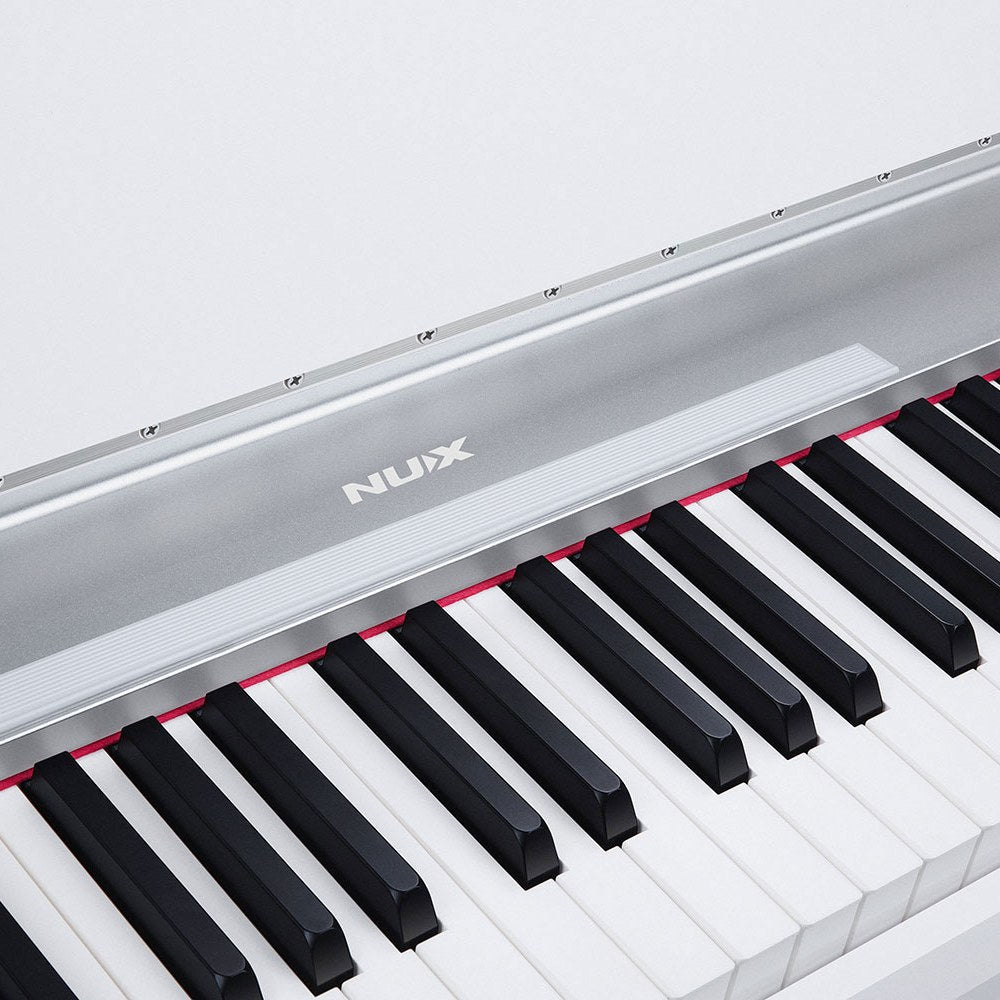

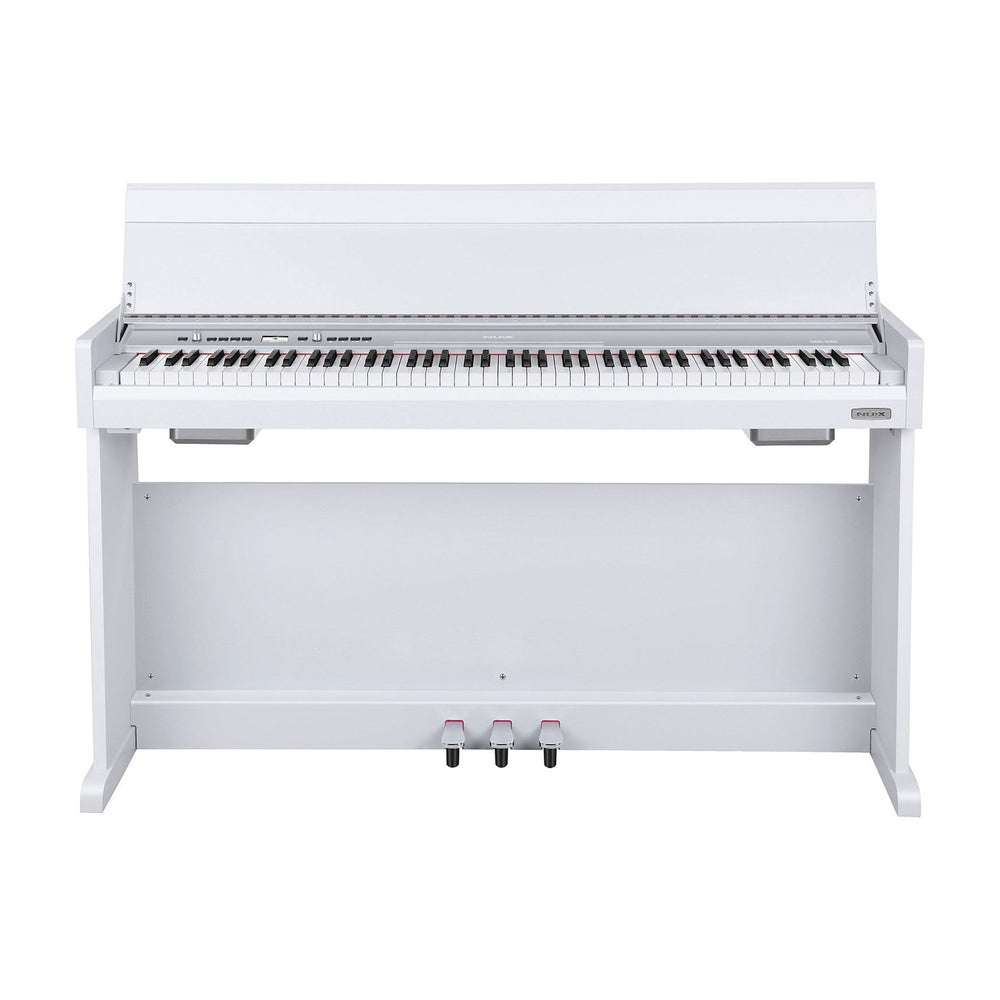

The NU-X NCK-330 is a digital upright piano with an integrated stand, built in a traditionally styled format for the home. Its foundation is an 88-note fully weighted hammer action keyboard using NU-X WKJ-03 keys, with five touch sensitivity settings to choose from. This gives you the feel of an acoustic piano, whether you are learning, practising or playing for pleasure. The upright stand includes three assignable pedals, and the whole instrument spans 7.3 octaves.
Sound comes from a full range stereo speaker set fitted to the underside of the keyboard housing, with three EQ settings and the option to mute for silent playing through headphones. There are 143 internal sounds in total, starting with 15 sampled piano voicings and extending to a wide selection of other instruments and effects. Chorus, reverb and bright effects can be added to shape your tone, and split, layer, transpose and fine tuning functions give you plenty of ways to work. For practice and songwriting, the NCK-330 includes a metronome, 50 accompaniment styles, 100 demo songs and a 5 track recorder.
Connections cover a USB audio interface with MIDI control (USB type B) for recording to a computer, line outputs on 6.3mm jacks, headphone outputs on both 6.3mm and 3.5mm, and a 3.5mm aux input. Audio and MIDI can also be sent wirelessly over Bluetooth using the supplied NBT-1 plug-in module. A multi-function control panel with display keeps everything within reach. The piano runs from the included 12Vdc mains adaptor, measures 1470 x 463 x 405mm and weighs 38kg, so it fits neatly into a home or studio setup.
Specification
| Power supply |
12Vdc, 2000mA (mains adaptor included) |
| PC Com port |
USB type B |
| Outputs |
Line output (L+R 6.3mm), headphone (stereo 6.3mm & 3.5mm jack) |
| Inputs |
Aux in (3.5mm stereo), USB-C (for NBT-1), USB-A (to PC) |
| Number of keys |
88 (7.3 octave) |
| Key |
NU-X WKJ-03 weighted hammer action |
| Dimensions |
1470mm x 463mm x 405mm |
| Weight |
38.00KG |
Downloads
Product Manual
Frequently Asked
Is the keyboard fully weighted?
Yes. The NCK-330 uses an 88-note fully weighted hammer action keyboard with NU-X WKJ-03 keys and five touch sensitivity settings, giving a feel close to an acoustic piano.
Does it support Bluetooth?
Yes. The included NBT-1 plug-in module lets you send both audio and MIDI wirelessly over Bluetooth. It connects via the USB-C port on the piano.
Can I play through headphones?
Yes. The speakers can be muted for silent playing, and there are two headphone outputs, one 6.3mm and one 3.5mm stereo jack.
How do I connect it to a computer?
The piano has a USB type B port that carries USB audio and MIDI, letting you integrate it into a digital recording setup.
How many sounds does it include?
There are 143 internal sounds in total, including 15 sampled piano voicings alongside a range of other instruments and effects.
What are the dimensions and weight?
The NCK-330 measures 1470 x 463 x 405mm and weighs 38kg, including its upright stand and three pedals.
