NU-X NCA-1 Amp Core Studio Amp Sim Pedal

£14499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

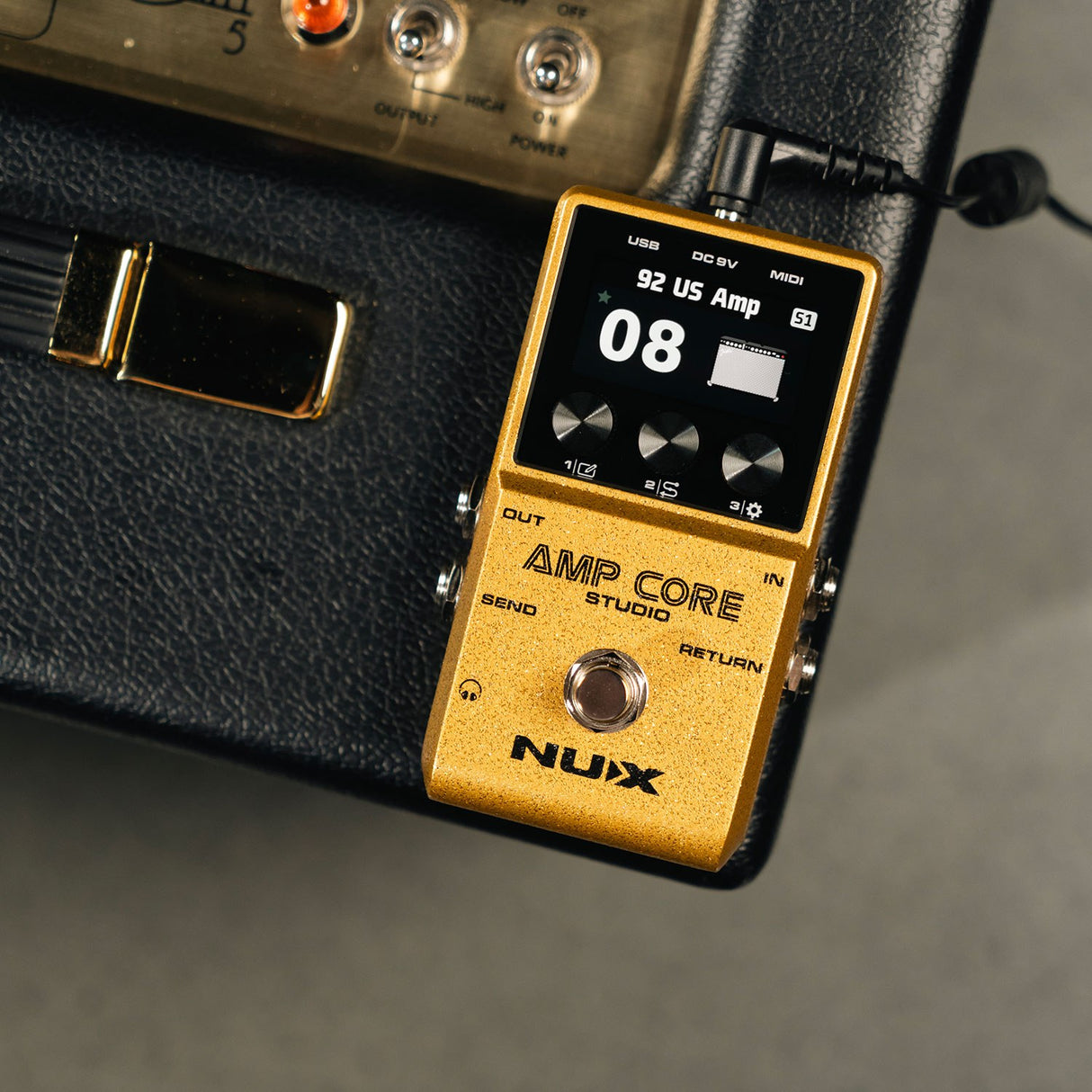

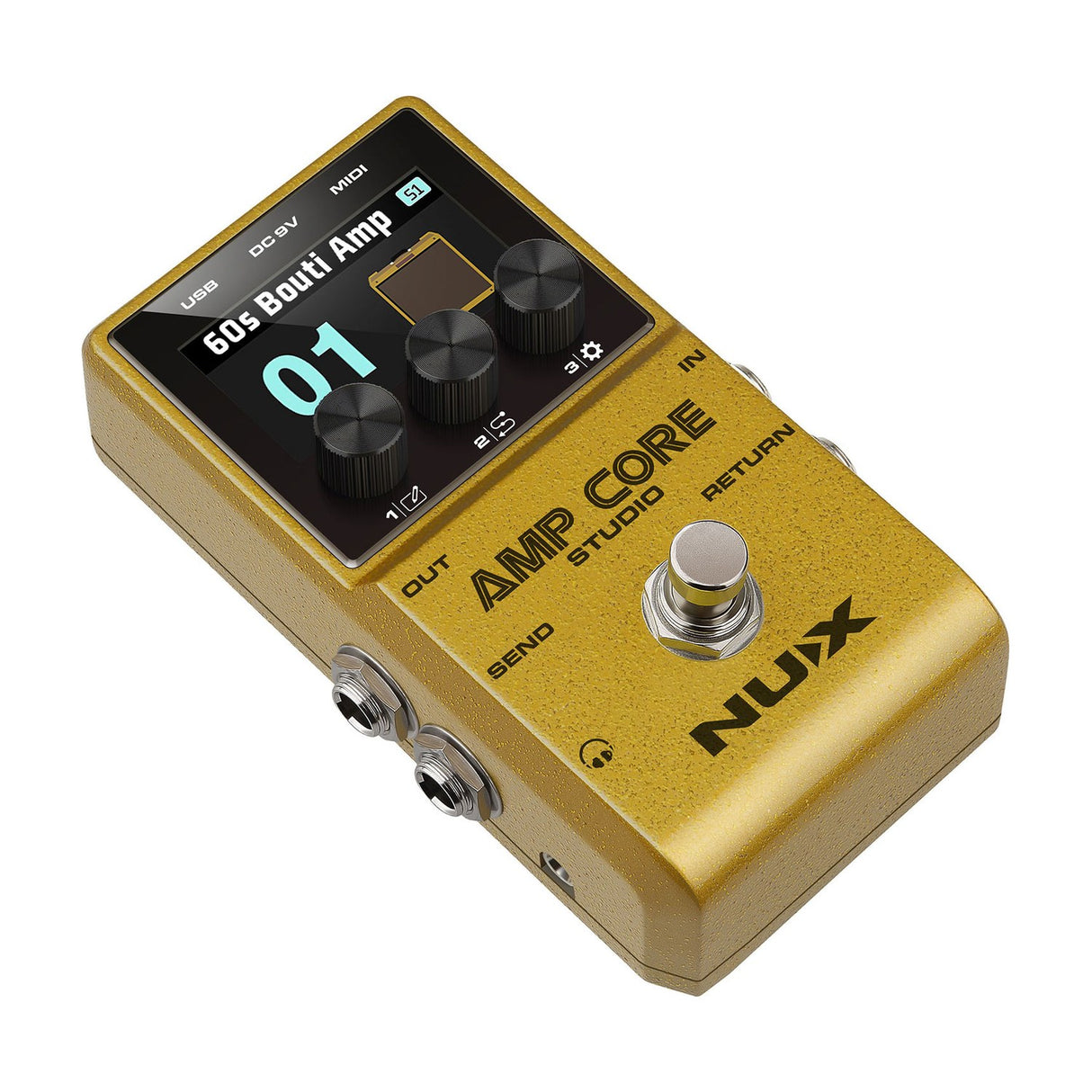

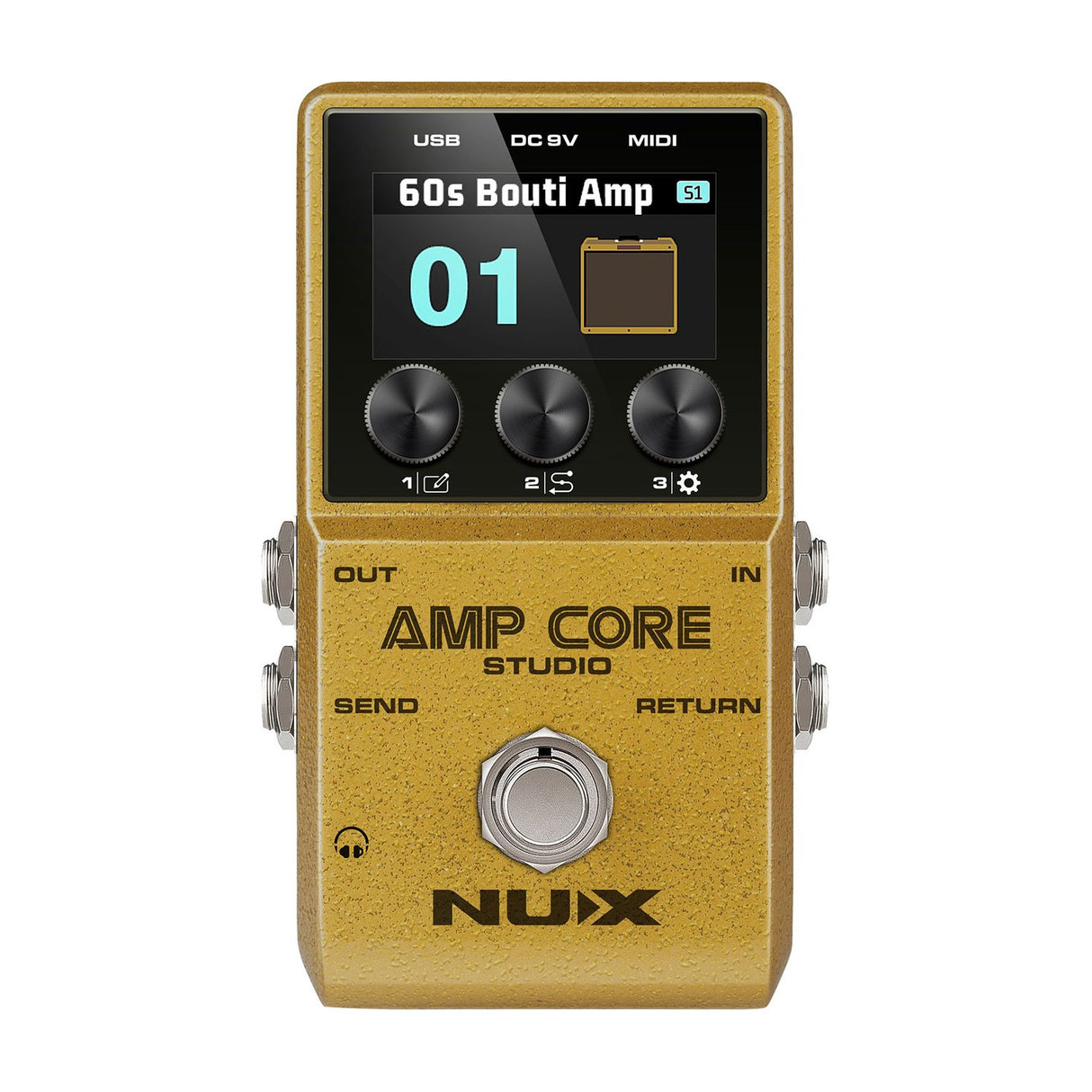

The NU-X NCA-1 Amp Core Studio is a guitar amplifier simulator built into a compact pedal, or stompbox, that fits in your gig bag. Inside this single unit you get 26 amplifier models paired with 33 speaker cabinet emulations, plus 12 empty slots for loading your own impulse response (IR) files. That gives you a wide spread of classic amp tones to work through without hauling a rig around.

Editing is handled by a menu-driven colour display and three rotary controls, so you can set the gain, tone, level and other parameters across the 20 internal presets. Each preset holds separate settings for three scenes, which you toggle through on the fly using the single footswitch. The footswitch also covers bypass and either two or three scene options depending on how you set it up. For deeper editing and setup, the free Amp Core Studio software runs on Windows and macOS, connecting over USB-C for the editor, firmware updates and user IRs.

An internal noise gate and a send-return loop for external effects round out the package, and there is a separate headphones output for quiet practice. Programmable MIDI control lets you fit the pedal into a larger setup. Connections include In/Out and Send/Return on 6.3mm jacks, USB-C, phones and MIDI on 3.5mm. The unit runs at 44.1kHz, 24-bit with a 20Hz to 20kHz frequency response and a 108dB dynamic range. It measures 122 x 72 x 48mm and weighs 264g. Note that a suitable 9Vdc power adaptor is required and sold separately.

Specification
Power supply 9Vdc power adaptor required
Current consumption 110-120mA

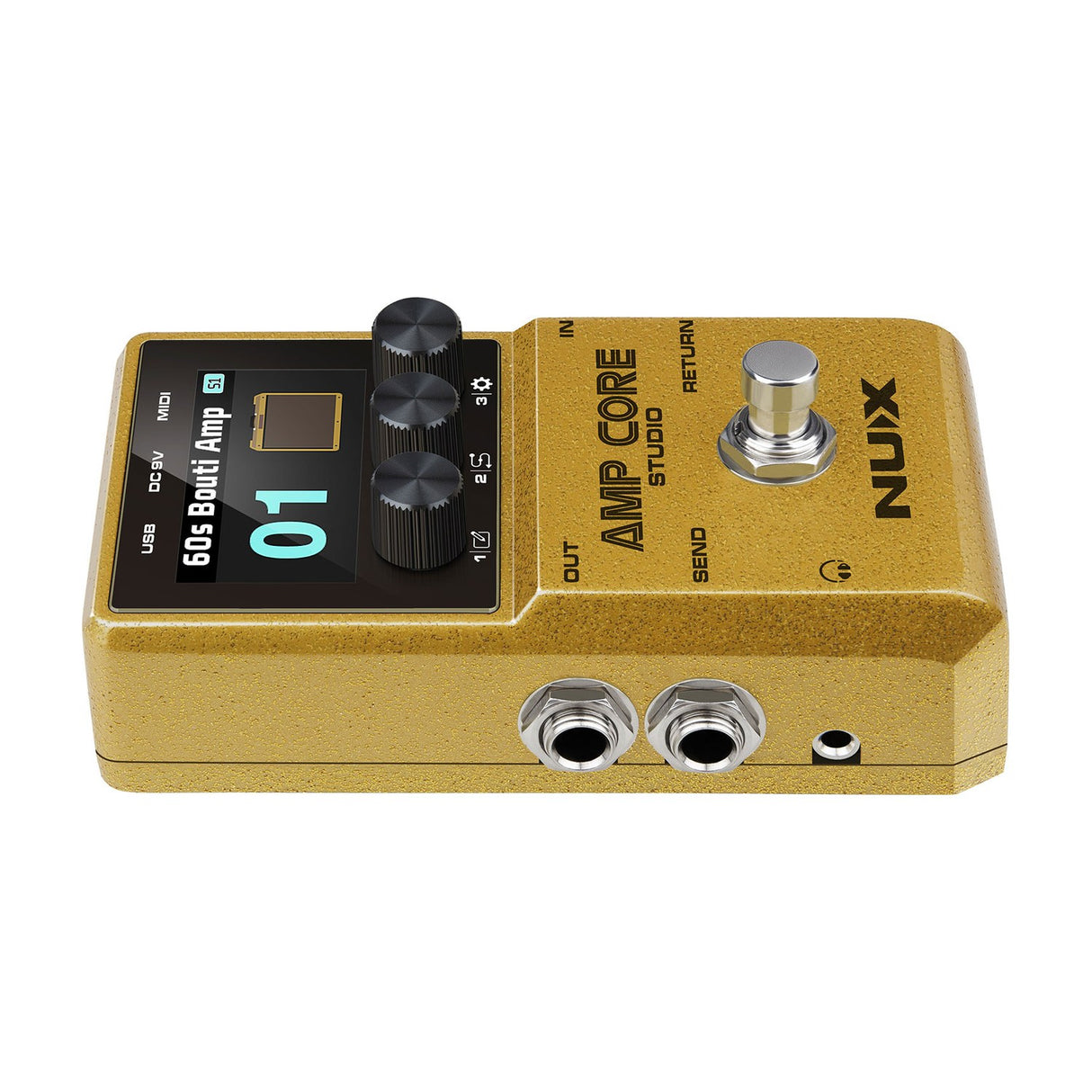

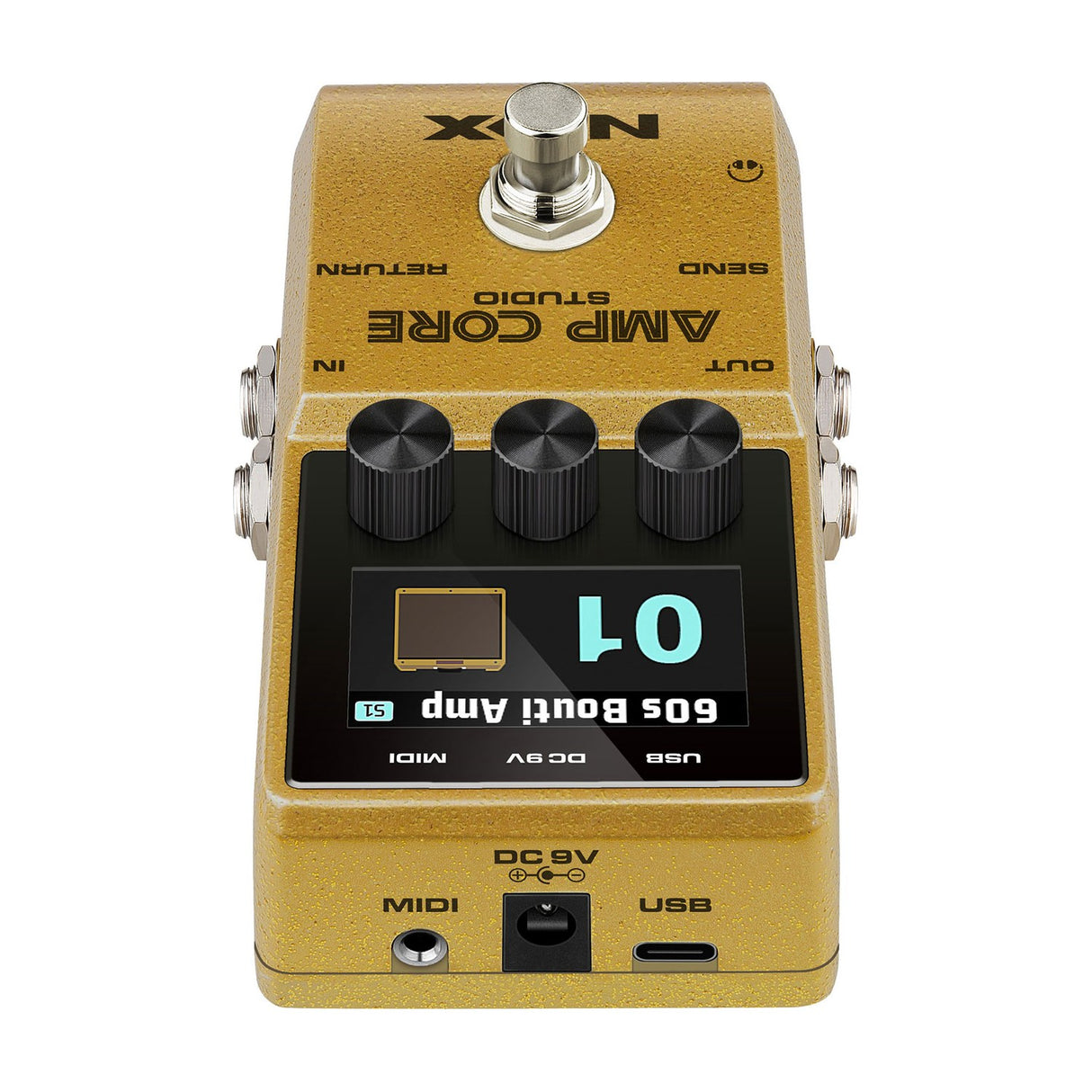

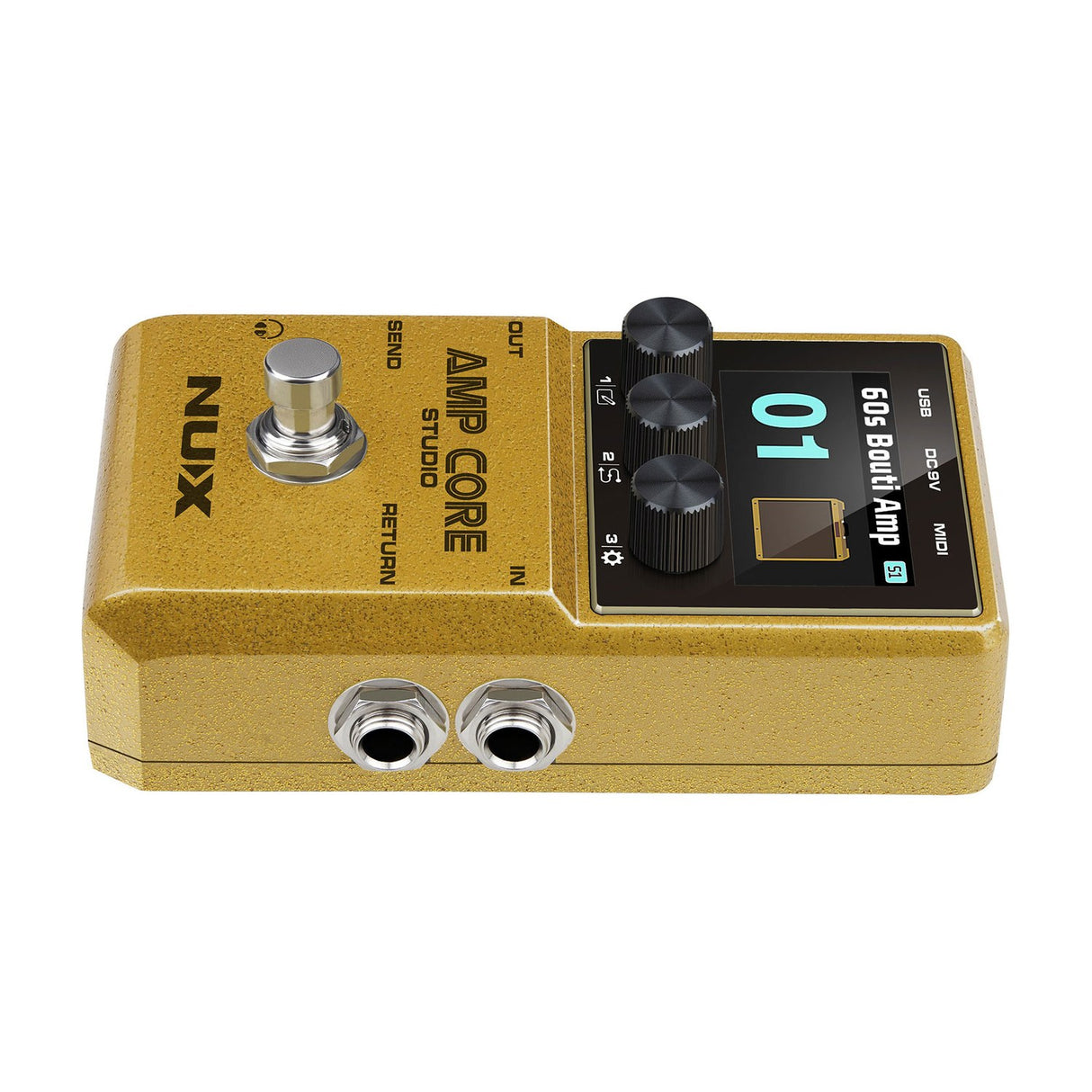

Connections In/Out & Send/Return (6.3mm), USB-C, Phones, MIDI (3.5mm)
Sampling format 44.1kHz, 24-bit
Frequency response 20Hz - 20kHz
Noise -110dBu
Dynamic range 108dB
Dimensions 122mm x 72mm x 48mm
Weight 0.26KG
Downloads

Product Manual

Frequently Asked

Does the NCA-1 come with a power supply?

No. It needs a suitable 9Vdc power adaptor, which is sold separately. Current consumption is 110-120mA, so check your adaptor can supply that.

Can I load my own impulse responses?

Yes. Alongside the 26 amp models and 33 cabinet emulations, there are 12 empty slots for your own user IR files, loaded via the Amp Core Studio software over USB-C.

What software does it work with?

The free Amp Core Studio editor runs on Windows and macOS. You use it for deeper editing, firmware updates and managing user IRs.

How do the scenes work?

Each of the 20 presets stores three separate scene settings. You switch between them on the fly using the single footswitch, with bypass and two or three scene options available.

Can I use it with headphones?

Yes. There is a separate headphones output for quiet practice without needing an amp or speaker.

Does it have an effects loop?

Yes. It includes an inbuilt send-return loop on 6.3mm jacks for running external effects, plus an internal noise gate.
