NU-X Amp Academy Stomp Amp Modeller Pedal

£27099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

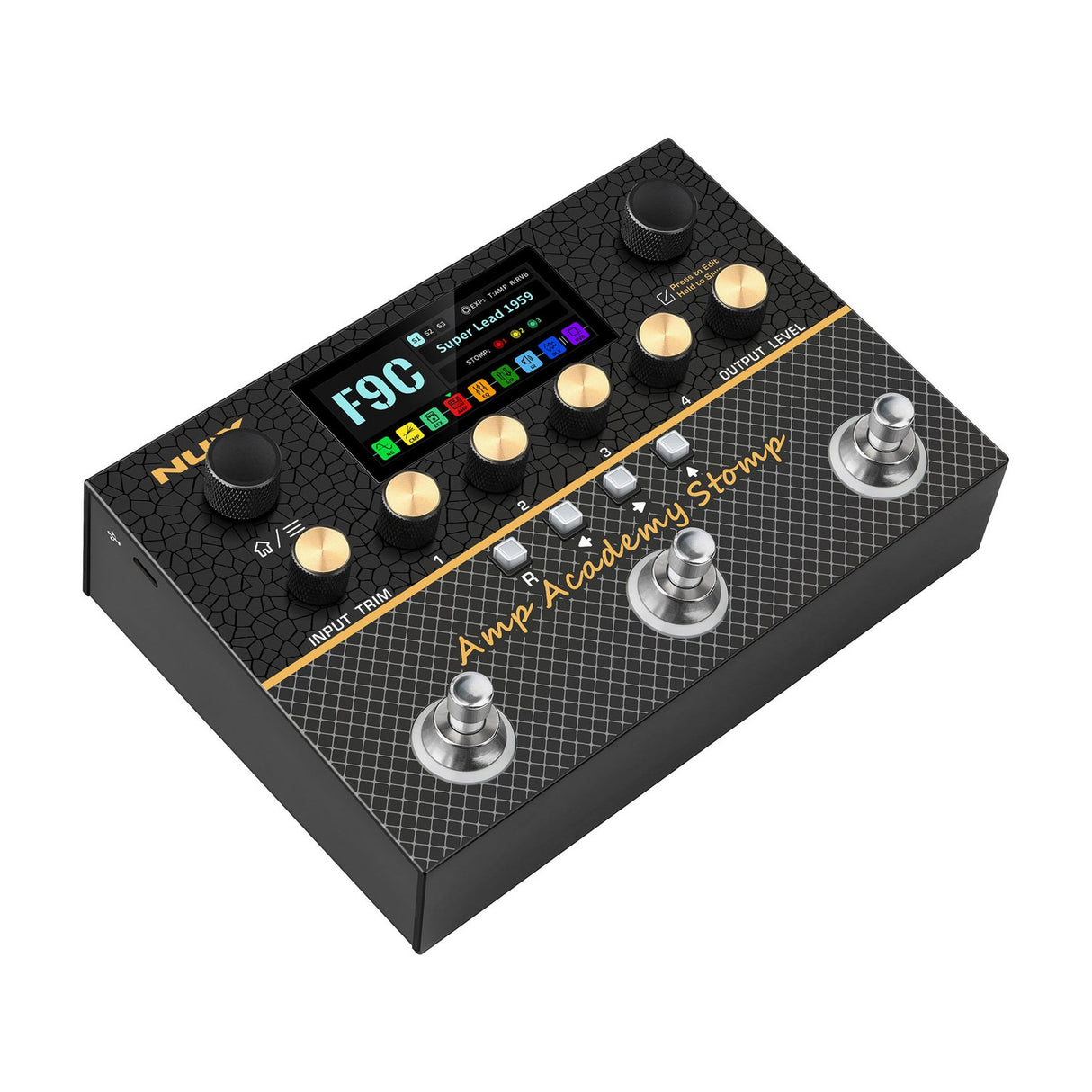

The NU-X Amp Academy Stomp builds on the original Amp Academy as part of the Monarch series. This three-switch unit uses separate DSP processors for amp modelling and additional effects such as delay and reverb. The proprietary TSAC-4K amp modelling process is now twice as complex compared with previous algorithms, and splits into separate preamp and power amp sections. A dual Cyber IR loader handles speaker emulation at 1024 sample resolution, with individual left and right speakers, plus 60 factory Cyber IRs and 40 user loadable slots.

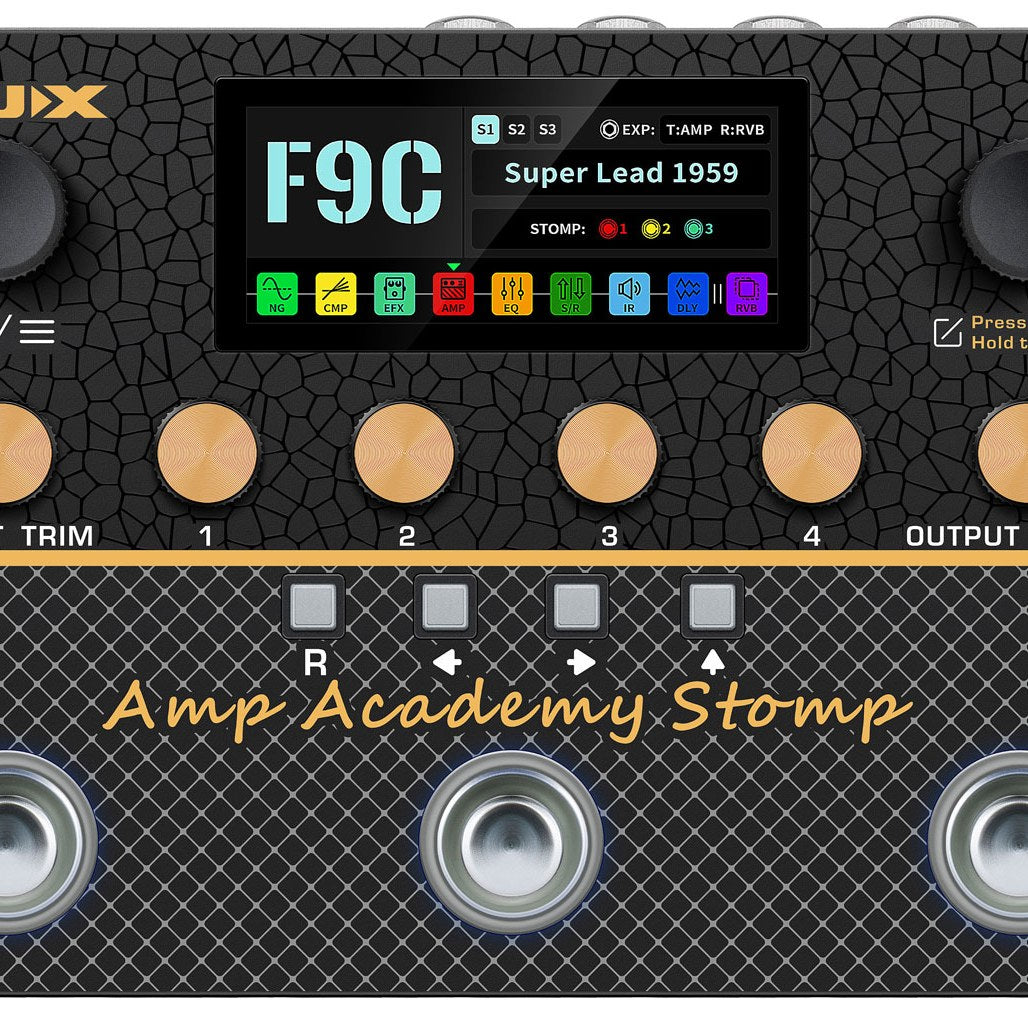

There are 27 factory and 27 user presets, each with three scenes, shown on a 2.86" colour LCD. Nine effect blocks cover noise gate, compressor, EFX, amp, EQ, send/return, IR, delay and reverb (vibe). The order of the first five blocks can be moved for custom signal chains, and the send/return loop can run as a branch (parallel) or serial connection. Outputs sit on a 6.3mm jack for a guitar amplifier and L+R balanced jacks for an FRFR speaker or mixing console. Reverb and delay can run in parallel when needed. Editing runs from two data dials, four rotary controls and the display, or via the free PC and Mac software over USB-C.

The USB-C port also works as a 24-bit/48kHz USB audio interface for direct recording into a DAW, and supports the supplied NBT-1 Bluetooth adaptor for wireless streaming of backing tracks through the outputs. The three footswitches run in preset, scene or individual stomp modes, and you can add a dual footswitch or expression pedal for more control. MIDI in and out is handled on minijack connections at the rear. A 30 second looper can be set pre- or post-processing for flexible phrase playback, giving you a compact modeller with plenty of extra features.

Specification
Power supply 9Vdc 500mA pin negative (ACD-006A recommended)
Memories 27 factory + 27 user presets
USB port USB-C for 24-bit/48kHz audio, MIDI (PC Editor), firmware update, NBT-1 Bluetooth Module
Input impedance 1M Ohm (input and return)
Input impedance : aux/line 10k Ohm
Output impedance 100 Ohm (balanced), 1k Ohm (send), 10 Ohm (phones)
Dynamic range 111dB
Sampling format 48kHz, 32-bit
Latency 2ms min.
Dimensions 184mm x 123mm x 51mm
Weight 0.92KG
Downloads

Product Manual

Frequently Asked

How many presets does it hold?

There are 27 factory and 27 user presets, each with three scenes, so you can store a wide set of amp and effect setups.

What outputs are fitted?

A 6.3mm jack feeds a guitar amplifier, while L+R balanced jacks connect to an FRFR speaker or mixing console. There is also a phones output.

Can I record directly into a DAW?

Yes. The USB-C port works as a 24-bit/48kHz USB audio interface for direct recording into DAW software on a PC or Mac.

Does it support Bluetooth?

Yes, via the supplied NBT-1 Bluetooth adaptor. It streams backing tracks wirelessly through to the pedal's outputs.

How is MIDI handled?

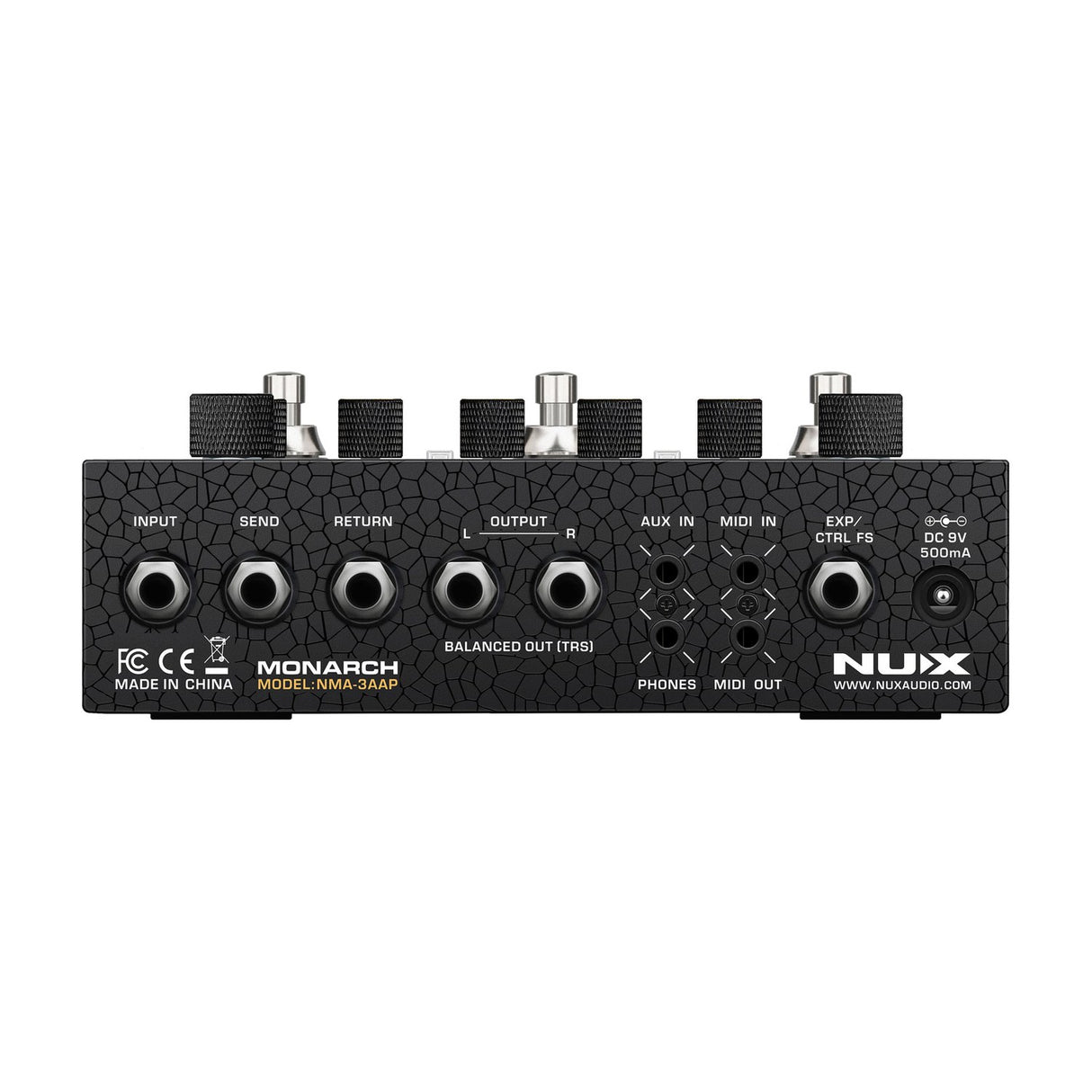

MIDI in and out run over minijack connections at the rear of the pedal, so you can integrate it with a wider rig.

What power supply does it need?

It runs on 9Vdc 500mA, pin negative. NU-X recommends the ACD-006A adaptor.
