Mercury TST-C1 4-in-1 Network Cable Test Meter

£2499
RRP £2599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

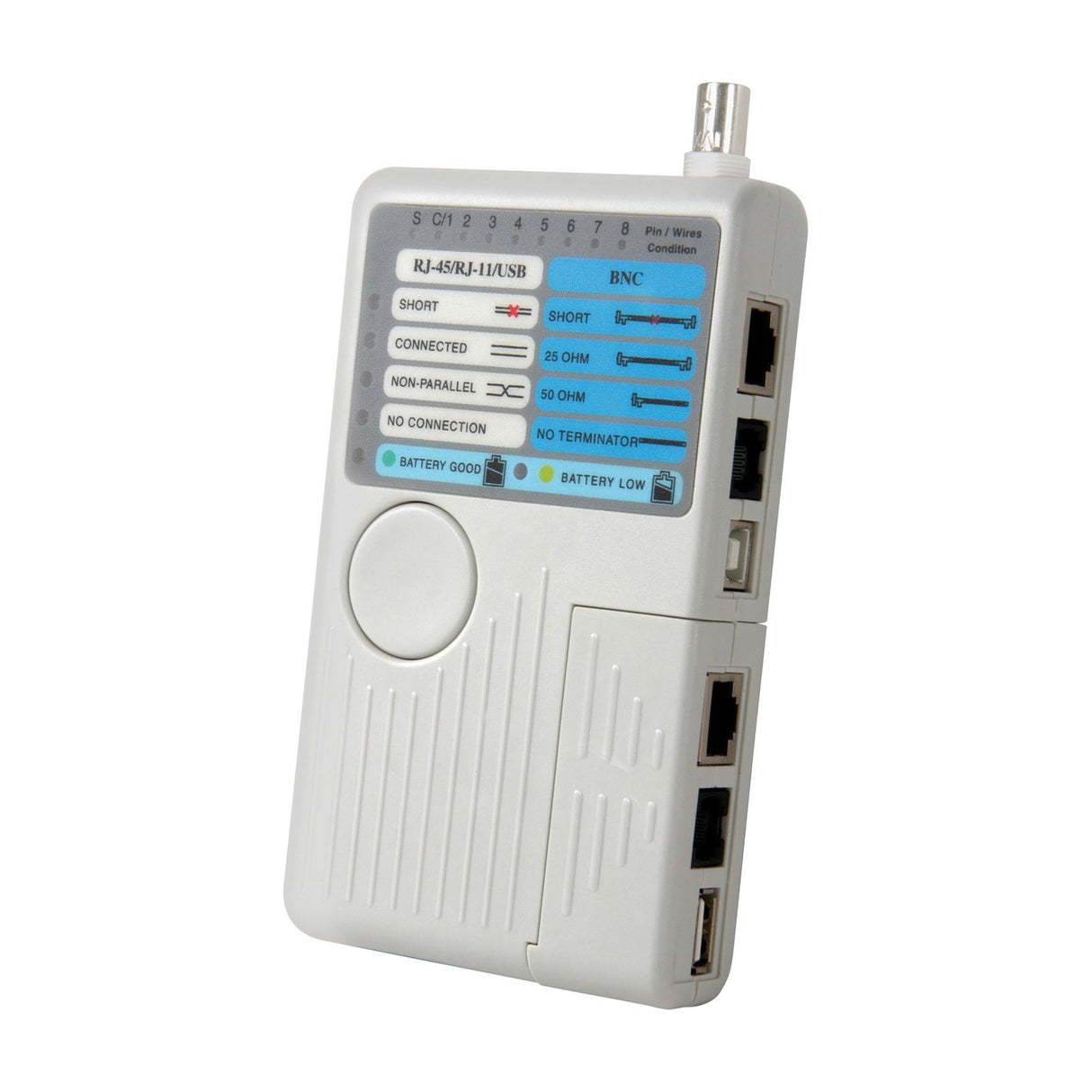

The Mercury TST-C1 is a handheld test meter for checking continuity and wire or pin faults in network, telephone, USB and coaxial cables. It works both before and after installation, so you can confirm a cable is sound before running it or track down a problem once it is in place. The unit comes as a main module and a detachable remote, with the remote storing neatly inside the main unit when you are not using it.

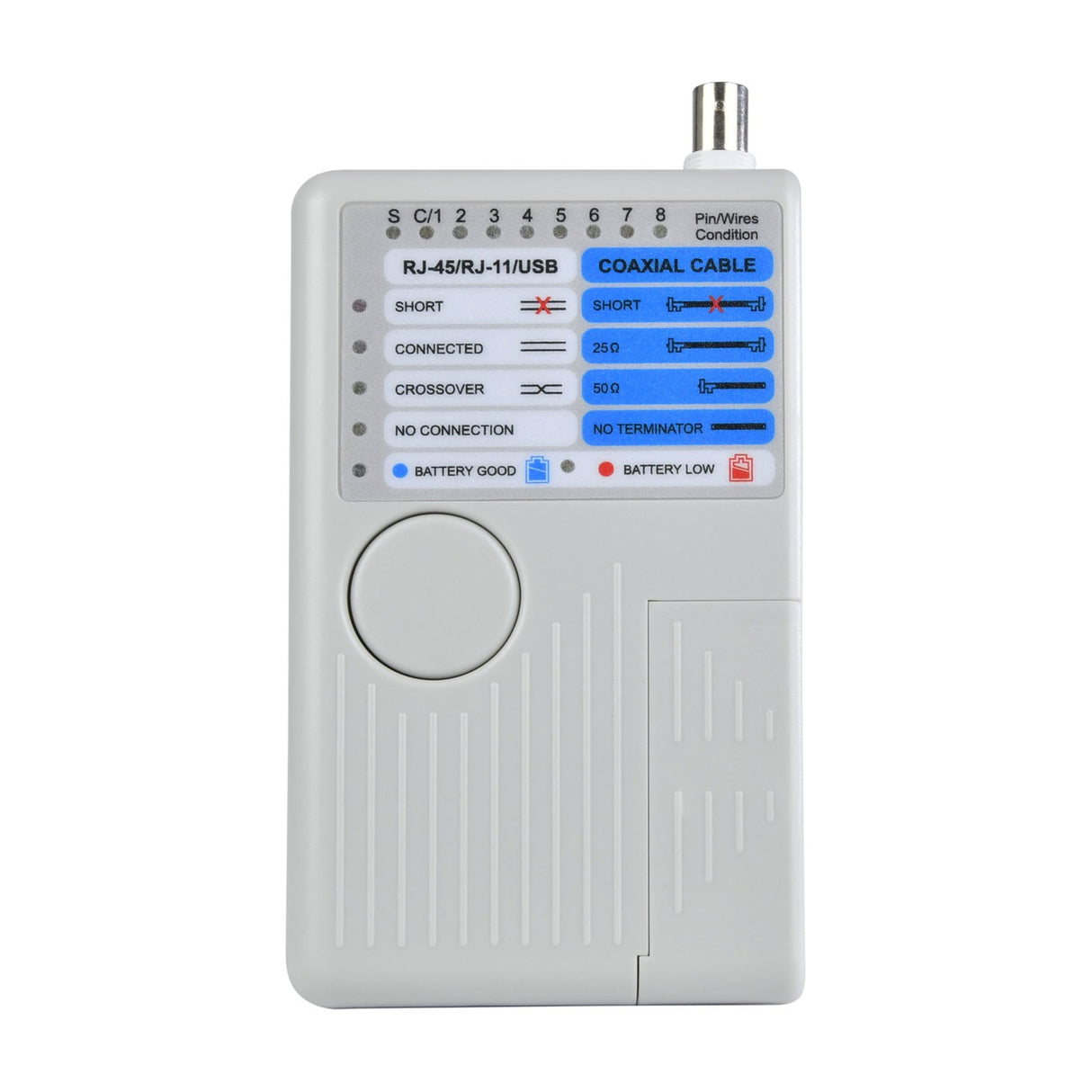

To run a test, connect both ends of a cable to the matching RJ45 (UTP/STP), RJ11 or USB sockets on the two units. BNC leads connect to the plug on top of the main module and terminate using the included BNC remote jack. Pressing the single test button gives an audible beep and lights one of the front panel LEDs to show the connection status, including short circuit, open circuit, crossover and no connection. A battery status LED lets you know when the cell needs replacing.

The tester handles all common network types, so one device covers most of the cabling you are likely to meet. It runs on a single 9V PP3 battery (not supplied) and tests cables up to 180m (600ft) long. The body measures 143 x 86 x 26.5mm and weighs 202g, so it sits comfortably in the hand and packs down small. A carry case is included to keep both parts together and protected during transit and storage. The single-button operation and clear LED readout make it easy to pick up, whether you are installing a run for the first time or fault-finding on site.

Specification
Max. cable length 180m (600ft)
Battery 1x 9Vdc PP3 (not supplied)
Dimensions 143mm x 86mm x 26.5mm
Weight 0.20KG
Downloads

Product Manual

Frequently Asked

Which cable types can the TST-C1 test?

It tests RJ45 (UTP/STP) network cables, RJ11 telephone cables, USB and BNC coaxial cables, covering the most common types you are likely to work with.

Does it come with a battery?

No. The tester takes a single 9V PP3 battery, which is not supplied, so you will need to add one before use.

How long a cable can it check?

It handles cables up to 180m (600ft) in length.

How do I test a BNC coaxial cable?

Connect the BNC lead to the plug on top of the main module and terminate it using the included BNC remote jack before pressing the test button.

How does it show the result?

Pressing the test button gives an audible beep and lights a front panel LED to show short circuit, open circuit, crossover or no connection.

Is a case included?

Yes, a carry case is included to protect the unit in transit and storage, and the remote stores inside the main unit.
