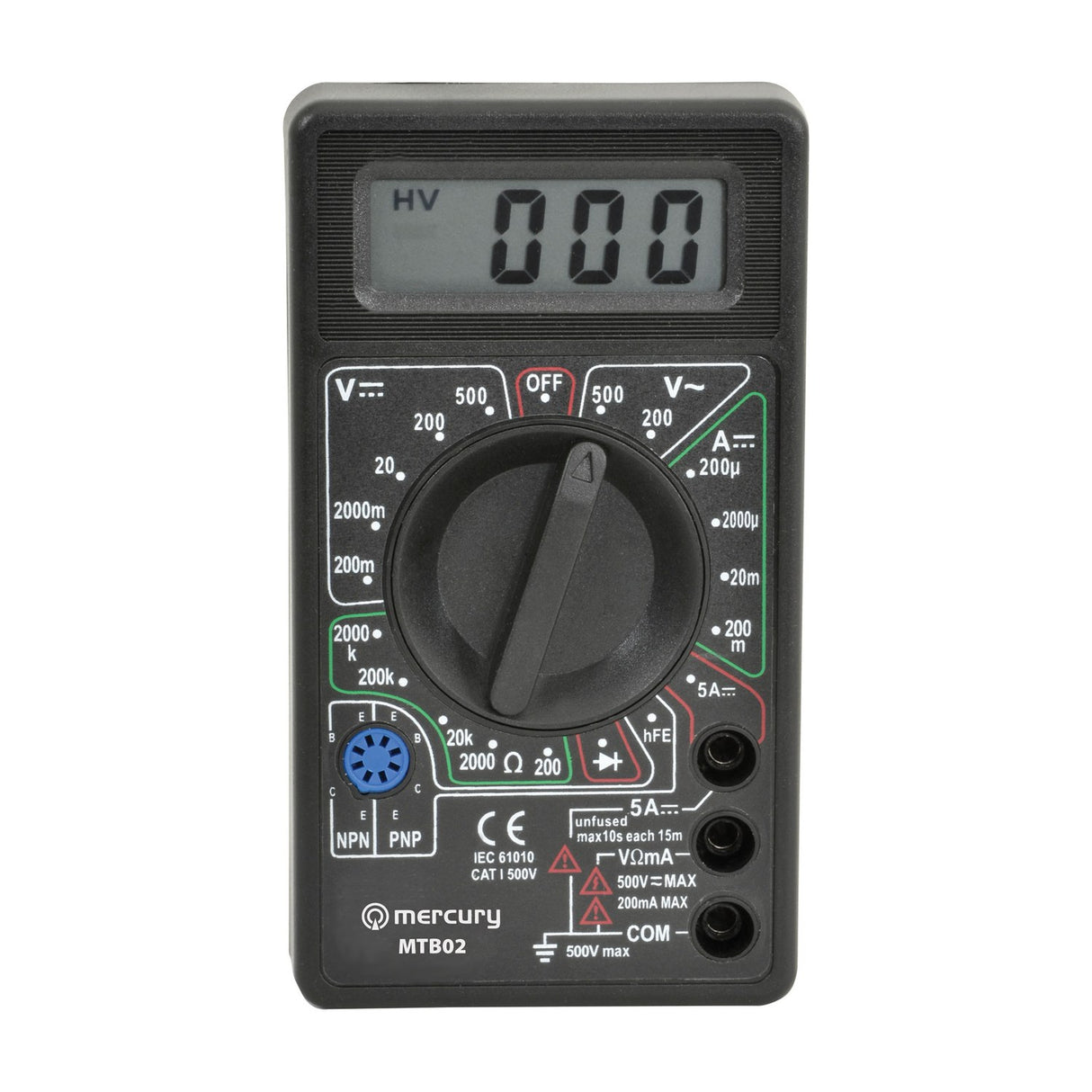

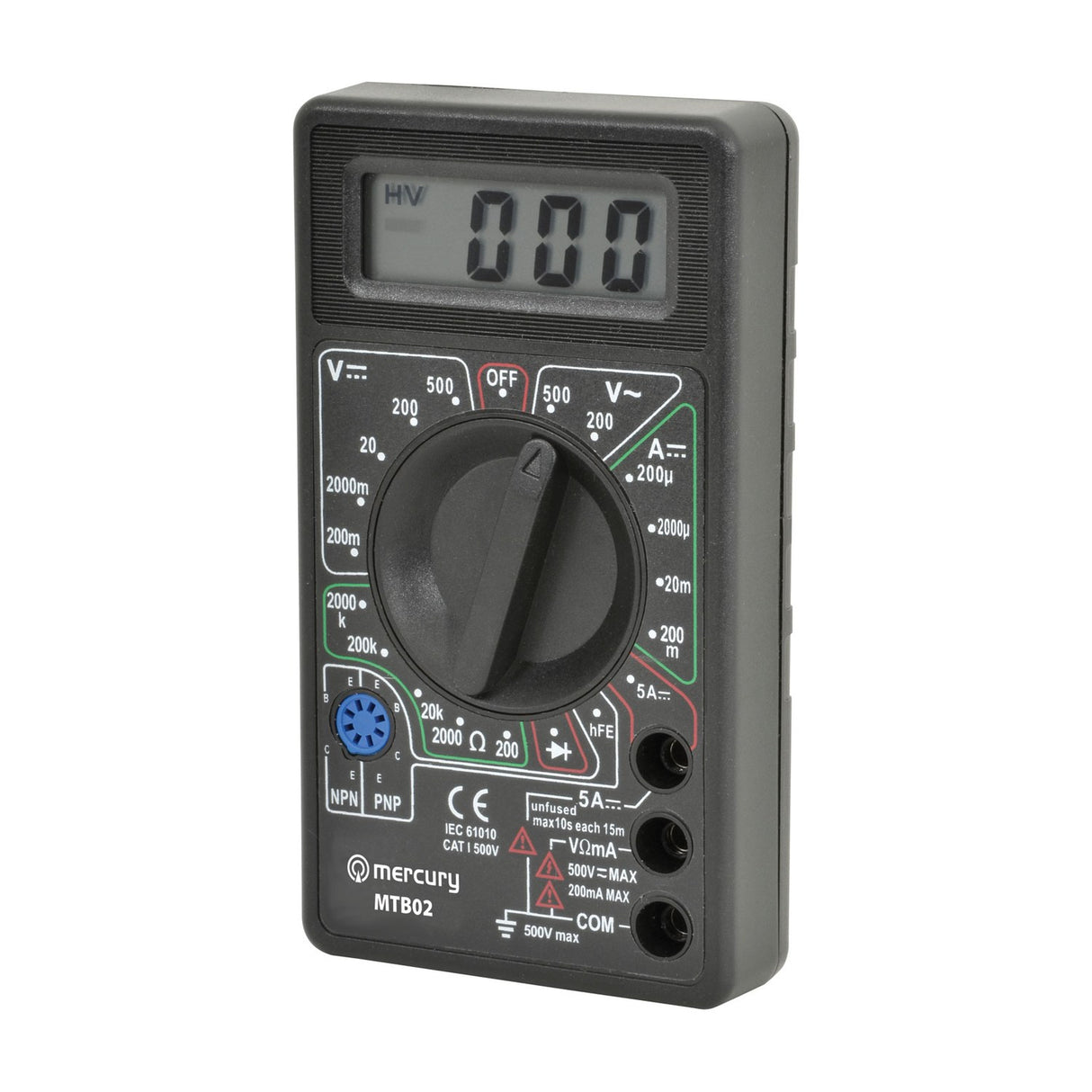

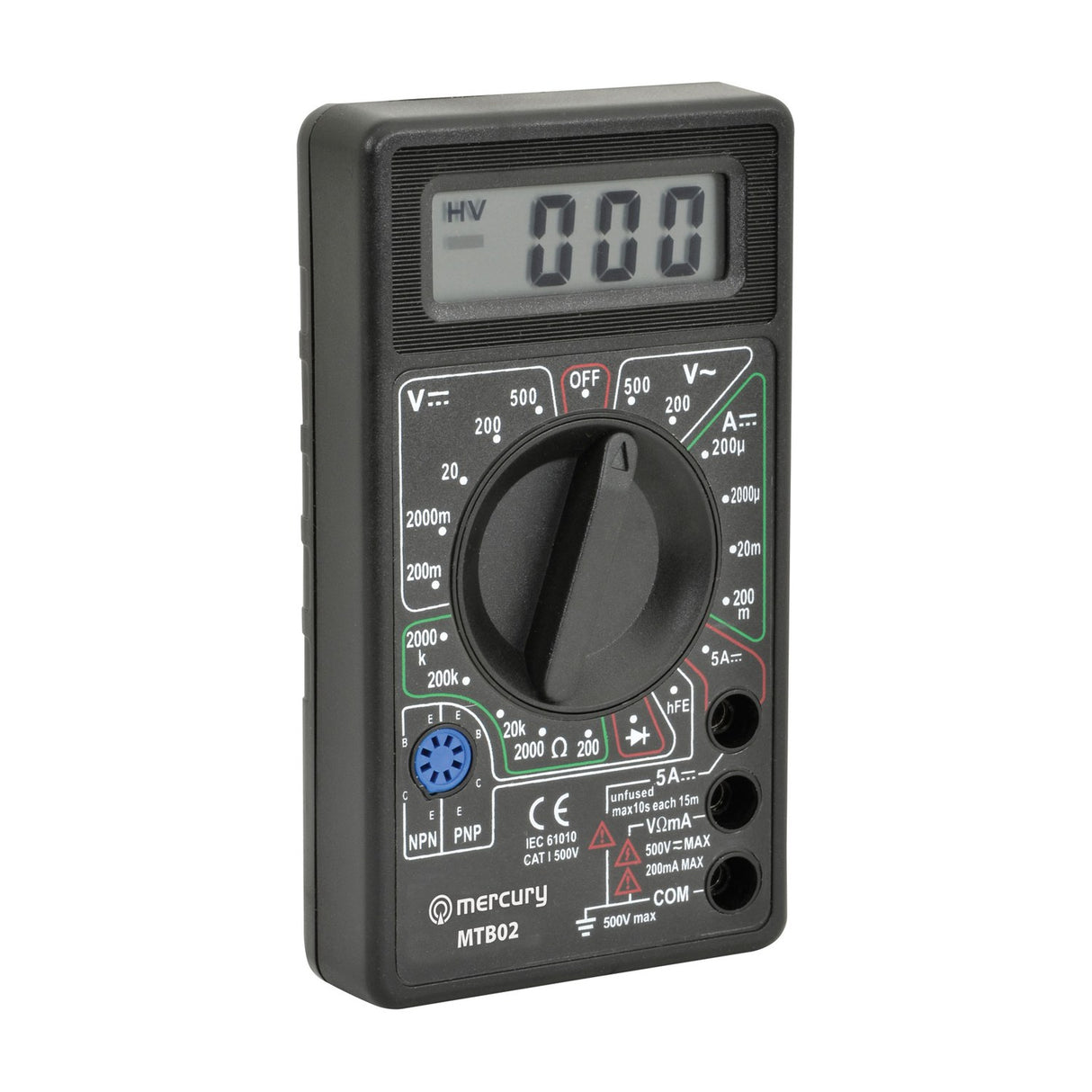

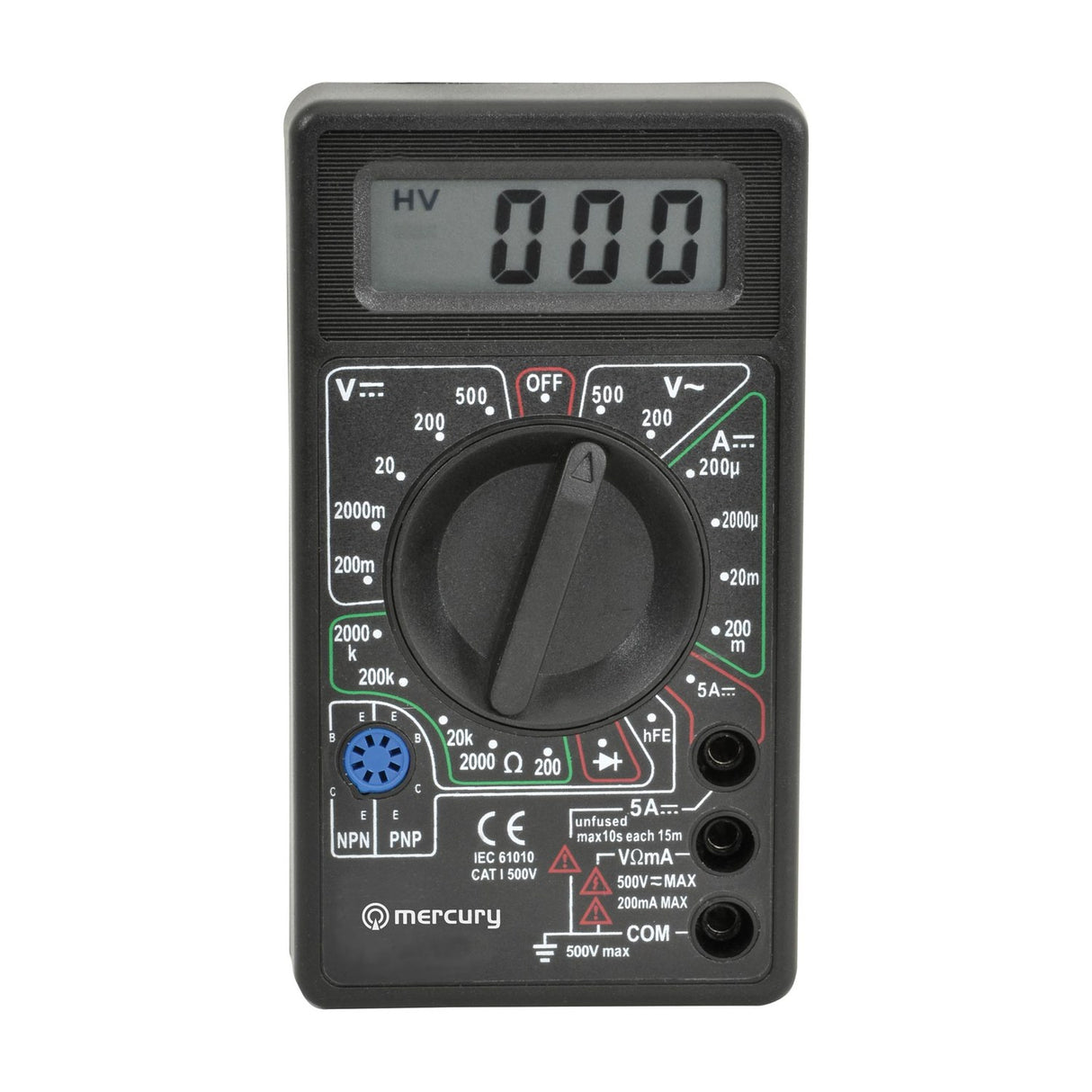

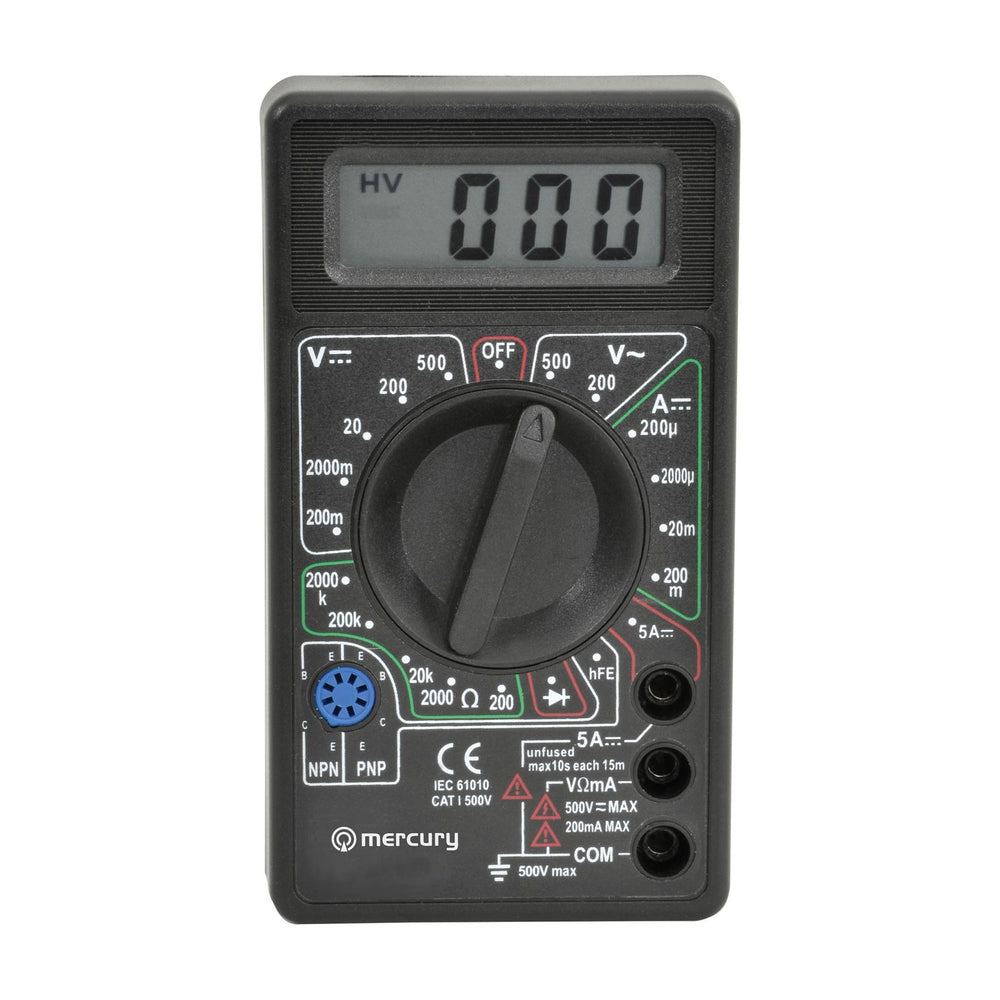

Mercury MTB02 Digital Multimeter with Transistor Test

£699
RRP £749
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Mercury MTB02 is a handheld digital multimeter built for everyday electrical and electronic testing. It offers 19 testing ranges across 6 functions, so you can check AC and DC voltage, DC current and resistance from a single unit. It arrives ready to use, supplied with shrouded testing probes (also called test leads or test pins) and a PP3 battery, meaning there is nothing extra to buy before you start.

On the measurement side, the MTB02 reads AC voltage from 200 to 500V and DC voltage from 200mV up to 500V. DC current runs from 200uA to 5A, and resistance covers 200 Ohms to 2000K Ohms. There is also a transistor test function for hobbyists and repair work, letting you check components without a separate tester. The test leads measure 570mm, giving you enough reach to probe awkward terminals and connectors.

The meter runs on a single 9V PP3 battery, which is included in the box. It measures 126 x 70 x 29mm and weighs 128g, so it sits comfortably in the hand and slips easily into a toolbox or drawer. The MTB02 complies with EN61010-1:2010, the safety standard for electrical measuring equipment, and the shrouded probes help keep your fingers away from live contacts during testing. It is a straightforward, practical tool for home use, workshops and general fault finding.

Specification
AC voltage 200 - 500V
DC current 200uA - 5A
DC voltage 200mV - 500V
Resistance 200 Ohms - 2000K Ohms
Test lead length 570mm
Power supply 9Vdc (1 x PP3 supplied)
Dimensions 126mm x 70mm x 29mm
Weight 0.13KG
Downloads

Product Manual

Frequently Asked

What can the Mercury MTB02 measure?

It measures AC voltage (200 to 500V), DC voltage (200mV to 500V), DC current (200uA to 5A) and resistance (200 Ohms to 2000K Ohms). It also has a transistor test function, giving 19 ranges across 6 functions.

Does it come with a battery and test leads?

Yes. The multimeter is supplied ready to use with shrouded testing probes and a 9V PP3 battery, so you can start testing straight away.

What battery does it use?

It runs on a single 9Vdc PP3 battery, one of which is included.

How long are the test leads?

The test leads (also called test probes) measure 570mm, giving useful reach for most testing tasks.

Does it meet any safety standard?

Yes, the MTB02 complies with EN61010-1:2010, the safety standard for electrical measuring equipment.

How big and heavy is it?

It measures 126 x 70 x 29mm and weighs 128g, making it easy to hold and simple to store.
