Description

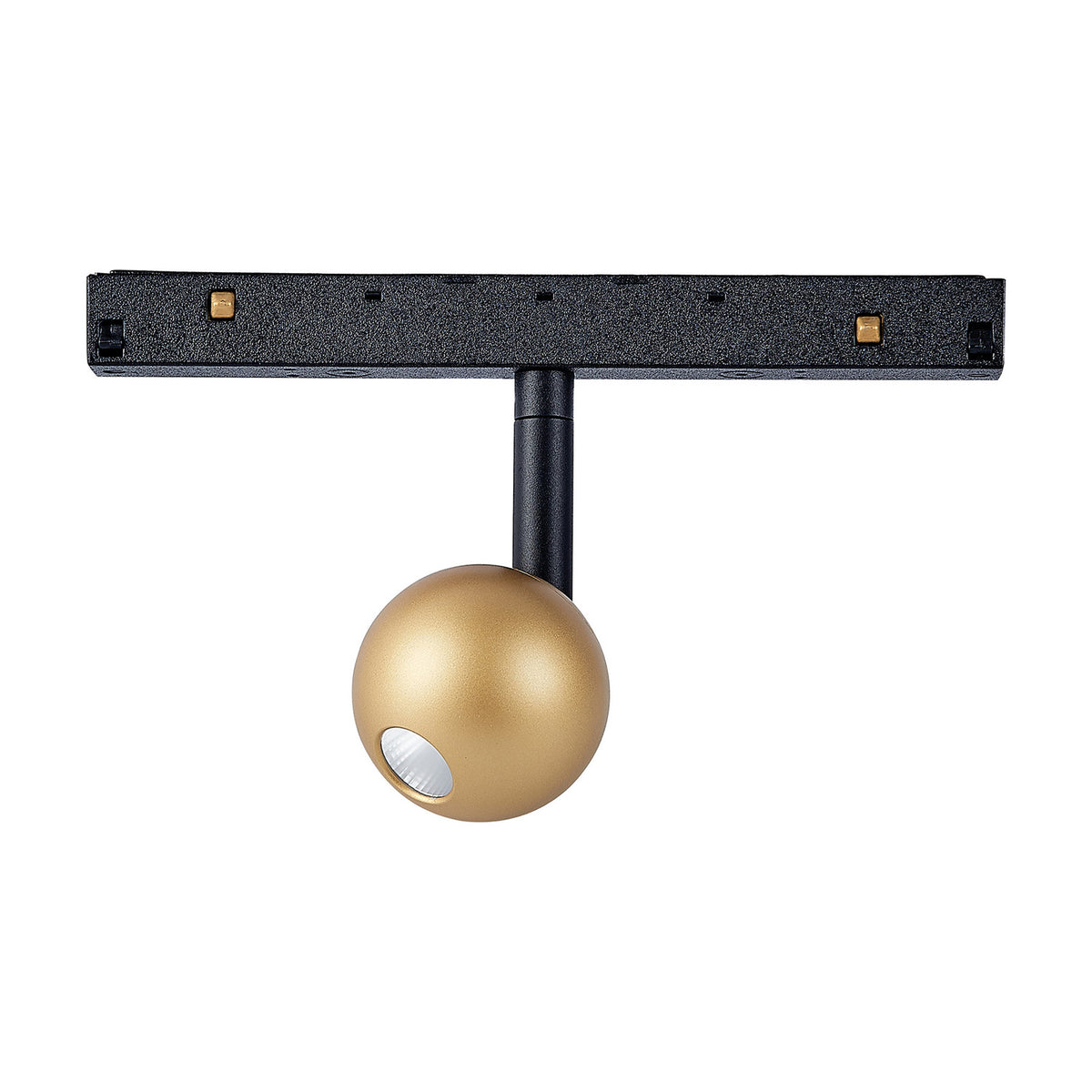

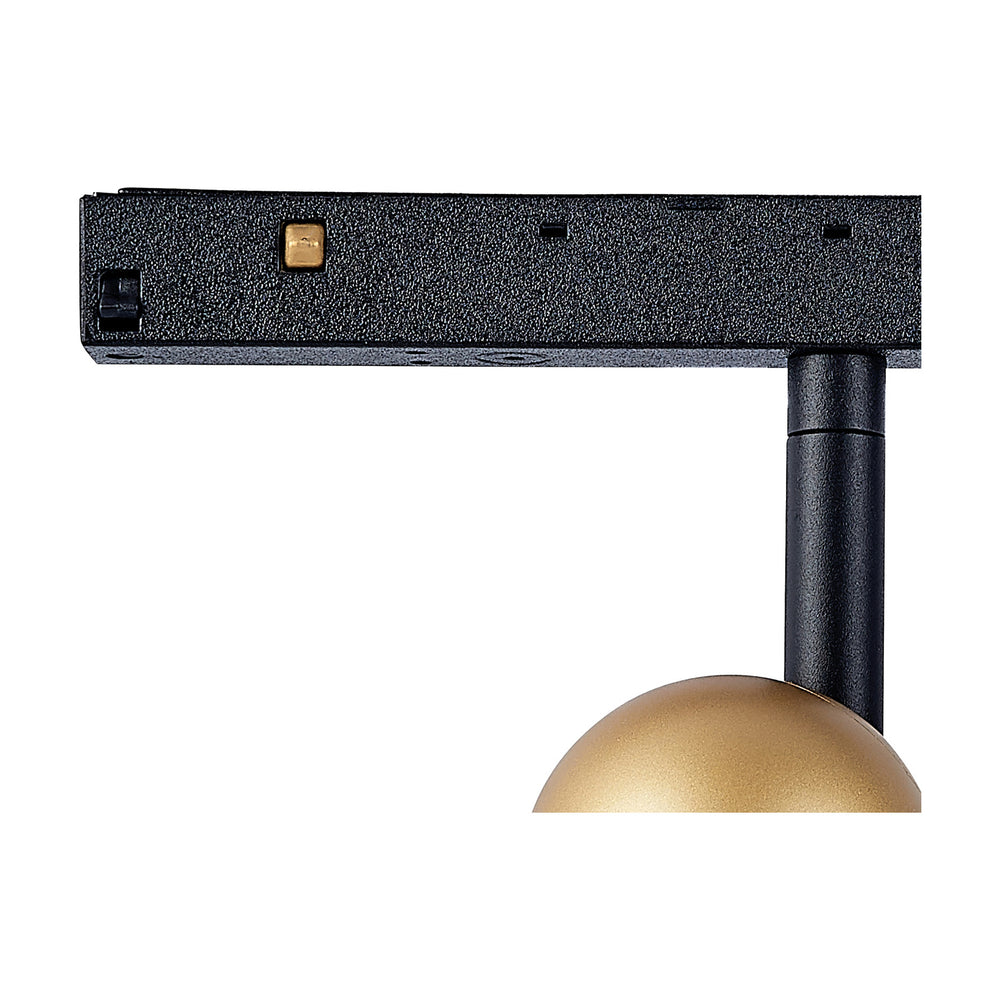

Small, round and unfussy, this spotlight head sits in the line of a Magneto track and aims a tight pool of light where you want it. Gold and black together keep it quiet against a dark run, so it reads as a small metallic dot rather than a heavy fitting. The LED and its driver are built in, drawing 7W for 560 lumens of warm white light, and the beam is narrow rather than broad. There is no dimming, so the level stays put.
We would use it where a room wants several small pools of light instead of a single broad wash: over a worktop, above open shelving, on pictures in a sitting room, or across a shop display. Because each head takes its power from the track itself, you can set a few along a run and shift them later when the furniture moves. The warm tone is kind to timber, brick and painted plaster, and it flatters food and skin, which is why we like it in kitchens and dining rooms as much as in galleries. Narrow beams like this reward a little thought about aiming.
The gold surface asks for little: a dry, soft cloth for dust, and no polishes, sprays or kitchen degreasers, which can mark the finish. Switch off at the wall and let the head cool before you go near it. Keep it indoors and dry, well away from bathrooms, porches and anywhere it might be splashed. It carries a three year warranty. We stock the black tracks it runs on in shallow surface, deep surface and recessed forms, plus the L-joints and end caps, so a lit line can turn a corner or run wall to wall as the room asks.
Specification
| Colour |
Gold |
| Second Colour |
Black |
| Weight |
0.28KG |
| Length |
200mm |
| Width |
55mm |
| Diameter |
55mm |
| Height |
105mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
7W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
30000hrs |
| LED Brand |
OSRAM 1202 |
| Qty of SMD |
1 |
| LED Power (W) |
7W (±5%) |
| LED Voltage (V) |
36V (±5%) |
| Type of LED |
COB |
| Lumens Per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle (°) |
38° |
| System Flux (lm) |
560lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
DC48V |
| Constant Voltage Output (V) |
48V |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption (W) |
7W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
Can this spotlight be dimmed?
No, this head is non-dimmable. It runs at a fixed output of 560 lumens from its 7W integrated LED.
What sort of light does it give?
Warm white at 3000K with a narrow 38 degree beam, so it puts down a defined pool rather than a general wash. Colour rendering is high, at around 90 CRI, which keeps colours and materials looking honest.
Is the LED replaceable?
No, the LED and driver are integrated, with a rated average life of 30,000 hours.
How big is the head?
The ball measures 55mm across, with an overall height of 105mm and a length of 200mm including the arm. It weighs 0.28kg.
Which tracks does it suit?
It is part of the Magneto track range, so it works with the black shallow surface, deep surface and recessed tracks we stock, along with the matching joints and end caps.
How should I clean it?
With the power off and the head cool, wipe it with a soft dry cloth. Leave metal polishes and household sprays out of it, as they can dull the gold.
