Description

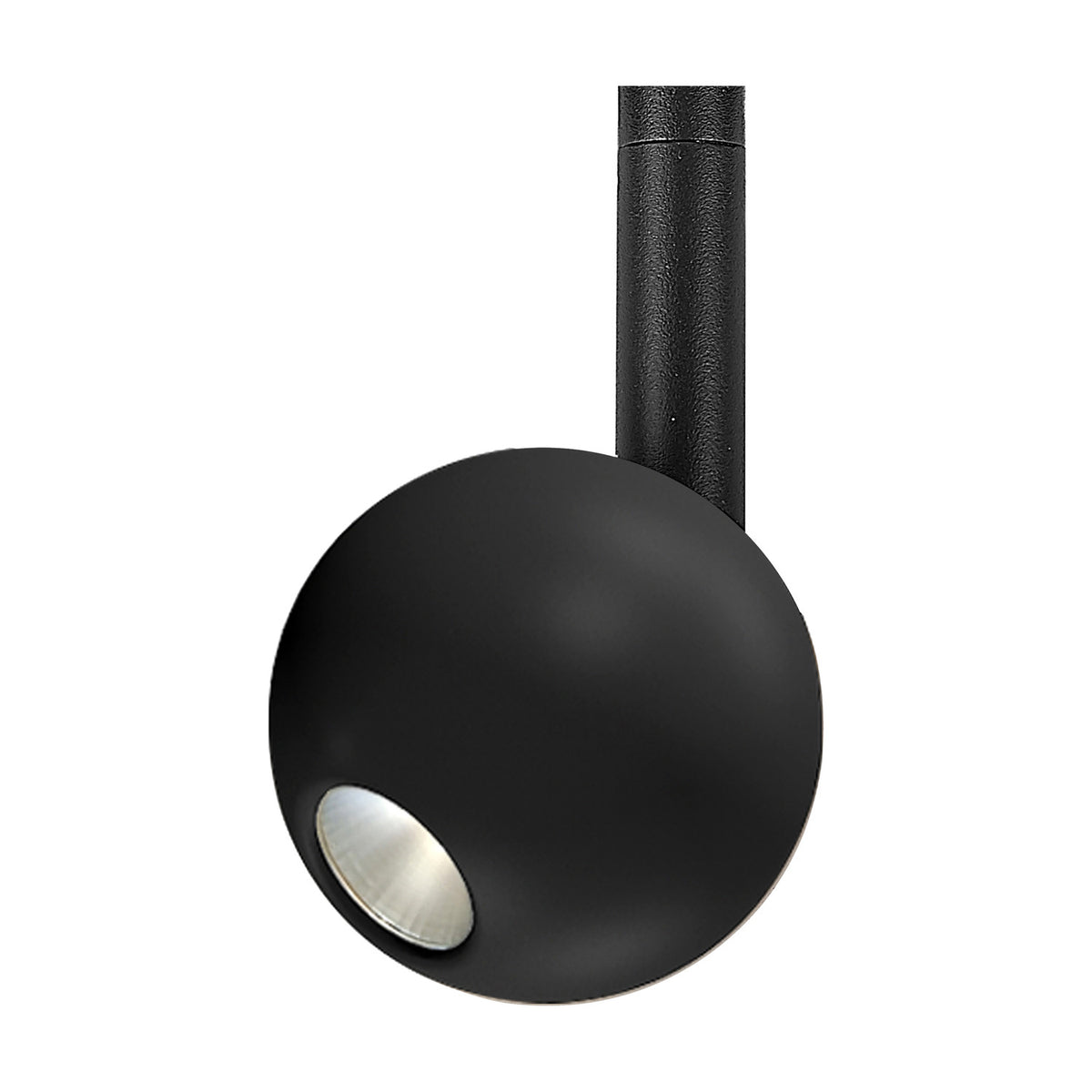

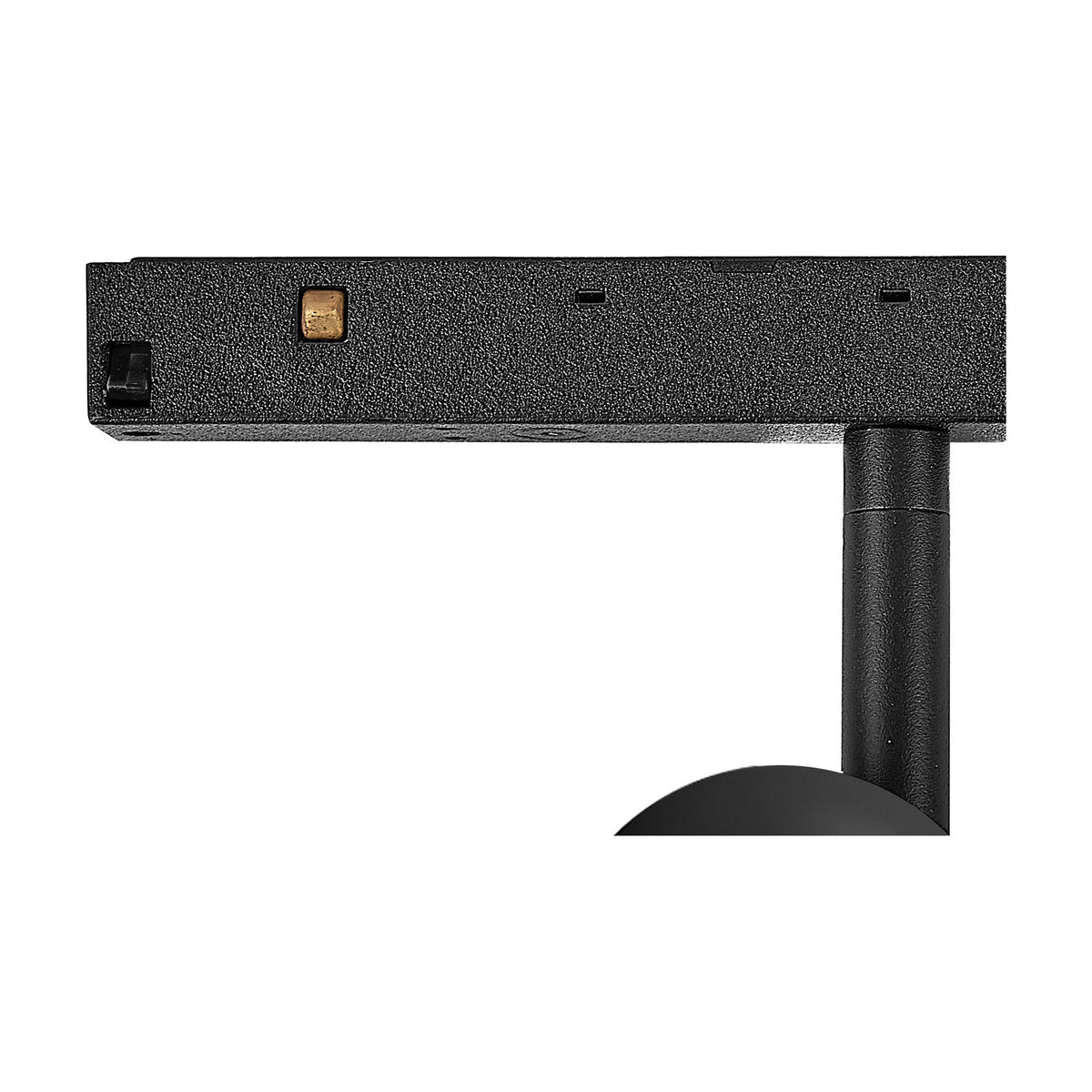

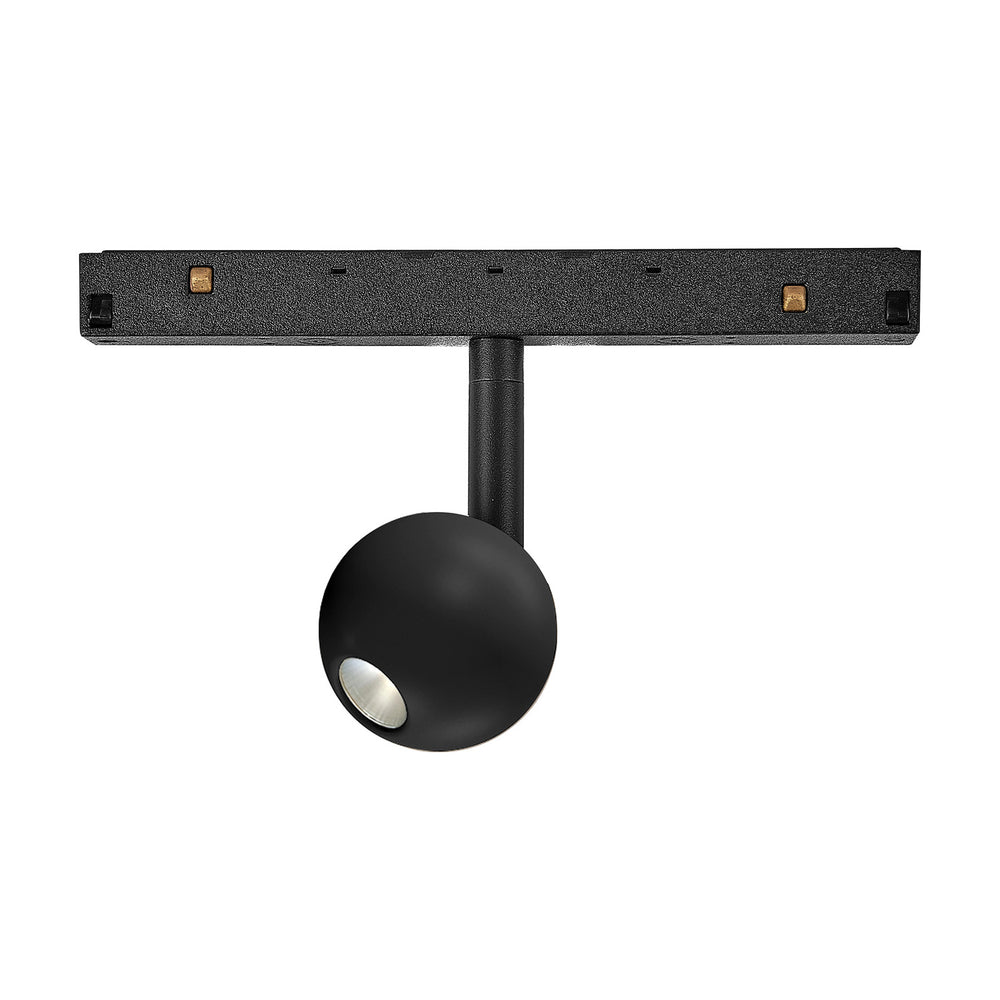

A small ball head that clips onto Magneto track and turns in its housing so the light goes exactly where you want it. The body and the sphere are black throughout, and the LED sits inside the ball, drawing 7W and giving a warm 3000K light of the sort that flatters wood, brick and painted plaster rather than bleaching them. The beam is tighter than a general downlight, so it lands as a defined pool on a surface instead of a broad wash.
This is the head we reach for when a room needs light in particular places rather than everywhere at once: over a kitchen island, along a run of open shelving, across pictures in a hallway, or picking out a display in a home office. Several heads on one length of track let you aim each one differently and change your mind later, which suits rooms where the furniture moves around. Output is fixed rather than variable, so it is simply switched on and off, and it belongs in dry indoor rooms.
The LED and its driver are built in together, giving around 560 lumens from a head that stays compact enough to disappear against a dark ceiling. It carries a three year warranty. Keeping it right is undemanding: with the power off, run a dry cloth over the ball to lift dust, then check the head is still pointing where you meant it to. Avoid sprays and damp cloths near the front of the optic. We stock the black track it runs on in surface and recessed forms, along with the matching L-joints and end caps, so a run can turn a corner and finish tidily in the same black. Nothing needs buying separately to light it, as the LED is part of the fitting.
Specification
| Colour |
Black |
| Weight |
0.28KG |
| Length |
200mm |
| Width |
55mm |
| Diameter |
55mm |
| Height |
105mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
7W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| LED Brand |
OSRAM |
| Qty of SMD |
1 |
| LED Power |
7W (±5%) |
| LED Voltage |
36V (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle |
38° |
| System Flux |
560lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
DC48V |
| Constant Voltage Output |
DC48V |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How bright is it, and what colour is the light?
It gives 560 lumens at 3000K warm white from a 7W integrated LED, with a colour rendering figure of 90 for accurate colour on artwork, food and fabrics.
Can it be dimmed?
No. This head runs at fixed output and is controlled by switching it on and off.
How big is the head?
The ball measures 55mm across, with an overall length of 200mm and a height of 105mm. It weighs 0.28kg.
Do I ever need to replace a bulb?
No. The LED is integral and rated at 30,000 hours, so there is no lamp to change during normal life.
How narrow is the beam?
It is a 38 degree beam, tight enough to pick out a worktop, a picture or a shelf without spilling across the whole room.
Is it suitable for a bathroom or outdoors?
No. It is rated IP20 and intended for dry indoor rooms only.
