Description

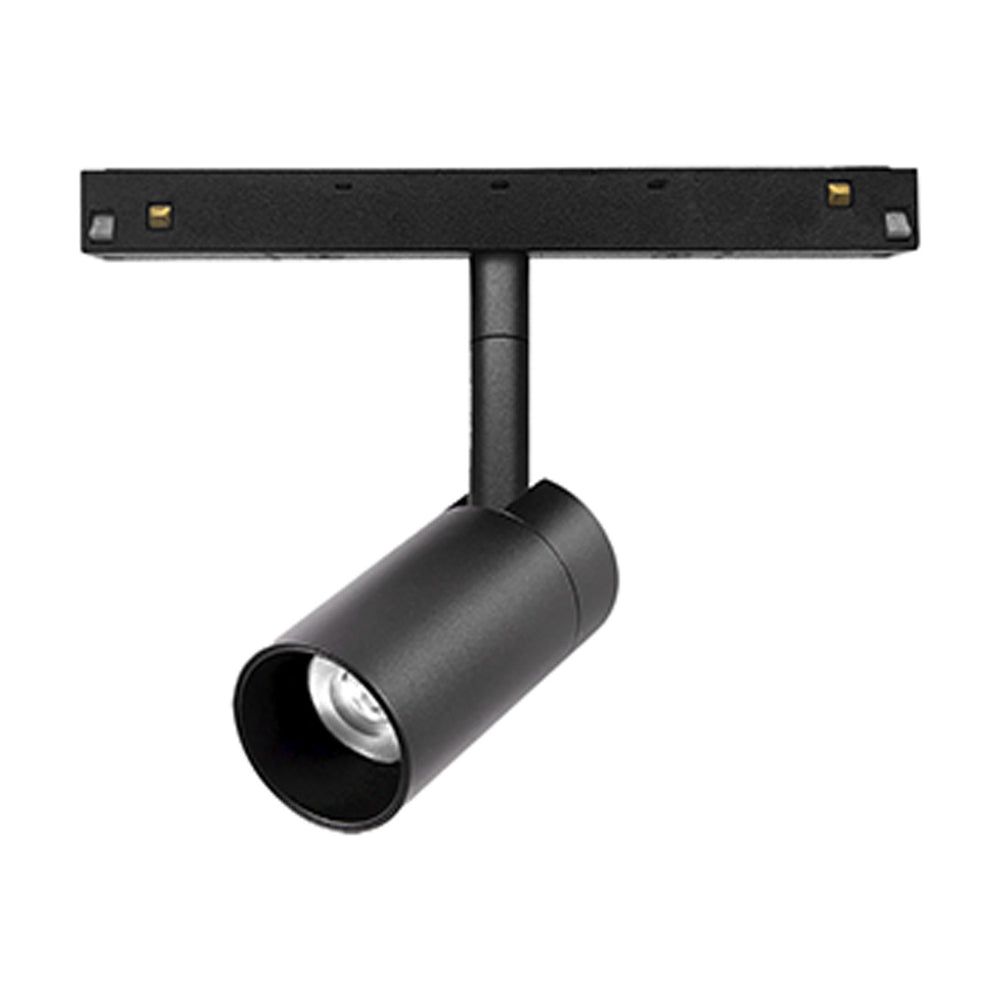

A compact spot head made for the Magneto magnetic track range, finished in black and sized to sit quietly against the rail rather than dominate it. The LED is integrated, drawing 7W and giving 560 lumens of warm white light at 3000K, the gentler end of white that reads kindly against wood, brick and painted plaster. Output is a defined pool rather than a broad wash, so it picks out whatever you aim it at, and it slides along the track to wherever the furniture ends up. It is not dimmable.
We reach for heads like this where a room wants several small, pointed lights from a single run rather than a single fitting in the middle of the ceiling. That makes it useful over a kitchen worktop or island, along a hallway, across open shelving, or turned onto a picture or a run of framed prints. Studio corners and home offices take it well too. Warm white keeps the mood settled, so it works in living spaces as readily as working ones. Keep it to dry indoor rooms; a bathroom zone or a covered porch calls for something sealed.
The housing is black inside and out, and the driver comes with it, so there is no separate gear to find room for. For cleaning, cut the power at the wall, give the head a moment to lose its heat, then take dust off the body and lens with a dry cloth; no sprays, no solvents. It carries a three year warranty. We stock the rest of the Magneto range in the same black: surface and recessed track, corner and wall-to-wall joints, and end caps, so a lighting run can follow the shape of the room. The LED is built in, so there is no lamp to buy.
Specification
| Colour |
Black |
| Weight |
0.31KG |
| Length |
200mm |
| Width |
86mm |
| Diameter |
43mm |
| Height |
105mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
7W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
30000hrs |
| LED Brand |
OSRAM |
| Qty of SMD |
1 |
| LED Power (W) |
7W (±5%) |
| LED Voltage (V) |
36V (±5%) |
| Type of LED |
COB |
| Lumens Per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle (°) |
38° |
| System Flux (lm) |
560lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
DC48V |
| Constant Voltage Output (V) |
DC48V |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption (W) |
7W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How big is the head?
It measures 200mm long by 86mm wide and 105mm high, with a 43mm diameter head. Nett weight is 0.31kg.
Can I change the bulb later?
No. The LED is integrated rather than a replaceable lamp, and it is rated at an average life of 30,000 hours.
What is the light quality like?
3000K warm white, 560 lumens from 7W, with a CRI of 90 for good colour rendering on skin, food and artwork. The beam is 38 degrees, so a tighter pool than a general downlight.
Is it dimmable?
No, this head is non-dimmable and should be run at full output.
Does it need a separate driver?
No, the driver is included. It runs at 36V on the track.
What warranty comes with it?
It carries a three year warranty from the maker.
