Description

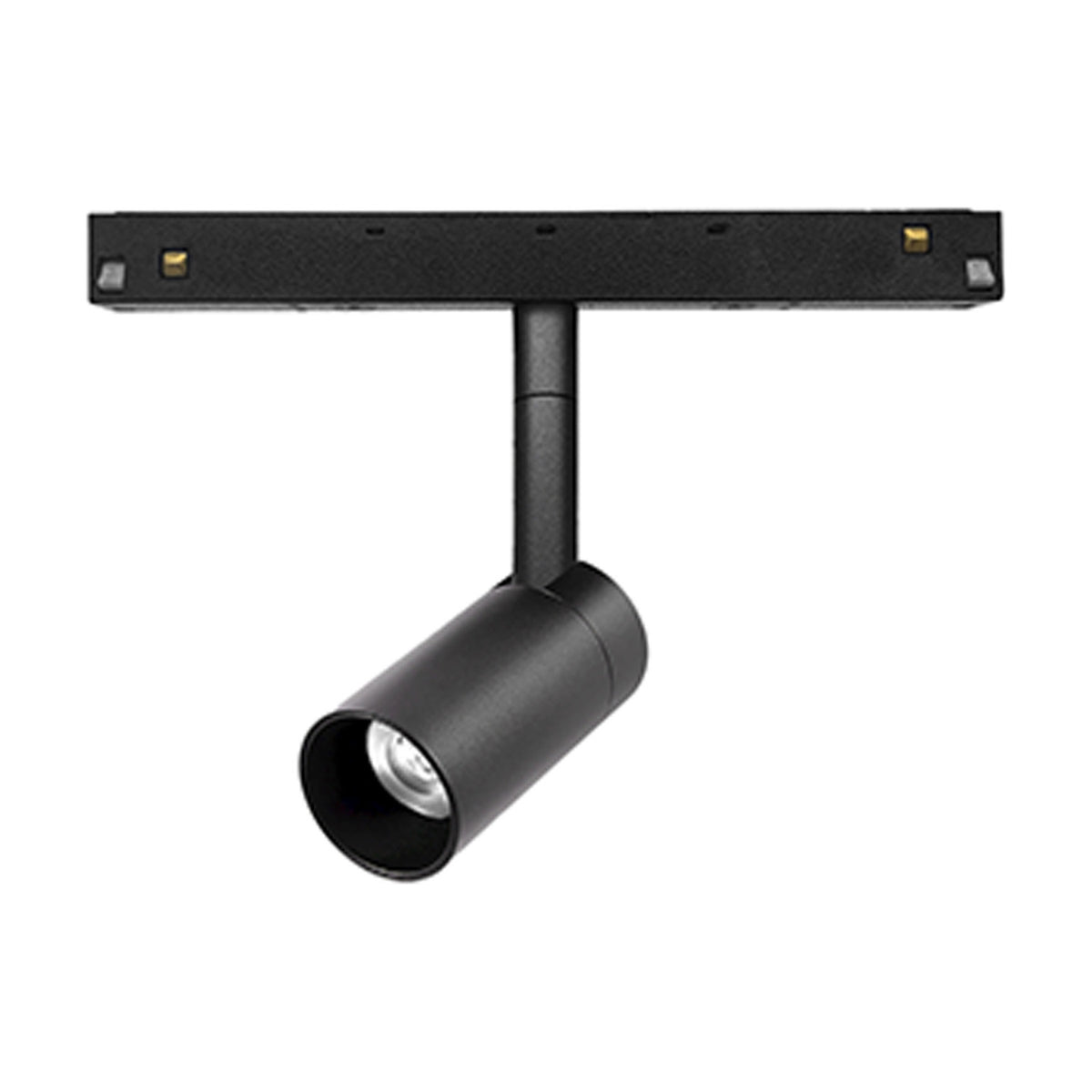

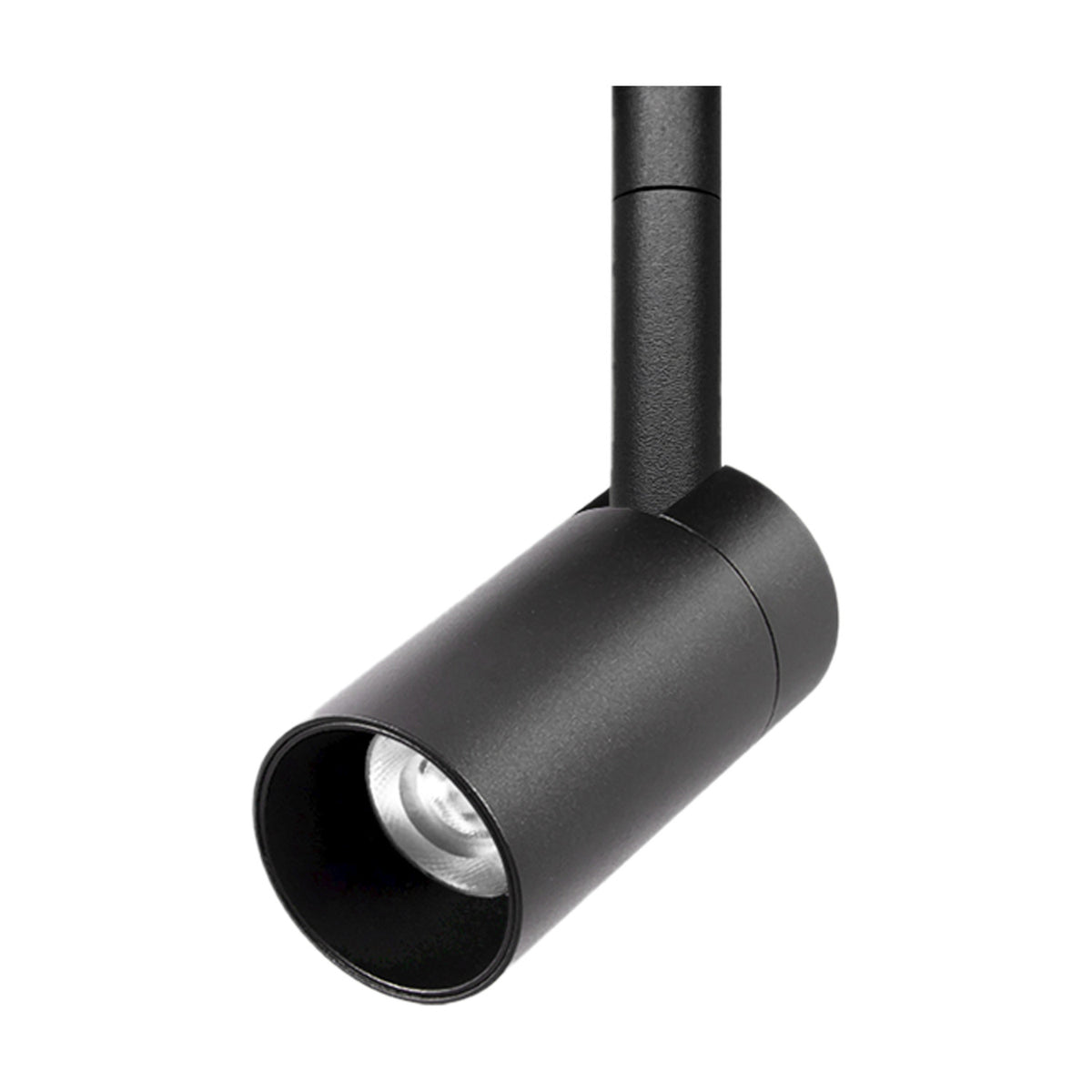

A compact spotlight built for the Magneto track range, finished in black with a slim barrel just 35mm across. The LED is integral and draws 5W, throwing a warm white beam that flatters wood, paint and skin tones rather than bleaching them. Its driver is built in, and it is triac dimmable, so with a compatible dimmer the light drops back gently for evenings. No dimmer comes with it.
This is a light for pointing at something: a run of shelving, a picture wall, a worktop, the reading end of a sitting room. Because the head is small and the output modest, several along a single track give better results than one bright fitting on its own, and the spacing is yours to set. We reach for it in kitchens and hallways where a pendant would hang in the way, and in home offices where a fixed ceiling light lands in the wrong place. It is for dry rooms indoors, away from splashes and steam.
The body is black throughout, a quiet finish that reads as shadow against a dark track and stays discreet against a white ceiling. Keep it clean by switching off at the wall, letting the head cool, then running a dry cloth over the barrel and a soft brush around the lens; solvents and damp cloths do it no favours. It carries a three year warranty. We stock the rest of the Magneto range alongside it, including shallow and deep surface track, recessed track, corner joints in both depths, end caps and the triac controller that dims the system, so a single run can be planned and added to over time.
Specification
| Colour |
Black |
| Weight |
0.21KG |
| Length |
200mm |
| Width |
70mm |
| Diameter |
35mm |
| Height |
95mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
5W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| LED Brand |
OSRAM |
| Qty of SMD |
1 |
| LED Power |
5W (±5%) |
| LED Voltage |
36V (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle |
50° |
| System Flux |
400lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
DC48V |
| Constant Voltage Output |
DC48V |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
5W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
Yes - Triac Dimmer Required |
| Dimmer Included |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give?
It produces 400 lumens at 3000K, a warm white. That suits accent and task work over a defined area rather than lighting a whole room from one point.
Do I need a special dimmer?
Yes. It dims on a triac dimmer, which is not supplied. The Magneto triac and push switch dimmable controller handles up to 720W, with one per system.
Can the LED be replaced?
No, the LED is integral and the driver is built in. It is rated at an average life of 30,000 hours.
What size is the head?
The barrel measures 35mm in diameter, with the fitting standing 95mm tall and 200mm along the track, 70mm wide.
Is it suitable for a bathroom?
No. It is rated IP20, so keep it to dry indoor rooms rather than shower zones or anywhere exposed to steam.
How sharp is the beam?
It has a 50 degree beam, wide enough to wash a picture or a stretch of shelf without a hard edge, and a CRI of 90 or above for accurate colour.
