Description

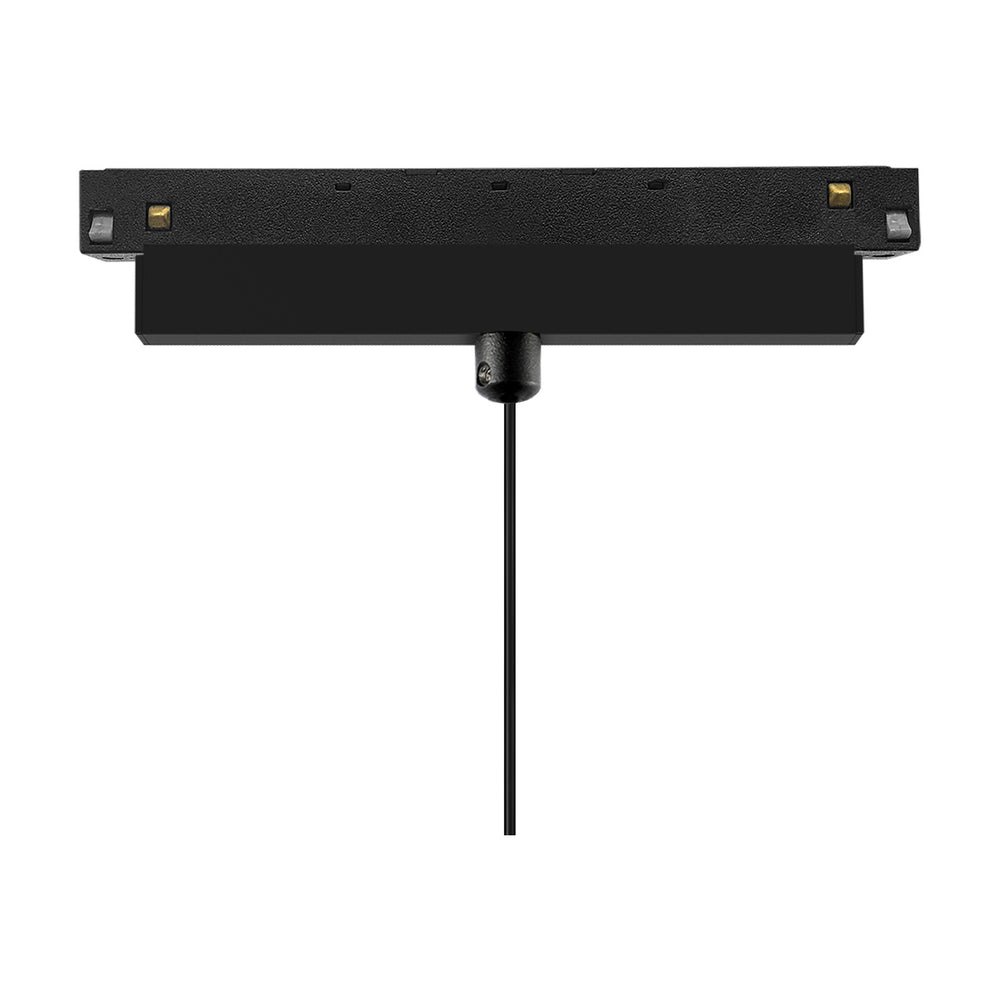

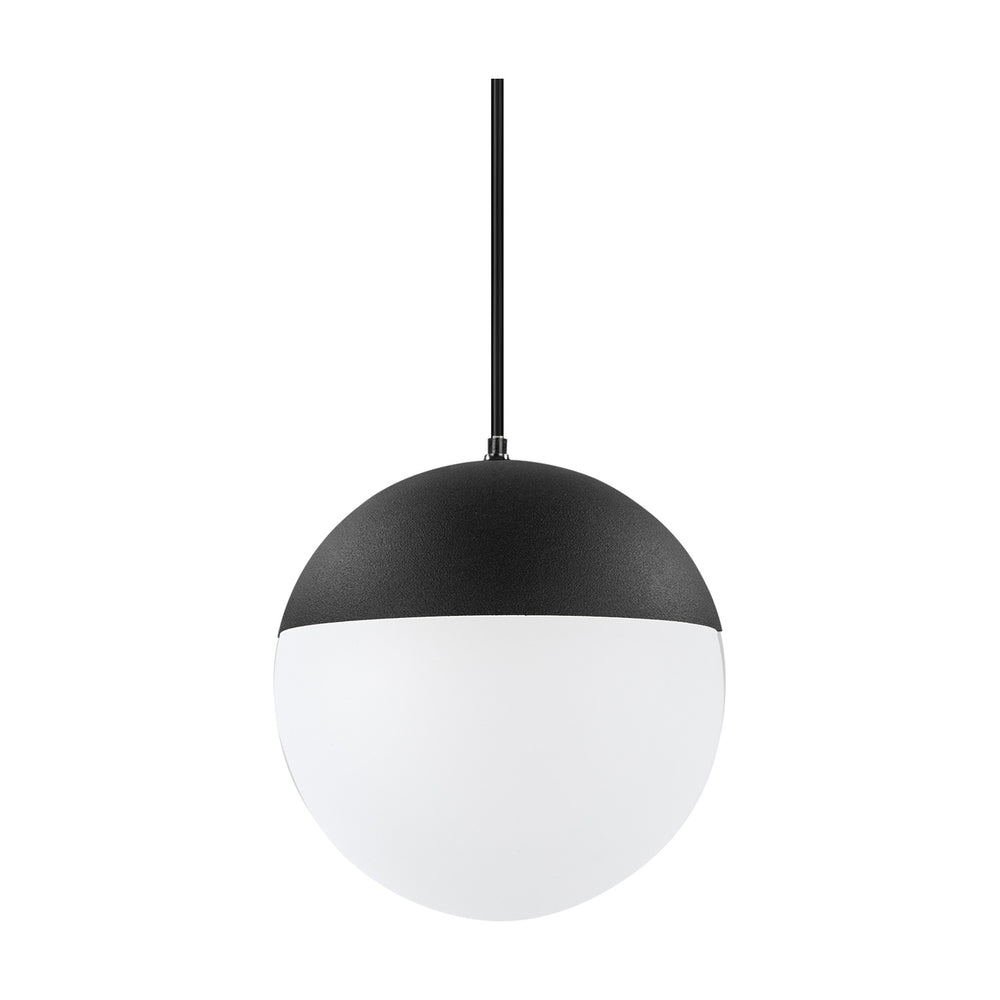

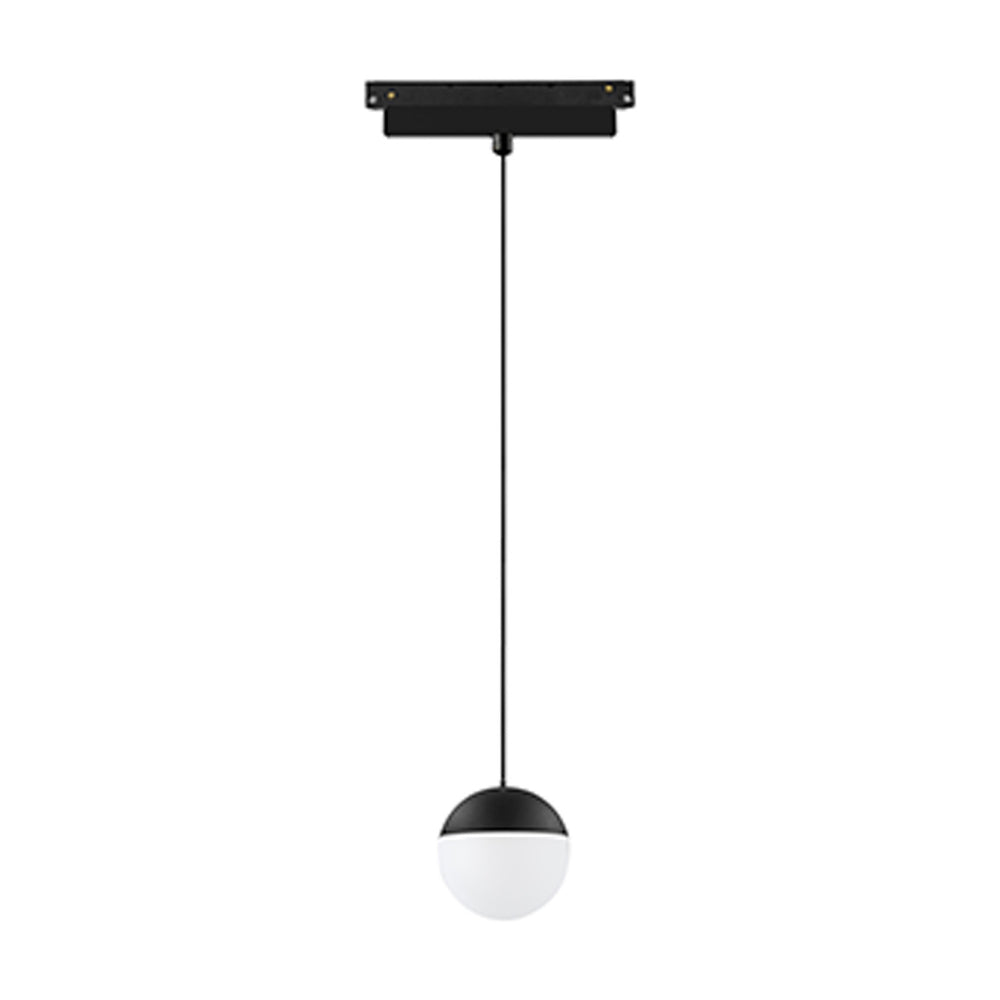

A small ball shade drops from a slender suspension on this magnetic track head, so the light sits down at eye level rather than up in the ceiling line. The ball measures 95mm across, which keeps it discreet enough to repeat along a run without the ceiling looking crowded. The LED is built in and gives a warm white 3000K output, and the driver is part of the fitting, so nothing extra is needed alongside it. It is not dimmable, and the light level is fixed at full.
We reach for these over kitchen islands and long worktops, where a row of small pendants gives better light on the surface than a single fitting can. The adjustable suspension means heads over a table can sit lower than heads over a walkway on the same run. It draws 10W, which is modest enough that several can share one track without much thought about load. The warm tone suits rooms where you want the light to feel soft in the evening rather than clinical, so kitchens, dining rooms and bar areas all take it well.
The head and shade are black, and the finish sits happily with black track, sockets and ironmongery elsewhere in a kitchen. Dust it with a dry duster now and then; if fingermarks show on the ball, a barely damp cloth and a dry buff afterwards will lift them, with the power off first. It carries a three year warranty. We stock the track sections, L-joints and end caps in black alongside it, so a run can be built to the shape of the room and finished off neatly at each end. Being an integrated LED, there is no lamp to change.
Specification
| Colour |
Black |
| Weight |
0.62KG |
| Length |
200mm |
| Width |
95mm |
| Minimum Drop (mm) |
1200mm |
| Maximum Drop (mm) |
1700mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
10W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
30000hrs |
| LED Brand |
OSRAM 2835 |
| Qty of SMD |
1 |
| SMD Chipset |
2835 |
| LED Power (W) |
10W (±5%) |
| LED Voltage (V) |
36V (±5%) |
| Type of LED |
SMD 2835 |
| Lumens Per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle (°) |
110º |
| System Flux (lm) |
800lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Ambient |
| Driver Included |
Yes |
| Constant Voltage Output (V) |
48V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption (W) |
10W (±5%) |
| Input Voltage (V) |
200-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How low does it hang?
The suspension gives a drop of between 1200mm and 1700mm, so heads can be set at different heights along the same run.
How much light does it give?
It produces 800 lumens at 3000K, a warm white that reads soft rather than blue.
Can it be dimmed?
No, this head is non-dimmable and runs at a fixed output.
Is a lamp or driver needed?
Neither. The LED is integrated and the driver is included with the fitting, so it takes its power straight from the low voltage track.
How wide is the ball?
The shade is 95mm across, with the head and suspension making up 200mm in overall length.
Is it suitable for a bathroom or outdoors?
No, it is rated IP20 and belongs in dry indoor rooms such as kitchens, dining rooms and hallways.
