LYYT 9-Way 10mm Transparent COB Tape Connectors (5pk)

£499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

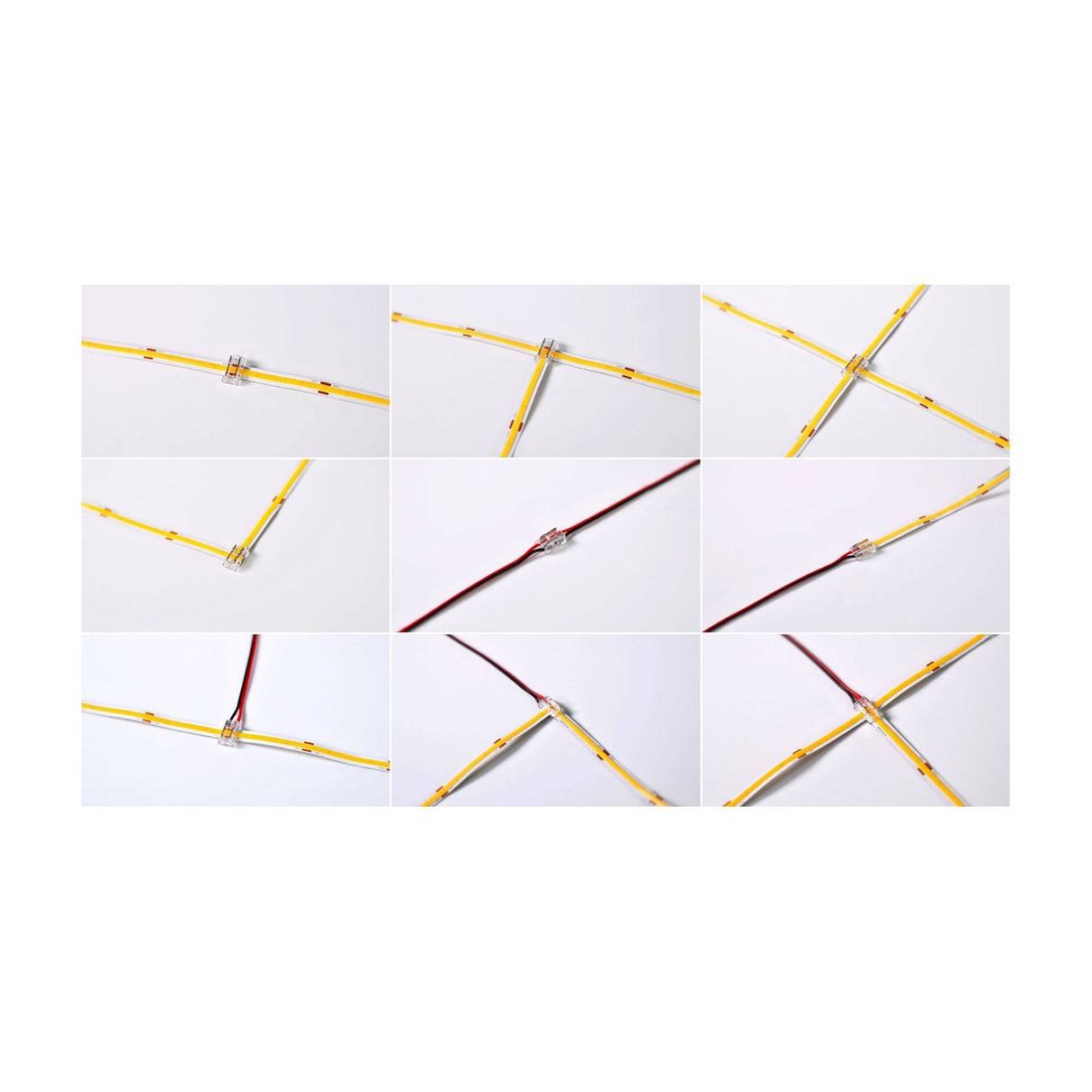

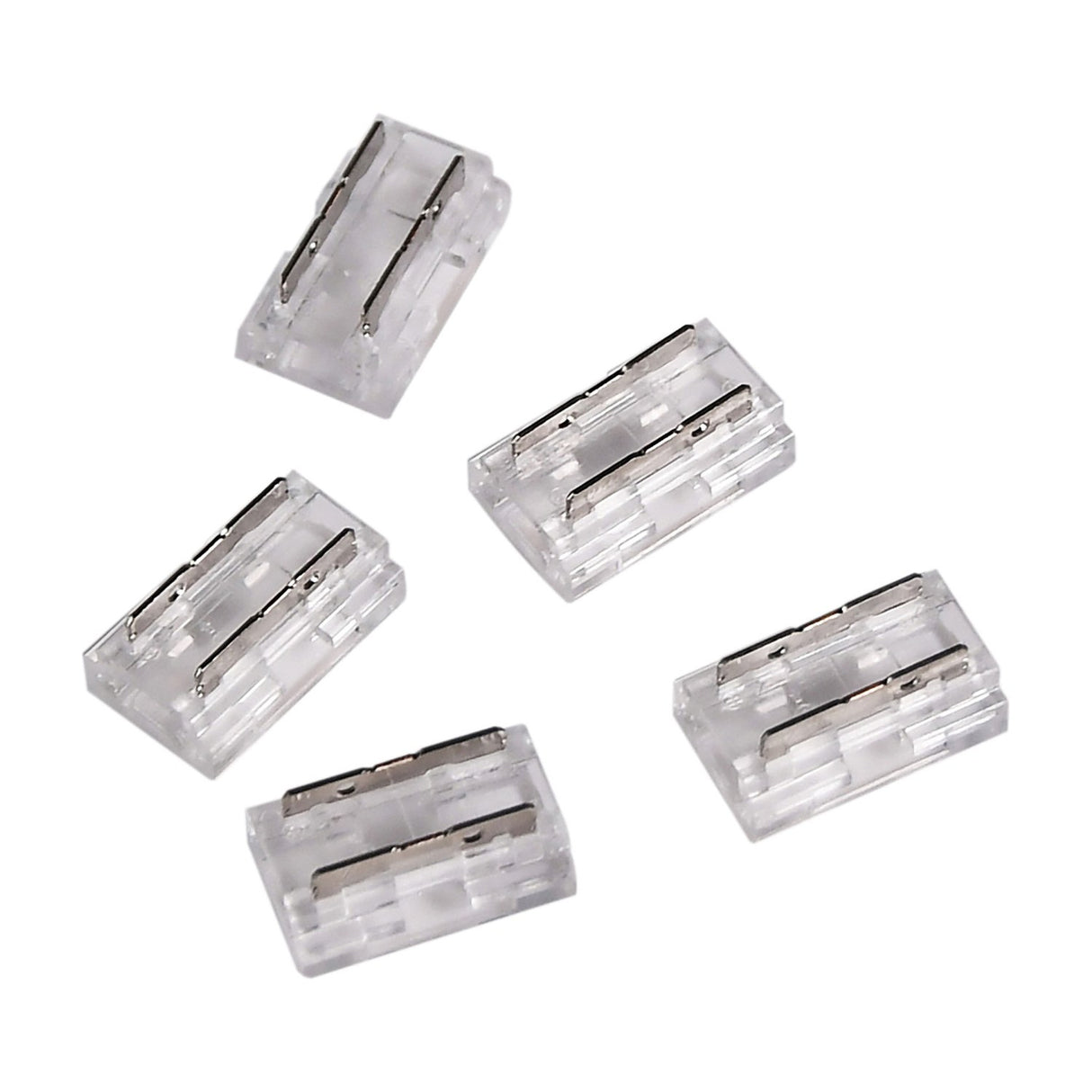

These LYYT connectors let you join single colour COB LED tape without soldering. Each pack contains five 9-way connectors sized for 10mm wide IP20 COB LED tape (also called LED strip), so you can link several runs together in the layout you need. To fit one, insert the tape into the connector in your chosen configuration and crimp it with a pair of pliers. The transparent housing keeps the join discreet along the run.

Getting the polarity right matters here. The + sides are marked on each connector, so check the orientation before you crimp. The instruction manual includes diagrams to guide you through the process. The 10mm version works with our cool white (156.665UK), warm white (156.666UK) and very warm white (156.668UK) COB LED strip. An 8mm version is also available for COB DIY kits in cool white (153.808UK), warm white (153.806UK) and natural white (153.807UK).

Rated for 0-36V and a maximum current of 5A, these connectors suit home accent lighting, commercial displays and DIY projects alike. The gauge covers 0.35 to 0.5mm² (AWG20-22), and the IP20 rating means they are intended for dry indoor use rather than damp or outdoor locations. Because no soldering is needed, they make quick work of corners, extensions and repairs where you want a clean, gap-free finish.

Specification
Tape version Single Colour COB
Gauge 0.35-0.5mm² AWG20-22
Voltage 0-36V
Current max. 5A
IP rating IP20
Downloads

Product Manual

Frequently Asked

What tape width do these connectors fit?

The 10mm version is made for 8mm and 10mm wide IP20 COB LED tape. An 8mm version is available separately for COB DIY kits.

Do I need to solder them?

No. You insert the tape into the connector in your chosen configuration and crimp it with a pair of pliers.

How do I get the polarity right?

The + sides are marked on each connector. Check the orientation before crimping, and follow the diagrams in the instruction manual.

How many are in a pack?

Each pack contains five 9-way connectors.

What are the electrical ratings?

They are rated 0-36V with a maximum current of 5A, using gauge 0.35-0.5mm² (AWG20-22) wire.

Can I use these outdoors?

No. They carry an IP20 rating, so they are intended for dry indoor use only.
