Description

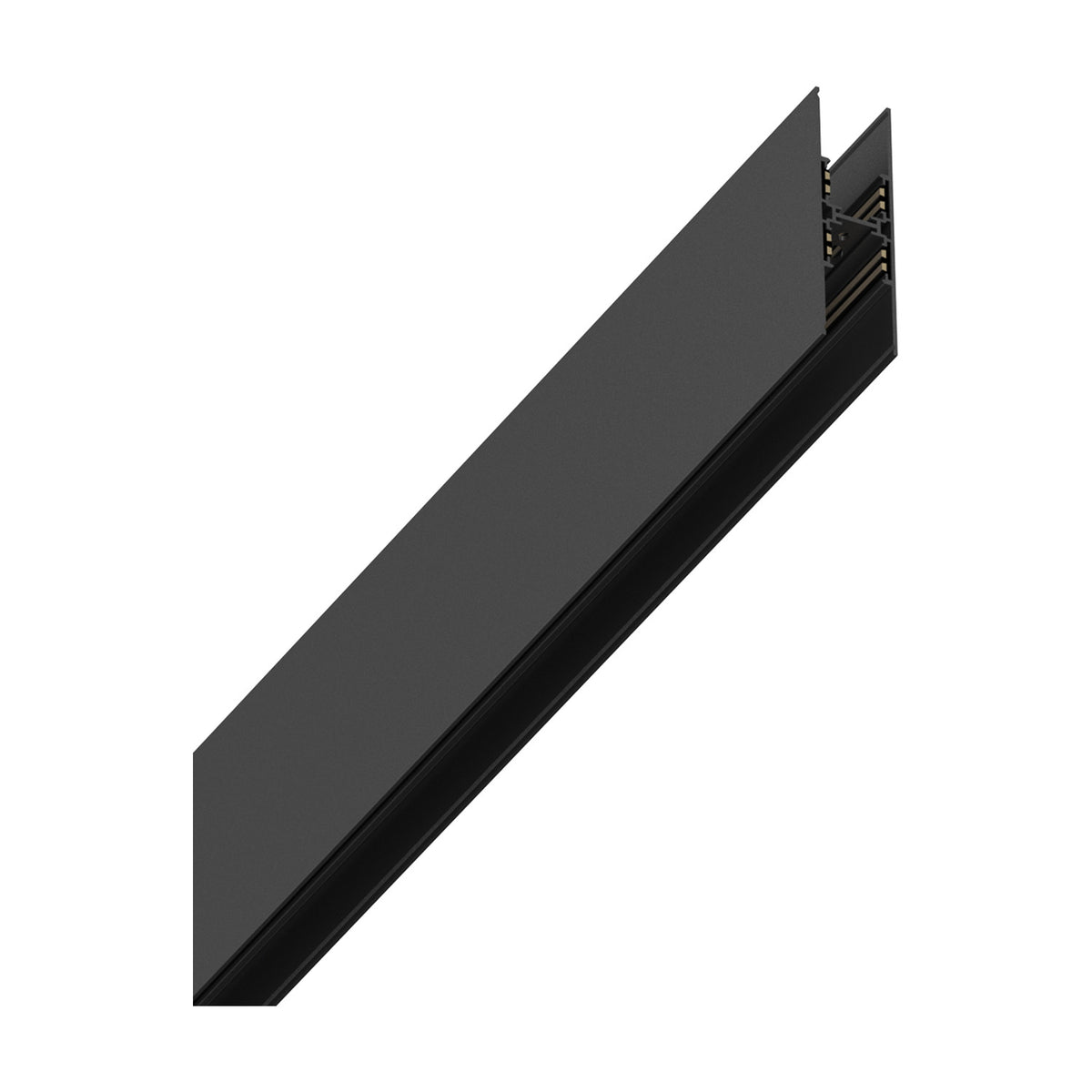

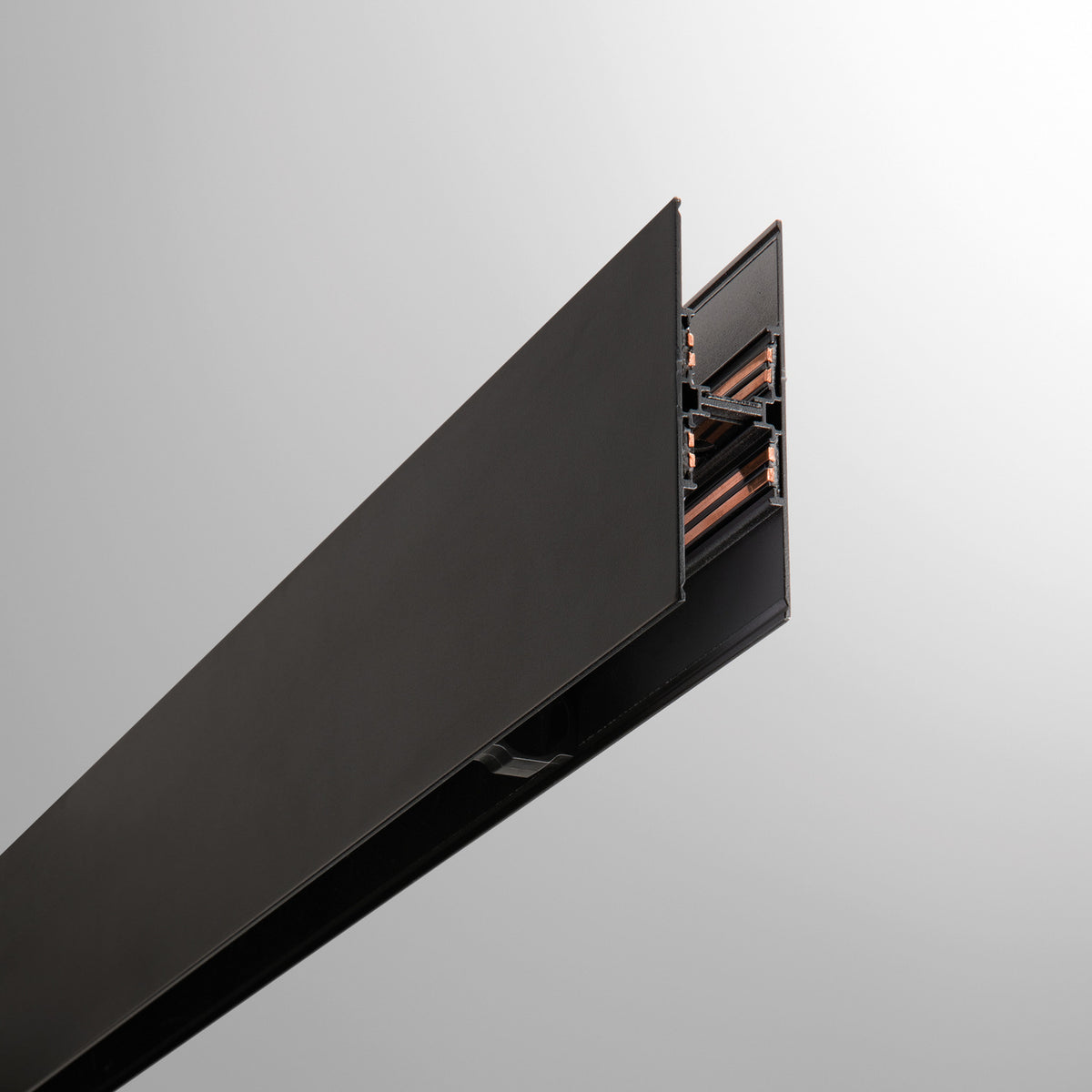

This is a two-metre length of our Luxeon up and down magnetic track in black. It is a tall, narrow rail with one magnetic channel along its upper face and another along its lower face. It measures two metres long, 26mm wide and 90mm tall. It carries the range's magnetic track lights, which are sold separately, so it gives no light by itself. The maker also lists the main connector, linear connectors, end caps, blind cover, suspension kit, light modules and the remote driver as not included. It is rated IP20, so it belongs in dry indoor rooms only.

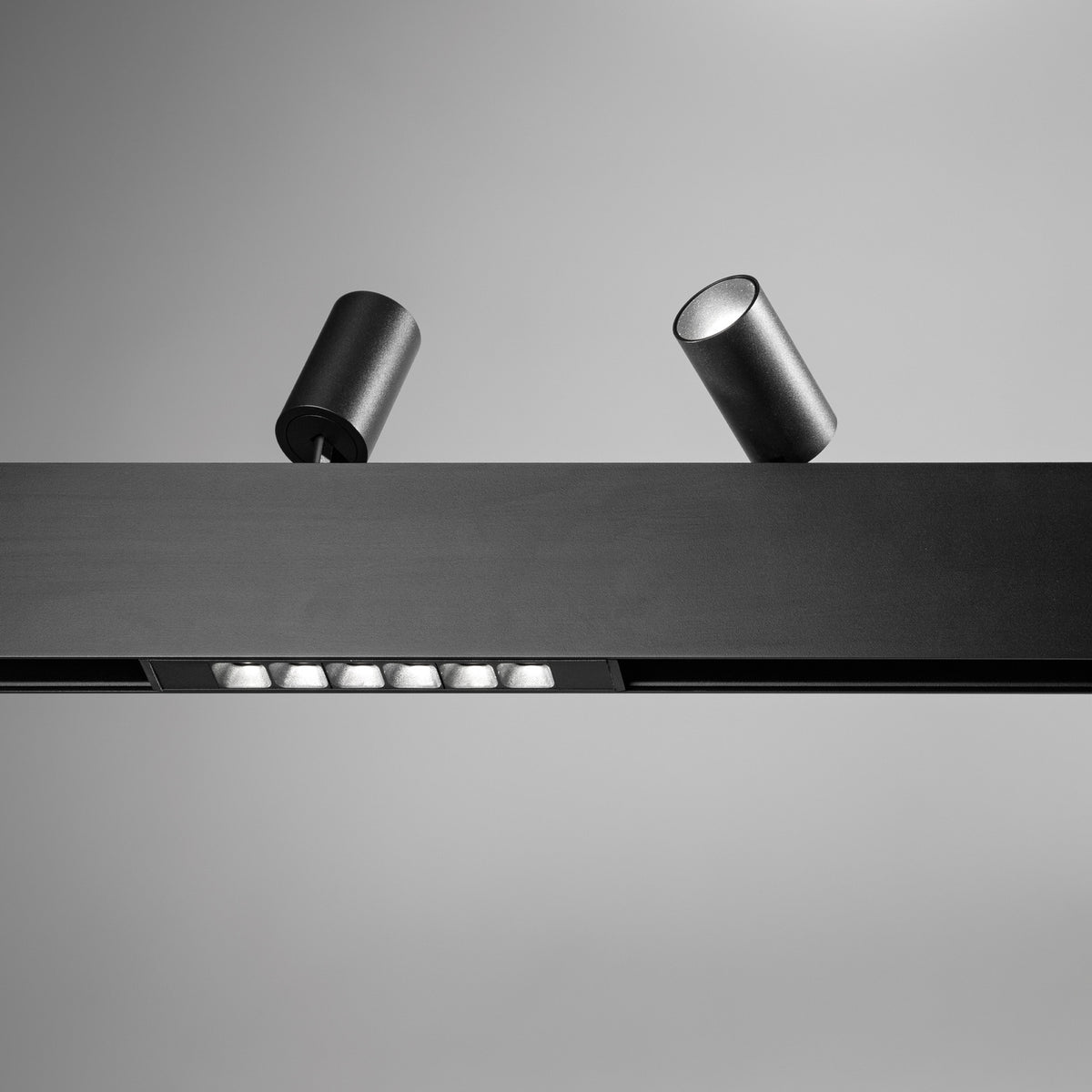

Two channels mean one run of track can send light up across the ceiling and down onto a surface at the same time. Lights set in the top channel aim upward, while lights in the lower channel aim down. That makes it a strong choice over a long dining table, along a desk in a home office, above a reception counter or across a living room where you want a soft glow overhead and light for reading. Hung from the ceiling on the suspension kit, the black profile reads as a single clean line, and magnetic lights can be repositioned along it as the room changes.
The track runs at 48V DC, a low voltage supplied by a remote driver that is required and sold separately, so plan where that driver will sit before you order. Its black finish suits dark ceilings and stands out crisply against white plaster. The full two-metre length weighs 2.9KG. A mains product such as the driver is installed by a qualified electrician. Before ordering, count the connectors, end caps and lights your layout needs, so nothing is missing on fitting day.
Specification
| Length |
2000mm |
| Width |
26mm |
| Height |
90mm |
| Track Voltage |
48V DC |
| Finish |
Black |
| IP Rating |
IP20 |
| Class |
Class III |
| Certification |
CE |
| Weight |
2.9KG |
| Warranty |
5 Years |
Downloads
Installation Instructions (PDF)
Frequently Asked
Does the track come with lights?
No. The track lights are sold separately, and the maker also lists the light modules, connectors, end caps, blind cover, suspension kit and remote driver as not included.
What size is the track?
It is two metres long, 26mm wide and 90mm tall, and the full length weighs 2.9KG.
Can I put lights on both the top and the bottom?
Yes. The rail has a magnetic channel on its upper face and another on its lower face, so light can go up and down at once.
Which IP rating does it carry?
It is rated IP20, which means it belongs in dry indoor rooms only, such as a dining room, living room or home office.
What power supply does it need?
The track runs at 48V DC and needs a remote driver, which the maker states is required and not included in the box.
What finish is it?
It has a black finish along its whole length, which suits dark ceilings and gives a crisp line against white plaster.
