Description

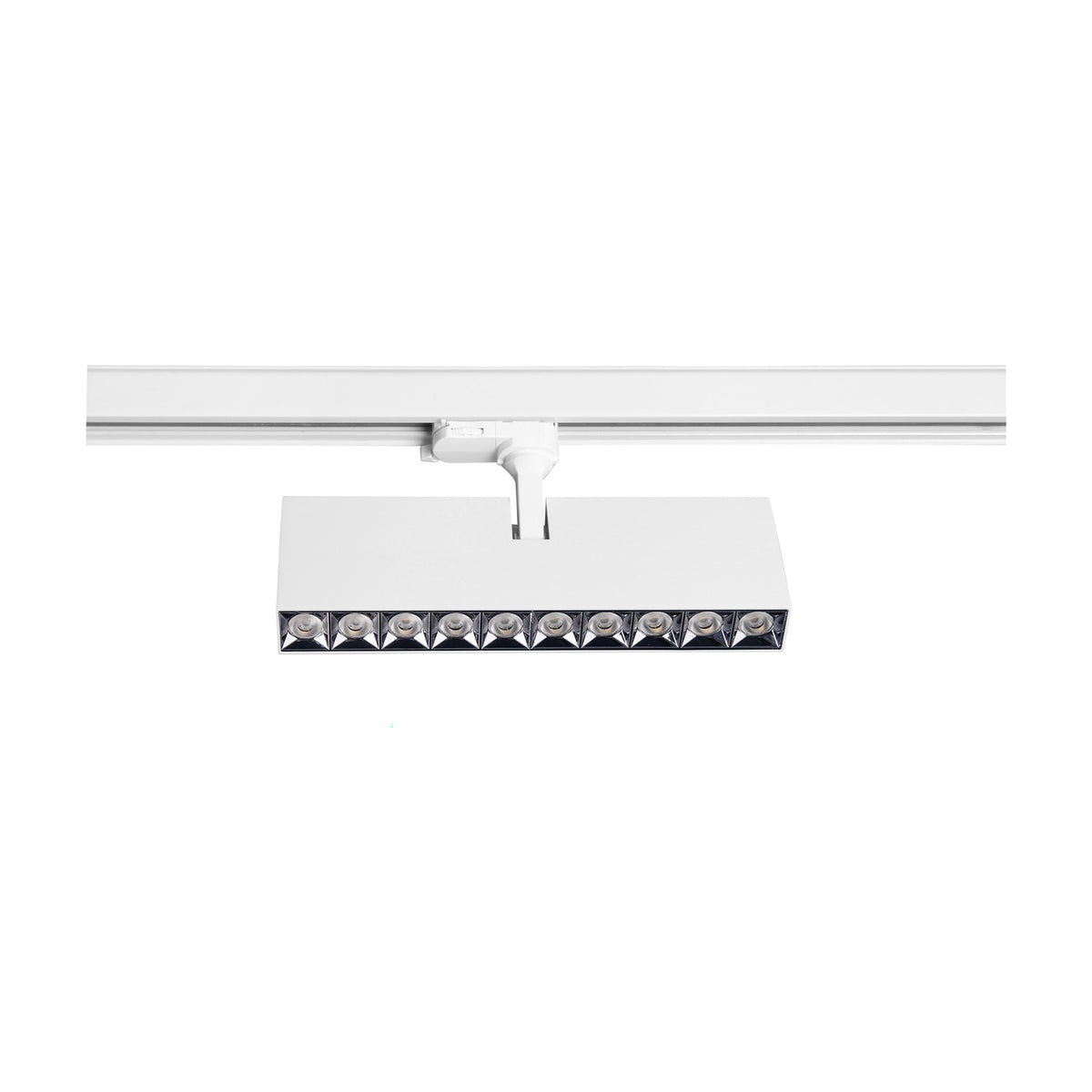

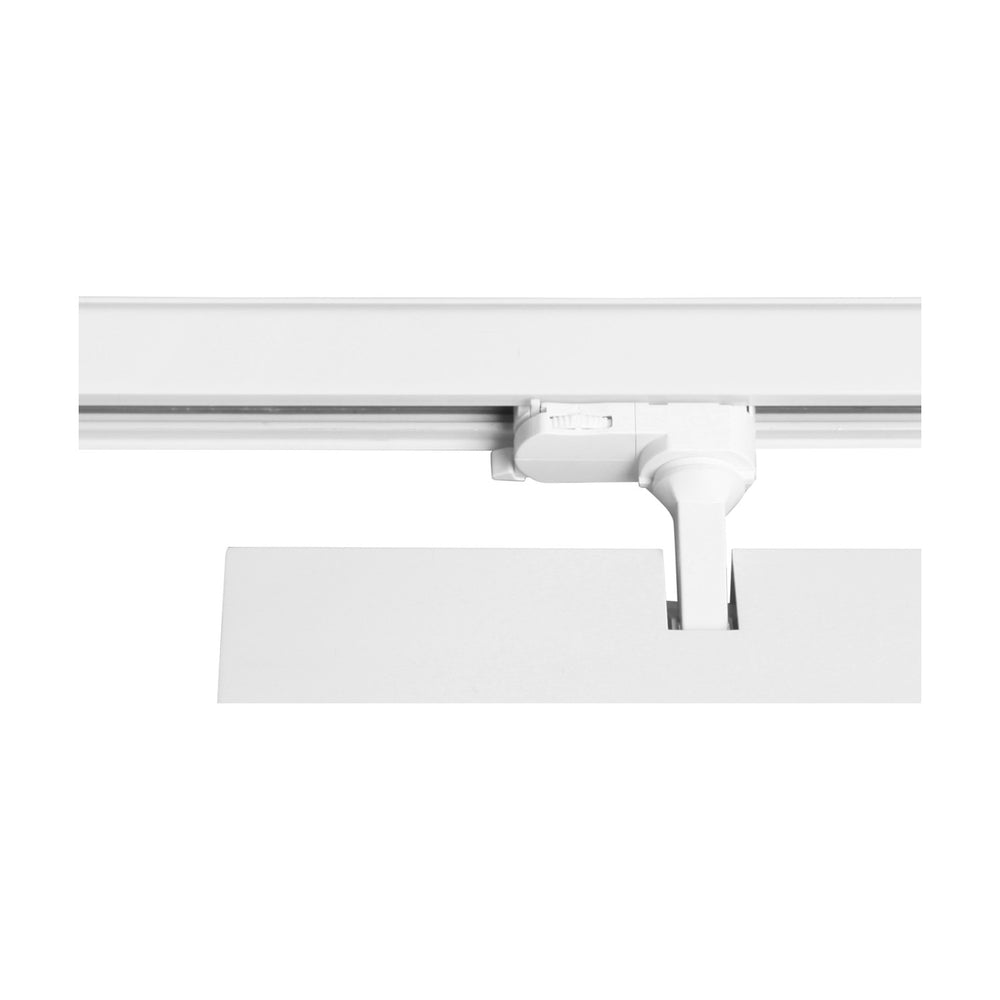

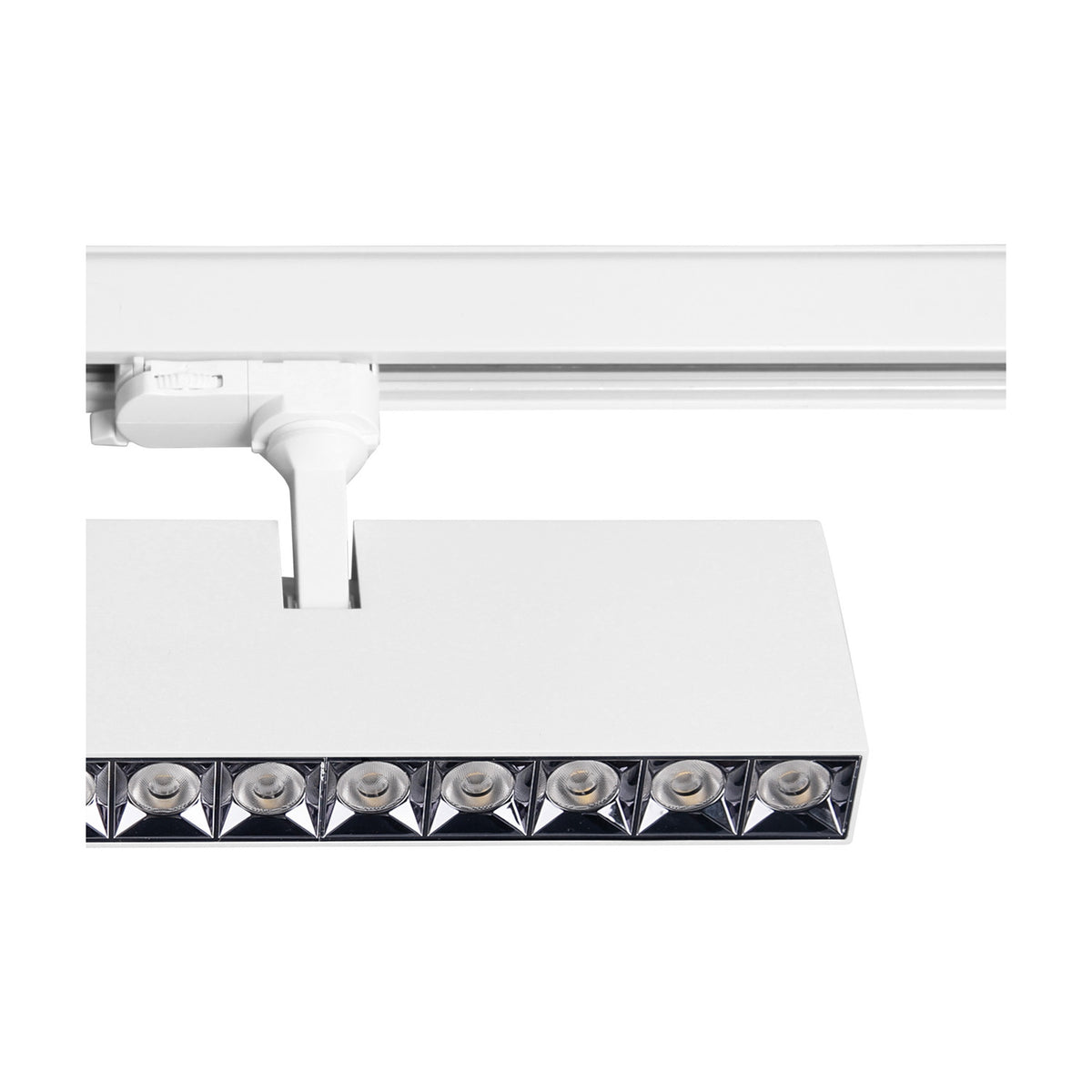

This is a compact linear head, 270mm long, finished in white and shaped as a plain bar rather than a round spot. The body pivots, so light can be aimed where it is wanted, along a run of shelving or across a worktop. A 30W integrated LED does the work with its driver on board, and the colour is a warm 3000K that keeps timber and paint looking friendly rather than clinical. Output is fixed rather than adjustable, so it is not one for a dimmer circuit.
We would use it where light needs to land on something specific: a run of pictures, a kitchen island, a shop display, a reading chair in a corner. The beam is on the tighter side, so it pools light rather than washing a whole room, and heads spaced along a track give an even line of pools without anything hanging low. It suits open plan rooms with tall ceilings, and studios where the furniture moves about and the lighting has to follow. Keep it to indoor rooms; a porch or a shower room needs something sealed.
The housing is finished in white throughout, head and body alike, so it reads quietly against a pale ceiling. Wiring is double insulated, and the LED is fixed in place, which keeps the outside of the fitting unbroken. Dust is the only real upkeep: a dry cloth over the lens and the sides now and then, with nothing wet or abrasive near the paint. It carries a three year warranty. We stock the same head in black, and in a cooler white in both finishes where warm light would be too soft for the job.
Specification
| Colour |
White |
| Weight |
0.80KG |
| Length |
270mm |
| Width |
30mm |
| Height |
90mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
30W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| Qty of SMD |
1 |
| SMD Chipset |
3535 |
| LED Power |
30W (±5%) |
| Lumens per Watt (lm/W) |
78lm/W (±5%) |
| Beam Angle |
38° |
| System Flux |
2350lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
30W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
50000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
System flux is 2350 lumens from 30W, with a beam angle of 38 degrees, so it is a directional light rather than a general room light.
Can I put it on a dimmer?
No. It is non-dimmable, so it should be run on a plain switched circuit.
What colour is the light?
Warm white at 3000K, which sits comfortably with wood, brick and warmer paint colours.
Do I need a separate driver?
No, the driver is built into the fitting.
How big is each head?
270mm long, 30mm wide and 90mm high, weighing 0.8kg.
Is there a cooler light option in the same shape?
Yes. The same adjustable linear head is also offered at 4000K, in white and in black.
