Description

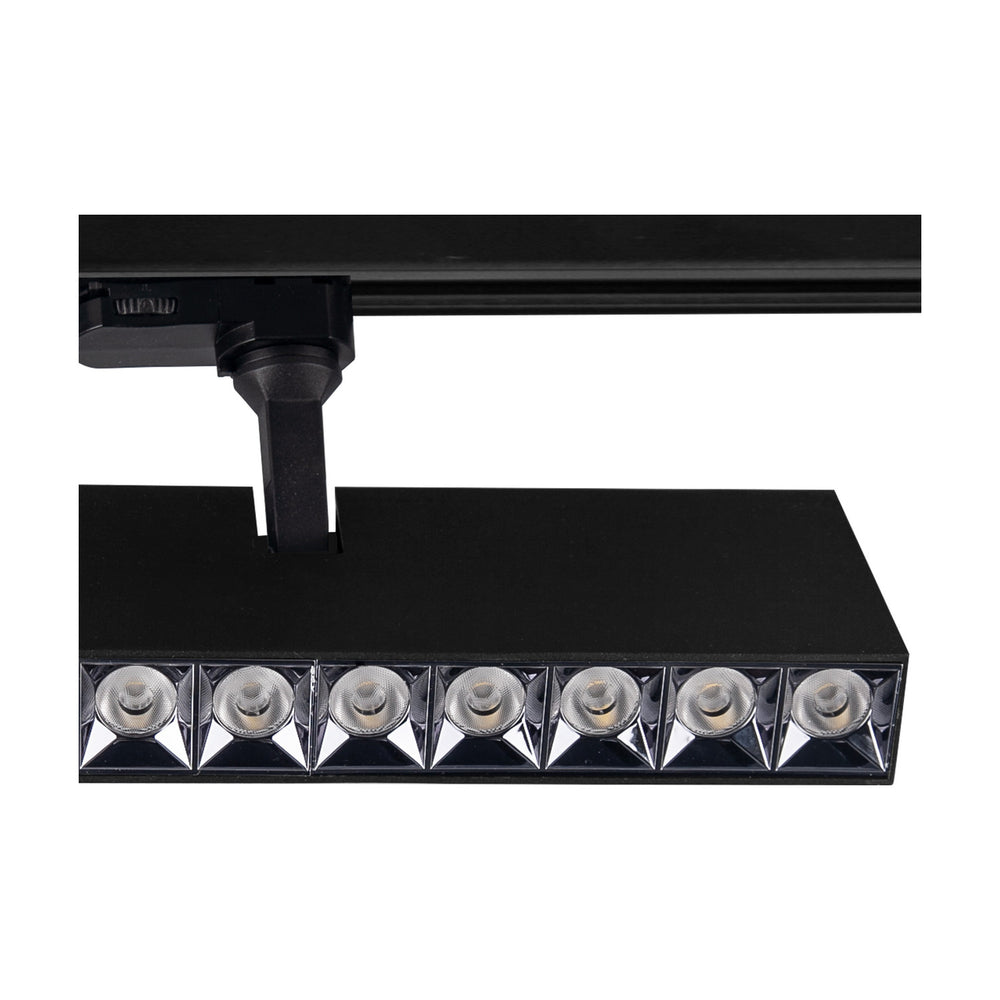

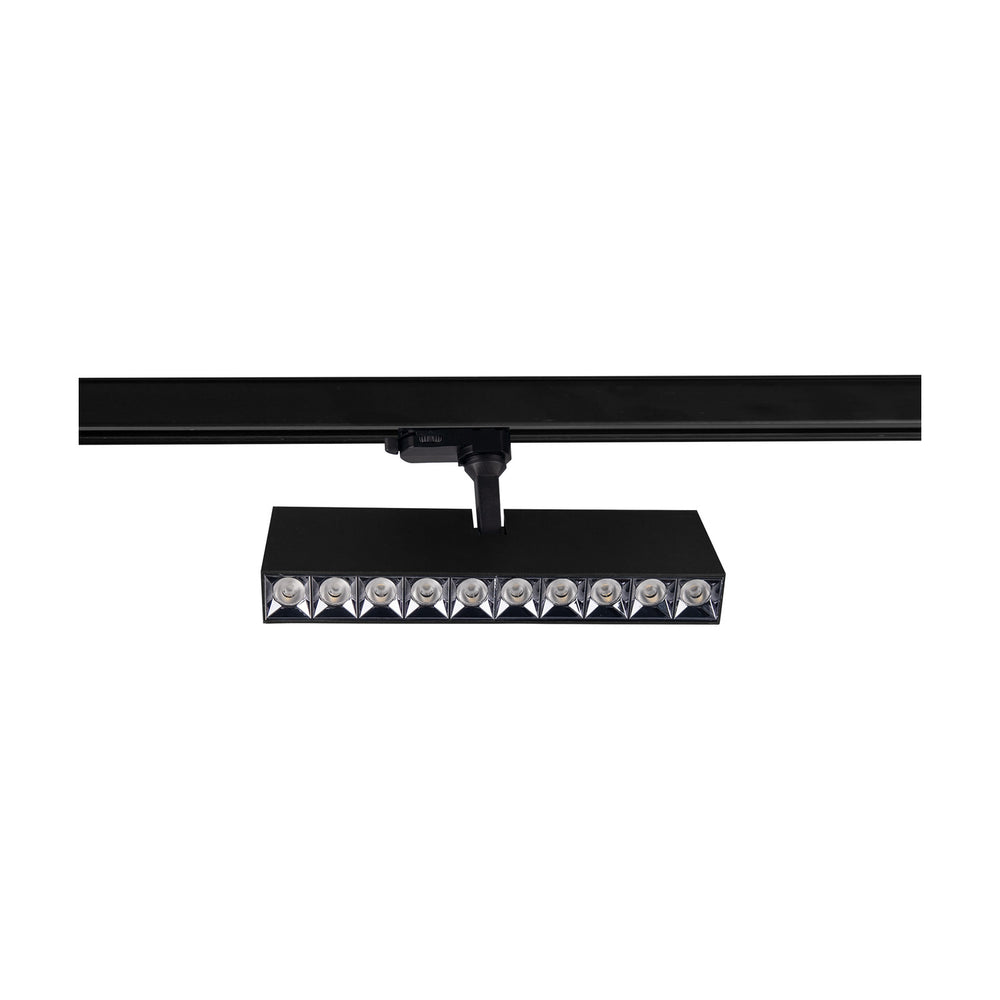

This is a compact black bar of light, 270mm long and slim with it, that rides on a track and tilts to aim where the light is wanted. The LED is integral, with the driver built in, and it throws a fairly narrow beam rather than a broad wash, so it picks out a surface instead of filling a room. Output is warm white at 3000K, which keeps timber, brick and paint looking warm. It is not dimmable; it runs at full 30W whenever the circuit is live.
We reach for heads like this where a run of light needs to follow a worktop, a shelf or a row of pictures, and where a pendant would sit in the way. On a kitchen island it can be angled along the length of the top; in a shop or a studio it does honest work over stock, samples or a bench. The linear shape suits things that are themselves long, which round spots handle less neatly. Because the light is warm and fixed in level, it suits rooms lit on a switch rather than a dimmer.
The body is finished in black throughout, matt and low key, so the fitting reads as a dark line against a white ceiling. It is double insulated, and made for indoor rooms away from damp. To clean, switch off at the wall, let it cool a moment, then wipe the housing and the face of the fitting with a dry cloth; nothing wet and nothing abrasive. It carries a three year warranty. We stock the same head in white if you would rather it disappear against the plaster, and in a cooler white version in both finishes where a crisper light is wanted.
Specification
| Colour |
Black |
| Weight |
0.80KG |
| Length |
270mm |
| Width |
30mm |
| Height |
90mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
30W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
30000hrs |
| Qty of SMD |
1 |
| SMD Chipset |
3535 |
| LED Power (W) |
30W (±5%) |
| Lumens Per Watt (lm/W) |
78lm/W (±5%) |
| Beam Angle (°) |
38° |
| System Flux (lm) |
2350lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption (W) |
30W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
50000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
It produces around 2350 lumens from 30W, at 3000K warm white, so a single head is enough over a small island or a run of shelving.
How wide is the beam?
The beam is 38 degrees, which is a controlled pool rather than general room lighting. Space several heads along the track if you want continuous coverage.
Can it be dimmed?
No. This version is non-dimmable and should be run from a standard switched circuit.
Will the LED need replacing?
The LED is integrated and rated at an average 50,000 hours, so there is no lamp to change during normal use. The driver is built into the head.
What are the dimensions and weight?
It measures 270mm long, 30mm wide and 90mm high, and weighs 0.8kg.
What colour rendering does it give?
CRI is 80, which is fine for kitchens, halls and general retail display.
