Focus LED Track Light Lens 24° Beam Angle - 55mm Diameter

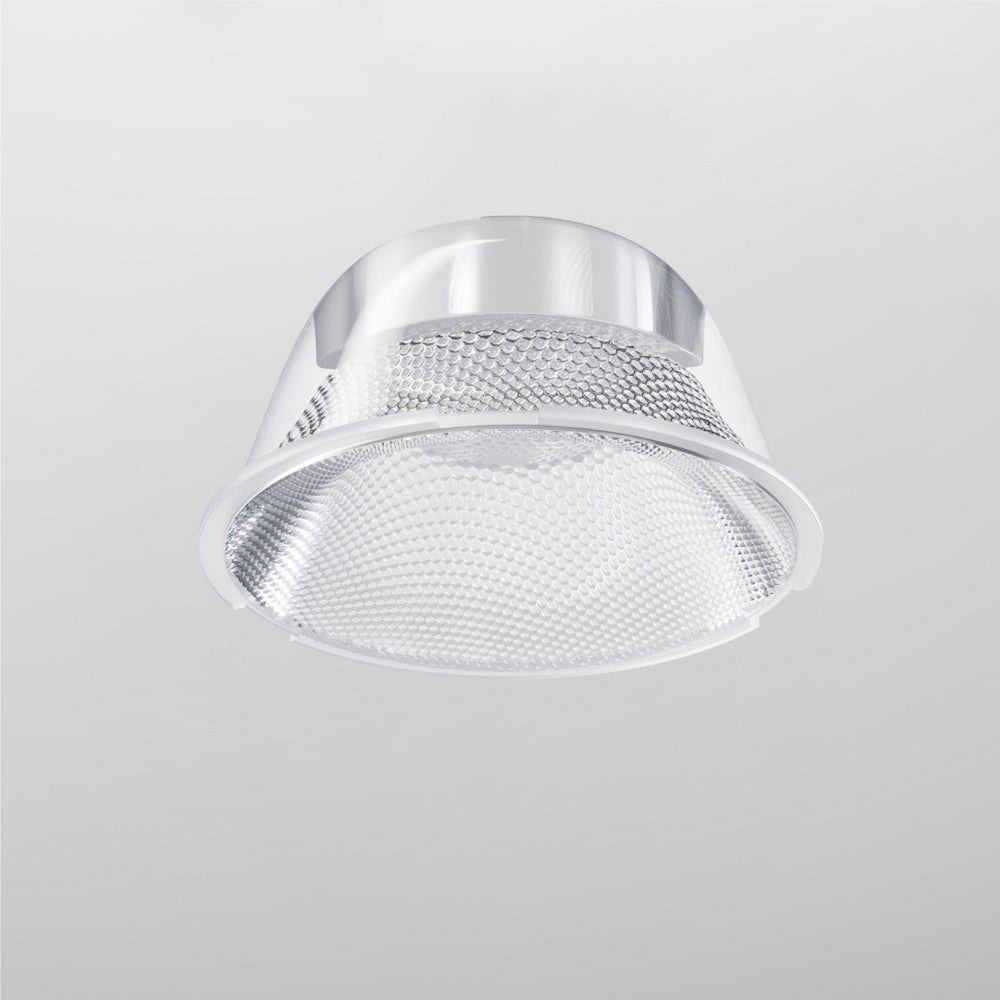

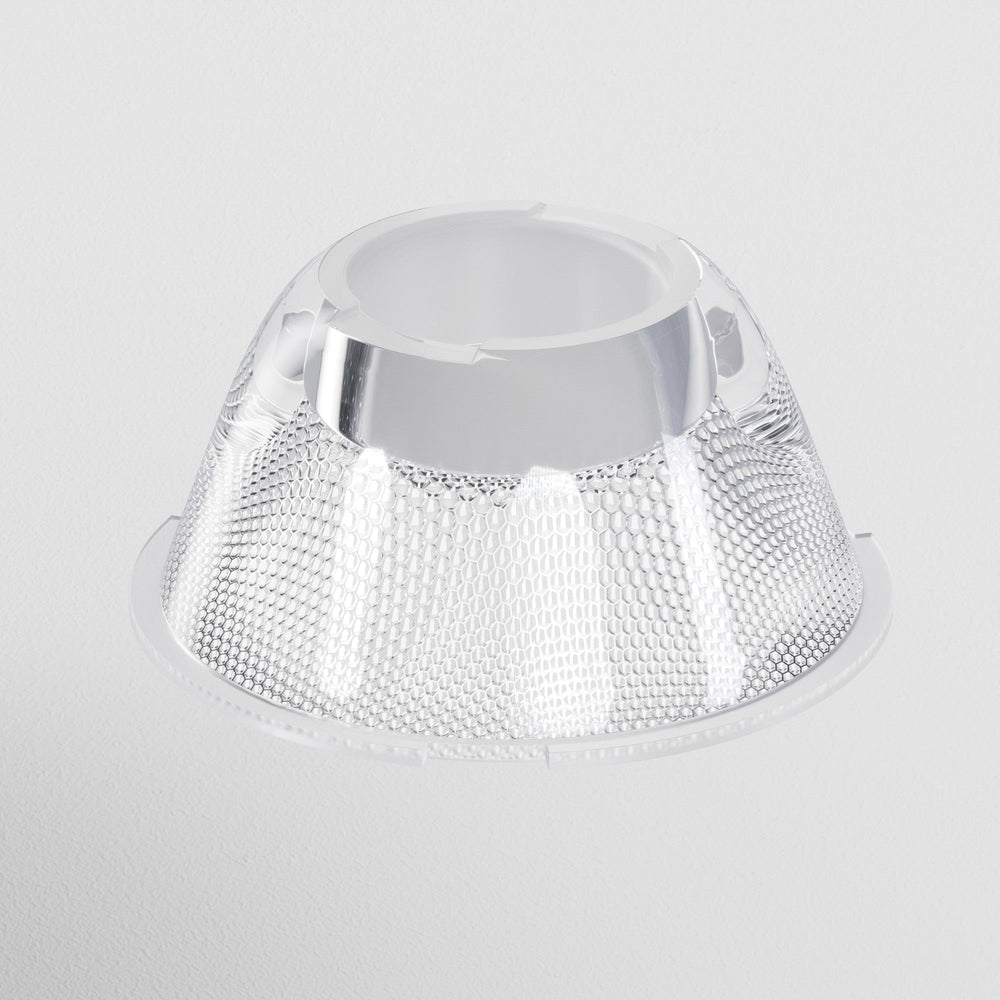

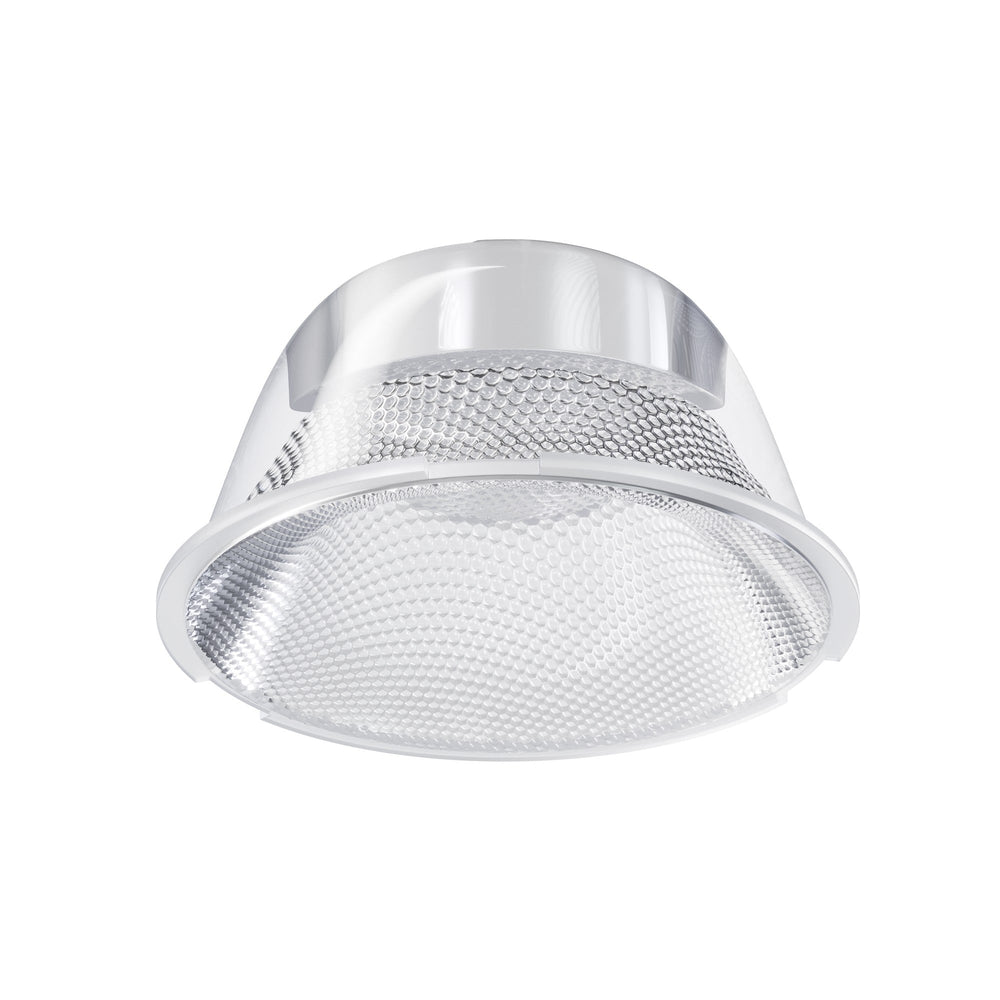

The Focus LED track light lens is a 55mm diameter optical accessory with a 24° beam angle, designed to convert wide-beam track heads into focused spotlights. The transparent plastic lens fits into compatible Maytoni Focus track light heads, narrowing the light output from the default beam spread down to a controlled 24° cone for task lighting, accent lighting on shelving, or directional wash on wall displays.

Designed for kitchens, home offices, retail displays and gallery installations where directional control matters more than wide ambient coverage, the lens clips or threads into the track head aperture depending on the specific Focus model. The 24° angle sits between flood (40°+) and narrow spot (15°), making it suitable for worktop task lighting at 1.5-2m distance, focused reading light above a desk, or highlighting vertical surfaces from 2-3m away without significant spill onto surrounding areas.

The lens body is 24mm deep and 55mm in diameter, adding minimal projection to the track head once fitted. The transparent plastic construction withstands the heat output from LED track heads rated up to typical residential/commercial wattages, and the smooth optical surface maintains even light distribution across the 24° beam without creating a hard-edged hotspot. The lens is a passive optical component with no electrical connection — it modifies the beam shape through refraction only.

Product Manual

What track heads is this lens compatible with?

The lens is designed for Maytoni Focus LED track light heads with a 55mm aperture. Check the aperture diameter of your track head before ordering — the lens will not fit heads with smaller or larger openings. The product manual linked above includes compatibility details.

Does the lens reduce light output?

Yes, to some degree. The lens redirects light from a wider beam into a narrower 24° cone, which increases intensity at the centre of the beam but reduces total lumens reaching surrounding areas. The lens does not add dimming — the reduction is a function of concentrating the existing light output into a smaller area.

Can multiple lenses be stacked for an even narrower beam?

No. The lens is designed to be used as a single optical component per track head. Stacking lenses would create optical distortion, potential overheating of the plastic, and unpredictable beam patterns.

How is the lens fitted?

Fitting method depends on the specific Focus track head model — some accept the lens as a clip-in accessory, others use a threaded retaining ring. The product manual linked in the Downloads section shows the exact fitting process for compatible models.
