Description

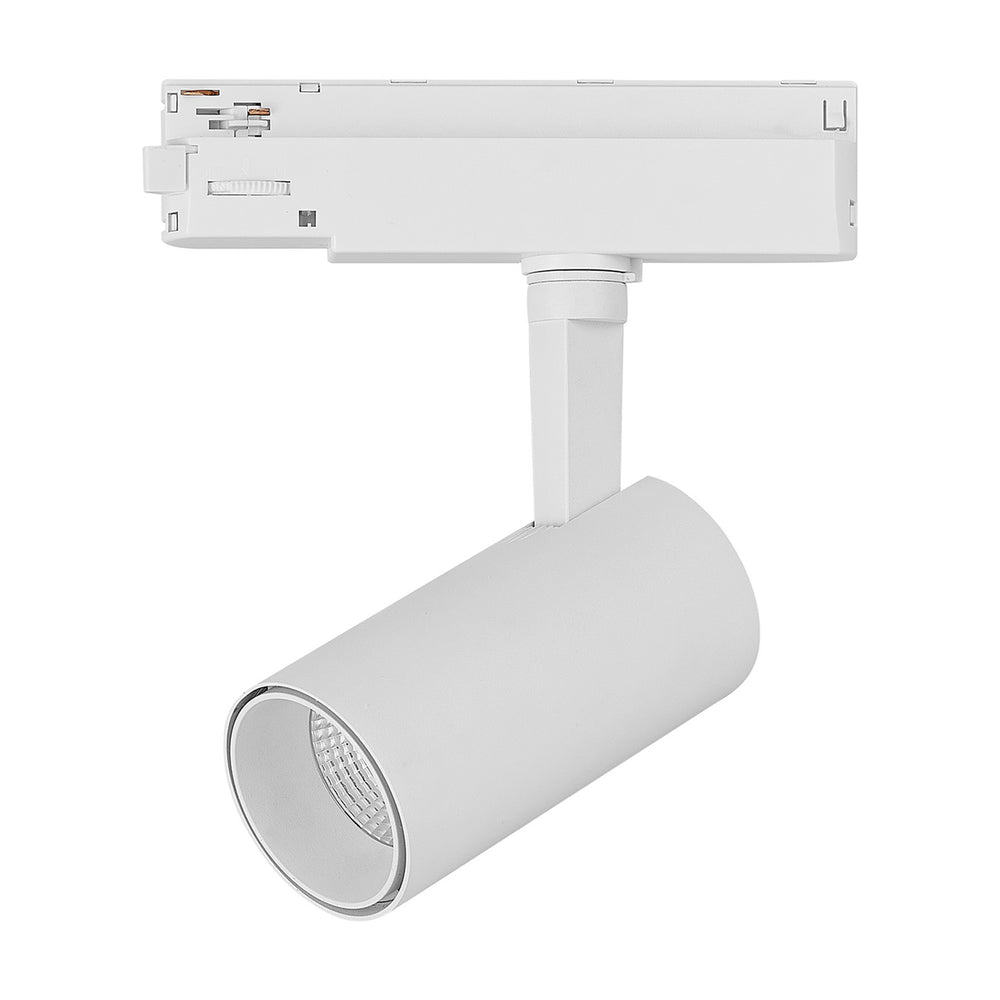

This is a spot head for single circuit track, small enough to sit quietly along a run and bright enough to do proper work. The body is white, a plain cylinder measuring 65mm across, with the LED and its driver built in, so there is nothing further to add. The light is warm at 3000K, nearer the colour of a household lamp than the crisper light often used in shops, and it is not dimmable, so pair it with a plain switch.
We reach for heads like this when a room wants light in particular places rather than a broad wash from the middle of the ceiling: over a kitchen worktop, along a run of shelving, above a stair, or across a wall of pictures. Set several along a track and you can put 15W of light exactly where it earns its keep, while the warm tone flatters wood, brick and painted plaster. It suits kitchens, hallways, home offices and sitting rooms, and it is useful in a loft conversion where a hanging fitting would be in the way.
The white finish is even and unfussy, so the head reads as part of the ceiling rather than something suspended from it. Give the face of the head a wipe with a dry cloth now and then, as dust gathers on a spot faster than on most fittings and quietly dulls the beam. Double insulated and made for dry rooms indoors, it should be kept clear of shower zones and anything exposed to weather. It carries a five year warranty. We stock the same head in black, and in a cooler white version if the room calls for a crisper light.
Specification
| Colour |
White |
| Weight |
0.54KG |
| Width |
130mm |
| Diameter |
65mm |
| Height |
158mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 15W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| LED Brand |
Bridgelux |
| LED Power |
15W (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
100lm/W (±5%) |
| System Flux |
1500lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Single Direction |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
350mA |
| Min/Max. Voltage Output |
16-40V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
15W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
5yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| Bracket Dimensions |
180mm |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
It produces around 1500 lumens from 15W, at 3000K warm white, which is a comfortable level for worktops, shelves and artwork.
Can it be dimmed?
No. This version is non-dimmable, so it should run from a standard on/off switch rather than a dimmer.
Does it take a replacement lamp?
No, the LED and driver are integral to the head, with a rated life of 30,000 hours.
What size is the head?
The barrel is 65mm in diameter, 158mm high and 130mm wide, and the fitting weighs 0.54kg.
Which track does it fit?
It is made for single circuit track. If your track runs three circuits, we also stock the three circuit version of the same head.
Is it suitable for a bathroom?
It is rated IP20, so it is intended for dry rooms only and should not be used in bathroom zones or outdoors.
