Description

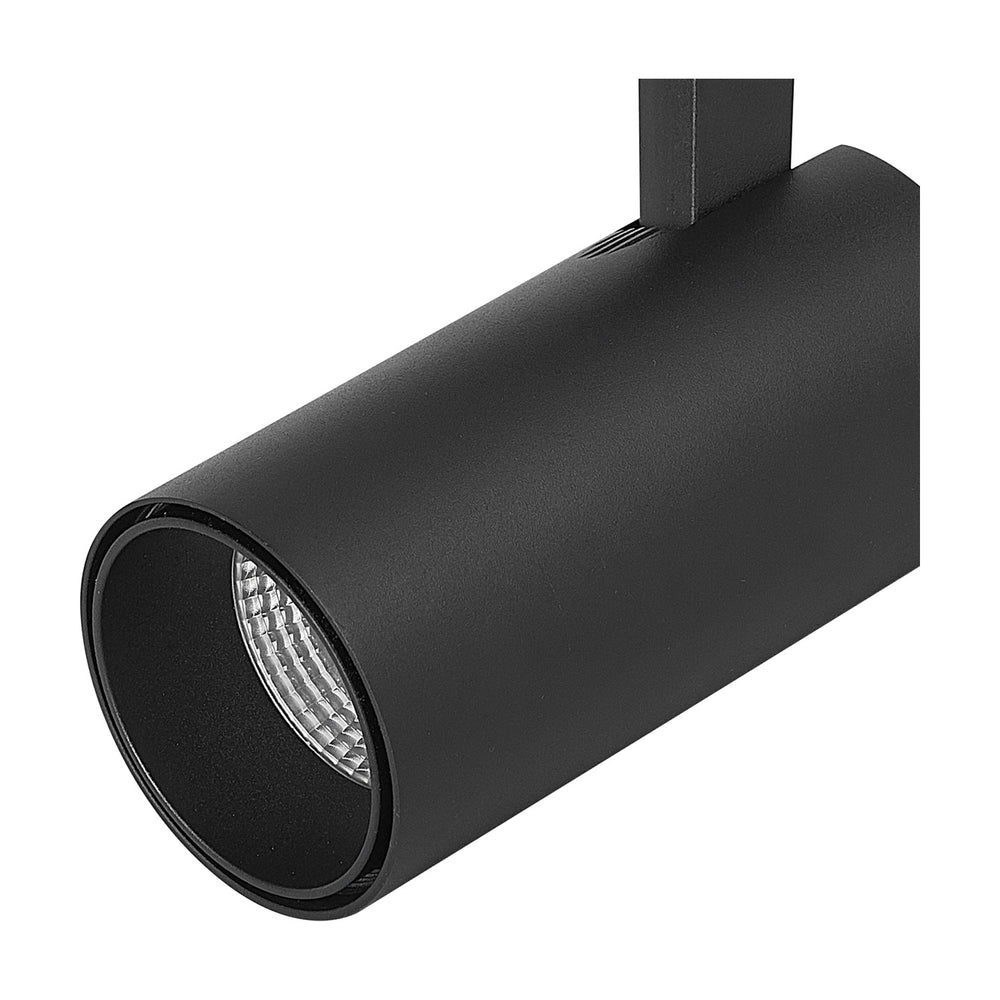

This is a compact spot for single circuit track, with the LED built into the head so there is no lamp to buy or replace. Light output is warm white at 3000K, from a 15W board, and the driver sits inside the fitting rather than somewhere along the track. The body is black from the cylindrical head down to the adaptor, and the head is small enough to keep a run of track looking quiet. We reach for it when a customer wants directional light on a single circuit and has no need for the extra switching of a multi-circuit system.
Track earns its place where light needs aiming rather than fixing: kitchen worktops, a wall of shelving, a hallway hung with pictures, a home office that gets rearranged. Several heads on one length let you cover a long room without a row of pendants. This one is not dimmable, so we would put the track on an ordinary switch and let the warm tone do the softening. It runs on household mains and is meant for dry rooms under cover, well away from bathrooms and porches.
The finish is an even black across head and adaptor, which helps the spot read as part of the track instead of an addition to it. The housing is double insulated, and the LED and driver come as one assembly, so nothing needs handling beyond an occasional dust. Do that with a dry cloth once the power is off and the head is cold, and keep sprays and solvents away from the lens. It carries a five year warranty. The range goes wider than this head: we also stock white, a cooler white light, and versions made for three circuit track, so one scheme can run in a single family of fittings.
Specification
| Colour |
Black |
| Weight |
0.54KG |
| Width |
130mm |
| Diameter |
65mm |
| Height |
158mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 15W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
30000hrs |
| LED Brand |
Bridgelux |
| LED Power (W) |
15W (±5%) |
| Type of LED |
COB |
| Lumens Per Watt (lm/W) |
100lm/W (±5%) |
| System Flux (lm) |
1500lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Single Direction |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output (mA) |
350mA |
| Min/Max. Voltage Output (V) |
16-40V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption (W) |
15W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
30000hrs |
| Warranty |
5yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| Bracket Dimensions (mm) |
180mm |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does one head give?
Around 1500 lumens at 3000K, a warm white tone, drawn from 15W.
Which track does this head suit?
It is made for single circuit track. If you are working with three circuit track, the same head is offered in that version within the range.
Can it be dimmed?
No, it is non-dimmable, so it should be run from a standard on/off switch rather than a dimmer.
Do I need to buy a lamp for it?
No. The LED is integrated and the driver is included, with a rated life of 30,000 hours.
What size is the head?
The head measures 65mm in diameter, 130mm wide and 158mm high, and weighs 0.54kg.
How should the black finish be cleaned?
Wipe it with a soft dry cloth when the power is off and the head has cooled. Avoid household sprays, polishes and solvents, particularly near the lens.
