Description

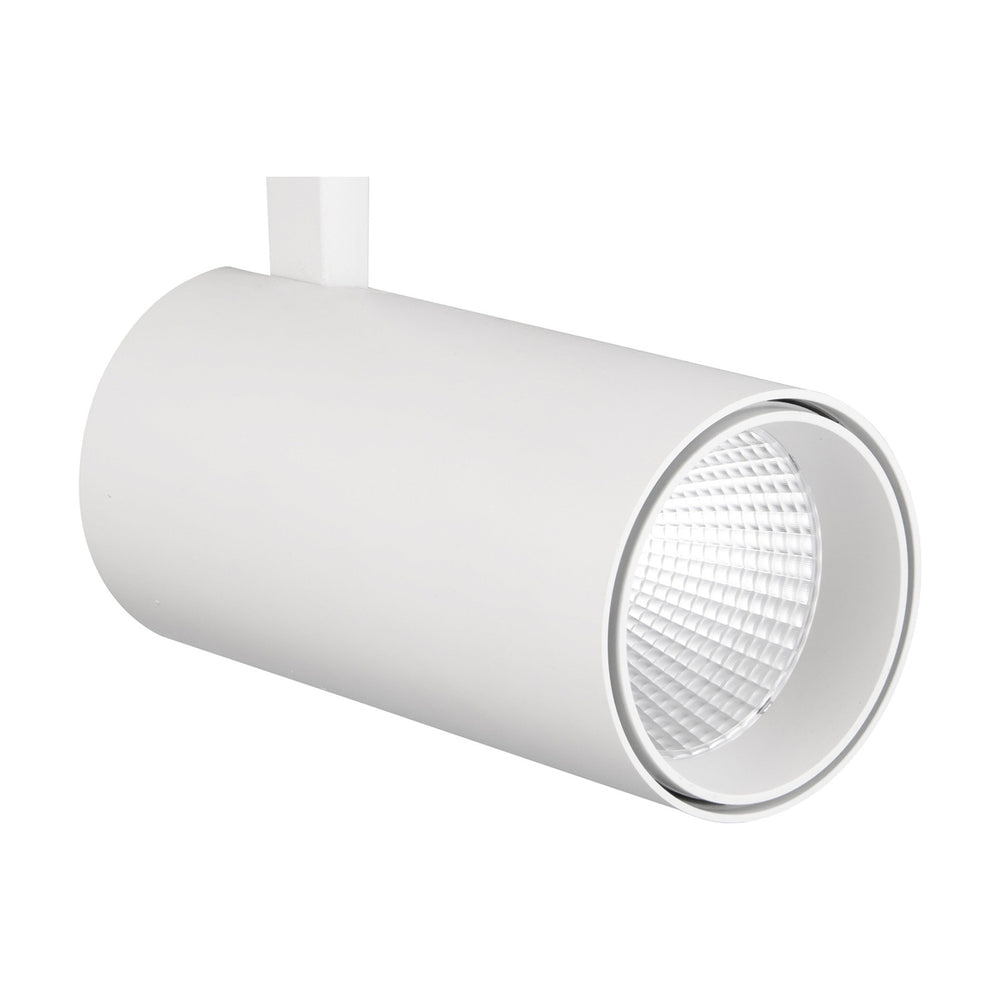

A compact spotlight head for three circuit track, with the LED and its driver built into the body. The light comes out warm at 3000K, and the narrow beam holds it as a defined pool rather than a general wash across the room. At 40W it is the strongest head in the Fiji range, so it has the punch to reach down from a high ceiling or across a long run of track without going soft at the edges.

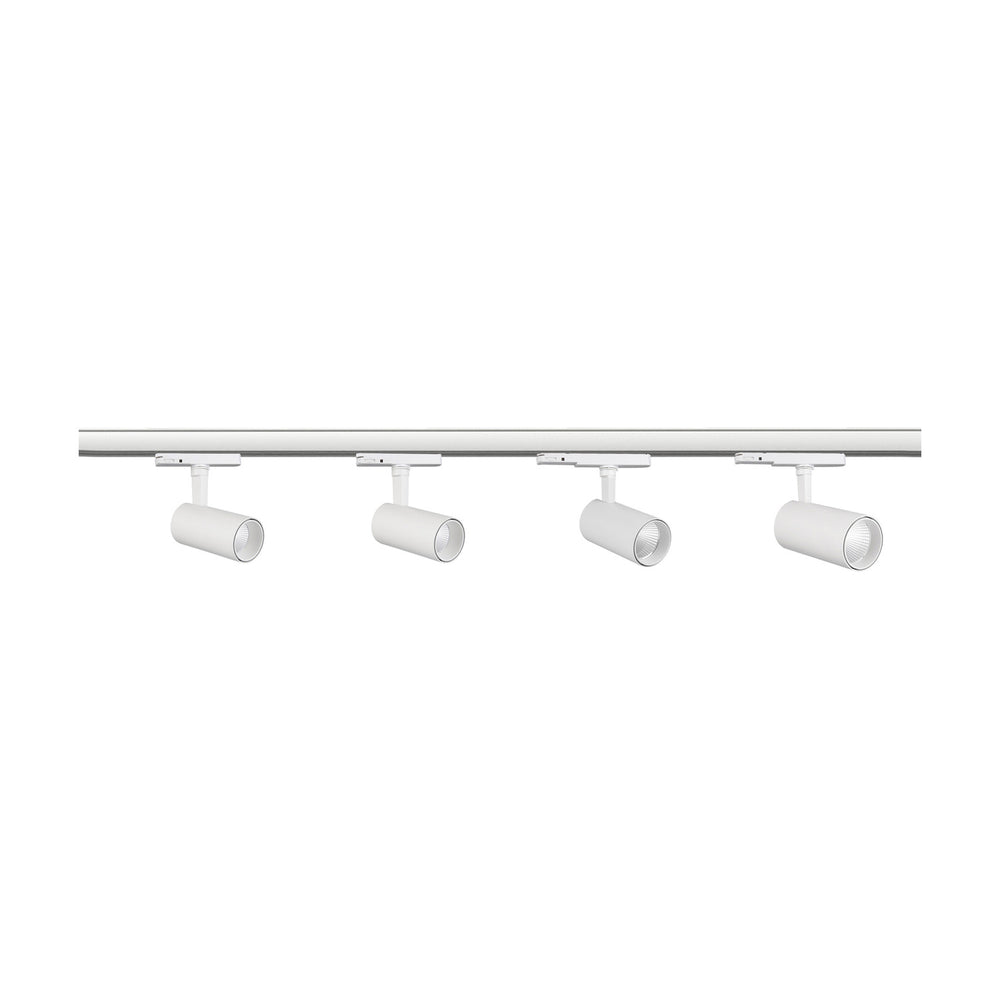

We would put it where the ceiling is high or the target sits well away from the fitting: a hall with real height, a kitchen island under a vaulted roof, a run of pictures up a stairwell. It suits anyone who wants light aimed rather than spread, and since it lives on track, the head can be slid along the run and re-aimed when the furniture moves. The output is fixed, so plan it on a plain switch and let the number of heads on the track set the level in the room.
The body is white front to back, which keeps it quiet against a white ceiling and lets the beam do the talking. It is double insulated, and the driver is included, so the head arrives complete and ready to clip onto its track. Upkeep is light work: turn the circuit off, let the fitting go cold, then wipe the housing and the face with a dry cloth, since dust on the face shows quickly on a beam this tight. It carries a five year warranty. We stock this head in black as well as white, in a cooler white light for kitchens and workshops, and in lower output versions for shorter runs and ordinary ceiling heights, so a whole track can be built from the same family.
Specification
| Colour |
White |
| Weight |
1.08KG |
| Width |
170mm |
| Diameter |
85mm |
| Height |
160mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 40W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
50000hrs |
| LED Brand |
Bridgelux |
| LED Power (W) |
40W (±5%) |
| Type of LED |
COB |
| Lumens Per Watt (lm/W) |
100lm/W (±5%) |
| Beam Angle (°) |
38° |
| System Flux (lm) |
4000lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Single Direction |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output (mA) |
950mA |
| Min/Max. Voltage Output (V) |
16-40V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption (W) |
40W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
50000hrs |
| Warranty |
5yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| Bracket Dimensions (mm) |
200mm |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it put out?
4000 lumens from 40W, in a warm 3000K white, through a 38 degree beam. That narrow spread is what gives it reach from a high ceiling.
What size is the head?
85mm across the front, 170mm wide overall and 160mm high, weighing 1.08kg.
Can it be dimmed?
No. It is a non-dimmable head, so it should be run from a standard switch. If you want to vary the mood, we would set it on a separate switched circuit from any dimmed lighting nearby.
Do I need to buy a bulb or a driver?
Neither. The LED is integrated and the driver is supplied with the head, with an average life of 50,000 hours.
What sort of track does it take?
It is made for three circuit track, which lets separate groups of heads on the same run be switched independently.
How should I clean it?
Switch off at the circuit, let the head cool completely, then dust the housing and face with a dry cloth. Avoid solvents on the white finish.
