Description

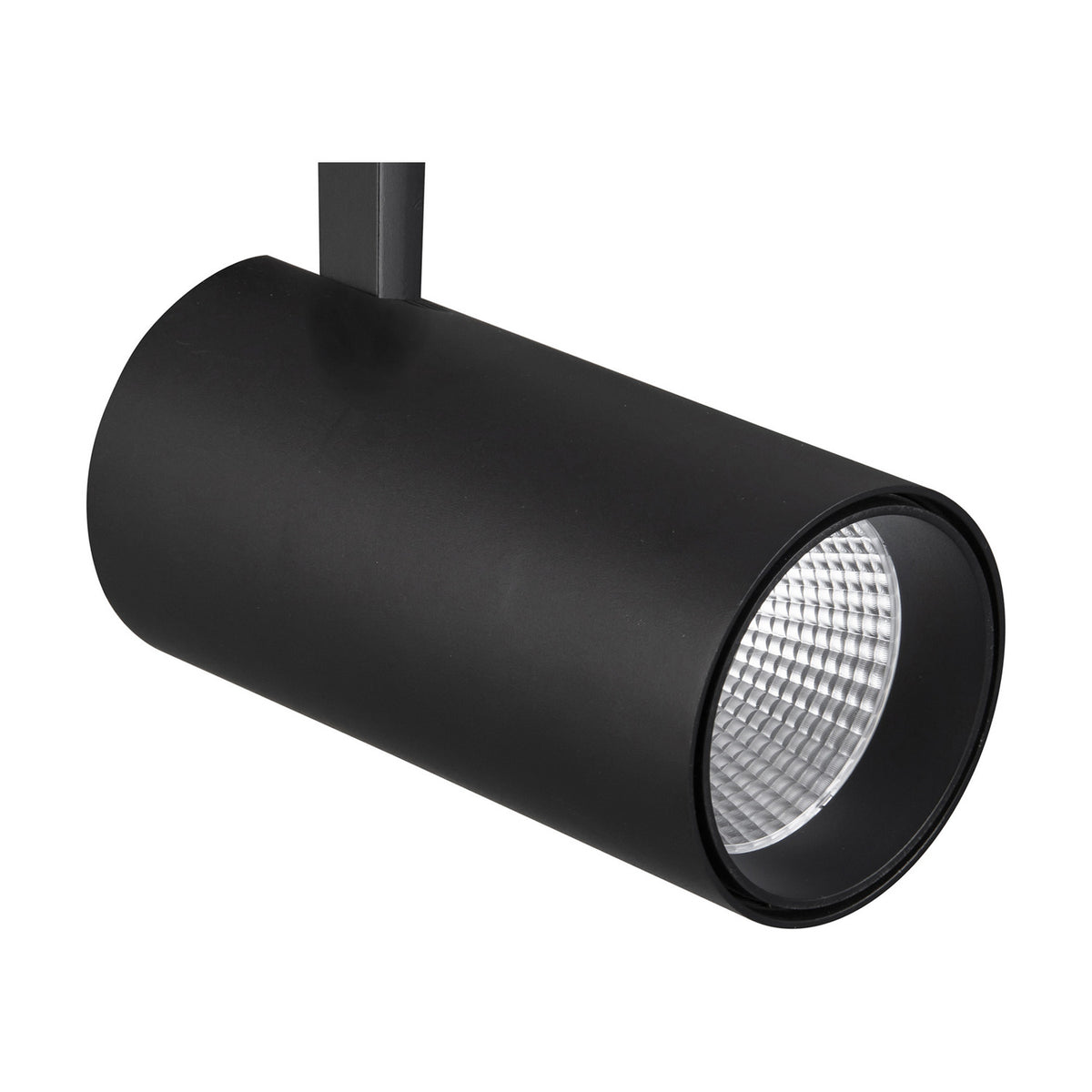

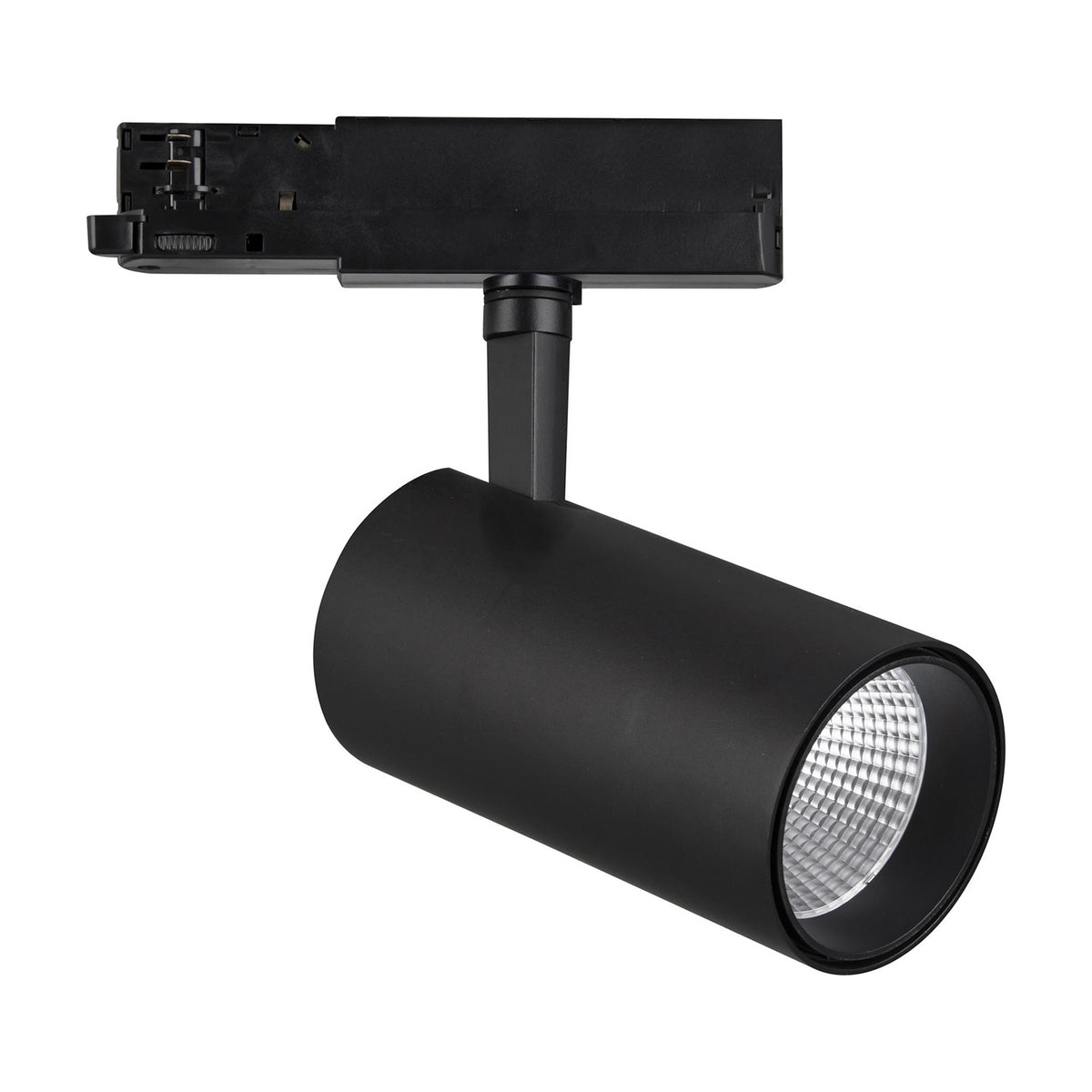

A spotlight head for three circuit track, finished in black and carrying its own LED engine and driver inside the housing. The light it gives is warm white, near the tone of a good halogen, and the beam is narrow rather than broad, so it puts down a defined pool instead of washing a whole room evenly. Output is generous for a head of this size, and at 40W it behaves like a working light rather than a decorative one. It is not dimmable, so it comes on at full strength each time the circuit is live.

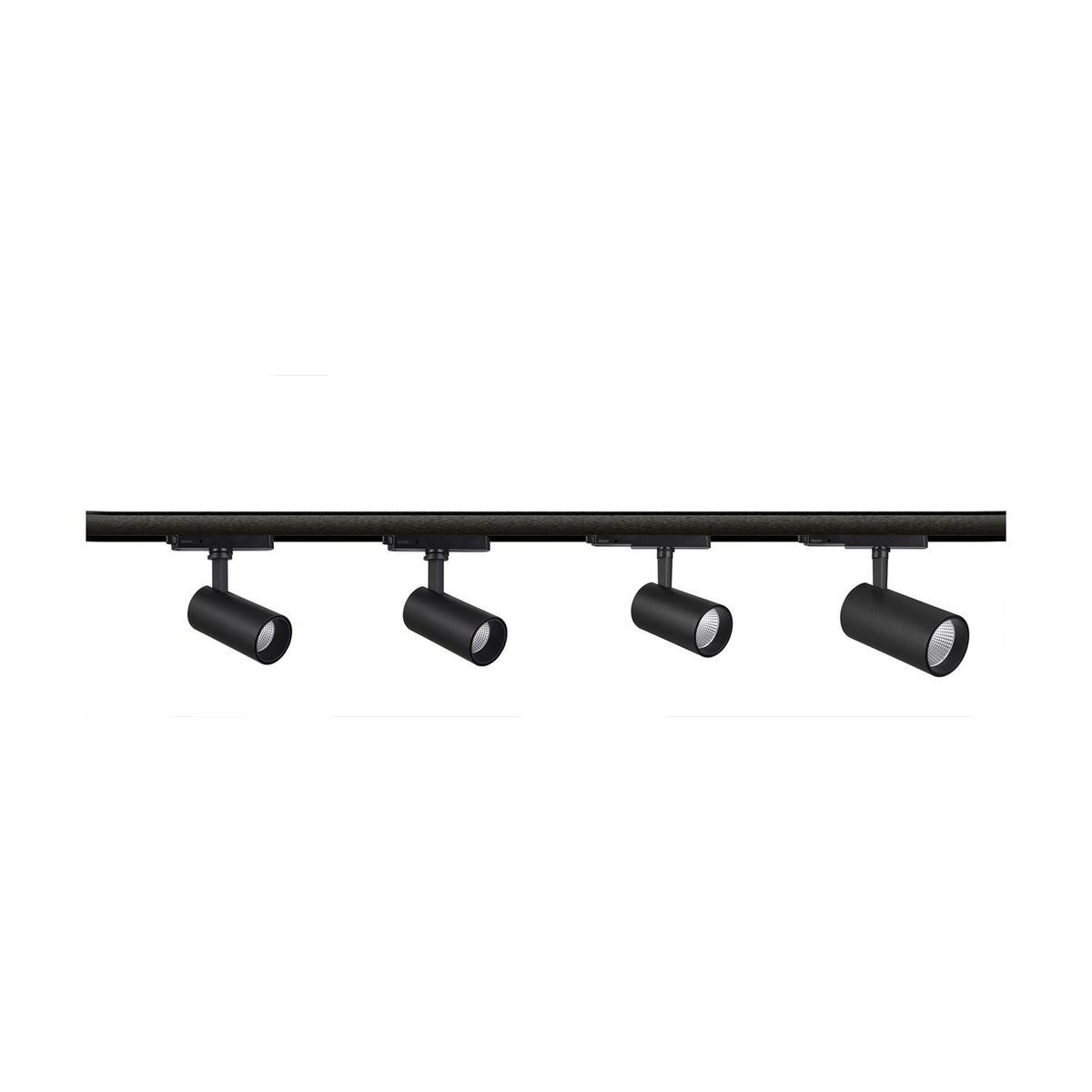

This is the head we reach for when a room has height to it and the light has to travel: open kitchens with a tall ceiling, a stairwell landing, a shop floor, a studio or a home office where the desk needs proper brightness on it. The tight beam also makes it useful for aiming at particular things rather than at the floor generally, so it earns its place over an island, a run of worktop, a bar counter, artwork or a set of shelves. Because it is a track head, several can share one run and each be turned to a different target. It is intended for dry rooms indoors.

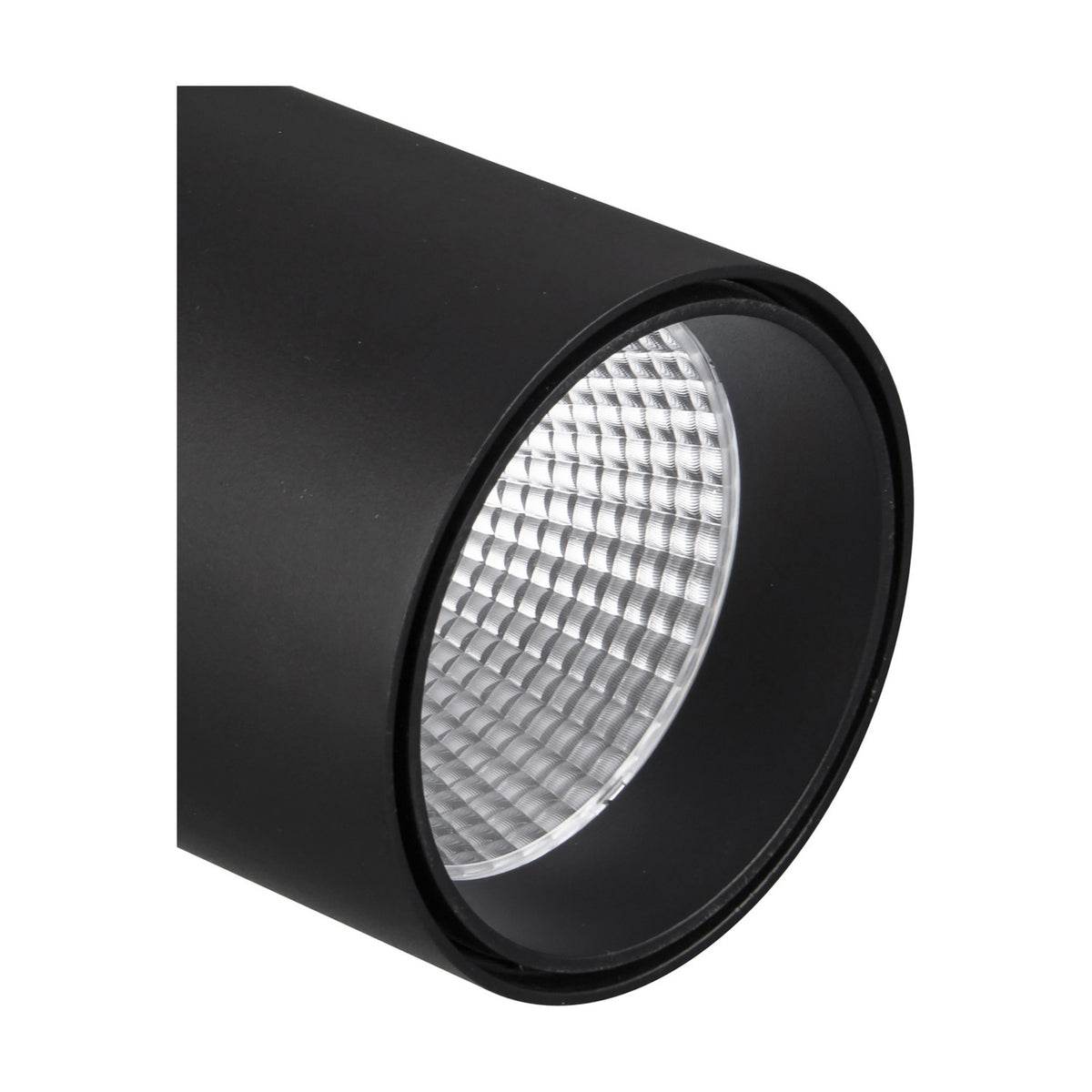

The front measures 85mm across, which keeps it looking quiet on a length of track alongside its neighbours. When it needs cleaning, switch the circuit off, give the head time to lose its heat, then wipe the housing with a dry cloth and pass gently over the lens, as dust sitting on the glass quietly costs you light. It carries a five year warranty. We stock this head in white as well as black, and in lower outputs where a smaller room would find this one too strong. There is no lamp to change, since the LED and driver are part of the fitting.
Specification
| Colour |
Black |
| Weight |
1.08KG |
| Width |
170mm |
| Diameter |
85mm |
| Height |
160mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 40W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| LED Brand |
Bridgelux |
| LED Power |
40W (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
100lm/W (±5%) |
| Beam Angle |
38° |
| System Flux |
4000lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Single Direction |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
950mA |
| Min/Max. Voltage Output |
16-40V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
40W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
50000hrs |
| Warranty |
5yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| Bracket Dimensions |
200mm |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give?
Around 4000 lumens from a 40W integrated LED, at a warm white 3000K.
Can it be dimmed?
No. It is a non-dimmable head and should be run on a plain switched circuit.
How wide is the beam?
It is a narrow 38 degree beam, suited to accenting a worktop, artwork or shelving rather than lighting a room evenly.
What size is the head?
The front is 85mm in diameter, with the body 170mm wide and 160mm high. It weighs a little over 1kg.
Does it need a separate driver?
No, the driver is built in. It is a Class 2 double insulated fitting rated IP20 for indoor use.
Will it fit any track?

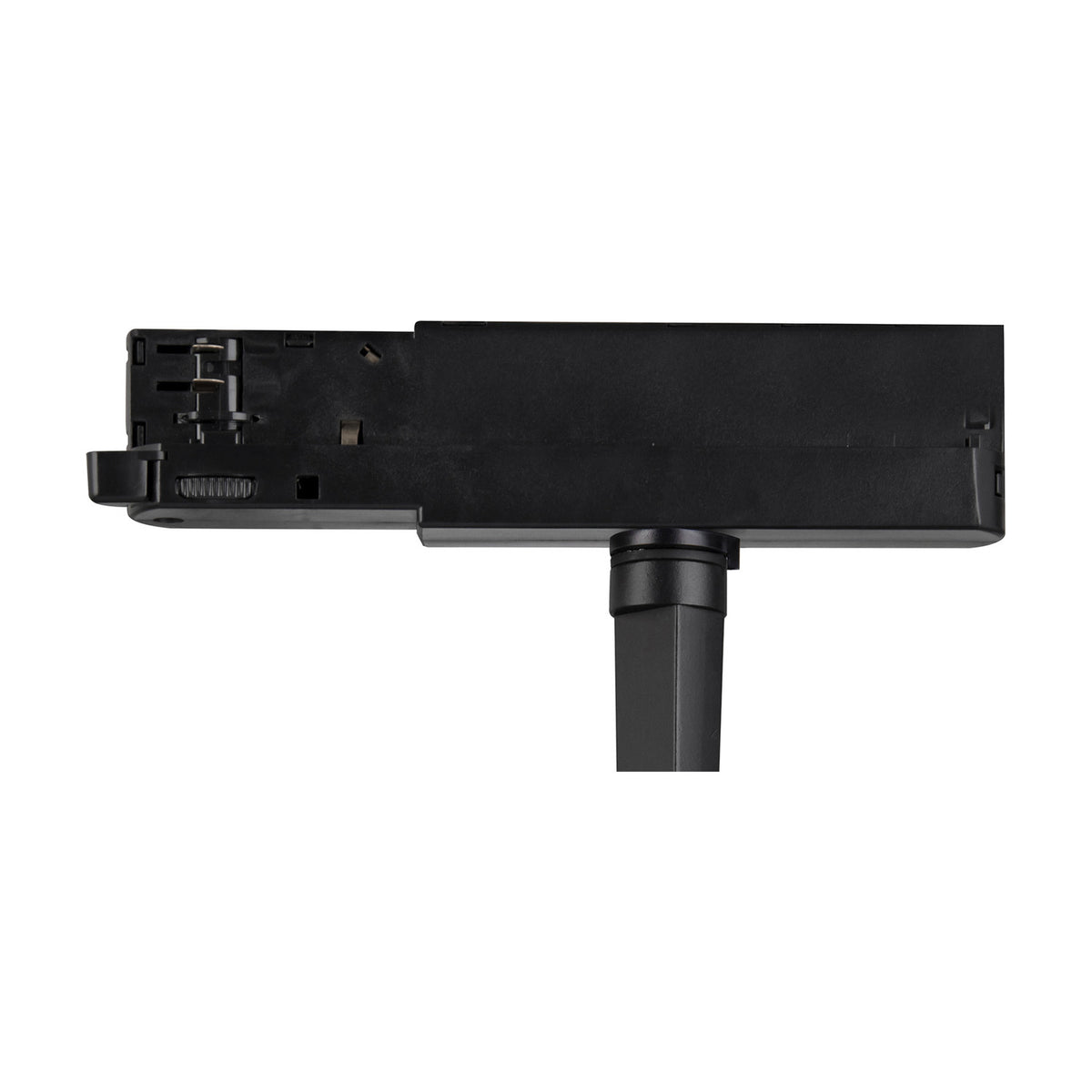

It is made for three circuit track, so pair it with three circuit track and connectors.
