Description

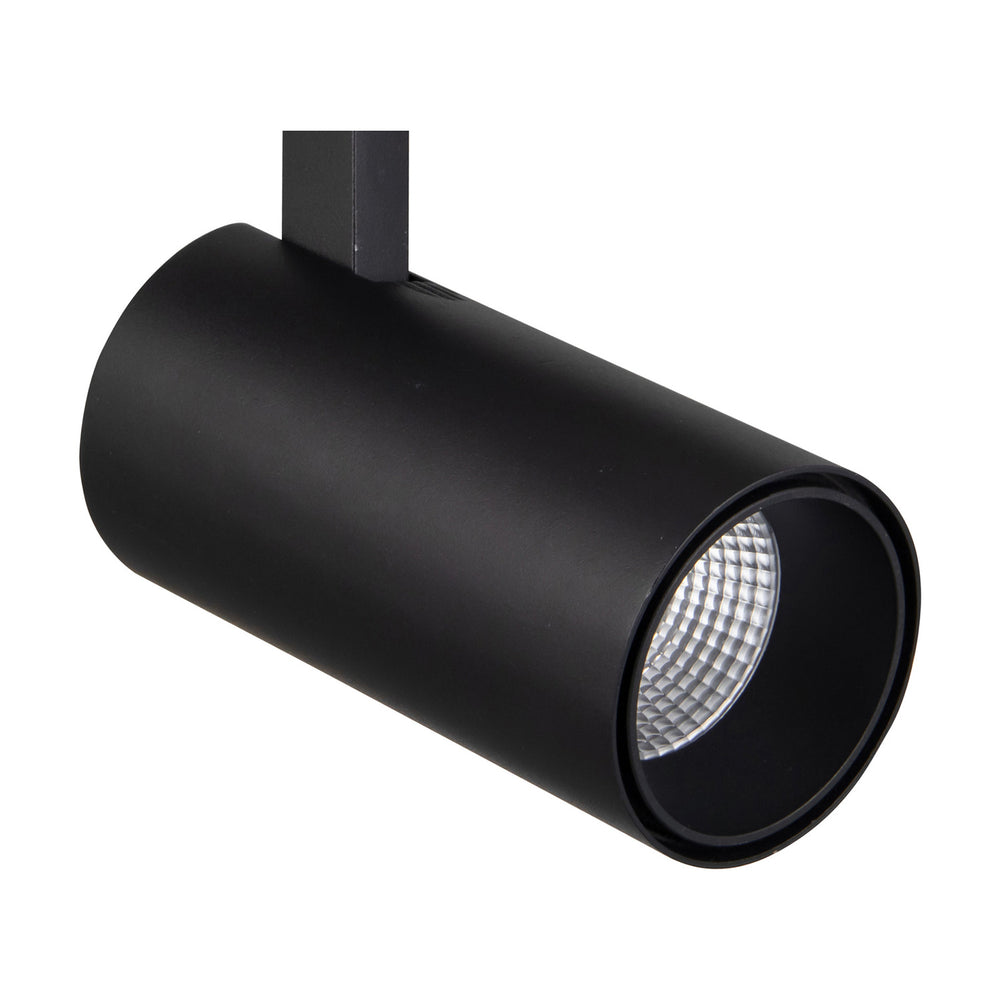

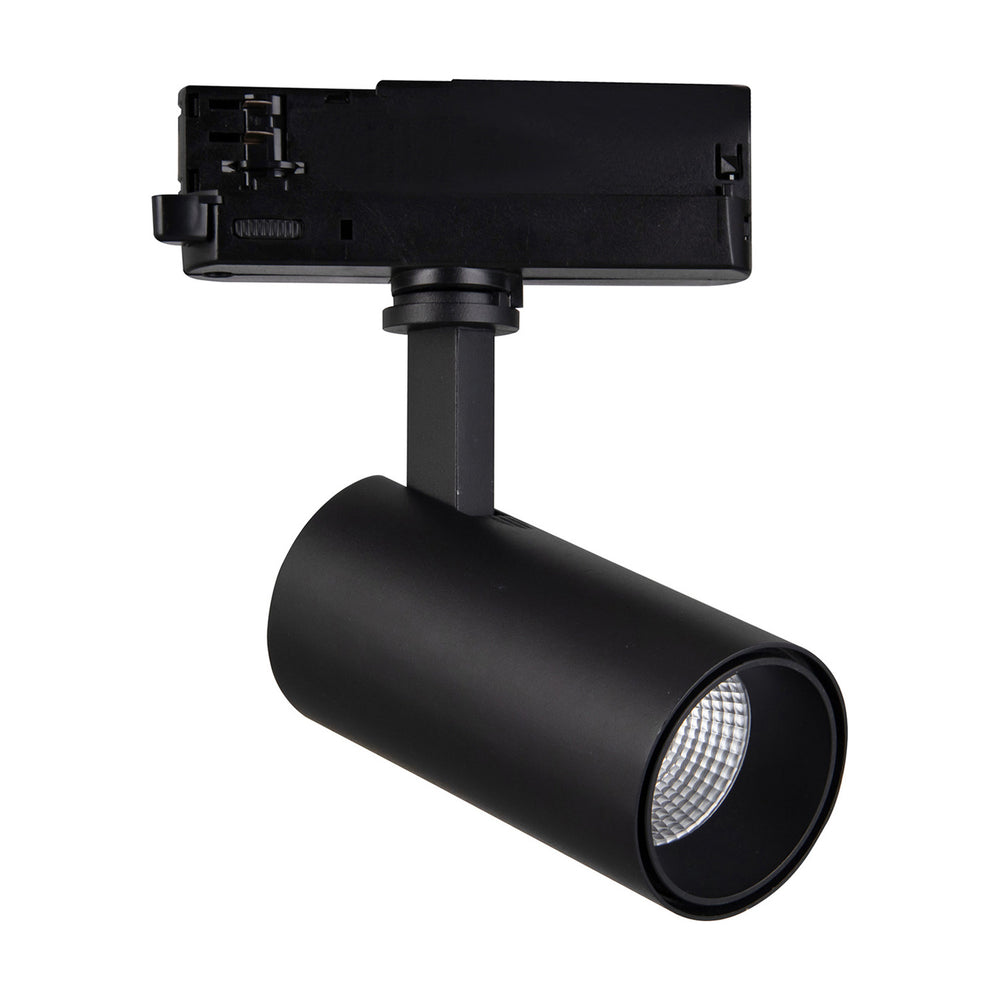

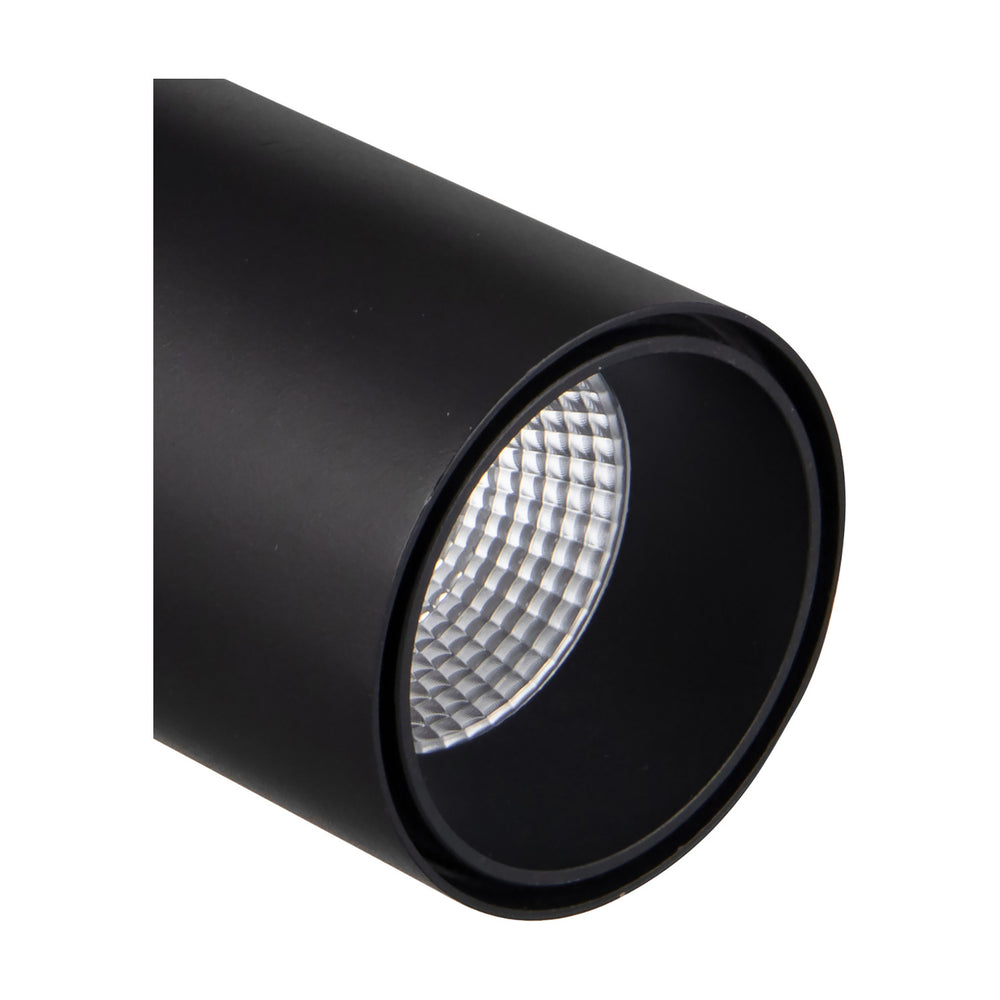

A small black spot head for three circuit track, with the LED and its driver built in. The light is warm at 3000K, nearer the tone of an old filament lamp than daylight, and the beam is narrow, so it lays down a defined pool rather than washing a whole room. At 15W there is plenty in it for a painting, a run of worktop or a shelf of glass. The body is a short cylinder finished in matt black, which keeps it discreet against dark track. It is not dimmable.

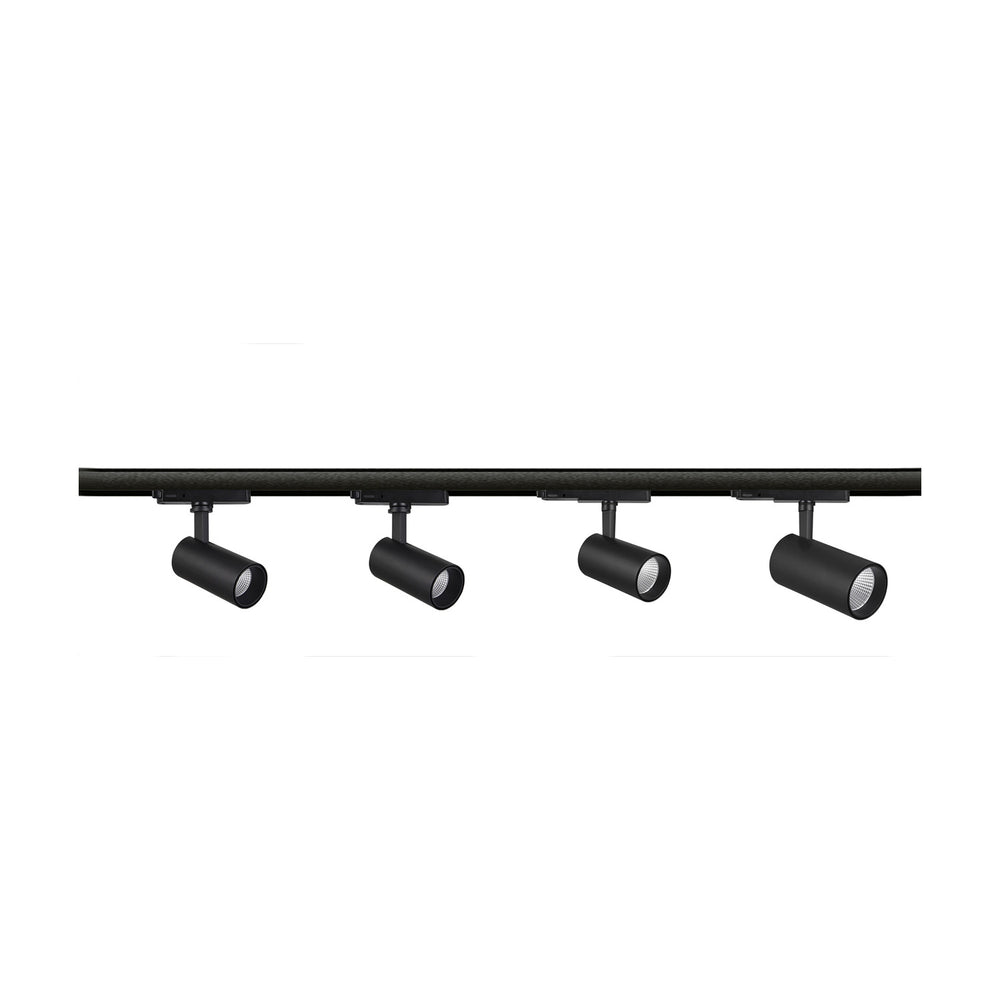

Narrow beams earn their keep where the eye needs pulling to something: artwork along a hallway, a mantelpiece, the front of a bar, the working end of a kitchen island. Galleries and shops run them in rows, and the same trick works at home in an open plan kitchen or a study, where several heads on a single length of track can be aimed separately and re-aimed when the furniture moves. We reach for a spot like this where a pendant would crowd the room or send light the wrong way. Warm white flatters timber, brass and skin tones, so it suits a living room as readily as a shop floor.
It is a double insulated fitting and the black finish runs over the whole head. Keep it clean by switching off at the wall and passing a soft dry cloth over the body and lens; solvents and sprays will do more harm than good. It carries a five year warranty. The same head is stocked in white, and in a cooler white light where a kitchen or workshop wants a crisper note, with a higher output version if a single head has to cover more ground.
Specification
| Colour |
Black |
| Weight |
0.54KG |
| Width |
130mm |
| Diameter |
65mm |
| Height |
135mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 15W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
50000hrs |
| LED Brand |
Bridgelux |
| LED Power (W) |
15W (±5%) |
| Type of LED |
COB |
| Lumens Per Watt (lm/W) |
100lm/W (±5%) |
| Beam Angle (°) |
38° |
| System Flux (lm) |
1500lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Single Direction |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output (mA) |
350mA |
| Min/Max. Voltage Output (V) |
16-40V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption (W) |
15W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
50000hrs |
| Warranty |
5yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| Bracket Dimensions (mm) |
140mm |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How bright is it?
It gives around 1500 lumens from 15W, with a colour rendering figure above 80, so colours stay honest under it.
How wide is the beam?
The optic is a 38 degree spot, which puts a controlled circle of light on a picture or a worktop rather than filling the room.
What size is the head?
The head measures 65mm in diameter, 130mm across and 135mm tall, and it weighs 0.54kg.
Can I dim it?
No. This version is non-dimmable and should be run on a plain switched circuit.
Do I need to buy a lamp for it?
No. The LED and the driver are integral to the fitting, and the LED is rated for around 50,000 hours.
Is it suitable for a bathroom or outdoors?
No. It is rated IP20 and belongs in dry indoor rooms such as kitchens, hallways, studies and retail spaces.
