ESP MAGfire MAGPRO Addressable Fire Sounder Base - White

£5899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

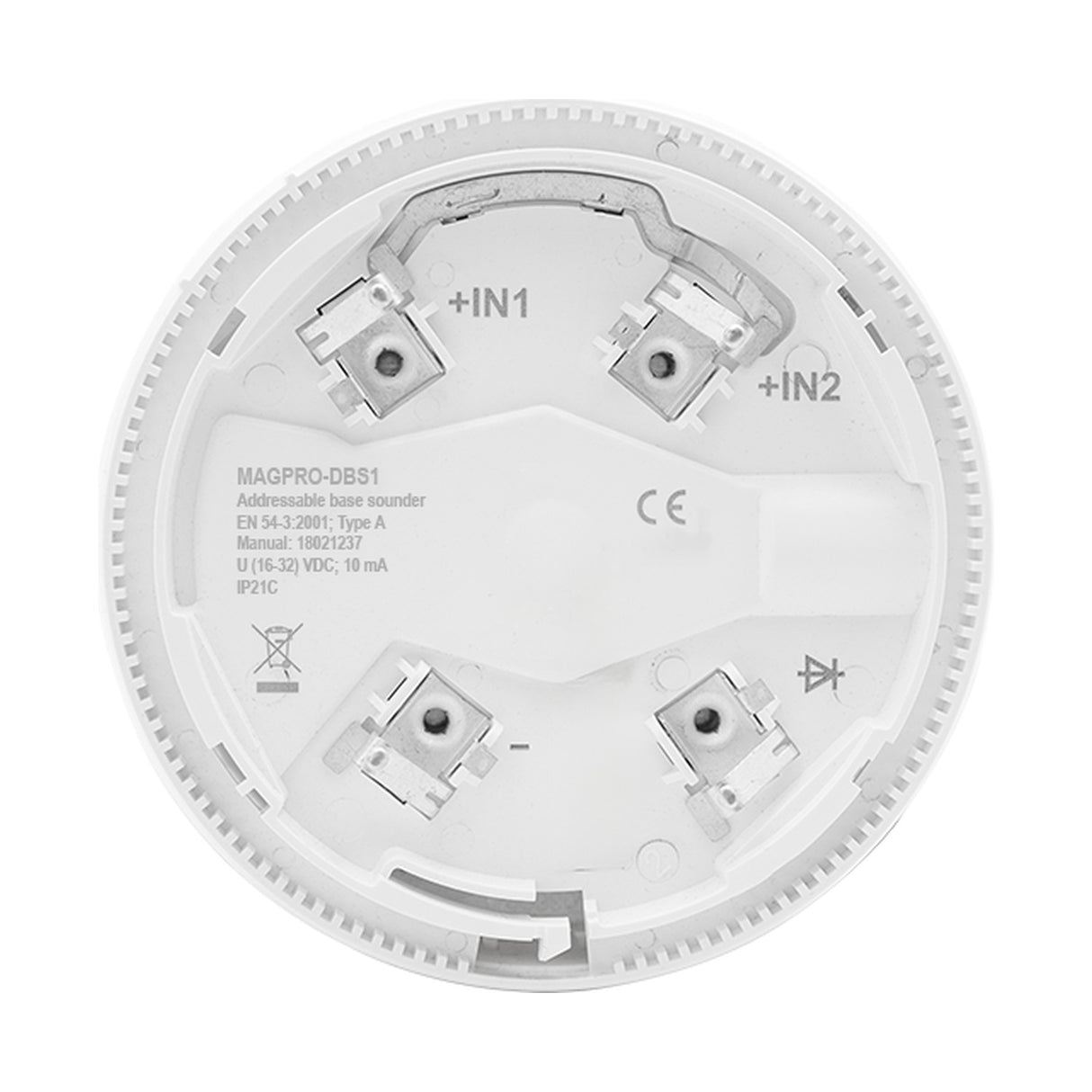

The ESP MAGPRO-DBS1 is an addressable fire alarm sounder deep base in white, part of the MAGfire MAGPRO addressable range. It provides the audible warning element of an addressable fire system and mounts as a base beneath a compatible MAGPRO detector, saving a separate device position on the loop.

The deep base design gives room for loop wiring to be terminated neatly behind the unit, which suits surface-mounted cabling. It is used with a MAGPRO detector base such as the MAGPRO-DB or MAGPRO-DB23R/W, and works as part of a wider MAGPRO addressable installation controlled from a MAGPRO panel.

As an addressable device it is identified individually at the panel, so its status and location are clear during testing and in an alarm condition. The white finish keeps it discreet against ceilings and walls in commercial and residential settings.

Specification
Materials ABS
Operating Voltage 16 - 32V DC
Max Consumption In Activation - Tone Type 27 - High Volume Level 10mA (@27V DC)
Number of Available Tones 32
Volume Modes 2 (Low & High)
Sound Output @ 1m (High) 88dB
Wiring Type Analogue Addressable (MAGPRO)
Protocol Type Custom (Closed)
Dimensions ø105 x 22mm
Product Net Weight 0.15KG
Product Gross Weight 0.16KG
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What does the sounder base do?

It provides the audible alarm output for an addressable fire system and mounts as a base beneath a compatible MAGPRO detector, combining detection and sounding at one position.

What does it need to work?

It is used with a MAGPRO detector base such as the MAGPRO-DB or MAGPRO-DB23R/W, on a MAGPRO addressable loop controlled by a MAGPRO panel.

Is it addressable?

Yes. As part of the MAGPRO addressable range it is identified individually at the panel for clear status and location during testing and alarms.

Why choose a deep base?

The deep base gives space to terminate loop wiring neatly behind the unit, which is useful where cabling is run on the surface.
