Description

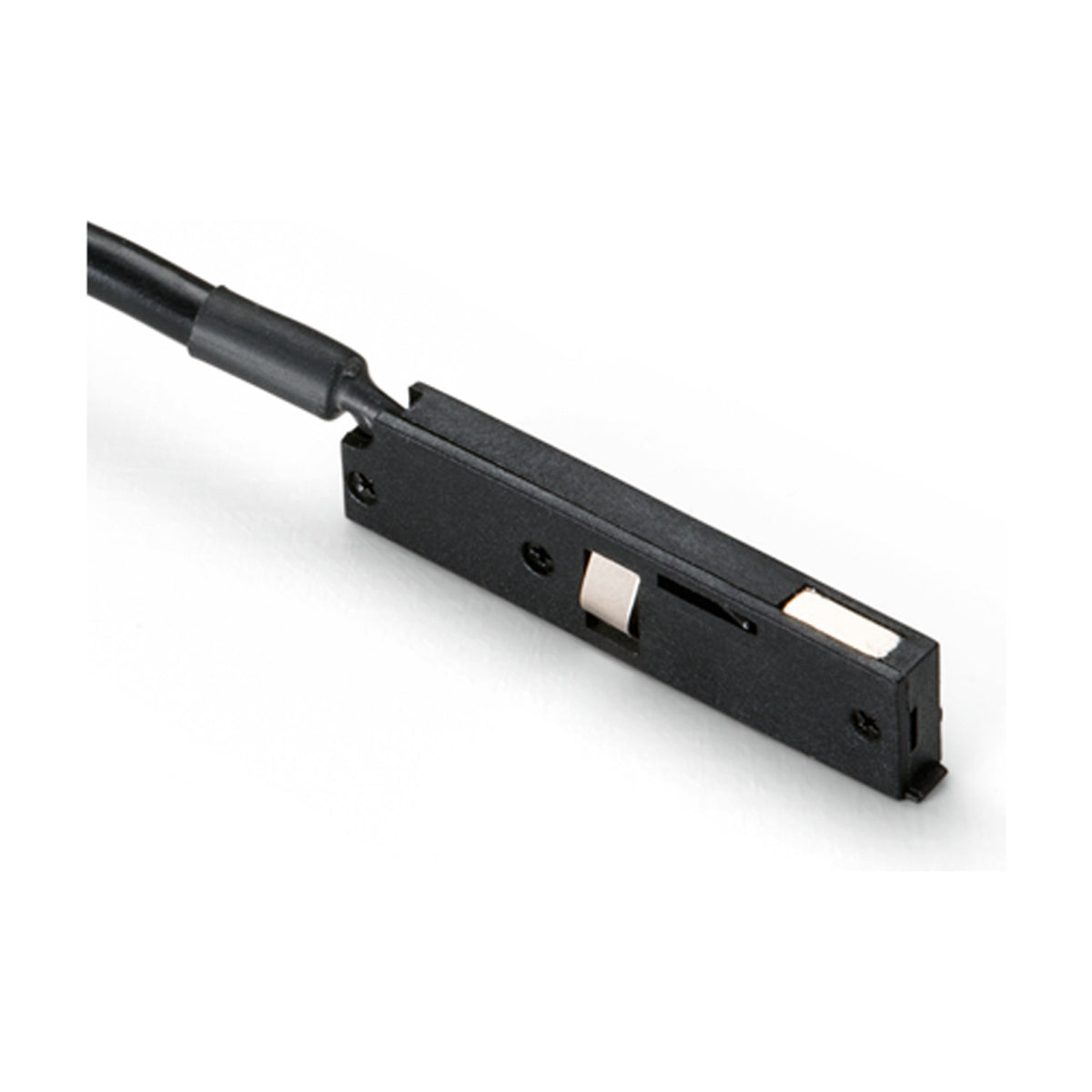

This is the Deva power feed, the small part that brings power into the range's 24V lighting track. It is a slim black connector, 46mm long, 10.5mm high and just 5mm wide, with a black lead attached at one end, and it weighs 0.06KG. What you receive is the power feed on its own: the track and the track lights are sold separately, so it belongs on your list alongside them rather than in place of either. The maker lists it as a required accessory, so every Deva track needs at least one.
Anyone planning a Deva 24V track will want this on the order. The maker specifies one kit for each electrical input connection, so a track fed from a single point needs one power feed, and a layout fed from two points needs two. It is an easy part to overlook when your attention is on choosing the lights, so we suggest counting your input points first and ordering the feeds together with the rest of the system. At 46mm long and 5mm wide it is a compact part, which keeps the point where the supply meets the track neat and low-key.
The Deva track runs at 24V DC, and this power feed delivers that 24V DC supply into it. The maker rates each power feed for a maximum of 140W, so the track lights it supplies should together stay within that figure, and it is worth adding up their wattages before you settle on a layout. It is designed to work in temperatures between 0°C and 40°C, so choose a room that stays within that range all year. Both the body and its lead are black, so neither draws the eye. A qualified electrician should fit it as part of your track system, and having your input points and total wattage worked out beforehand makes that visit quicker.
Specification
| Length |
46mm |
| Width |
5mm |
| Height |
10.5mm |
| Track Voltage |
24V DC |
| Use |
1 kit for each electrical input connection |
| Finish |
Black |
| Operating Temperature |
0°C to 40°C |
| Certification |
CE |
| Weight |
0.06KG |
| Warranty |
5 Years |
Frequently Asked
Is a track included with this power feed?
No. This is the power feed only. The range's 24V lighting track and the track lights are both sold separately.
How many power feeds does my Deva track need?
The maker specifies one kit for each electrical input connection, so you need one power feed for every point where power enters your track.
What is the maximum load for this power feed?
The maker rates each power feed for a maximum of 140W, so the track lights it supplies should together stay within that figure.
What voltage does the Deva power feed work at?
It delivers a 24V DC supply and is made for the range's 24V lighting track, which is the only track we list it for.
How big is the power feed?
It is 46mm long, 10.5mm high and 5mm wide, and it weighs 0.06KG, so it is a small, compact part for your track.
What is its operating temperature range?
The maker gives an operating temperature of 0°C to 40°C, so it suits rooms that stay within that range throughout the year.
