Description

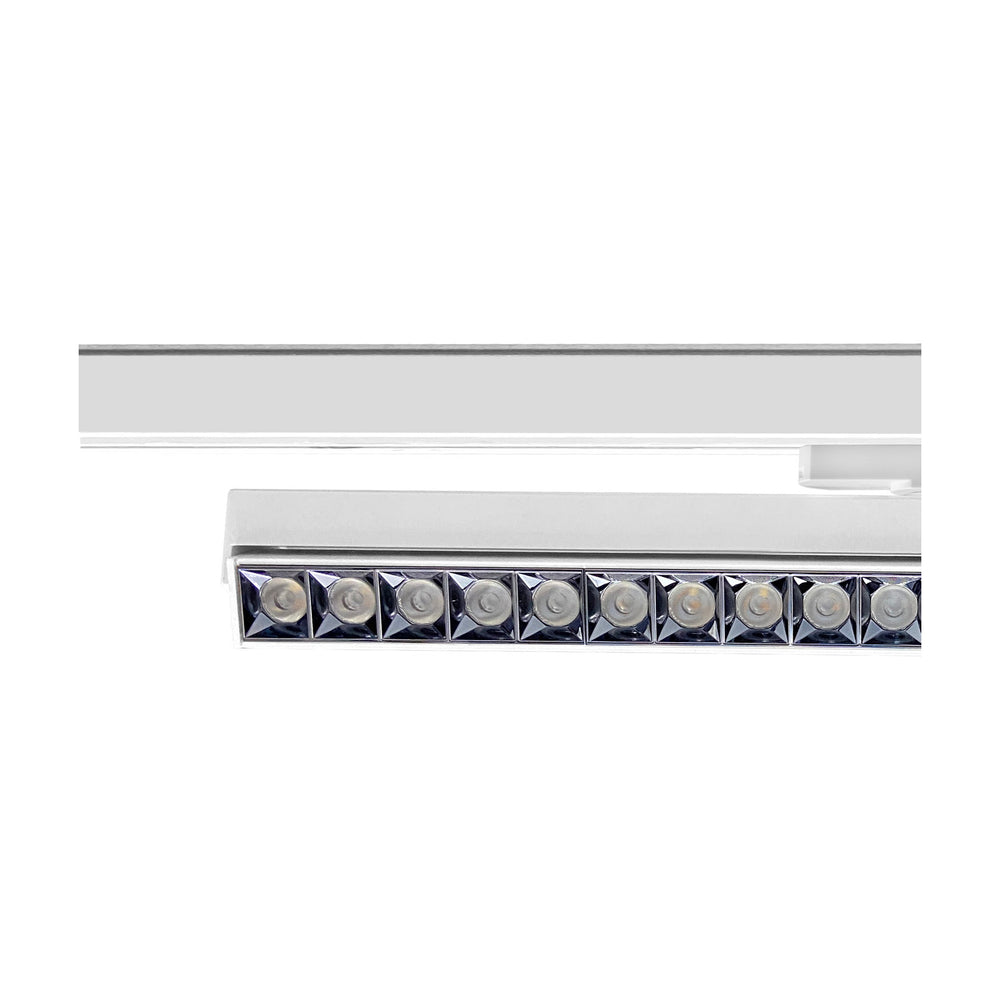

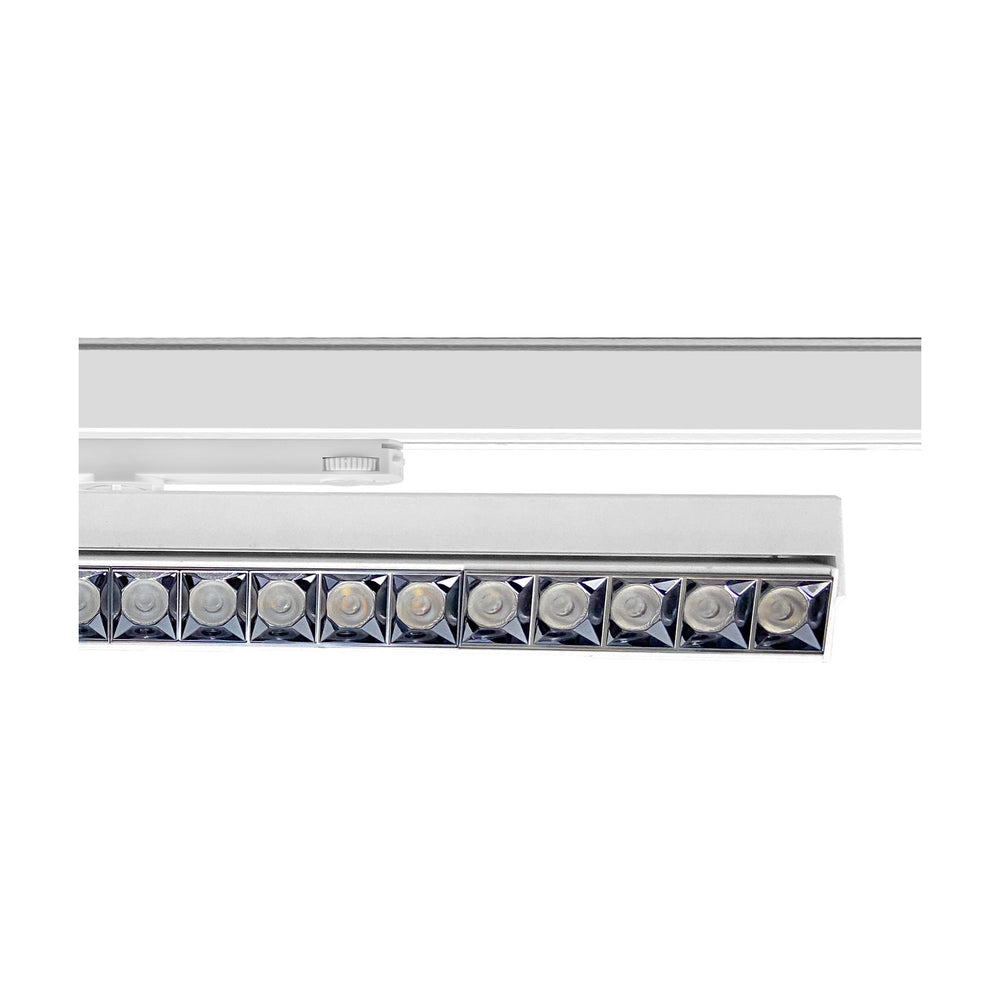

A slim white bar rather than a cluster of spots, this one throws a narrow, tidy pool of light along whatever sits beneath it. The LED sits inside the housing and runs at 30W, giving a neutral 4000K white that reads clean and bright against pale plaster, timber and stone. At 540mm it is short enough to sit in a domestic run without dominating it. Output is fixed rather than dimmed, so a simple switch is all it asks for.
We use linear track heads like this where the job is to light a surface evenly: a kitchen island, a long worktop, a run of shelving, a workbench or a picture wall. The beam is tight, so it stays where it is aimed instead of bouncing round the room. It suits kitchens, home offices, studios and small shops, and it is one we would choose over a row of separate spots when the ceiling is already busy. Being an indoor fitting, it belongs in dry rooms; keep it away from shower zones and anywhere exposed to weather.
The housing is finished in a flat white that disappears against a painted ceiling, with the driver built in so nothing extra hangs off it. Dust settles on the top edge more than the face, so wipe it down with a dry cloth once the fitting is off and cool. There is no lamp to change, as the LED is integral. It carries a three year warranty. We stock the same head in black, and both finishes are also offered in a warmer white for living rooms and bedrooms.
Specification
| Colour |
White |
| Weight |
1.10KG |
| Length |
540mm |
| Width |
40mm |
| Height |
110mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
30W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
4000K Cool White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
30000hrs |
| Qty of SMD |
1 |
| SMD Chipset |
3535 |
| LED Power (W) |
30W (±5%) |
| Lumens Per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle (°) |
42° |
| System Flux (lm) |
2400lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption (W) |
30W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
It produces around 2400 lumens from 30W, at a neutral 4000K white with a colour rendering index of 80.
How narrow is the beam?
The beam is 42 degrees, which keeps the light on a worktop, shelf or artwork rather than spilling across the whole room.
What size is it?
The body measures 540mm long, 40mm wide and 110mm high, and weighs 1.1kg.
Can it be dimmed?
No. It is a non-dimmable fitting, so it should be run from plain on/off switching rather than a dimmer.
Does the LED need replacing over time?
The LED and driver are integral and rated for 30,000 hours, so there is no lamp to buy or swap during normal use.
Is it suitable for a bathroom?
No. It is rated IP20 for dry indoor rooms only, so it should not be used in bathroom zones or outdoors.
