Description

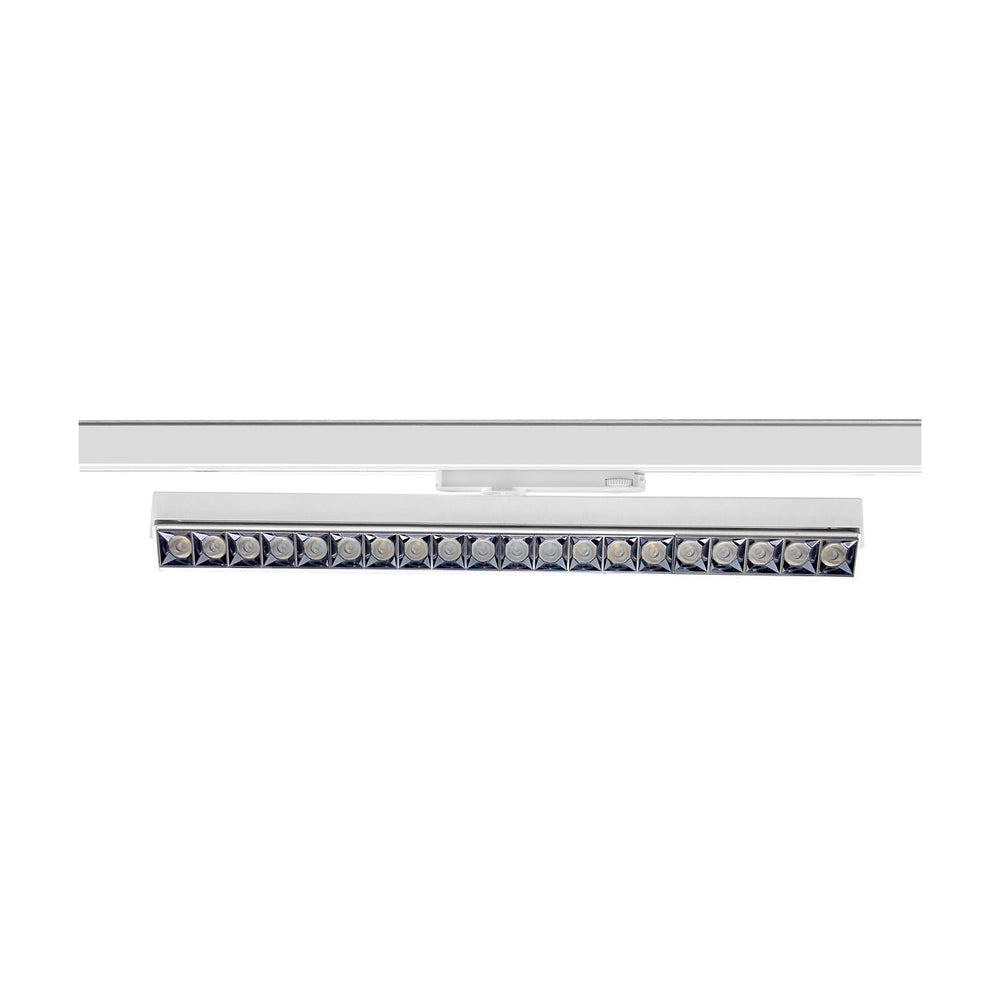

A slim rectangular head that sends its light in one direction rather than scattering it round the room. The integrated LED runs at 30W and gives 2350 lumens of warm white light, and at 540mm the body is long enough to cover a decent stretch of worktop or wall from a single position. The white finish is flat rather than glossy, so it tends to sit quietly against a pale ceiling. It is not dimmable, so it comes on at full output.
We reach for a linear head like this where round spotlights would leave scallops and dark gaps between them: over a kitchen island, along a run of open shelving, above a shop counter or a long dining table. The tight beam keeps light on the surface you want lit instead of washing the ceiling, which is why it works well on display walls and picture hangs. It belongs in dry rooms indoors, kitchens, studios, offices and hallways, rather than anywhere exposed to weather or steady damp. The driver sits inside the body, so there is nothing separate to find space for.

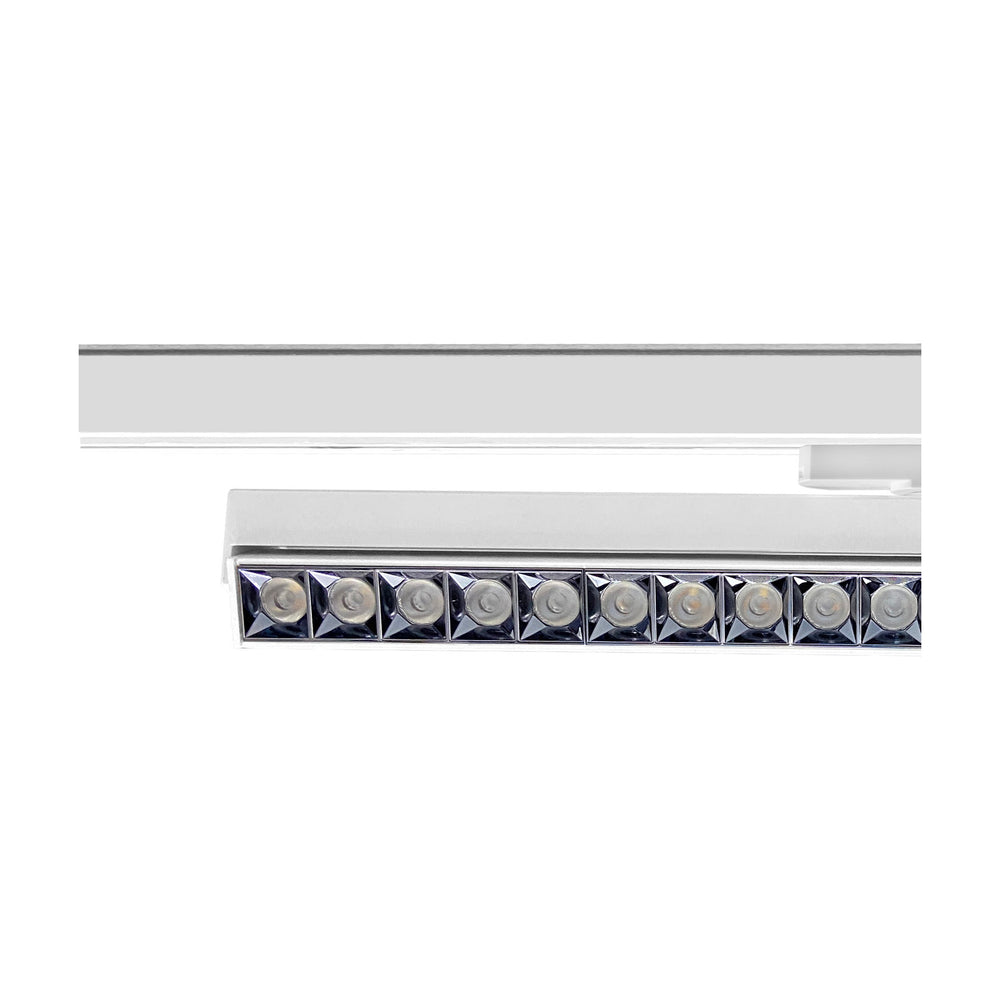

The body is a plain squared off bar, with the LED and its optic set behind the front face. Keep it looking right by switching off, letting it cool, then wiping the face and the sides with a dry cloth; dust on the lens is what dulls the output first, so give it a look every few months and keep solvents away from the coating. It carries a three year warranty. We stock the same head in black, and both finishes are also made in a cooler white light for anyone who prefers a crisper tone. The LED is built in, so there is no lamp to buy or change.
Specification
| Colour |
White |
| Weight |
1.10KG |
| Length |
540mm |
| Width |
40mm |
| Height |
110mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
30W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
30000hrs |
| Qty of SMD |
1 |
| SMD Chipset |
3535 |
| LED Power (W) |
30W (±5%) |
| Lumens Per Watt (lm/W) |
78lm/W (±5%) |
| Beam Angle (°) |
42° |
| System Flux (lm) |
2350lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption (W) |
30W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give, and how warm is it?
It produces 2350 lumens at 3000K, a warm white that reads softly against timber, brass and warm paint colours.
Can I put it on a dimmer?
No. This version is non-dimmable and should be run on a plain switched circuit.
How wide a pool of light does it make?
The beam is a fairly tight 42 degrees, so it lays a defined band of light on a worktop or wall rather than a broad wash.
What size is it?
The body is 540mm long, 40mm wide and 110mm high, and weighs 1.1kg.
Is a driver needed separately?
No, the driver is built into the fitting.
What happens when the LED reaches the end of its life?
It is rated at 30,000 hours, which is many years of normal use. The LED is not a replaceable lamp, so at that point the head itself is changed.
