Description

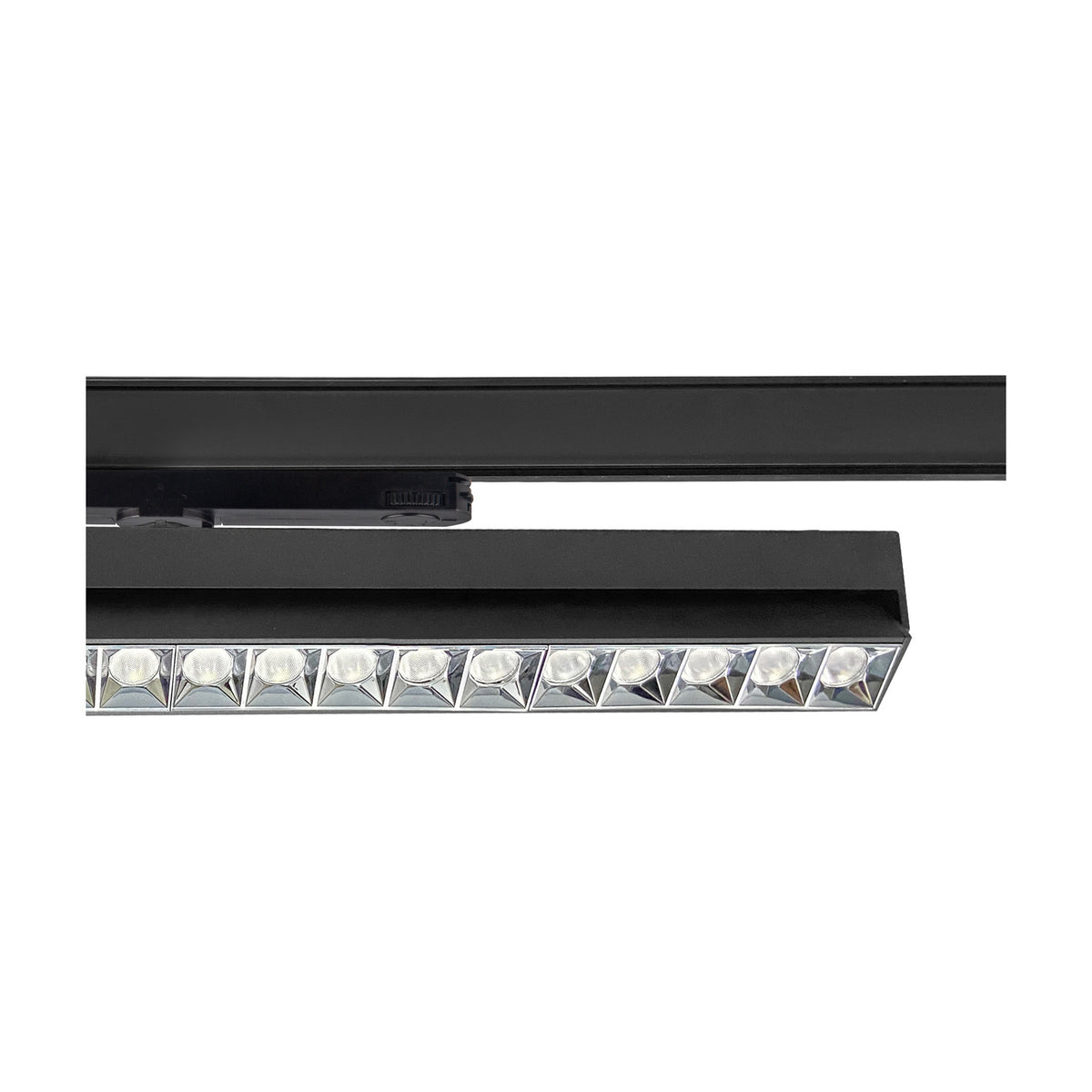

A slim bar of light rather than a round spot, this head sits on lighting track in a narrow black housing 540mm long, with the LED set behind a recessed lens so the source stays out of your eyeline. The beam is tight and directional, and at 3000K it reads warm against timber, brick and paint. It draws 30W from the track, the driver is built in, and the output is fixed rather than dimmable. We stock it in black, which all but disappears against a dark ceiling.
Linear heads suit anything long: a kitchen island, a run of worktop, a shelf of books, a counter or a display bay in a shop. Because the light comes from a line rather than a single point, shadows are softer along its length and the pool on the surface below is more even. It is one we reach for where a row of round spots would look fussy or leave scallops down a wall. Track also lets you shift heads later, so if the island moves or the shelving changes, the lighting follows.
The housing is black throughout, matt enough to keep glare off its own edges, and the narrow profile keeps it quiet on the rail. It belongs in dry rooms indoors, well away from splashing and steam. For cleaning, switch off at the mains, let the head go cold, then run a dry cloth along the body and lift dust from the lens with a soft brush; nothing wet, nothing abrasive. It carries a three year warranty. The same head is also offered in white, and in a cooler white for kitchens and workshops. The LED is fixed in place, so there is no lamp to buy.
Specification
| Colour |
Black |
| Weight |
1.10KG |
| Length |
540mm |
| Width |
40mm |
| Height |
110mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
30W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
30000hrs |
| Qty of SMD |
1 |
| SMD Chipset |
3535 |
| LED Power (W) |
30W (±5%) |
| Lumens Per Watt (lm/W) |
78lm/W (±5%) |
| Beam Angle (°) |
42° |
| System Flux (lm) |
2350lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption (W) |
30W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
Around 2350 lumens from 30W, at a warm white 3000K. The beam is a fairly narrow 42 degrees, so the light is concentrated rather than spread across a whole room.
Can it be dimmed?
No. This head is non-dimmable, so it should be run on a plain switched circuit rather than a dimmer.
How big is it on the track?
The body is 540mm long, 40mm wide and 110mm deep, and it weighs 1.1kg.
Do I need to buy a driver or a lamp?
Neither. The LED is integrated and the driver is contained within the head.
Is it suitable for a bathroom or outside?
No. It is rated for dry interior use only, so keep it to kitchens, living spaces, hallways and retail interiors.
What warranty comes with it?
It carries a three year warranty, with a rated average life of 30,000 hours.
