Description

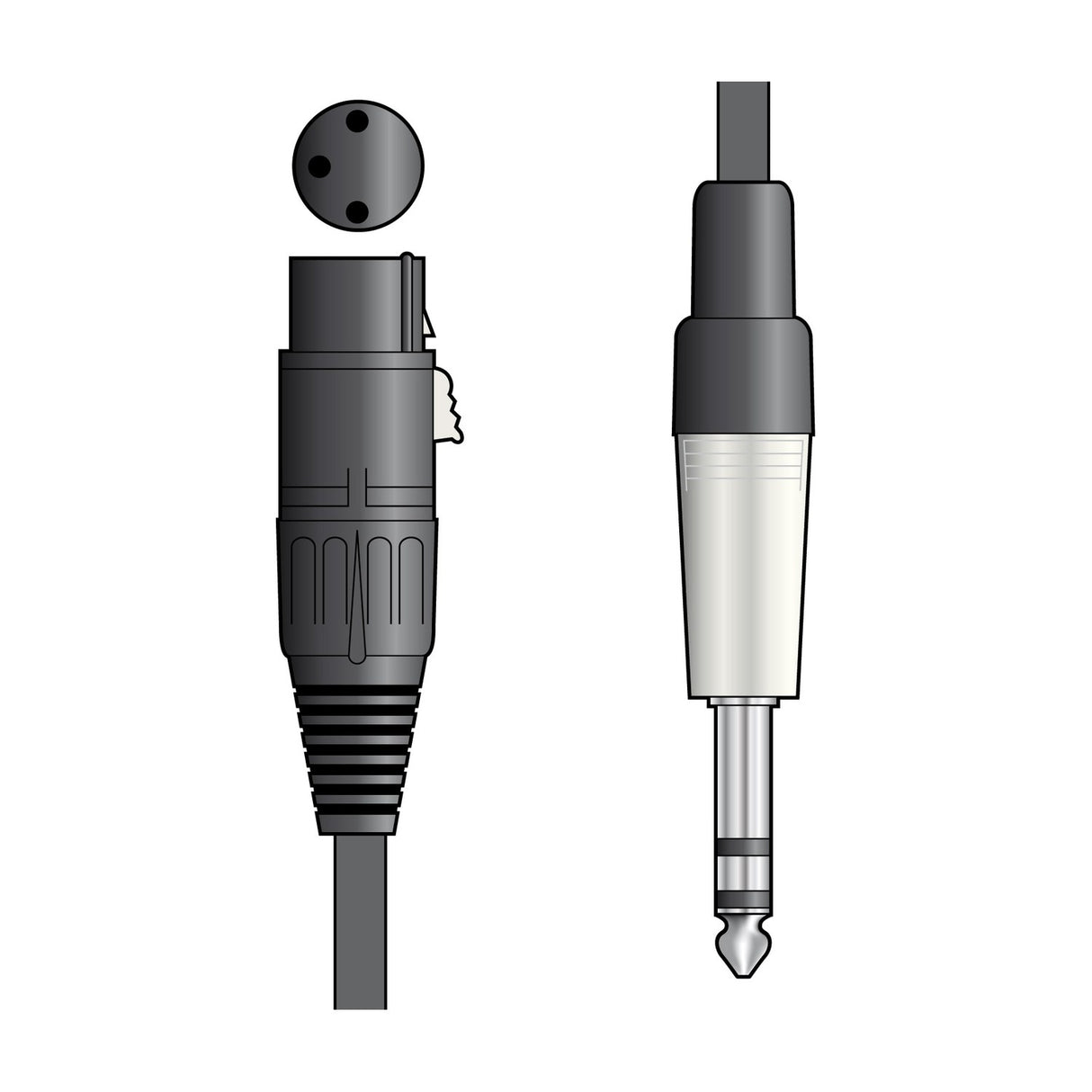

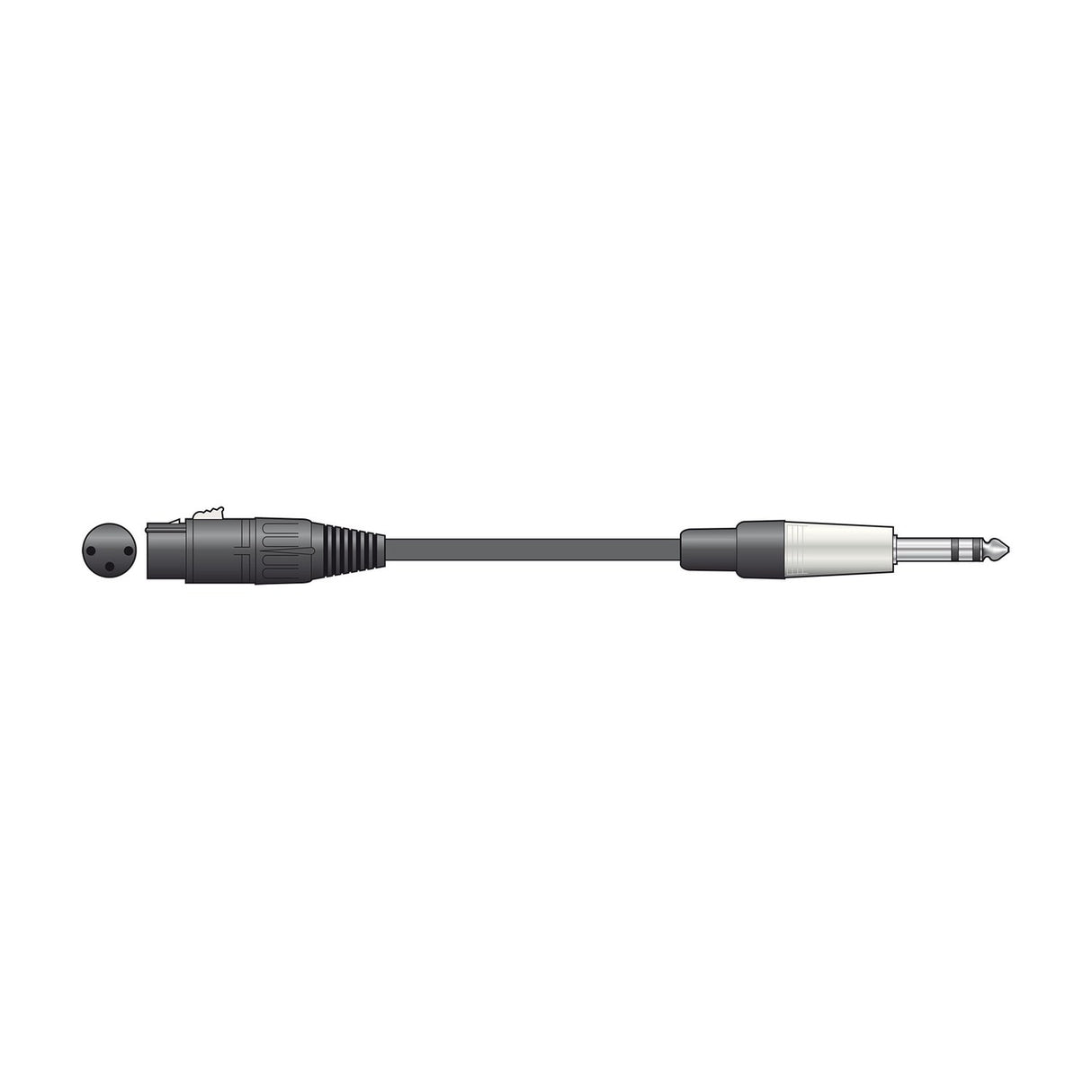

This Citronic audio lead runs from a female XLR connector to a 6.3mm stereo TRS jack plug, giving you a balanced signal path over a 3.0 metre length. The jack plug and connectors are die-cast for a solid feel and dependable contact, and the whole lead is shielded to help keep interference out of your signal. It suits stage, studio and general connection jobs where you need to link an XLR output to jack input.
We build the lead with high-grade cable, using pure copper conductors and cotton reinforcement for strength inside the jacket. The outer is a soft-grip, anti-tangle rubberised jacket that stays flexible and coils away neatly at the end of a session. Connections are machine-soldered, which keeps them consistent and reduces the weak points you can get with hand work. The cable measures 6mm in diameter, with a 15 strand 0.1mm pure copper conductor.
The 6.3mm TRS jack is often called a quarter-inch jack in the US, and TRS stands for tip-ring-sleeve, the three-contact design that carries a balanced or stereo signal. This lead pairs a standard female XLR with that jack, so it fits mixers, active speakers, DI boxes and interfaces that use these fittings. At 3.0 metres it gives useful reach without leaving too much slack to manage, and the reliable construction means it holds up to regular use.
Specification
| Length |
3.0m |
| Cable : diameter |
6mmØ |
| Conductor |
15 strand 0.1mmØ pure copper |
| Connectors |
Female XLR, 6.3mm TRS jack plug |
Frequently Asked
What connectors does this lead have?
It has a female XLR connector at one end and a 6.3mm stereo TRS jack plug at the other.
How long is the cable?
The lead is 3.0 metres long.
Is this a balanced cable?
Yes. The TRS jack and XLR are both three-contact connectors, so the lead can carry a balanced signal.
What is a TRS jack?
TRS means tip-ring-sleeve, a three-contact 6.3mm jack. In the US it is often called a quarter-inch jack.
What is the cable made from?
It uses pure copper conductors with cotton reinforcement, a shielded design and a soft-grip rubberised jacket.
Where would I use this lead?
It links XLR outputs to jack inputs on mixers, active speakers, DI boxes and audio interfaces.
