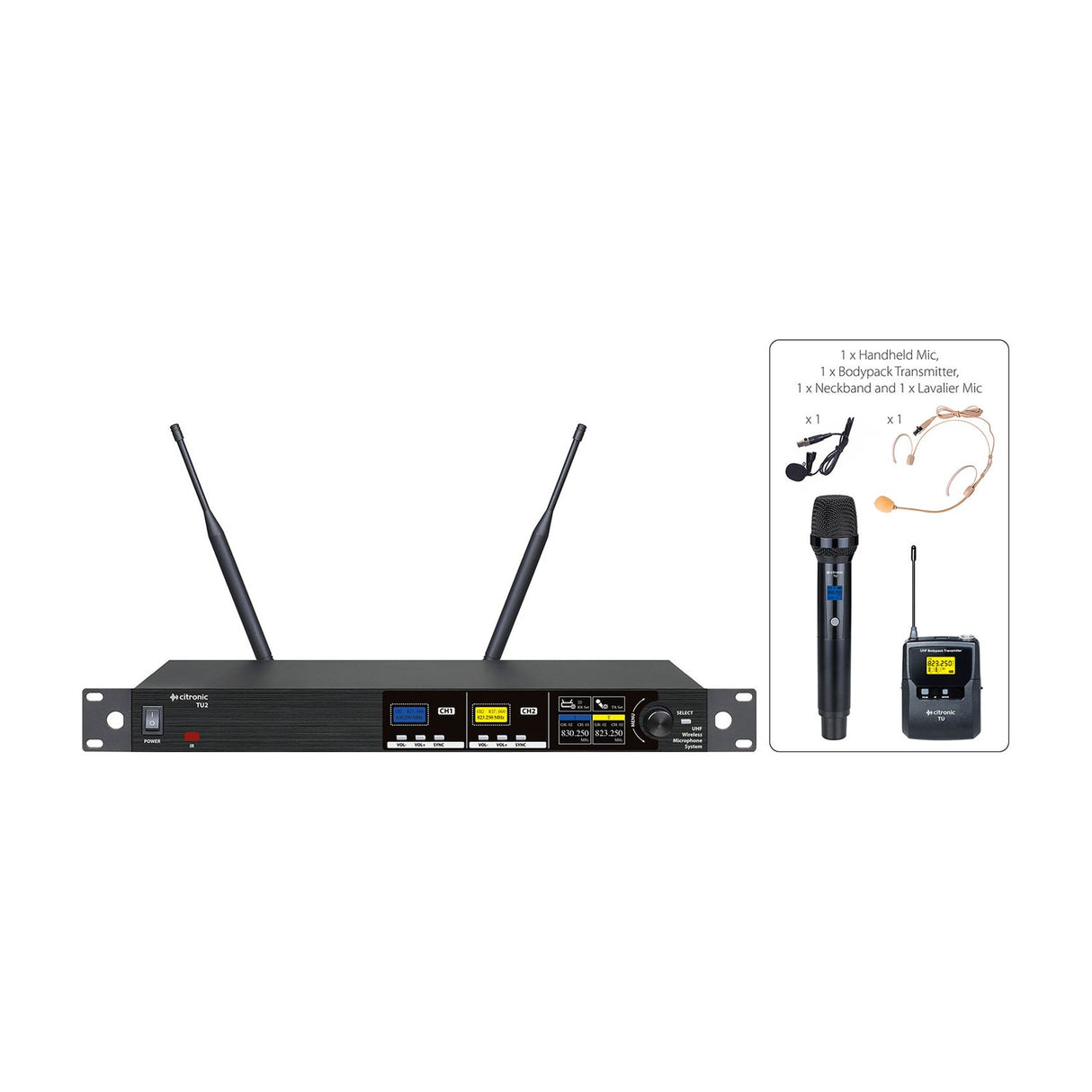

The Citronic TU2-C is a true diversity UHF wireless microphone system with two individually programmable channels. Each channel syncs wirelessly to its transmitter using an IR connection, setting the carrier frequency, EQ, transmission power and even the display backlight colour so you can tell channels apart at a glance. This dual combo set pairs one handheld microphone with one bodypack transmitter, giving you two ways to work from a single receiver.

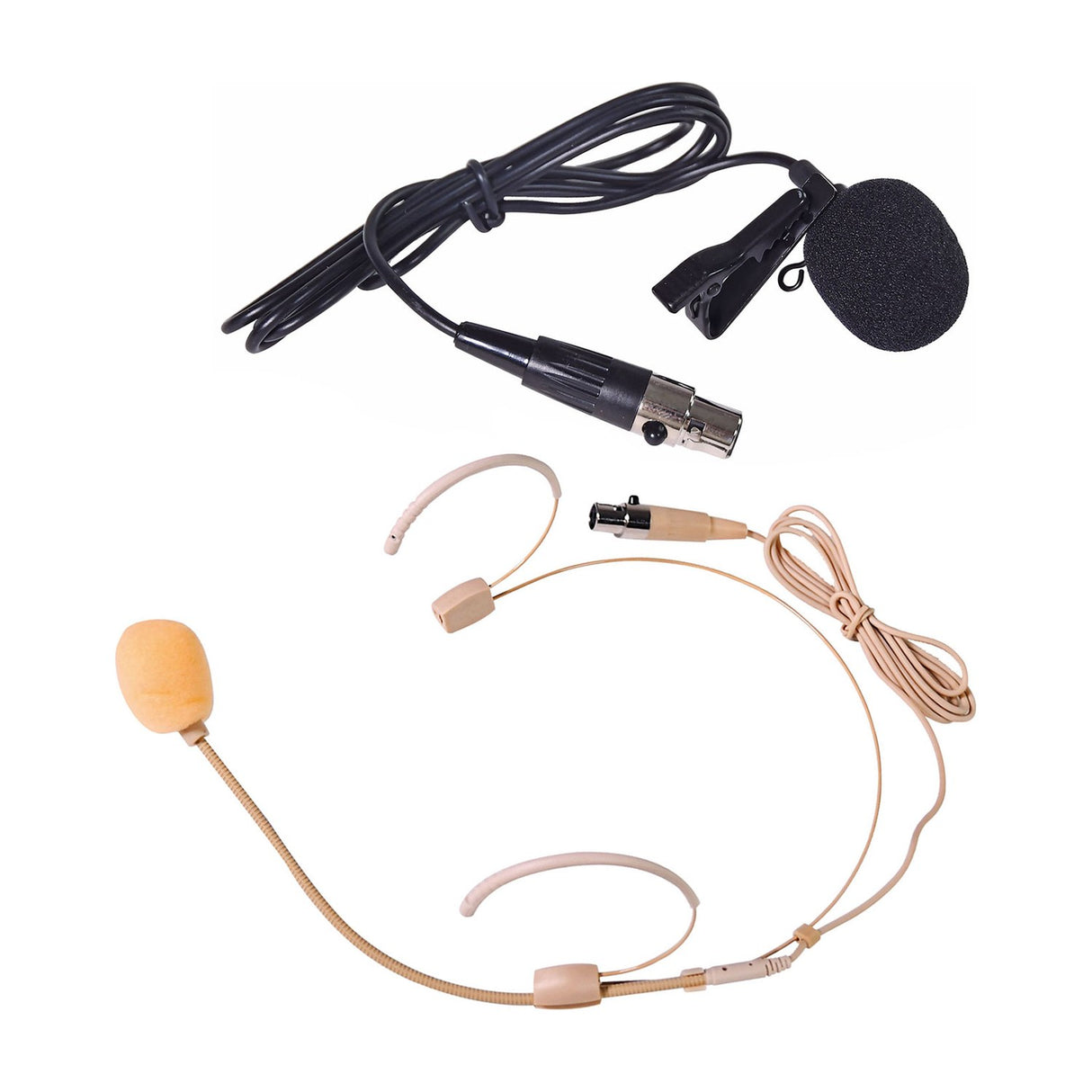

The handheld transmitter uses a dynamic capsule in a full metal housing, so it stands up to regular stage use. The bodypack version comes with both a neckband and a lavalier microphone (also called a lapel mic), both using fully balanced signal connection. Each channel has independent 7-band EQ, and the receiver offers individual XLR outputs or a single mixed jack output. Twin BNC antennas (aerials in UK terms) connect at the rear, or to the front panel via the supplied extension cables when rack-mounted in a 19" rack. An auto frequency sweep function helps you find clear channels quickly.
Operation is license-free on the 863-865MHz band across the UK and EU, with additional channel 65 frequencies (823-832MHz) available if you hold a PMSE license. Each channel is tuneable within the license-free and regulated duplex gap bands, arranged in 8 groups of 8 to 16 carrier frequencies. Settings are handled from a front panel full colour TFT display with a rotary encoder, and each channel has a further backlit display that mirrors the transmitter. Two AA batteries are supplied per transmitter. Wireless range reaches up to 60m, making the TU2-C suitable for stage performances, conferences, theatre and general vocal work.
Specification
| Carrier frequencies |
823-832 / 863-865MHz |
| Wireless range |
Up to 60m |
| Antenna connection |
2 x BNC |
| Batteries |
2 x AA per channel |
Downloads
Product Manual
Frequently Asked
What is included in the TU2-C set?
A dual channel receiver, one handheld microphone transmitter and one bodypack transmitter. The bodypack comes with both a neckband and a lavalier microphone, plus two AA batteries per transmitter and BNC extension cables.
Do I need a license to use it?
No license is needed for the 863-865MHz band in the UK and EU. The additional channel 65 frequencies (823-832MHz) require a PMSE license.
What output options does the receiver have?
You can use individual XLR outputs for each channel, or a single mixed jack output, depending on how you want to route the audio.
How far will the system transmit?
Wireless range is up to 60m, though this can vary with the environment and any obstructions between transmitter and receiver.
Can I rack-mount the receiver?
Yes. It fits a 19" rack, and the antennas can be moved to the front panel using the supplied BNC extension cables for better reception in a rack.
How do I set up frequencies?
Each channel is tuneable across 8 groups of 8 to 16 carrier frequencies. An auto frequency sweep function finds clear channels, and settings sync wirelessly to the transmitter via IR.
