Description

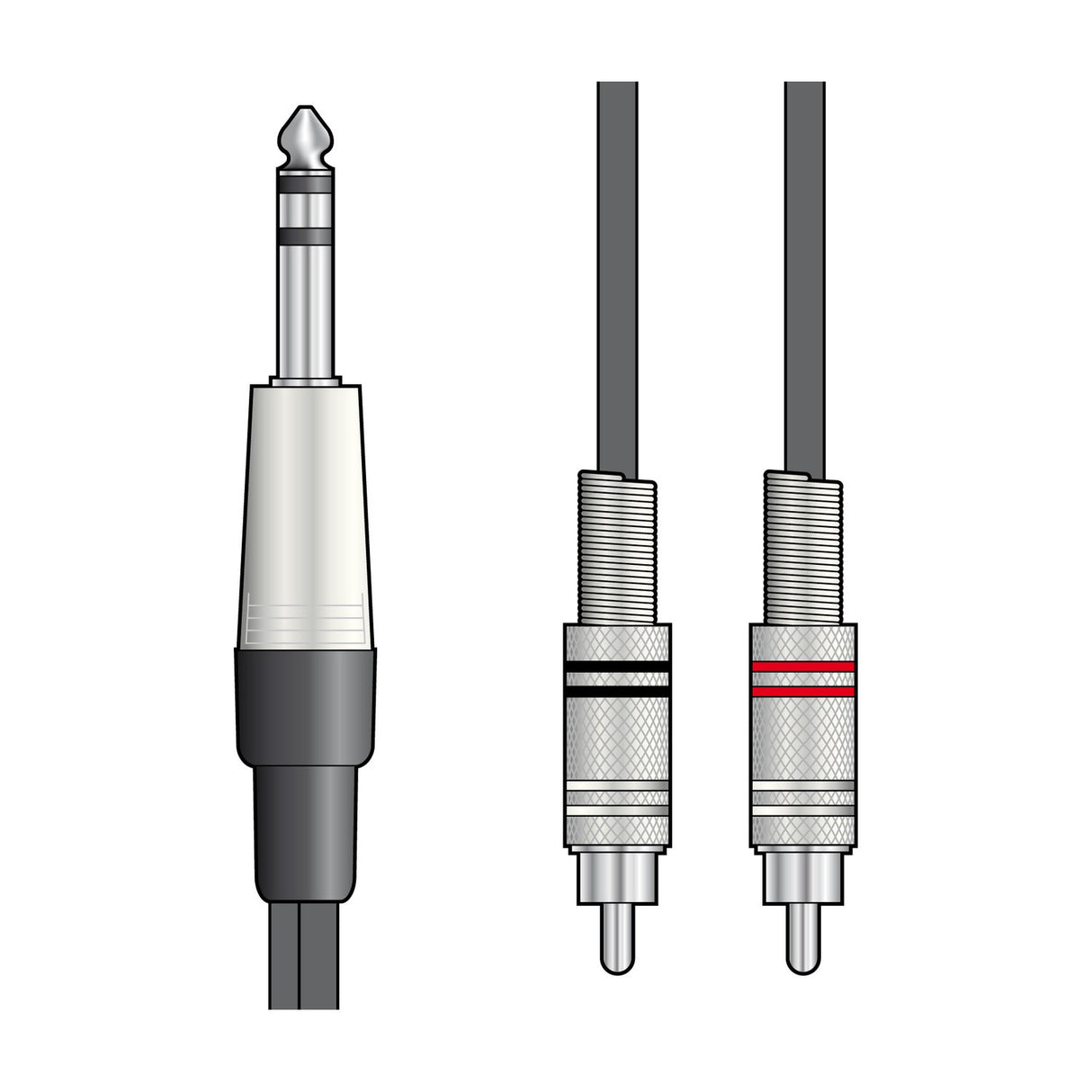

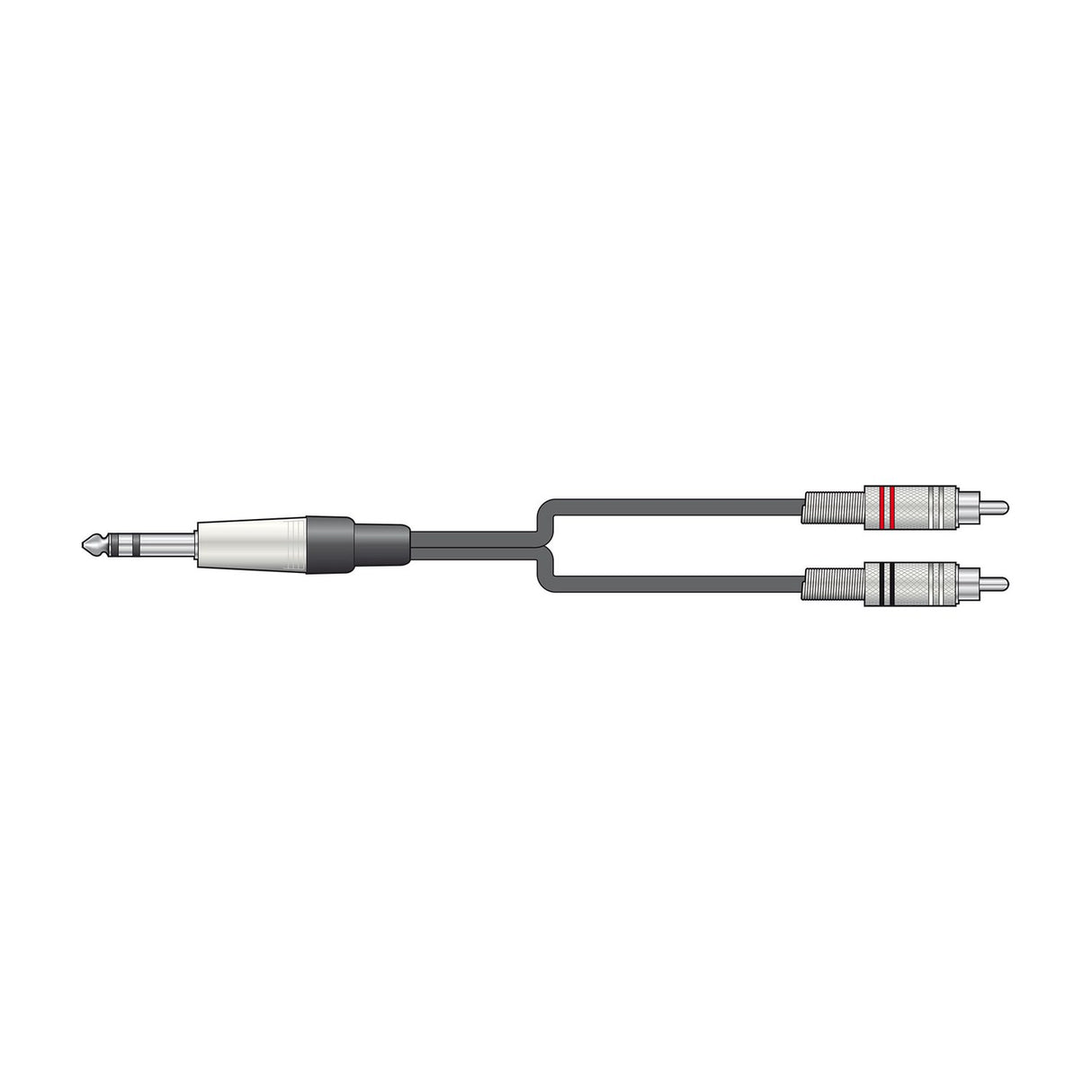

This Citronic audio lead links a stereo 6.3mm TRS jack plug to a pair of RCA phono plugs, giving you a tidy way to run stereo audio between mixers, amplifiers, sound cards and hi-fi gear. The 6.3mm plug is also known as a quarter-inch jack, and RCA plugs are sometimes called phono connectors, so this lead covers both naming conventions in one cable.
The cable itself is a twin design measuring 5mm across each core (5 x 10mm overall), built with shielding to keep interference away from your signal. Inside you get two conductors of 12-strand, 0.1mm pure copper, wrapped with cotton reinforcement for strength. The outer jacket is a soft-grip rubberised finish that resists tangling and holds up to regular handling. Connections are machine-soldered for consistency, and the RCA plugs are die-cast for a solid fit.
At 3.0m long, this lead suits both fixed installations and mobile setups where you need a bit of reach between units. The TRS jack carries a full stereo signal down a single plug, splitting out to left and right RCA plugs at the other end. It works well for connecting a laptop or DJ controller to an amplifier, feeding a recorder, or bringing a stereo source into a hi-fi input. Clear labelling on the RCA plugs makes it easy to match left and right channels.
Specification
| Length |
3.0m |
| Cable : diameter |
Twin 5mmØ (5 x 10mm) |
| Conductors |
2 x 12 strand, 0.1mmØ pure copper |
| Connectors |
6.3mm stereo (TRS) jack plug, 2 x RCA phono |
Frequently Asked
What does this lead connect?
It connects a stereo 6.3mm TRS jack plug at one end to two RCA phono plugs at the other, carrying left and right channels.
Is the 6.3mm jack the same as a quarter-inch jack?
Yes. 6.3mm and quarter-inch refer to the same plug size, and TRS means it carries a stereo signal.
How long is the cable?
The lead is 3.0m long, giving useful reach for both desk setups and mobile rigs.
What are the conductors made from?
Each conductor uses 12 strands of 0.1mm pure copper, with cotton reinforcement and shielding for strength and clean signal.
Are the RCA plugs good quality?
Yes. The RCA phono plugs are die-cast with machine-soldered connections for a solid, reliable fit.
